9iht

Crystal structure of GH57 family amylopullulanase from Aquifex aeolicus in complex with acarbose

Method: X-RAY DIFFRACTION D_max: 116.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

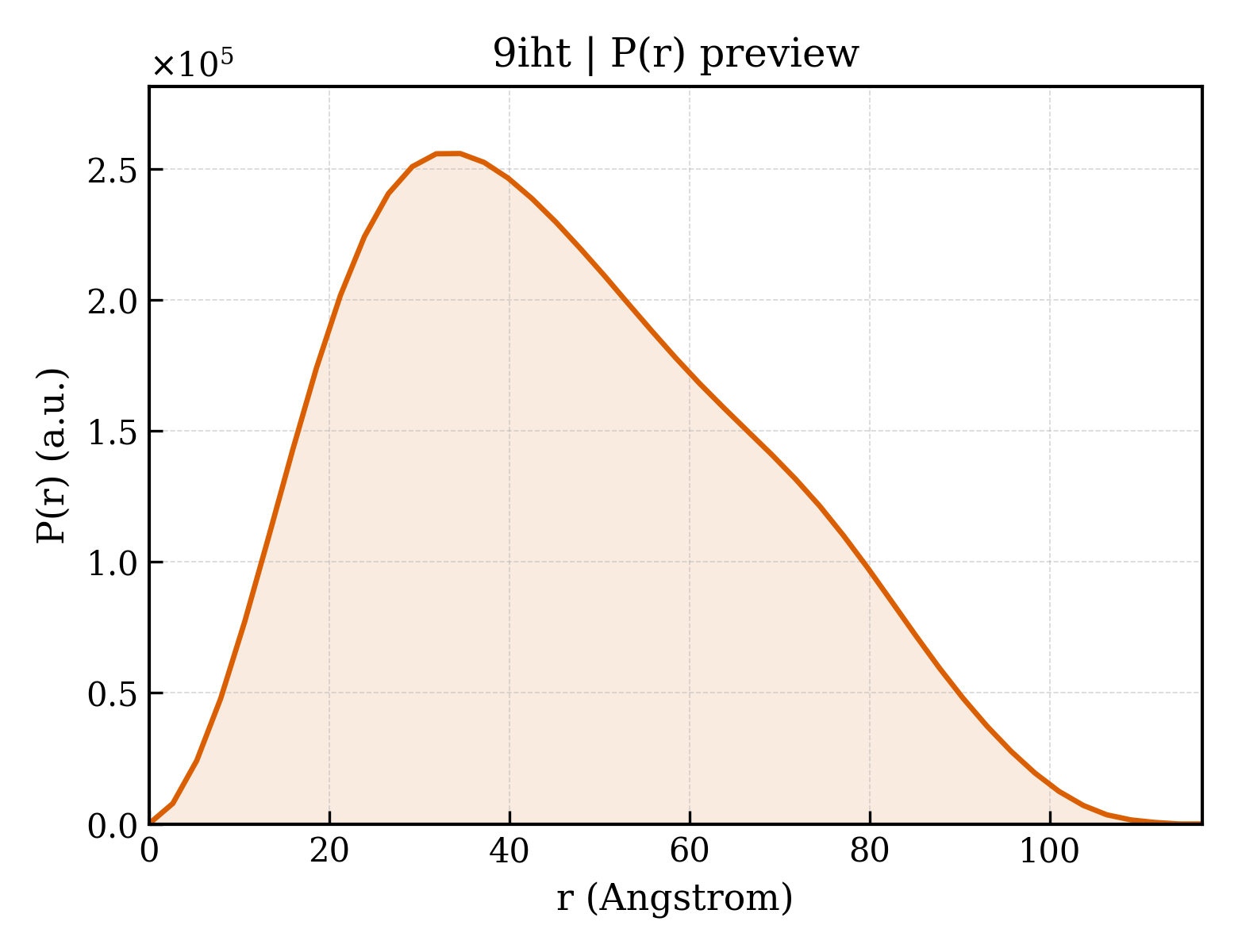

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9iht
沉积日期 deposition_date	2024-06-18
最后修订 last_revision	2025-06-04
结构标题 title	Crystal structure of GH57 family amylopullulanase from Aquifex aeolicus in complex with acarbose
关键词 keywords	GH57 family, amylopullulanase, Aquifex aeolicus, complex, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.72 Å
回转半径 Rg (电子) rg_electron	35.28 Å
零角强度 I(0) i0	181196000.00
分子量 molecular_weight	115500.0 kDa
排除体积 excluded_volume	147040 Å³
包络体积 envelope_volume	174700 Å³
水化壳体积 shell_volume	41860 Å³
包络直径 envelope_diameter	118.8 Å
壳层 Rg shell_rg	40.79 Å
包络 Rg envelope_rg	35.23 Å
形状 Rg shape_rg	35.25 Å
总 Rg total_rg	35.77 Å
总原子数 total_atoms	8188
残基数 n_residues	952
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	116.9 Å
Rg (实空间) rg_real	35.85 Å
Rg 误差 (实空间) rg_real_error	1.04 Å
I(0) (实空间) i0_real	1.8120e+08
I(0) 误差 (实空间) i0_real_error	2.9720e+06
Rg (倒空间) rg_reciprocal	35.78 Å
I(0) (倒空间) i0_reciprocal	181200000.0000
解质量估计 total_estimate	0.8701
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	34.5 Å
偏度 Skewness skewness	0.374
峰度 Kurtosis kurtosis	-0.599
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	77760000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.871; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.905; Smooth: 0.788

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Glycoside hydrolase family 57 N-terminal domain-containing protein
分子量 formula_weight	57253.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	8717

MKKLFLVFWWHMHQPLYREPYTGEYLLPWTFFHAVKDYYDMPAYLKDFEIKLNFNLTPVLIDQIQEYAQGKAKDVFLEAIRKDPDDLEKEEVEKLIEFTKLNYEKPIYRFERIRELMNKEKLNREELLDLQTLNLLAWCGRTLRKDLKDLLNKGRNYTQEEKEYVLNKYFEIIKKTLSIYREIKEEGKGSVSTSPYYHPLIPILLNPNCVYETTPNVKIPDFAVSFREDASKHVELAKEKYFEIFGEHPVYMWPPEASVSNEALELYYEKGINMLATDEVILKNSVERASPYLRYYFRELISVFFRDKTLSDLIGFSYHAWNAEDAVRDFIGRLKKIHESVDFQPVVFVVLDGENCWEYYEENGIPFLEKLYSTLEKEEWIETLTLEEAMRKEDVKTEVIESVKAGTWFDGNFLKWIGNKEKNEYWKILIEAKKKAKNDYILVAEGSDWFWWQGEEKAPFVEVFDKLFRSFVRRAQE

来源 Source

来源生物 organism	Aquifex aeolicus VF5
NCBI 分类编号 ncbi_taxonomy_id	224324
宿主生物 host_organism	Escherichia coli

Entity 2 branched

描述 description	;4,6-dideoxy-4-{[(1S,4R,5S,6S)-4,5,6-trihydroxy-3-(hydroxymethyl)cyclohex-2-en-1-yl]amino}-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose ;
分子量 formula_weight	645.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	485

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	60.931 Å
晶胞边长 b length_b	40.109 Å
晶胞边长 c length_c	195.144 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	95.80 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 2 1
空间群编号 int_tables_number	3
晶系 crystal_system	—

分辨率 resolution	1.692 Å
最低分辨率 resolution_low	60.619 Å
R 因子 r_factor	0.1723
R_work r_work	0.1709
R_free r_free	0.2002
