9ii8

Crystal structure of Staphylococcus aureus DinG protein in complex with ssDNA

Method: X-RAY DIFFRACTION D_max: 98.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ii8
沉积日期 deposition_date	2024-06-19
最后修订 last_revision	2025-06-25
结构标题 title	Crystal structure of Staphylococcus aureus DinG protein in complex with ssDNA
关键词 keywords	helicase, nuclease, HYDROLASE/DNA, HYDROLASE-DNA complex; HYDROLASE/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.08 Å
回转半径 Rg (电子) rg_electron	32.05 Å
零角强度 I(0) i0	163516000.00
分子量 molecular_weight	105420.0 kDa
排除体积 excluded_volume	133470 Å³
包络体积 envelope_volume	174300 Å³
水化壳体积 shell_volume	44355 Å³
包络直径 envelope_diameter	108.1 Å
壳层 Rg shell_rg	39.99 Å
包络 Rg envelope_rg	31.39 Å
形状 Rg shape_rg	32.02 Å
总 Rg total_rg	32.84 Å
总原子数 total_atoms	7432
残基数 n_residues	900
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

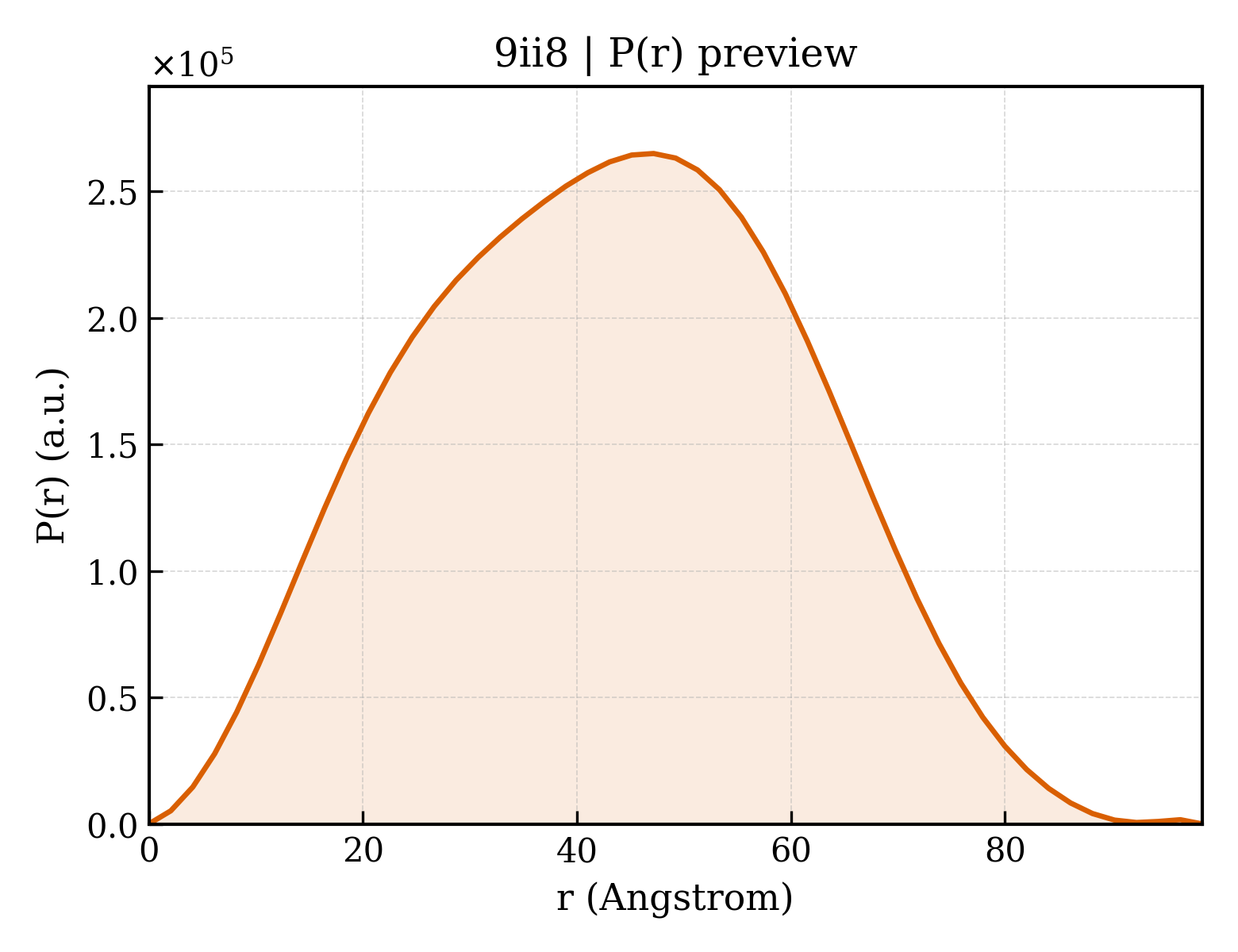

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	98.5 Å
Rg (实空间) rg_real	32.83 Å
Rg 误差 (实空间) rg_real_error	0.55 Å
I(0) (实空间) i0_real	1.6350e+08
I(0) 误差 (实空间) i0_real_error	2.2130e+06
Rg (倒空间) rg_reciprocal	32.94 Å
I(0) (倒空间) i0_reciprocal	163500000.0000
解质量估计 total_estimate	0.6925
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	47.2 Å
偏度 Skewness skewness	0.032
峰度 Kurtosis kurtosis	-0.651
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	47860000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.967; Stabil: 1.000; Sysdev: 0.049; Positv: 1.000; Valcen: 0.992; Smooth: 0.958

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	;DNA (5'-D(PTPTPTPT)-3') ;
分子量 formula_weight	1171.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	B
原子数 atom_count	7432

TTTT

Entity 2 polymer

描述 description	;3'-5' exonuclease DinG ;
分子量 formula_weight	104475.5 kDa
EC 编号 ec_number	3.1.-.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MGMATYAVVDLETTGNQLDFDDIIQIGITFVRNNQIIDTYHSMIRTNLEIPPFIQALTSIEENMLQQAPYFNQVAQEIYDKIKDCIFVAHNVDFDLNFIKKAFKDCNIQYRPKKVIDTLEIFKIAFPTDKSYQLSELAEAHGITLANAHRADEDAATTAKLMILAFEKFEKLPLDTLKQLYYLSKQLKYDLYDIFFEMVRQYDAKPLDKFYEKFEQIIYRKQVDFKKPTTNYNGSLKSLYRKAVDQLGLTYRPQQLYLAETILDQLMHSEKAMIEASLGSGKSLAYLLAALMYNIETGKHVMISTNTKLLQSQLLEKDIPAMNEALNFKINALLIKSKSDYISLGLISQILKDDTSNYEVNILKMQLLIWITETPSGDIQELNLKGGQKMYFDQKIETYVPARHDVHYYNFIKRNAQNIQIGITNHAHLIHSDVENSIYQLFDDCIVDEAHRLPDYALNQVTNELSYADIKYQLGLIGKNENEKLLKAIDQLEKQRILEKLDIAPIDIFGLKASMNEIHELNEQLFSTIFTIINDSDVYDDDIHRFHNVFTFETKDILKDLHAIIDKLNKTLEIFNGISHKTVKSLRKQLLYLKDKFKNIEQSLKAGHTSFISIKNLSQKSTIRLYVKDYAVKDVLTKQVLEKFKSLIFISGTLKFNHSFEAFKQLFNKDVHFNTFEVNTSLQSAKNTSVFIPSDVASYQYKNIDEYVASIVSYIIEYTTITSSKCLVLFTSYKMMHMVQDMLNELPEFEDYVVLTQQQNQNYKIVQQFNNFDKAILLGTSTFFEGFDFQANGIKCVMIAKLPFMNKHNAKYWLMDSEFTSTFKEYVLPDAVTRFRQGLGRLIRNENDRGIIVSFDDRLINSNYKNFFEQTLENYRQKKGDIQQFGKLLRQIQKKKK

来源 Source

来源生物 organism	Staphylococcus aureus (strain NCTC 8325 / PS 47)
NCBI 分类编号 ncbi_taxonomy_id	93061
宿主生物 host_organism	Escherichia coli

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	229.170 Å
晶胞边长 b length_b	229.170 Å
晶胞边长 c length_c	128.030 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	I 4 2 2
空间群编号 int_tables_number	97
晶系 crystal_system	tetragonal

分辨率 resolution	3.160 Å
最低分辨率 resolution_low	111.770 Å
R 因子 r_factor	0.2699
R_work r_work	0.2687
R_free r_free	0.2930
