9iie

Cryogenic Temperature Crystal Structure of Fc Fragment of Human IgG1 from Biosimilar VEGF-Trap

Method: X-RAY DIFFRACTION D_max: 78.9 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

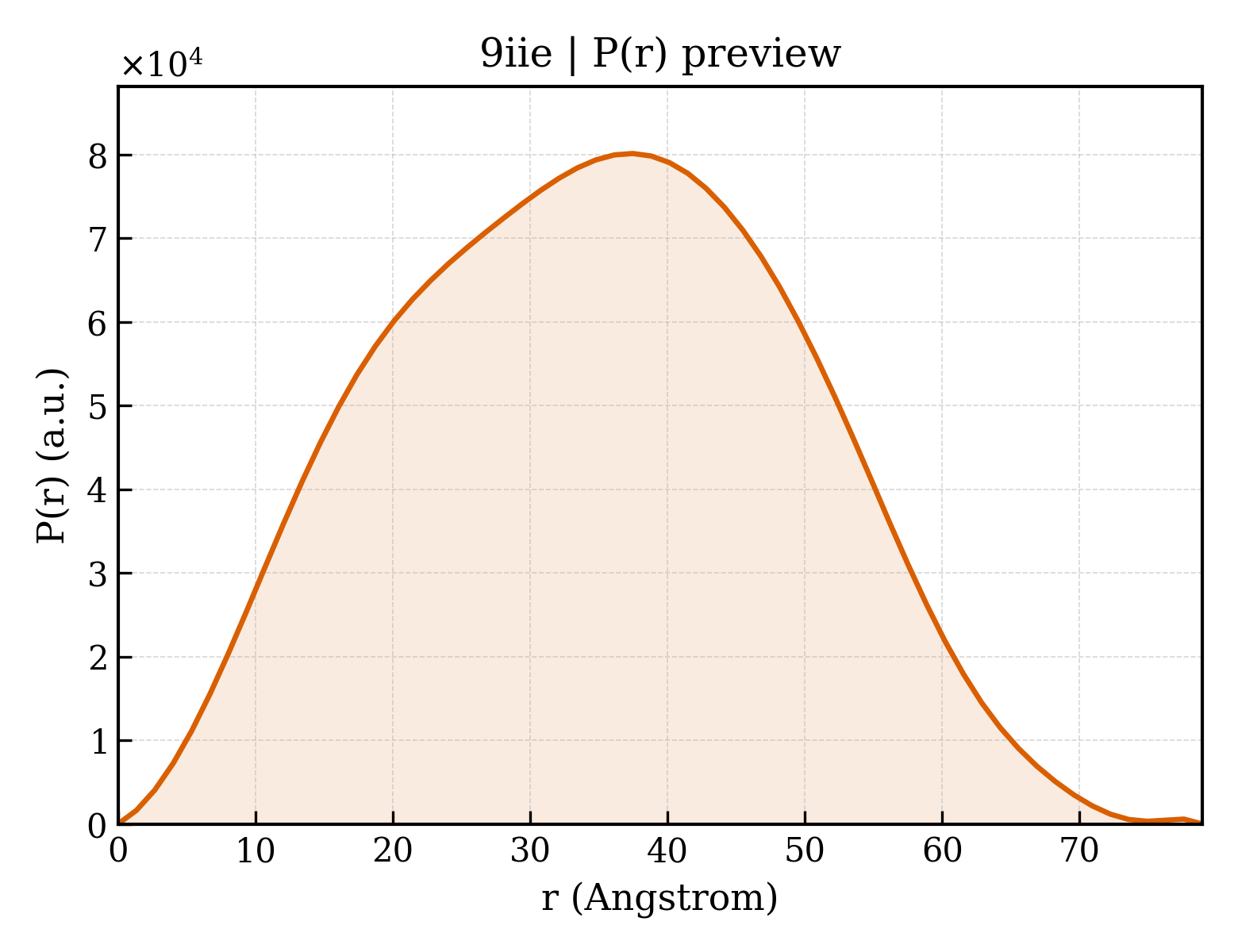

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9iie
沉积日期 deposition_date	2024-06-20
结构标题 title	Cryogenic Temperature Crystal Structure of Fc Fragment of Human IgG1 from Biosimilar VEGF-Trap
关键词 keywords	N-glycans, immunoglobulin, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.79 Å
回转半径 Rg (电子) rg_electron	25.49 Å
零角强度 I(0) i0	41075800.00
分子量 molecular_weight	49897.0 kDa
排除体积 excluded_volume	62565 Å³
包络体积 envelope_volume	82707 Å³
水化壳体积 shell_volume	26827 Å³
包络直径 envelope_diameter	80.9 Å
壳层 Rg shell_rg	33.08 Å
包络 Rg envelope_rg	24.99 Å
形状 Rg shape_rg	25.50 Å
总 Rg total_rg	26.36 Å
总原子数 total_atoms	3513
残基数 n_residues	414
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	78.9 Å
Rg (实空间) rg_real	26.63 Å
Rg 误差 (实空间) rg_real_error	0.39 Å
I(0) (实空间) i0_real	4.1080e+07
I(0) 误差 (实空间) i0_real_error	5.0360e+05
Rg (倒空间) rg_reciprocal	26.68 Å
I(0) (倒空间) i0_reciprocal	41080000.0000
解质量估计 total_estimate	0.7327
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.5 Å
偏度 Skewness skewness	0.041
峰度 Kurtosis kurtosis	-0.670
角度范围 angular_range	— – 0.2950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	5613000.0000
实空间数据点数 n_real_points	60
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.984; Stabil: 1.000; Sysdev: 0.199; Positv: 1.000; Valcen: 1.000; Smooth: 0.972

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Immunoglobulin gamma-1 heavy chain
分子量 formula_weight	23634.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	3543

GPSVFLFPPKPKDTLMISRTPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAKTKPREEQYNSTYRVVSVLTVLHQDWLNGKEYKCKVSNKALPAPIEKTISKAKGQPREPQVYTLPPSRDELTKNQVSLTCLVKGFYPSDIAVEWESNGQPENNYKTTPPVLDSDGSFFLYSKLTVDKSRWQQGNVFSCSVMHEALHNHYTQKSLSLS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 branched

描述 description	;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1625.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1260.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	30

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	49.920 Å
晶胞边长 b length_b	80.480 Å
晶胞边长 c length_c	137.070 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.140 Å
最低分辨率 resolution_low	23.840 Å
R 因子 r_factor	0.2621
R_work r_work	0.2567
R_free r_free	0.3086
