9iln

ADP-ribosyltransferase 1 (PARP1) catalytic domain bound to a pyrimidine 2,4-diketone derivative inhibitor

Method: X-RAY DIFFRACTION D_max: 110.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

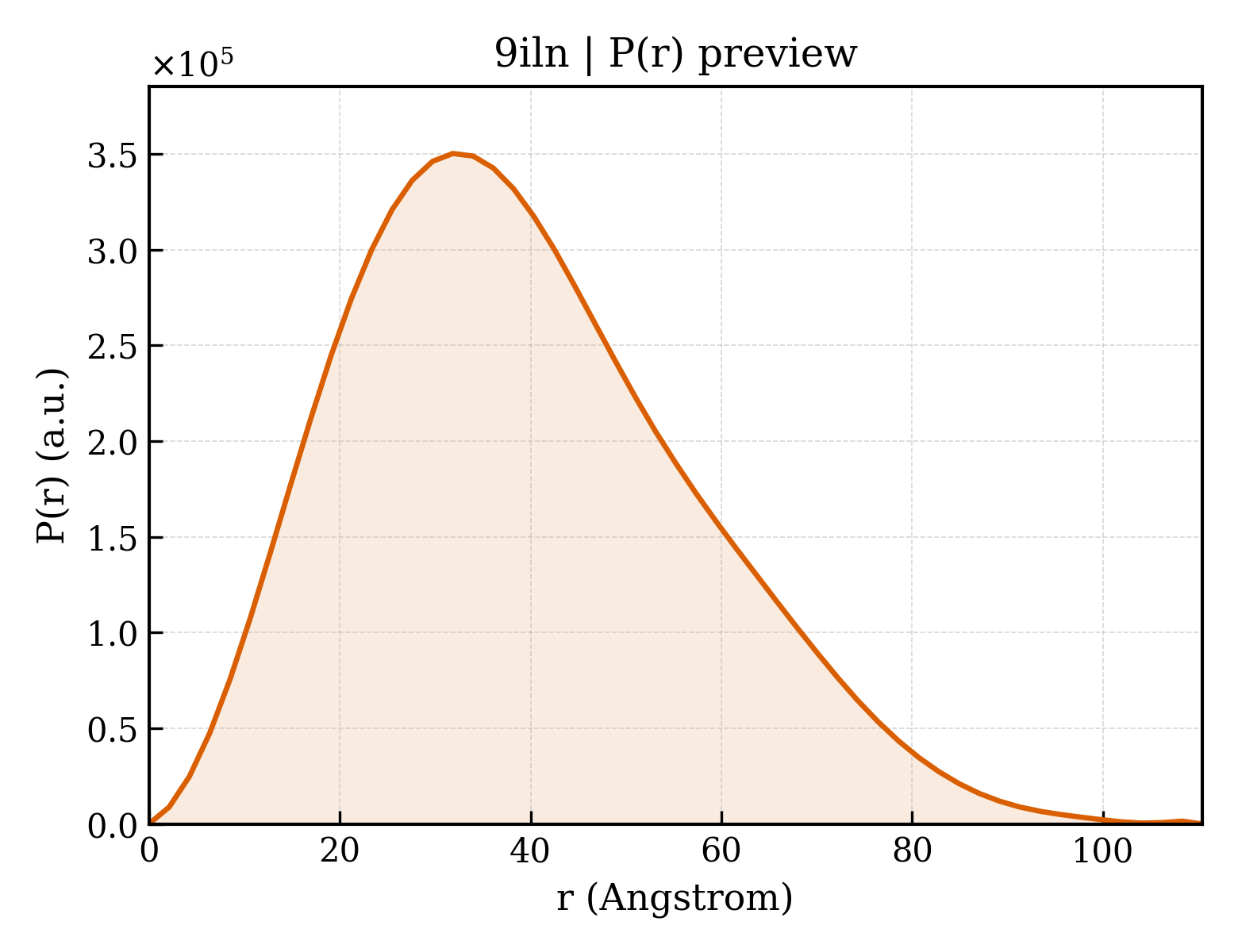

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9iln
沉积日期 deposition_date	2024-07-01
最后修订 last_revision	2025-07-09
结构标题 title	ADP-ribosyltransferase 1 (PARP1) catalytic domain bound to a pyrimidine 2,4-diketone derivative inhibitor
关键词 keywords	ADP-ribosyltransferase 1, PARP1, inhibitor, pyrimidine 2, 4-diketone derivative, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.26 Å
回转半径 Rg (电子) rg_electron	29.82 Å
零角强度 I(0) i0	194816000.00
分子量 molecular_weight	74112.0 kDa
排除体积 excluded_volume	71664 Å³
包络体积 envelope_volume	125650 Å³
水化壳体积 shell_volume	35723 Å³
包络直径 envelope_diameter	115.2 Å
壳层 Rg shell_rg	36.17 Å
包络 Rg envelope_rg	30.04 Å
形状 Rg shape_rg	29.78 Å
总 Rg total_rg	30.33 Å
总原子数 total_atoms	5610
残基数 n_residues	704
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	110.4 Å
Rg (实空间) rg_real	30.38 Å
Rg 误差 (实空间) rg_real_error	1.03 Å
I(0) (实空间) i0_real	1.9480e+08
I(0) 误差 (实空间) i0_real_error	2.9630e+06
Rg (倒空间) rg_reciprocal	30.33 Å
I(0) (倒空间) i0_reciprocal	194800000.0000
解质量估计 total_estimate	0.8307
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.9 Å
偏度 Skewness skewness	0.492
峰度 Kurtosis kurtosis	-0.152
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	24940000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.662; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.843; Smooth: 0.965

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Poly [ADP-ribose] polymerase 1, processed C-terminus
分子量 formula_weight	39555.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	5801

GPMTKSKLPKPVQDLIKMIFDVESMKKAMVEYEIDLQKMPLGKLSKRQIQAAYSILSEVQQAVSQGSSDSQILDLSNRFYTLIPHDFGMKKPPLLNNADSVQAKAEMLDNLLDIEVAYSLLRGGSDDSSKDPIDVNYEKLKTDIKVVDRDSEEAEIIRKYVKNTHATTHNAYDLEVIDIFKIEREGECQRYKPFKQLHNRRLLWHGSRTTNFAGILSQGLRIAPPEAPVTGYMFGKGIYFADMVSKSANYCHTSQGDPIGLILLGEVALGNMYELKHASHISKLPKGKHSVKGLGKTTPDPSANISLDGVDVPLGTGISSGVNDTSLLYNEYIVYDIAQVNLKYLLKLKFNFKT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	5-ethyl-1-[[3-[(3~{R})-4-ethyl-3-(2-hydroxyethyl)piperazin-1-yl]carbonyl-4-fluoranyl-phenyl]methyl]pyrimidine-2,4-dione
分子量 formula_weight	432.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	191

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	48.505 Å
晶胞边长 b length_b	91.967 Å
晶胞边长 c length_c	164.079 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	2.490 Å
最低分辨率 resolution_low	37.460 Å
R 因子 r_factor	0.1950
R_work r_work	0.1922
R_free r_free	0.2501
