9ink

Crystal structure of beta-carotene-binding protein (BBP) from Schistocerca gregaria complexed with beta-carotene

Method: X-RAY DIFFRACTION D_max: 136.6 Å Quality: REASONABLE

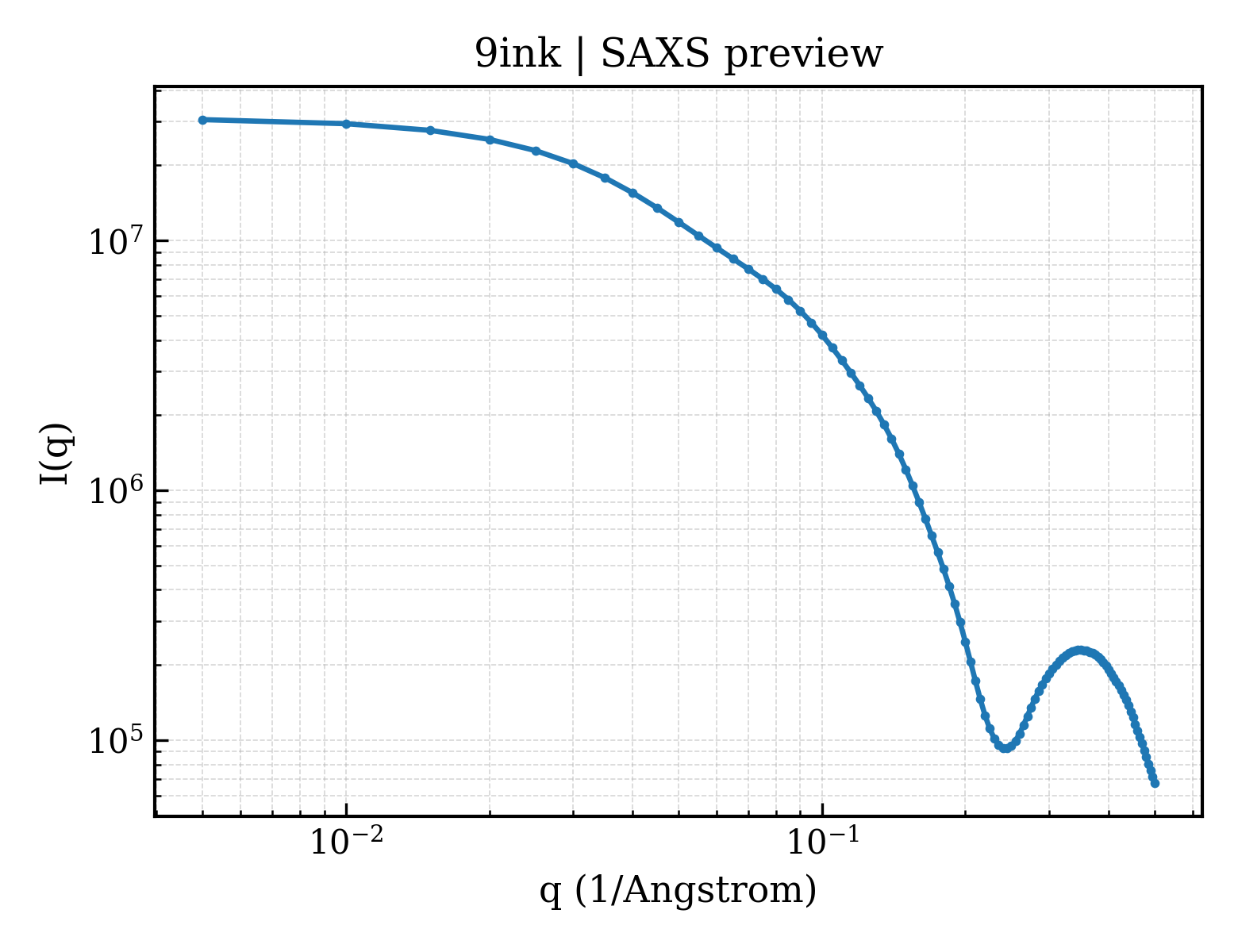

SAXS 散射曲线 SAXS Profile

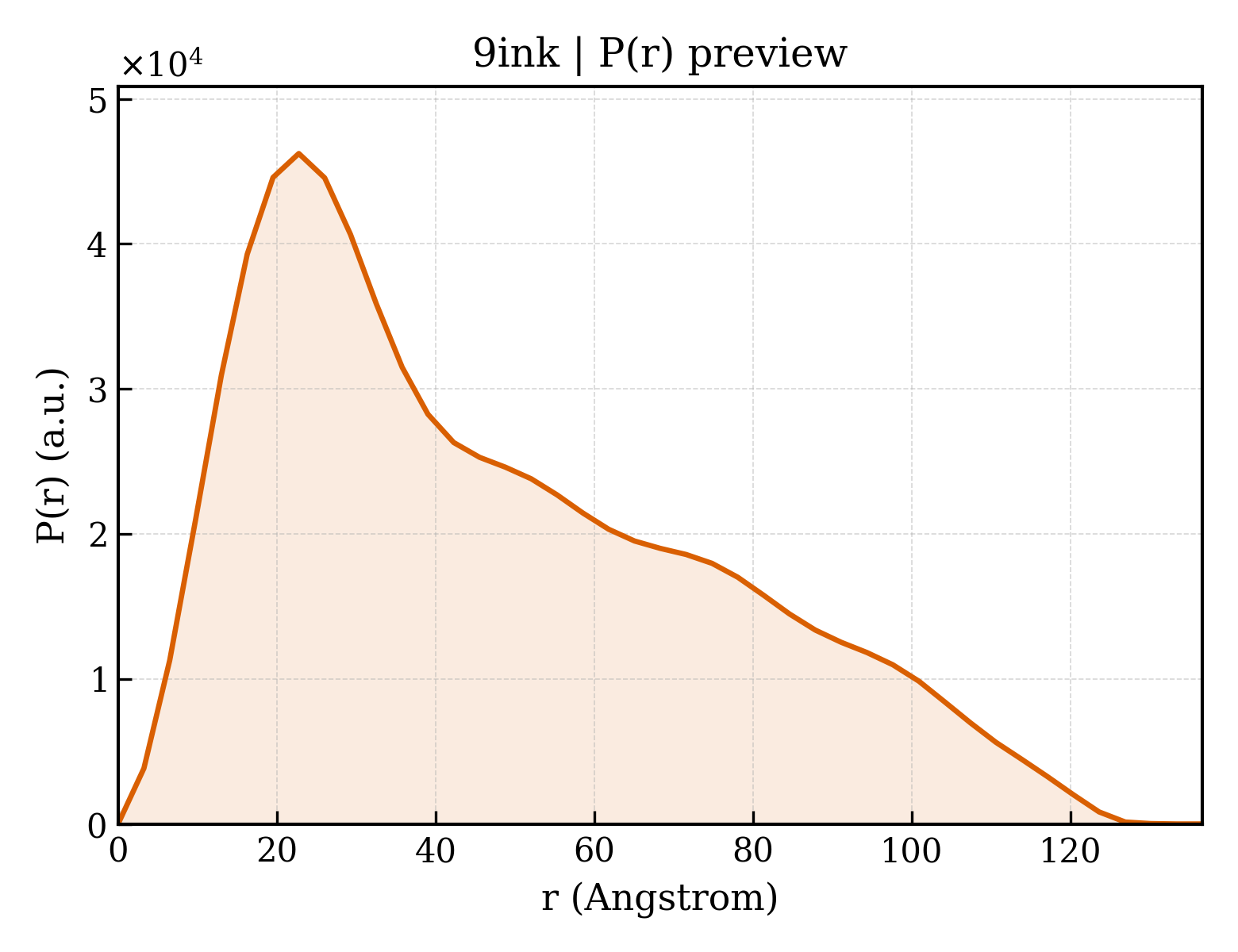

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ink
沉积日期 deposition_date	2024-07-08
结构标题 title	Crystal structure of beta-carotene-binding protein (BBP) from Schistocerca gregaria complexed with beta-carotene
关键词 keywords	;Complex with beta-carotene, carotenoprotein, takeout-1 domain, tubular lipid-binding protein (TULIPs), carotenoid solubilizer, dimer, LIPID BINDING PROTEIN ;; LIPID BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.79 Å
回转半径 Rg (电子) rg_electron	37.95 Å
零角强度 I(0) i0	30864000.00
分子量 molecular_weight	46303.0 kDa
排除体积 excluded_volume	58940 Å³
包络体积 envelope_volume	76499 Å³
水化壳体积 shell_volume	20551 Å³
包络直径 envelope_diameter	130.9 Å
壳层 Rg shell_rg	35.10 Å
包络 Rg envelope_rg	38.51 Å
形状 Rg shape_rg	37.91 Å
总 Rg total_rg	37.84 Å
总原子数 total_atoms	3269
残基数 n_residues	441
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	136.6 Å
Rg (实空间) rg_real	38.79 Å
Rg 误差 (实空间) rg_real_error	1.98 Å
I(0) (实空间) i0_real	3.0860e+07
I(0) 误差 (实空间) i0_real_error	5.4740e+05
Rg (倒空间) rg_reciprocal	38.17 Å
I(0) (倒空间) i0_reciprocal	30840000.0000
解质量估计 total_estimate	0.5659
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	22.8 Å
偏度 Skewness skewness	0.618
峰度 Kurtosis kurtosis	-0.595
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4757000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.105; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.040; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Yellow protein of the takeout family
分子量 formula_weight	26239.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	3274

GPHMGVQTCNASSPDFQLCVRASLQQLIPELASGVPSIGAEGVDPLRGLPPIVHNSNGFKVQLDDVSISGLSATLINDVNVDLTSNTIRIQATVPGYITATGIQTTDAEIMGIPLKGSGPFTISLANPSLAVTLTGAPSAGPNGQTYLRLTSASAAIEPGTPTADIKGFFPQFPPLEAAASAFASVVAPDVVQSLKPTLDKWLGGVALQRAQAVFSSVSYDALFPGRTPAAVGLYRAVPGLHTLPLPLSAFAYHK

来源 Source

来源生物 organism	Schistocerca gregaria
NCBI 分类编号 ncbi_taxonomy_id	7010
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	BETA-CAROTENE
分子量 formula_weight	536.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	55.390 Å
晶胞边长 b length_b	75.510 Å
晶胞边长 c length_c	224.220 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	28.880 Å
R 因子 r_factor	0.2241
R_work r_work	0.2212
R_free r_free	0.2777
