SAXSdb — 9ip2

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ip2
沉积日期 deposition_date	2024-07-10
结构标题 title	Cryo-EM structure of the RNA-dependent RNA polymerase complex from Marburg virus
关键词 keywords	RNA-dependent RNA polymerase complex, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.31 Å
回转半径 Rg (电子) rg_electron	37.52 Å
零角强度 I(0) i0	535399000.00
分子量 molecular_weight	193100.0 kDa
排除体积 excluded_volume	243750 Å³
包络体积 envelope_volume	329390 Å³
水化壳体积 shell_volume	70463 Å³
包络直径 envelope_diameter	124.4 Å
壳层 Rg shell_rg	45.58 Å
包络 Rg envelope_rg	37.05 Å
形状 Rg shape_rg	37.48 Å
总 Rg total_rg	38.18 Å
总原子数 total_atoms	13606
残基数 n_residues	1701
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	118.1 Å
Rg (实空间) rg_real	38.03 Å
Rg 误差 (实空间) rg_real_error	0.64 Å
I(0) (实空间) i0_real	5.3540e+08
I(0) 误差 (实空间) i0_real_error	8.1550e+06
Rg (倒空间) rg_reciprocal	38.21 Å
I(0) (倒空间) i0_reciprocal	535500000.0000
解质量估计 total_estimate	0.8881
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	51.8 Å
偏度 Skewness skewness	0.122
峰度 Kurtosis kurtosis	-0.418
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	113000000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.861

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	RNA-directed RNA polymerase L,Maltose/maltodextrin-binding periplasmic protein
分子量 formula_weight	313963.7 kDa
EC 编号 ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.375
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	13606

MQHPTQYPDARLSSPIILDQCDLLARSLGLYSHYSHNPKLRNCRIPHHIYRLRNSTALKTFLQNCSILTVPFHSIWDHILTSIQYDAINHVDDFKYLLPSELVKYANWDNEFLKAYLNKILGLDHVFSASARSQCEDFSPKENPYYWGMLLLVHLSQLARRIKGQRGSLRSNWKFIGTDLELFGIADFVIFKVPVKTIIRNAVSLQASKPGLRIWYRDQNLTPYLCDDEFIVSVASYECFIMIKDVFIERYNTWEICARAWLEDSDGADYPPLDVLGELYNQGDQIIAMYLEDGFKLIKHLEPLCVSCIQTHGIFTPRKYWFQSQMIKSYYDELHDLNLKLQISDNKAECAQNFIKTIVQAKLTPQQYCELFSLQKHWGHPVLYNDVALDKVKKHAQSTKILKPKVMFETFCVFKFIVAKNHYHSQGSWYKTTHDLHLTPYLRQHIVSNSFPSQAEIYQHLWEWYFVEHEPLFSTKIISDLSIFIKDRATAVNQECWDSVFDRSVLGYNPPVRFQSKRVPEQFLGQADFSLNQILEFAEKLEYLAPSYRNFSFSLKEKELNIGRTFGKLPYRVRNVQTLAEALLADGLAKAFPSNMMVVTEREQKEALLHQASWHHNSASIGENAIVRGASFVTDLEKYNLAFRYEFTRHFIDYCNRCYGVKNLFDWMHFLIPLCYMHVSDFYSPPHCVTEDNRNNPPDCANAYHYHLGGIEGLQQKLWTCISCAQITLVELKTKLKLKSSVMGDNQCITTLSLFPIDAPNDYQENEAELNAARVAVELAITTGYSGIFLKPEETFVHSGFIYFGKKQYLNGVQLPQSLKTMARCGPLSDSIFDDLQGSLASIGTSFERGTSETRHIFPSRWIASFHSMLAINLLNQNHLGFPLGFNIDISCFKKPLTFSEKLIALITPQVLGGLSFLNPEKLFYRNISDPLTSGLFQLKNALEFLEKEELFYILISKKPGLADASDFVMNPLGLNVPGSKEIITFLRQTVRENITITSQNRIINSLFHIGSDLEDQRVCEWLLSSNPVMSRFAADIFSRTPSGKRLQVLGYLEGTRTLLASRTISLTTEGTMLMKLRELTRNRWKSWFSYIDALDDDLSESLEKFTCTVDVANFLRAYSWSDVLKGKRLIGATLPCLLEQFEVKWINLSEDLREQFNLSSDSKSTINLLPYDCKELRLEGSNDTELNYVSCALDRKVVQKHPSVNRLAWTIGNRAPYIGSRTEDKIGYPPLRVNCPSAALKEAIEMVSRLLWVTQGTADREKLLIPLLNSRVNLDYQTVLNFLPTHYSGNIVHRYNDQYGQHSFMANRMSNTSTRAIISTNTLGKYAGGGQAAIDSNIIFQNTINLGVAVLDIALSLAKLSSASNVTFRLMLNKCCTRHVPSEYLYFDKPLDVDLNKYMDNELVYDNDPLCSGIKGRLGRVSRSTLTLSLNVSDIGSYDFPTIAAWTLGETIVGSIFSDESSQSTDPISSGCTKTFVTHFLVYPVESIFYAFGANLIVESLSLSRIKSIKNLSDLTFLISSTIRNLSHRSLRILQSTFRHELVLTRLAHHIPLISLMLGGSAGEKSSSDAVRLFLTASYQNFINNFSCLMKKGQSSLPVWLYFPSEGQQLKPILKILQRLSDLLSPDKIQKRKILADTCCPIGSFWVYPSKSTRTNHYYASLNYWRDKANKVKNTPFSHLINCSFPEFSSHTSSVSSNQQVTNSKYIVYPENITEINARTRLINYGSTALQGMDTKMPLSEQNLVENCRPSEGIRFKDNQKITKHDQRCEREESSPQQMFPEDNMQTPAHIHSSSPFQILIKSLDAHEDFDASKIILNSEINNLNLTEYTLNTKLLTTPTRTEILDTSPLQSSRYSSTSRERSLLSREQASYLYVDCSNIPSISLDPGFRSMSDQNQVQMLINTYKRDLHACFDSNQFCRFTGVVSSMHYKLYDLLPPGKLKKAICLAEGEGSGARLLLKWKETDYLFFNTLATDSQQEAEILSGRVIPRMLYNIDRLSALLESRRLILNNLTIQITDITNPLWLDSVIQYLPEDSDILTMDAETTKDETREQLYKTIVNIWTRTSPNIPKISIIKVFLLDYEGTLFLMKNAIQYYGQVQLKKPYSSNAKNSEWYLCCGKRRIQRLQIDFSDQVGIFLICKAMSRQRQAIPYWLKHIEKNYPASLHEFFLTLGFPSLESSFCHRYTIPFSEGKALFHKVQSYVRQGKQHLHSLMLDYENNSPLLDLRNHFICSLRGKITKYYNDILKLNLVIKAVEKGKNWSQLVEILPNMHSVCIVHVDHECSGCEKRLLLKLDFIRNTKIAEQKLLNRVIGYILFFPFGLFKSGSLRASRENLYFQGSGWSHPQFEKGGGSGGGSGGSAWSHPQFEKGSASHHHHHHGTKTEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTGDYKDDDDK

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	Maltose/maltodextrin-binding periplasmic protein,Polymerase cofactor VP35
分子量 formula_weight	79881.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C,D,E

MGSSHHHHHHGTKTEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTGTDYDIPTTLEVLFQGPLGSMWDSSYMQQVSEGLMTGKVPIDQVFGANPLEKLYKRRKPKGTVGLQCSPCLMSKATSTDDIIWDQLIVKRTLADLLIPINRQISDIQSTLSEVTTRVHEIERQLHEITPVLKMGRTLEAISKGMSEMLAKYDHLVISTGRTTAPAAAFDAYLNEHGVPPPQPAIFKDLGVAQQACSKGTMVKNATTDAADKMSKVLELSEETFSKPNLSAKDLALLLFTHLPGNNTPFHILAQVLSKIAYKSGKSGAFLDAFHQILSEGENAQAALTRLSRTFDAFLGVVPPVIRVKNFQTVPRPCQKSLRAVPPNPTIDKGWVCVYSSEQGETRALKI

来源 Source

来源生物 organism	Marburg virus - Musoke, Kenya, 1980
NCBI 分类编号 ncbi_taxonomy_id	33727
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	306.360 Å
R 因子 r_factor	0.2944
R_work r_work	0.2944
R_free r_free	0.3006

分辨率 resolution	2.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	319722

fit	/app/data/saxs_computation/ip/9ip2/9ip2.fit
pddf	/app/data/pr_computation/ip/9ip2/9ip2.pr.out
profile	/app/data/saxs_computation/ip/9ip2/9ip2.dat

Cryo-EM structure of the RNA-dependent RNA polymerase complex from Marburg virus

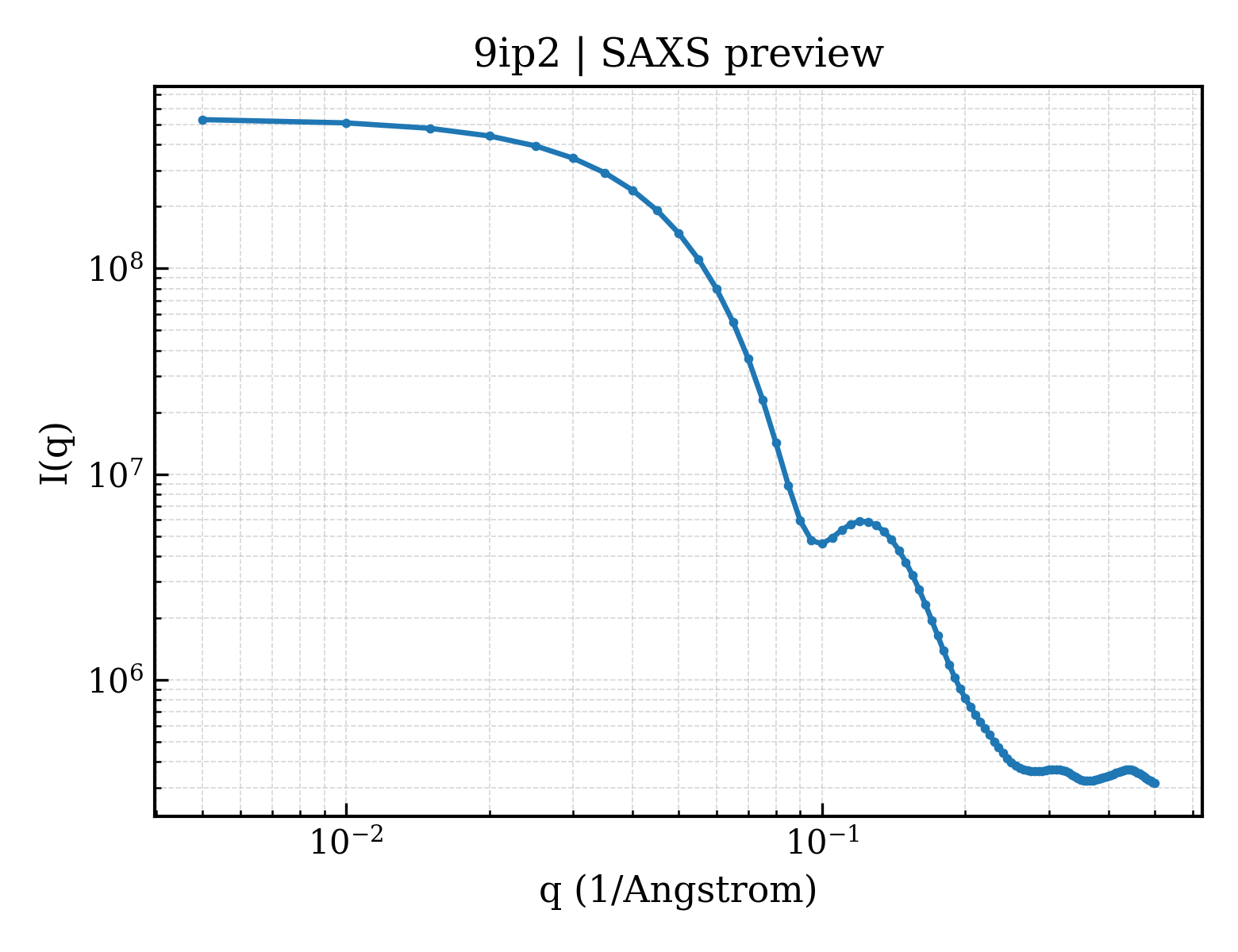

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
