9iwr

26S proteasome trimer

Method: ELECTRON MICROSCOPY D_max: 332.5 Å Quality: EXCELLENT

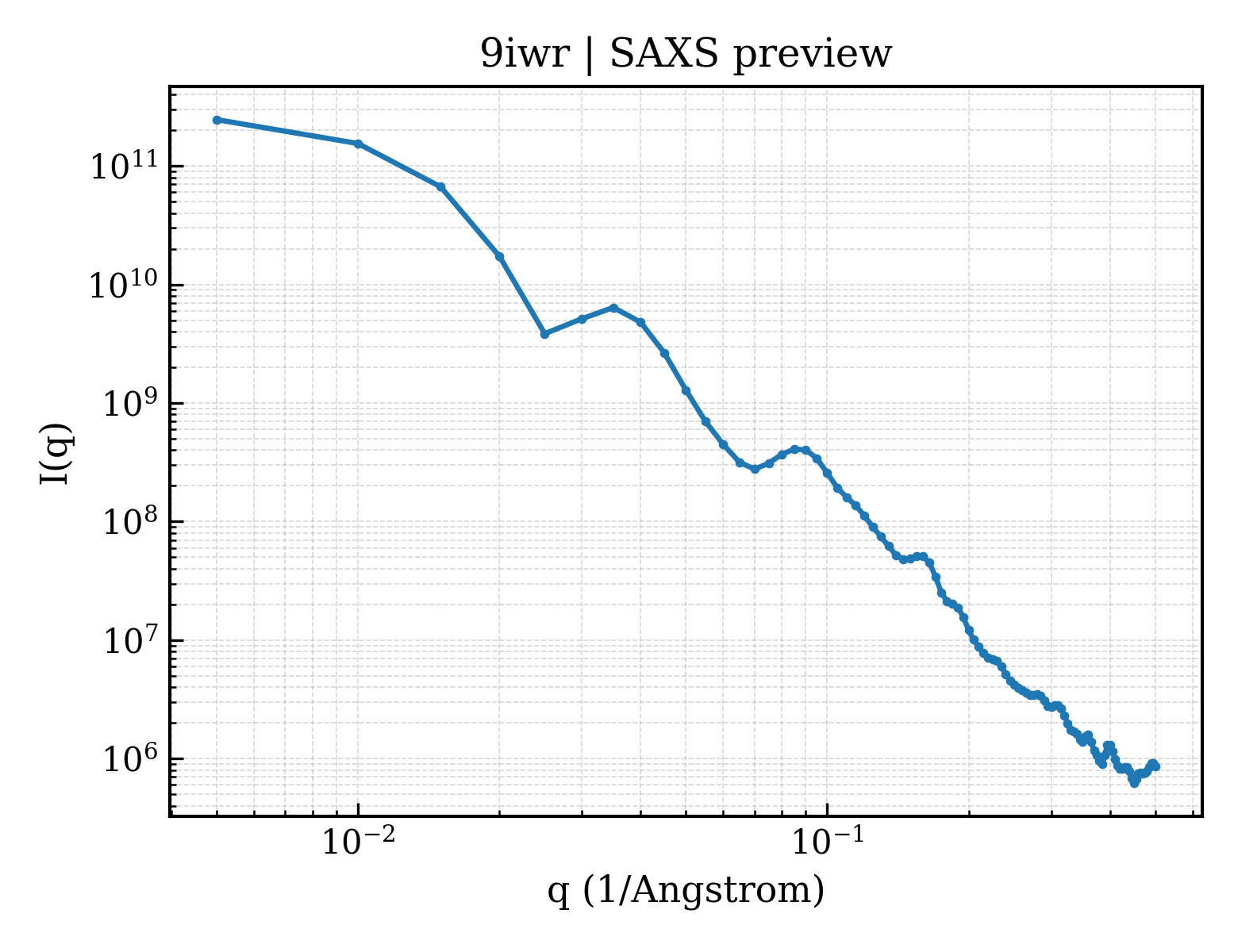

SAXS 散射曲线 SAXS Profile

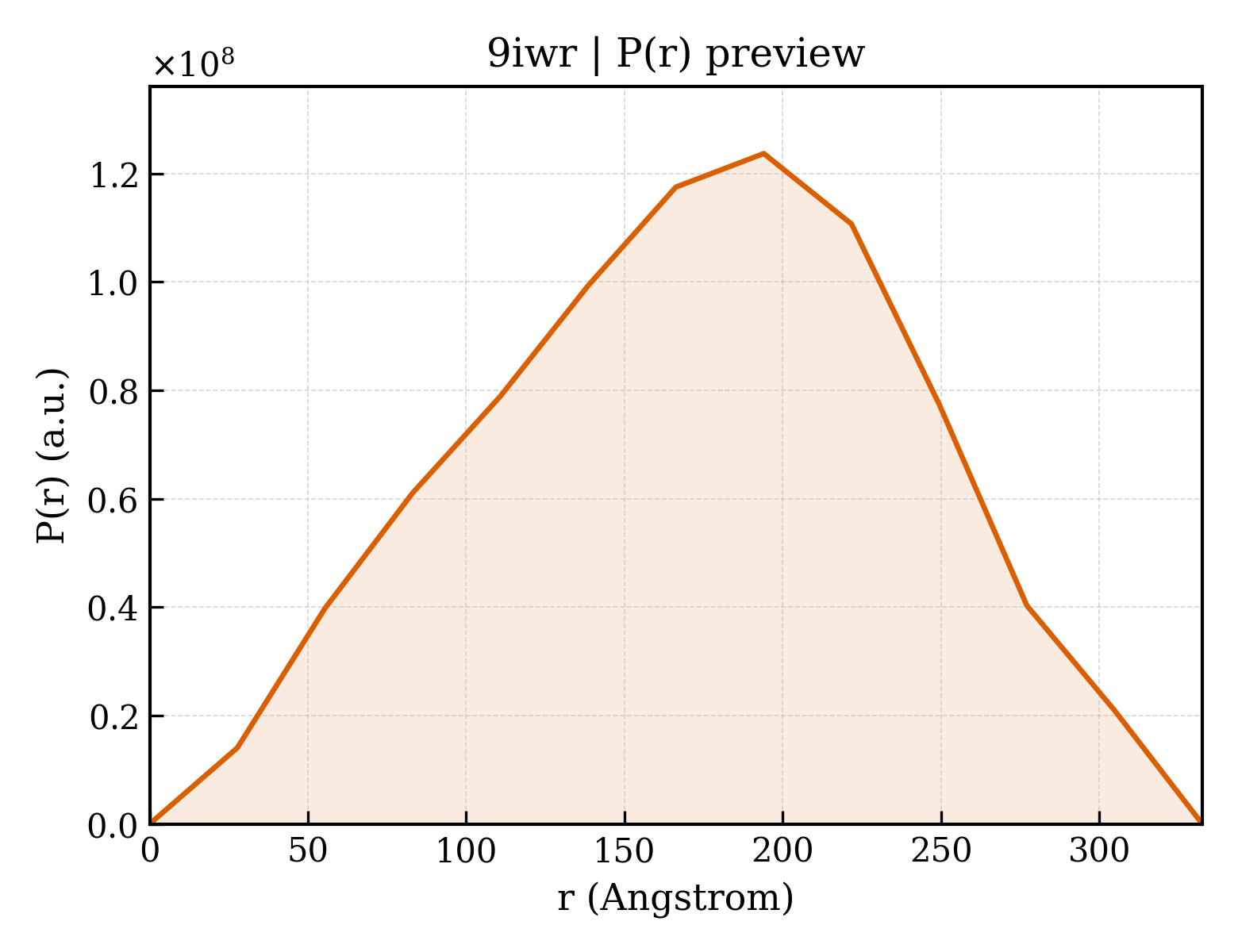

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9iwr
沉积日期 deposition_date	2024-07-25
结构标题 title	26S proteasome trimer
关键词 keywords	proteasome, trimer, complex, PSG, paracrystalline, HYDROLASE; HYDROLASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	133.10 Å
零角强度 I(0) i0	285114000000.00
分子量 molecular_weight	4632000.0 kDa
排除体积 excluded_volume	5819800 Å³
包络体积 envelope_volume	10831000 Å³
水化壳体积 shell_volume	646200 Å³
包络直径 envelope_diameter	430.0 Å
壳层 Rg shell_rg	140.60 Å
包络 Rg envelope_rg	126.60 Å
形状 Rg shape_rg	133.10 Å
总 Rg total_rg	133.00 Å
总原子数 total_atoms	653142
残基数 n_residues	41448
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	332.5 Å
Rg (实空间) rg_real	130.30 Å
Rg 误差 (实空间) rg_real_error	0.60 Å
I(0) (实空间) i0_real	2.7290e+11
I(0) 误差 (实空间) i0_real_error	5.7800e+09
Rg (倒空间) rg_reciprocal	144.70 Å
I(0) (倒空间) i0_reciprocal	298200000000.0000
解质量估计 total_estimate	0.9152
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	194.0 Å
偏度 Skewness skewness	-0.125
峰度 Kurtosis kurtosis	-0.647
角度范围 angular_range	— – 0.0600 Å⁻¹
当前正则化参数 α current_alpha	0.9539
最高正则化参数 α highest_alpha	19600000000.0000
实空间数据点数 n_real_points	13
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 1.000; Stabil: 0.968; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (33)

Entity 1 polymer

描述 description	Proteasome subunit beta type-1
分子量 formula_weight	23573.6 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,h
原子数 atom_count	653142

MNGIQVDINRLKKGEVSLGTSIMAVTFKDGVILGADSRTTTGAYIANRVTDKLTRVHDKIWCCRSGSAADTQAIADIVQYHLELYTSQYGTPSTETAASVFKELCYENKDNLTAGIIVAGYDDKNKGEVYTIPLGGSVHKLPYAIAGSGSTFIYGYCDKNFRENMSKEETVDFIKHSLSQAIKWDGSSGGVIRMVVLTAAGVERLIFYPDEYEQL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 2 polymer

描述 description	Proteasome subunit beta type-2
分子量 formula_weight	28299.9 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2,i

MAGLSFDNYQRNNFLAENSHTQPKATSTGTTIVGVKFNNGVVIAADTRSTQGPIVADKNCAKLHRISPKIWCAGAGTAADTEAVTQLIGSNIELHSLYTSREPRVVSALQMLKQHLFKYQGHIGAYLIVAGVDPTGSHLFSIHAHGSTDVGYYLSLGSGSLAAMAVLESHWKQDLTKEEAIKLASDAIQAGIWNDLGSGSNVDVCVMEIGKDAEYLRNYLTPNVREEKQKSYKFPRGTTAVLKESIVNICDIQEEQVDITA

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 3 polymer

描述 description	Proteasome subunit beta type-3
分子量 formula_weight	22627.8 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3,j

MSDPSSINGGIVVAMTGKDCVAIACDLRLGSQSLGVSNKFEKIFHYGHVFLGITGLATDVTTLNEMFRYKTNLYKLKEERAIEPETFTQLVSSSLYERRFGPYFVGPVVAGINSKSGKPFIAGFDLIGCIDEAKDFIVSGTASDQLFGMCESLYEPNLEPEDLFETISQALLNAADRDALSGWGAVVYIIKKDEVVKRYLKMRQD

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 4 polymer

描述 description	Proteasome subunit beta type-4
分子量 formula_weight	22545.7 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4,k

MDIILGIRVQDSVILASSKAVTRGISVLKDSDDKTRQLSPHTLMSFAGEAGDTVQFAEYIQANIQLYSIREDYELSPQAVSSFVRQELAKSIRSRRPYQVNVLIGGYDKKKNKPELYQIDYLGTKVELPYGAHGYSGFYTFSLLDHHYRPDMTTEEGLDLLKLCVQELEKRMPMDFKGVIVKIVDKDGIRQVDDFQAQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 5 polymer

描述 description	Proteasome subunit beta type-5
分子量 formula_weight	31670.5 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5,l

MQAIADSFSVPNRLVKELQYDNEQNLESDFVTGASQFQRLAPSLTVPPIASPQQFLRAHTDDSRNPDCKIKIAHGTTTLAFRFQGGIIVAVDSRATAGNWVASQTVKKVIEINPFLLGTMAGGAADCQFWETWLGSQCRLHELREKERISVAAASKILSNLVYQYKGAGLSMGTMICGYTRKEGPTIYYVDSDGTRLKGDIFCVGSGQTFAYGVLDSNYKWDLSVEDALYLGKRSILAAAHRDAYSGGSVNLYHVTEDGWIYHGNHDVGELFWKVKEEEGSFNNVIG

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 6 polymer

描述 description	Proteasome subunit beta type-6
分子量 formula_weight	26905.1 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6,m

MATIASEYSSEASNTPIEHQFNPYGDNGGTILGIAGEDFAVLAGDTRNITDYSINSRYEPKVFDCGDNIVMSANGFAADGDALVKRFKNSVKWYHFDHNDKKLSINSAARNIQHLLYGKRFFPYYVHTIIAGLDEDGKGAVYSFDPVGSYEREQCRAGGAAASLIMPFLDNQVNFKNQYEPGTNGKVKKPLKYLSVEEVIKLVRDSFTSATERHIQVGDGLEILIVTKDGVRKEFYELKRD

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 7 polymer

描述 description	Proteasome subunit beta type-7
分子量 formula_weight	29471.3 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7,n

MNHDPFSWGRPADSTYGAYNTQIANAGASPMVNTQQPIVTGTSVISMKYDNGVIIAADNLGSYGSLLRFNGVERLIPVGDNTVVGISGDISDMQHIERLLKDLVTENAYDNPLADAEEALEPSYIFEYLATVMYQRRSKMNPLWNAIIVAGVQSNGDQFLRYVNLLGVTYSSPTLATGFGAHMANPLLRKVVDRESDIPKTTVQVAEEAIVNAMRVLYYRDARSSRNFSLAIIDKNTGLTFKKNLQVENMKWDFAKDIKGYGTQKI

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 8 polymer

描述 description	Proteasome subunit alpha type-1
分子量 formula_weight	28033.8 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,a

MSGAAAASAAGYDRHITIFSPEGRLYQVEYAFKATNQTNINSLAVRGKDCTVVISQKKVPDKLLDPTTVSYIFCISRTIGMVVNGPIPDARNAALRAKAEAAEFRYKYGYDMPCDVLAKRMANLSQIYTQRAYMRPLGVILTFVSVDEELGPSIYKTDPAGYYVGYKATATGPKQQEITTNLENHFKKSKIDHINEESWEKVVEFAITHMIDALGTEFSKNDLEVGVATKDKFFTLSAENIEERLVAIAEQD

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 9 polymer

描述 description	Proteasome subunit alpha type-2
分子量 formula_weight	27191.8 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,b

MTDRYSFSLTTFSPSGKLGQIDYALTAVKQGVTSLGIKATNGVVIATEKKSSSPLAMSETLSKVSLLTPDIGAVYSGMGPDYRVLVDKSRKVAHTSYKRIYGEYPPTKLLVSEVAKIMQEATQSGGVRPFGVSLLIAGHDEFNGFSLYQVDPSGSYFPWKATAIGKGSVAAKTFLEKRWNDELELEDAIHIALLTLKESVEGEFNGDTIELAIIGDENPDLLGYTGIPTDKGPRFRKLTSQEINDRLEAL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 10 polymer

描述 description	Proteasome subunit alpha type-3
分子量 formula_weight	28748.2 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,c

MGSRRYDSRTTIFSPEGRLYQVEYALESISHAGTAIGIMASDGIVLAAERKVTSTLLEQDTSTEKLYKLNDKIAVAVAGLTADAEILINTARIHAQNYLKTYNEDIPVEILVRRLSDIKQGYTQHGGLRPFGVSFIYAGYDDRYGYQLYTSNPSGNYTGWKAISVGANTSAAQTLLQMDYKDDMKVDDAIELALKTLSKTTDSSALTYDRLEFATIRKGANDGEVYQKIFKPQEIKDILVKTGITKKDEDEEADEDMK

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 11 polymer

描述 description	Proteasome subunit alpha type-4
分子量 formula_weight	28478.1 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,d

MSGYDRALSIFSPDGHIFQVEYALEAVKRGTCAVGVKGKNCVVLGCERRSTLKLQDTRITPSKVSKIDSHVVLSFSGLNADSRILIEKARVEAQSHRLTLEDPVTVEYLTRYVAGVQQRYTQSGGVRPFGVSTLIAGFDPRDDEPKLYQTEPSGIYSSWSAQTIGRNSKTVREFLEKNYDRKEPPATVEECVKLTVRSLLEVVQTGAKNIEITVVKPDSDIVALSSEEINQYVTQIEQEKQEQQEQDKKKKSNH

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 12 polymer

描述 description	Proteasome subunit alpha type-5
分子量 formula_weight	28649.1 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,e

MFLTRSEYDRGVSTFSPEGRLFQVEYSLEAIKLGSTAIGIATKEGVVLGVEKRATSPLLESDSIEKIVEIDRHIGCAMSGLTADARSMIEHARTAAVTHNLYYDEDINVESLTQSVCDLALRFGEGASGEERLMSRPFGVALLIAGHDADDGYQLFHAEPSGTFYRYNAKAIGSGSEGAQAELLNEWHSSLTLKEAELLVLKILKQVMEEKLDENNAQLSCITKQDGFKIYDNEKTAELIKELKEKEAAESPEEADVEMS

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 13 polymer

描述 description	Proteasome subunit alpha type-6
分子量 formula_weight	25634.0 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,f

MFRNNYDGDTVTFSPTGRLFQVEYALEAIKQGSVTVGLRSNTHAVLVALKRNADELSSYQKKIIKCDEHMGLSLAGLAPDARVLSNYLRQQCNYSSLVFNRKLAVERAGHLLCDKAQKNTQSYGGRPYGVGLLIIGYDKSGAHLLEFQPSGNVTELYGTAIGARSQGAKTYLERTLDTFIKIDGNPDELIKAGVEAISQSLRDESLTVDNLSIAIVGKDTPFTIYDGEAVAKYI

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 14 polymer

描述 description	Probable proteasome subunit alpha type-7
分子量 formula_weight	31575.1 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,g

MTSIGTGYDLSNSVFSPDGRNFQVEYAVKAVENGTTSIGIKCNDGVVFAVEKLITSKLLVPQKNVKIQVVDRHIGCVYSGLIPDGRHLVNRGREEAASFKKLYKTPIPIPAFADRLGQYVQAHTLYNSVRPFGVSTIFGGVDKNGAHLYMLEPSGSYWGYKGAATGKGRQSAKAELEKLVDHHPEGLSAREAVKQAAKIIYLAHEDNKEKDFELEISWCSLSETNGLHKFVKGDLLQEAIDFAQKEINGDDDEDEDDSDNVMSSDDENAPVATNANATTDQEGDIHLE

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 15 polymer

描述 description	26S protease regulatory subunit 7 homolog
分子量 formula_weight	52054.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MPPKEDWEKYKAPLEDDDKKPDDDKIVPLTEGDIQVLKSYGAAPYAAKLKQTENDLKDIEARIKEKAGVKESDTGLAPSHLWDIMGDRQRLGEEHPLQVARCTKIIKGNGESDETTTDNNNSGNSNSNSNQQSTDADEDDEDAKYVINLKQIAKFVVGLGERVSPTDIEEGMRVGVDRSKYNIELPLPPRIDPSVTMMTVEEKPDVTYSDVGGCKDQIEKLREVVELPLLSPERFATLGIDPPKGILLYGPPGTGKTLCARAVANRTDATFIRVIGSELVQKYVGEGARMVRELFEMARTKKACIIFFDEIDAVGGARFDDGAGGDNEVQRTMLELITQLDGFDPRGNIKVMFATNRPNTLDPALLRPGRIDRKVEFSLPDLEGRANIFRIHSKSMSVERGIRWELISRLCPNSTGAELRSVCTEAGMFAIRARRKVATEKDFLKAVDKVISGYKKFSSTSRYMQYN

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 16 polymer

描述 description	26S protease regulatory subunit 4 homolog
分子量 formula_weight	48898.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MGQGVSSGQDKKKKKGSNQKPKYEPPVQSKFGRKKRKGGPATAEKLPNIYPSTRCKLKLLRMERIKDHLLLEEEFVSNSEILKPFEKKQEEEKKQLEEIRGNPLSIGTLEEIIDDDHAIVTSPTMPDYYVSILSFVDKELLEPGCSVLLHHKTMSIVGVLQDDADPMVSVMKMDKSPTESYSDIGGLESQIQEIKESVELPLTHPELYEEMGIKPPKGVILYGAPGTGKTLLAKAVANQTSATFLRIVGSELIQKYLGDGPRLCRQIFKVAGENAPSIVFIDEIDAIGTKRYDSNSGGEREIQRTMLELLNQLDGFDDRGDVKVIMATNKIETLDPALIRPGRIDRKILFENPDLSTKKKILGIHTSKMNLSEDVNLETLVTTKDDLSGADIQAMCTEAGLLALRERRMQVTAEDFKQAKERVMKNKVEENLEGLYL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 17 polymer

描述 description	26S protease regulatory subunit 8 homolog
分子量 formula_weight	45342.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MTAAVTSSNIVLETHESGIKPYFEQKIQETELKIRSKTENVRRLEAQRNALNDKVRFIKDELRLLQEPGSYVGEVIKIVSDKKVLVKVQPEGKYIVDVAKDINVKDLKASQRVCLRSDSYMLHKVLENKADPLVSLMMVEKVPDSTYDMVGGLTKQIKEIKEVIELPVKHPELFESLGIAQPKGVILYGPPGTGKTLLARAVAHHTDCKFIRVSGAELVQKYIGEGSRMVRELFVMAREHAPSIIFMDEIDSIGSTRVEGSGGGDSEVQRTMLELLNQLDGFETSKNIKIIMATNRLDILDPALLRPGRIDRKIEFPPPSVAARAEILRIHSRKMNLTRGINLRKVAEKMNGCSGADVKGVCTEAGMYALRERRIHVTQEDFELAVGKVMNKNQETAISVAKLFK

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 18 polymer

描述 description	26S protease regulatory subunit 6B homolog
分子量 formula_weight	47953.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MEELGIVTPVEKAVEEKPAVKSYASLLAQLNGTVNNNSALSNVNSDIYFKLKKLEKEYELLTLQEDYIKDEQRHLKRELKRAQEEVKRIQSVPLVIGQFLEPIDQNTGIVSSTTGMSYVVRILSTLDRELLKPSMSVALHRHSNALVDILPPDSDSSISVMGENEKPDVTYADVGGLDMQKQEIREAVELPLVQADLYEQIGIDPPRGVLLYGPPGTGKTMLVKAVANSTKAAFIRVNGSEFVHKYLGEGPRMVRDVFRLARENAPSIIFIDEVDSIATKRFDAQTGSDREVQRILIELLTQMDGFDQSTNVKVIMATNRADTLDPALLRPGRLDRKIEFPSLRDRRERRLIFGTIASKMSLAPEADLDSLIIRNDSLSGAVIAAIMQEAGLRAVRKNRYVILQSDLEEAYATQVKTDNTVDKFDFYK

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 19 polymer

描述 description	26S protease subunit RPT4
分子量 formula_weight	49480.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MSEEQDPLLAGLGETSGDNHTQQSHEQQPEQPQETEEHHEEEPSRVDPEQEAHNKALNQFKRKLLEHRRYDDQLKQRRQNIRDLEKLYDKTENDIKALQSIGQLIGEVMKELSEEKYIVKASSGPRYIVGVRNSVDRSKLKKGVRVTLDITTLTIMRILPRETDPLVYNMTSFEQGEITFDGIGGLTEQIRELREVIELPLKNPEIFQRVGIKPPKGVLLYGPPGTGKTLLAKAVAATIGANFIFSPASGIVDKYIGESARIIREMFAYAKEHEPCIIFMDEVDAIGGRRFSEGTSADREIQRTLMELLTQMDGFDNLGQTKIIMATNRPDTLDPALLRPGRLDRKVEIPLPNEAGRLEIFKIHTAKVKKTGEFDFEAAVKMSDGFNGADIRNCATEAGFFAIRDDRDHINPDDLMKAVRKVAEVKKLEGTIEYQKL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 20 polymer

描述 description	26S protease regulatory subunit 6A
分子量 formula_weight	48315.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MATLEELDAQTLPGDDELDQEILNLSTQELQTRAKLLDNEIRIFRSELQRLSHENNVMLEKIKDNKEKIKNNRQLPYLVANVVEVMDMNEIEDKENSESTTQGGNVNLDNTAVGKAAVVKTSSRQTVFLPMVGLVDPDKLKPNDLVGVNKDSYLILDTLPSEFDSRVKAMEVDEKPTETYSDVGGLDKQIEELVEAIVLPMKRADKFKDMGIRAPKGALMYGPPGTGKTLLARACAAQTNATFLKLAAPQLVQMYIGEGAKLVRDAFALAKEKAPTIIFIDELDAIGTKRFDSEKSGDREVQRTMLELLNQLDGFSSDDRVKVLAATNRVDVLDPALLRSGRLDRKIEFPLPSEDSRAQILQIHSRKMTTDDDINWQELARSTDEFNGAQLKAVTVEAGMIALRNGQSSVKHEDFVEGISEVQARKSKSVSFYA

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 21 polymer

描述 description	26S proteasome regulatory subunit RPN2
分子量 formula_weight	104351.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MSLTTAAPLLALLRENQDSVKTYALESINNVVDQLWSEISNELPDIEALYDDDTFSDREMAALIASKVYYNLGEYESAVKYALAAKDRFDIDEKSQFVETIVSKSIEMYVQEASKQYTKDEQFYTKDIIDPKLTSIFERMIEKCLKASELKLALGIALEGYRLDIIESALKSKLDQDSTSENVKIINYLLTLAITTVTNSKFRSSILRKSFDFLMNMPNCDYLTLNKVVVNLNDAGLALQLFKKLKEENDEGLSAQIAFDLVSSASQQLLEILVTELTAQGYDPALLNILSGLPTCDYYNTFLLNNKNIDIGLLNKSKSSLDGKFSLFHTAVSVANGFMHAGTTDNSFIKANLPWLGKAQNWAKFTATASLGVIHKGNLLEGKKVMAPYLPGSRASSRFIKGGSLYGLGLIYAGFGRDTTDYLKNIIVENSGTSGDEDVDVLLHGASLGIGLAAMGSANIEVYEALKEVLYNDSATSGEAAALGMGLCMLGTGKPEAIHDMFTYSQETQHGNITRGLAVGLALINYGRQELADDLITKMLASDESLLRYGGAFTIALAYAGTGNNSAVKRLLHVAVSDSNDDVRRAAVIALGFVLLRDYTTVPRIVQLLSKSHNAHVRCGTAFALGIACAGKGLQSAIDVLDPLTKDPVDFVRQAAMIALSMILIQQTEKLNPQVADINKNFLSVITNKHQEGLAKFGACVAQGIMNAGGRNVTIQLENADTGTLDTKSVVGLVMFSQFWYWFPLAHFLSLSFTPTTVIGIRGSDQAIPKFQMNCYAKEDAFSYPRMYEEASGKEVEKVATAVLSTTARAKARAKKTKKEKGPNEEEKKKEHEEKEKERETNKKGIKETKENDEEFYKNKYSSKPYKVDNMTRILPQQSRYISFIKDDRFVPVRKFKGNNGVVVLRDREPKEPVALIETVRQMKDVNAPLPTPFKVDDNVDFPSA

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 22 polymer

描述 description	26S proteasome regulatory subunit RPN9
分子量 formula_weight	45839.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MFNNHEIDTILSTLRMEADPSLHPLFEQFEKFYEEKLWFQLSESLTKFFDDAKSTPLRLRLYDNFVSKFYDKINQLSVVKYLLASLKDSKDFDESLKYLDDLKAQFQELDSKKQRNNGSKDHGDGILLIDSEIARTYLLKNDLVKARDLLDDLEKTLDKKDSIPLRITNSFYSTNSQYFKFKNDFNSFYYTSLLYLSTLEPSTSITLAERQQLAYDLSISALLGDKIYNFGELLHHPIMETIVNDSNYDWLFQLLNALTVGDFDKFDSLIKVQISKIPILAQHESFLRQKICLMTLIETVFVKNIRMLSFEDISKATHLPKDNVEHLVMRAISLGLLKGSIDQVNELVTISWVQPRIISGDQITKMKDRLVEWNDQVEKLGKKMEARGQSIWV

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 23 polymer

描述 description	26S proteasome regulatory subunit RPN5
分子量 formula_weight	51840.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MSRDAPIKADKDYSQILKEEFPKIDSLAQNDCNSALDQLLVLEKKTRQASDLASSKEVLAKIVDLLASRNKWDDLNEQLTLLSKKHGQLKLSIQYMIQKVMEYLKSSKSLDLNTRISVIETIRVVTENKIFVEVERARVTKDLVEIKKEEGKIDEAADILCELQVETYGSMEMSEKIQFILEQMELSILKGDYSQATVLSRKILKKTFKNPKYESLKLEYYNLLVKISLHKREYLEVAQYLQEIYQTDAIKSDEAKWKPVLSHIVYFLVLSPYGNLQNDLIHKIQNDNNLKKLESQESLVKLFTTNELMRWPIVQKTYEPVLNEDDLAFGGEANKHHWEDLQKRVIEHNLRVISEYYSRITLLRLNELLDLTESQTETYISDLVNQGIIYAKVNRPAKIVNFEKPKNSSQLLNEWSHNVDELLEHIETIGHLITKEEIMHGLQAK

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 24 polymer

描述 description	26S proteasome regulatory subunit RPN6
分子量 formula_weight	49839.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MSLPGSKLEEARRLVNEKQYNEAEQVYLSLLDKDSSQSSAAAGASVDDKRRNEQETSILELGQLYVTMGAKDKLREFIPHSTEYMMQFAKSKTVKVLKTLIEKFEQVPDSLDDQIFVCEKSIEFAKREKRVFLKHSLSIKLATLHYQKKQYKDSLALINDLLREFKKLDDKPSLVDVHLLESKVYHKLRNLAKSKASLTAARTAANSIYCPTQTVAELDLMSGILHCEDKDYKTAFSYFFESFESYHNLTTHNSYEKACQVLKYMLLSKIMLNLIDDVKNILNAKYTKETYQSRGIDAMKAVAEAYNNRSLLDFNTALKQYEKELMGDELTRSHFNALYDTLLESNLCKIIEPFECVEISHISKIIGLDTQQVEGKLSQMILDKIFYGVLDQGNGWLYVYETPNQDATYDSALELVGQLNKVVDQLFEKASVLY

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 25 polymer

描述 description	26S proteasome regulatory subunit RPN7
分子量 formula_weight	49016.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MVDVEEKSQEVEYVDPTVNRVPNYEVSEKAFLLTQSKVSIEQRKEAAEFVLAKIKEEEMAPYYKYLCEEYLVNNGQSDLEHDEKSDSLNEWIKFDQELYNELCKKNESKIKELNEKIQKLEEDDEGELEQAQAWINLGEYYAQIGDKDNAEKTLGKSLSKAISTGAKIDVMLTIARLGFFYNDQLYVKEKLEAVNSMIEKGGDWERRNRYKTYYGIHCLAVRNFKEAAKLLVDSLATFTSIELTSYESIATYASVTGLFTLERTDLKSKVIDSPELLSLISTTAALQSISSLTISLYASDYASYFPYLLETYANVLIPCKYLNRHADFFVREMRRKVYAQLLESYKTLSLKSMASAFGVSVAFLDNDLGKFIPNKQLNCVIDRVNGIVETNRPDNKNAQYHLLVKQGDGLLTKLQKYGAAVRLTGSDRV

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 26 polymer

描述 description	26S proteasome regulatory subunit RPN3
分子量 formula_weight	60464.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MASTAVMMDVDSSGVNDLHHSEKKYAEEDQVQELLKVLNEISKTTLTLDPRYIWRSLKDLSSLRNQELLNAETLCFTVNVLYPDSSSFKKNLLKFITSNHKSSVPGSAELRNSYPASFYSVNTEKKTIEVTAEINCFMHLLVQLFLWDSKELEQLVEFNRKVVIPNLLCYYNLRSLNLINAKLWFYIYLSHETLARSSEEINSDNQNIILRSTMMKFLKIASLKHDNETKAMLINLILRDFLNNGEVDSASDFISKLEYPHTDVSSSLEARYFFYLSKINAIQLDYSTANEYIIAAIRKAPHNSKSLGFLQQSNKLHCCIQLLMGDIPELSFFHQSNMQKSLLPYYHLTKAVKLGDLKKFTSTITKYKQLLLKDDTYQLCVRLRSNVIKTGIRIISLTYKKISLRDICLKLNLDSEQTVEYMVSRAIRDGVIEAKINHEDGFIETTELLNIYDSEDPQQVFDERIKFANQLHDEYLVSMRYPEDKKTQQNEKSENGENDDDTLDGDLMDDMSDISDLDDLGFL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 27 polymer

描述 description	26S proteasome regulatory subunit RPN12
分子量 formula_weight	31952.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MPSLAELTKSLSIAFENGDYAACEKLLPPIKIELIKNNLLIPDLSIQNDIYLNDLMITKRILEVGALASIQTFNFDSFENYFNQLKPYYFSNNHKLSESDKKSKLISLYLLNLLSQNNTTKFHSELQYLDKHIKNLEDDSLLSYPIKLDRWLMEGSYQKAWDLLQSGSQNISEFDSFTDILKSAIRDEIAKNTELSYDFLPLSNIKALLFFNNEKETEKFALERNWPIVNSKVYFNNQSKEKADYEDEMMHEEDQKTNIIEKAMDYAISIENIV

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 28 polymer

描述 description	26S proteasome regulatory subunit RPN8
分子量 formula_weight	38365.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MSLQHEKVTIAPLVLLSALDHYERTQTKENKRCVGVILGDANSSTIRVTNSFALPFEEDEKNSDVWFLDHNYIENMNEMCKKINAKEKLIGWYHSGPKLRASDLKINELFKKYTQNNPLLLIVDVKQQGVGLPTDAYVAIEQVKDDGTSTEKTFLHLPCTIEAEEAEEIGVEHLLRDVRDQAAGGLSIRLTNQLKSLKGLQSKLKDVVEYLDKVINKELPINHTILGKLQDVFNLLPNLGTPDDDEIDVENHDRINISNNLQKALTVKTNDELMVIYISNLVRSIIAFDDLIENKIQNKKIQEQRVKDKQSKVSDDSESESGDKEATAPLIQRKNKKN

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 29 polymer

描述 description	Ubiquitin carboxyl-terminal hydrolase RPN11
分子量 formula_weight	34442.3 kDa
EC 编号 ec_number	3.4.19.12
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MERLQRLMMNSKVGSADTGRDDTKETVYISSIALLKMLKHGRAGVPMEVMGLMLGEFVDDYTVNVVDVFAMPQSGTGVSVEAVDDVFQAKMMDMLKQTGRDQMVVGWYHSHPGFGCWLSSVDVNTQKSFEQLNSRAVAVVVDPIQSVKGKVVIDAFRLIDTGALINNLEPRQTTSNTGLLNKANIQALIHGLNRHYYSLNIDYHKTAKETKMLMNLHKEQWQSGLKMYDYEEKEESNLAATKSMVKIAEQYSKRIEEEKELTEEELKTRYVGRQDPKKHLSETADETLENNIVSVLTAGVNSVAIK

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 30 polymer

描述 description	26S proteasome regulatory subunit RPN10
分子量 formula_weight	29776.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MVLEATVLVIDNSEYSRNGDFPRTRFEAQIDSVEFIFQAKRNSNPENTVGLISGAGANPRVLSTFTAEFGKILAGLHDTQIEGKLHMATALQIAQLTLKHRQNKVQHQRIVAFVCSPISDSRDELIRLAKTLKKNNVAVDIINFGEIEQNTELLDEFIAAVNNPQEETSHLLTVTPGPRLLYENIASSPIILEEGSSGMGAFGGSGGDSDANGTFMDFGVDPSMDPELAMALRLSMEEEQQRQERLRQQQQQQDQPEQSEQPEQHQDK

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 31 polymer

描述 description	26S proteasome regulatory subunit RPN13
分子量 formula_weight	17919.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MSMSSTVIKFRAGVCEYNEDSRLCTPIPVQGEIEIKPNEEEELGFWDFEWRPTEKPVGRELDPISLILIPGETMWVPIKSSKSGRIFALVFSSNERYFFWLQEKNSGNLPLNELSAKDKEIYNKMIGVLNNSSESDEEESNDEKQKAQDVDVSMQD

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 32 polymer

描述 description	26S proteasome complex subunit SEM1
分子量 formula_weight	10397.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MSTDVAAAQAQSKIDLTKKKNEEINKKSLEEDDEFEDFPIDTWANGETIKSNAVTQTNIWEENWDDVEVDDDFTNELKAELDRYKRENQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

Entity 33 polymer

描述 description	26S proteasome regulatory subunit RPN1
分子量 formula_weight	109601.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MVDESDKKQQTIDEQSQISPEKQTPNKKDKKKEEEEQLSEEDAKLKTDLELLVERLKEDDSSLYEASLNALKESIKNSTSSMTAVPKPLKFLRPTYPDLCSIYDKWTDPNLKSSLADVLSILAMTYSENGKHDSLRYRLLSDVSDFEGWGHEYIRHLALEIGEVYNDQVEKDAEDETSSDGSKSDGSAATSGFEFSKEDTLRLCLDIVPYFLKHNGEEDAVDLLLEIESIDKLPQFVDENTFQRVCQYMVACVPLLPPPEDVAFLKTAYSIYLSQNELTDAIALAVRLGEEDMIRSVFDATSDPVMHKQLAYILAAQKTSFEYEGVQDIIGNGKLSEHFLYLAKELNLTGPKVPEDIYKSHLDNSKSVFSSAGLDSAQQNLASSFVNGFLNLGYCNDKLIVDNDNWVYKTKGDGMTSAVASIGSIYQWNLDGLQQLDKYLYVDEPEVKAGALLGIGISASGVHDGEVEPALLLLQDYVTNPDTKISSAAILGLGIAFAGSKNDEVLGLLLPIAASTDLPIETAAMASLALAHVFVGTCNGDITTSIMDNFLERTAIELKTDWVRFLALALGILYMGQGEQVDDVLETISAIEHPMTSAIEVLVGSCAYTGTGDVLLIQDLLHRLTPKNVKGEEDADEEETAEGQTNSISDFLGEQVNEPTKNEEAEIEVDEMEVDAEGEEVEVKAEITEKKNGESLEGEEIKSEEKKGKSSDKDATTDGKNDDEEEEKEAGIVDELAYAVLGIALIALGEDIGKEMSLRHFGHLMHYGNEHIRRMVPLAMGIVSVSDPQMKVFDTLTRFSHDADLEVSMNSIFAMGLCGAGTNNARLAQLLRQLASYYSREQDALFITRLAQGLLHLGKGTMTMDVFNDAHVLNKVTLASILTTAVGLVSPSFMLKHHQLFYMLNAGIRPKFILALNDEGEPIKVNVRVGQAVETVGQAGRPKKITGWITQSTPVLLNHGERAELETDEYISYTSHIEGVVILKKNPDYREEE

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI 分类编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Saccharomyces cerevisiae S288C

▶

7. 引用文献 (1)

▶

分辨率 resolution	9.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	1700

fit	/app/data/saxs_computation/iw/9iwr/9iwr.fit
pddf	/app/data/pr_computation/iw/9iwr/9iwr.pr.out
profile	/app/data/saxs_computation/iw/9iwr/9iwr.dat

26S proteasome trimer

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

冷冻电镜 EM 3D

5. 实体与聚合体信息 (33)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

Entity 3 polymer

聚合体 Polymer

来源 Source

Entity 4 polymer

聚合体 Polymer

来源 Source

Entity 5 polymer

聚合体 Polymer

来源 Source

Entity 6 polymer

聚合体 Polymer

来源 Source

Entity 7 polymer

聚合体 Polymer

来源 Source

Entity 8 polymer

聚合体 Polymer

来源 Source

Entity 9 polymer

聚合体 Polymer

来源 Source

Entity 10 polymer

聚合体 Polymer

来源 Source

Entity 11 polymer

聚合体 Polymer

来源 Source

Entity 12 polymer

聚合体 Polymer

来源 Source

Entity 13 polymer

聚合体 Polymer

来源 Source

Entity 14 polymer

聚合体 Polymer

来源 Source

Entity 15 polymer

聚合体 Polymer

来源 Source

Entity 16 polymer

聚合体 Polymer

来源 Source

Entity 17 polymer

聚合体 Polymer

来源 Source

Entity 18 polymer

聚合体 Polymer

来源 Source

Entity 19 polymer

聚合体 Polymer

来源 Source

Entity 20 polymer

聚合体 Polymer

来源 Source

Entity 21 polymer

聚合体 Polymer

来源 Source

Entity 22 polymer

聚合体 Polymer

来源 Source

Entity 23 polymer

聚合体 Polymer

来源 Source

Entity 24 polymer

聚合体 Polymer
