9j74

Cryo-EM structure of URAT1 in complex with lesinurad

Method: ELECTRON MICROSCOPY D_max: 100.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

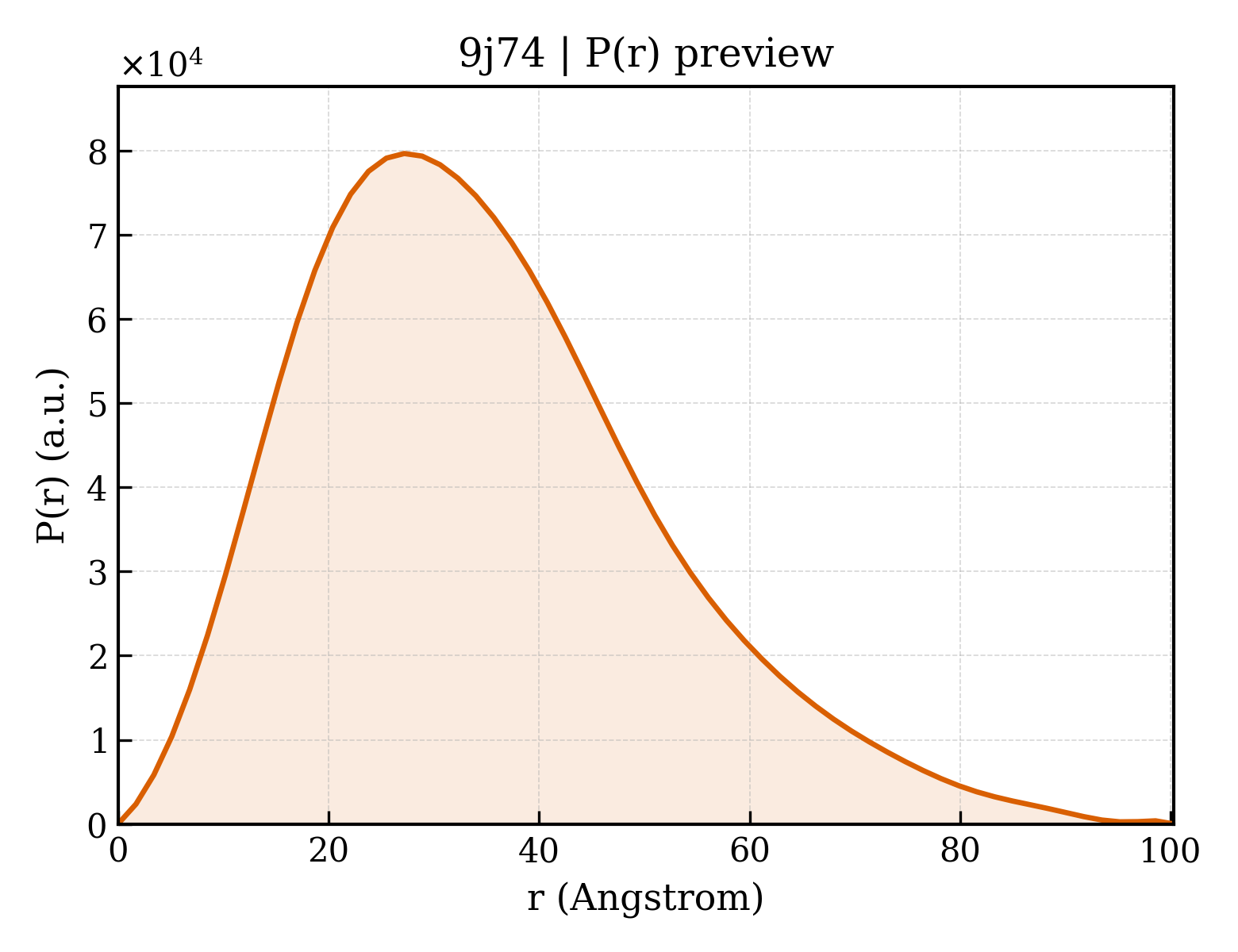

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9j74
沉积日期 deposition_date	2024-08-18
结构标题 title	Cryo-EM structure of URAT1 in complex with lesinurad
关键词 keywords	protein structure, STRUCTURAL PROTEIN, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.91 Å
回转半径 Rg (电子) rg_electron	26.35 Å
零角强度 I(0) i0	40040400.00
分子量 molecular_weight	51991.0 kDa
排除体积 excluded_volume	66389 Å³
包络体积 envelope_volume	84470 Å³
水化壳体积 shell_volume	28143 Å³
包络直径 envelope_diameter	103.8 Å
壳层 Rg shell_rg	32.05 Å
包络 Rg envelope_rg	27.03 Å
形状 Rg shape_rg	26.36 Å
总 Rg total_rg	26.96 Å
总原子数 total_atoms	3654
残基数 n_residues	472
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	100.3 Å
Rg (实空间) rg_real	27.16 Å
Rg 误差 (实空间) rg_real_error	1.00 Å
I(0) (实空间) i0_real	4.0040e+07
I(0) 误差 (实空间) i0_real_error	6.5120e+05
Rg (倒空间) rg_reciprocal	27.08 Å
I(0) (倒空间) i0_reciprocal	40040000.0000
解质量估计 total_estimate	0.7983
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	27.2 Å
偏度 Skewness skewness	0.647
峰度 Kurtosis kurtosis	0.190
角度范围 angular_range	— – 0.2950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11220000.0000
实空间数据点数 n_real_points	60
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.594; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.612; Smooth: 0.979

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Solute carrier family 22 member 12
分子量 formula_weight	60251.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3654

MAFPELLDRVGGRGRFQLLQAVALVTPILWVTTQSMLENFSAAVPHHRCWVPLLDNSTSQASIPGDFGRDVLLAVSIPPGPDQRPHQCLRFRQPQWQLIESNTTATNWSDADTEPCEDGWVYDHSTFRSTIVTTWDLVCDSQALRPMAQSIFLAGILVGAAVCGHASDRFGRRRVLTWSYLLVSVSGTIAALMPTFPLYCLFRFLVASAVAGVMMNTASLLMEWTSAQAGPLMMTLNALGFSFGQVLTGSVAYGVRSWRMLQLAVSAPFFLFFVYSWWLPESARWLITVGRLDQSLRELQRVAAVNRRKAEADTLTVEVLRSAMQEEPNGNQAGARLGTLLHTPGLRLRTFISMLCWFAFGFTFFGLALDLQALGSNIFLLQALIGIVDLPVKMGSLLLLSRLGRRLCQASSLVLPGLCILANILVPREMGILRSSLAVLGLGSLGAAFTCVTIFSSELFPTVIRMTAVGLGQVAARGGAMLGPLVRLLGVYGSWLPLLVYGVVPVLSGLAALLLPETKNLPLPDTIQDIQKQSVKKVTHDIAGGSVLKSARL

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Homo sapiens

Entity 2 non-polymer

描述 description	lesinurad
分子量 formula_weight	404.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.680 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.68 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	31823

fit	/app/data/saxs_computation/j7/9j74/9j74.fit
pddf	/app/data/pr_computation/j7/9j74/9j74.pr.out
profile	/app/data/saxs_computation/j7/9j74/9j74.dat
