9ji7

NADP-dependent oxidoreductase complexed with NADP and substrate 2

Method: X-RAY DIFFRACTION D_max: 108.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

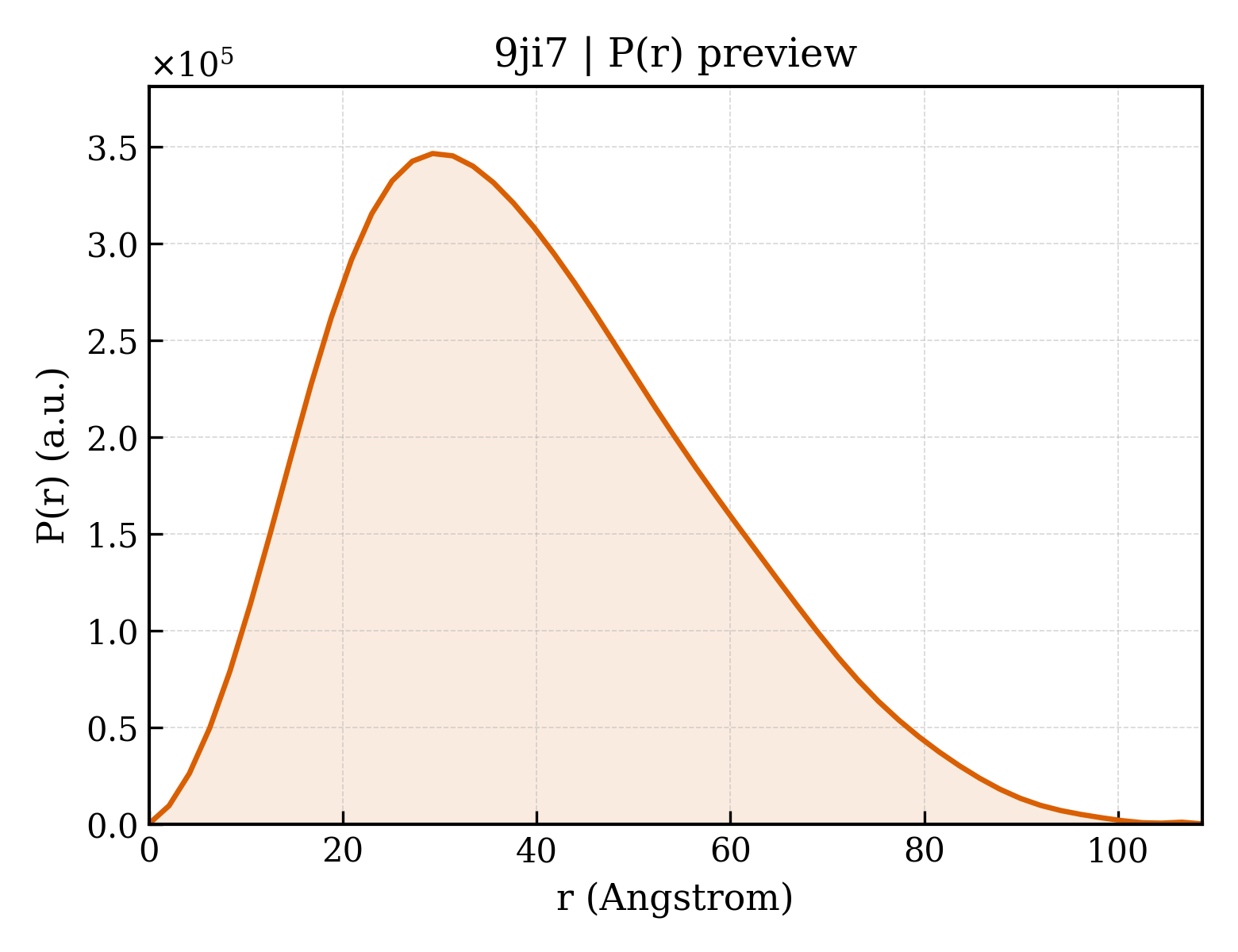

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ji7
沉积日期 deposition_date	2024-09-11
最后修订 last_revision	2025-06-18
结构标题 title	NADP-dependent oxidoreductase complexed with NADP and substrate 2
关键词 keywords	alcohol dehydrogenase, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.30 Å
回转半径 Rg (电子) rg_electron	29.90 Å
零角强度 I(0) i0	198989000.00
分子量 molecular_weight	74661.0 kDa
排除体积 excluded_volume	71808 Å³
包络体积 envelope_volume	120300 Å³
水化壳体积 shell_volume	34282 Å³
包络直径 envelope_diameter	115.3 Å
壳层 Rg shell_rg	36.07 Å
包络 Rg envelope_rg	30.35 Å
形状 Rg shape_rg	29.90 Å
总 Rg total_rg	30.28 Å
总原子数 total_atoms	5640
残基数 n_residues	708
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	108.7 Å
Rg (实空间) rg_real	30.46 Å
Rg 误差 (实空间) rg_real_error	0.96 Å
I(0) (实空间) i0_real	1.9900e+08
I(0) 误差 (实空间) i0_real_error	3.2040e+06
Rg (倒空间) rg_reciprocal	30.40 Å
I(0) (倒空间) i0_reciprocal	199000000.0000
解质量估计 total_estimate	0.6215
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.3 Å
偏度 Skewness skewness	0.501
峰度 Kurtosis kurtosis	-0.232
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	48170000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.694; Stabil: 1.000; Sysdev: 0.077; Positv: 1.000; Valcen: 0.784; Smooth: 0.978

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	NADP-dependent oxidoreductase
分子量 formula_weight	38943.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	5788

LGSMKTERWVVREHVEGVPDAARIYEKVETELNTRLGEEQMLLKTLYVSVDPYLQGICLDTPIGDHMGADSIMQVLDAGPNAPFRPGDLVQGFGGWRTHLVSDGKPKLWQTGTFPMVFPAYRKLDLRHYDDALPLSTALGVMGGPGMTAWGTMTKFMQVRPGDTVVVSGASGMIGTLVGQMAKRAGARVVGTAGSAGKARYLSQLGFDAVIDYKLADDADKMREALREAAPDGVDKYFDSIGGSVTDAVFSMLNVGSQVAVCWQWATQVQRDYHGPRLLPYIMFPRATIRGIFSLEWFTEQNWSALHEELGGLVRRQELVAHETVQDGFEHIPAAYQTLFSASESNRGKVLVRV

来源 Source

来源生物 organism	Lysobacter enzymogenes
NCBI 分类编号 ncbi_taxonomy_id	69
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;(1Z,3E,5E,7S,8R,9S,10S,11R,13R,15S,16Z,18E,24S)-11-ethyl-2,7-dihydroxy-10-methyl-21,25-diazatetracyclo[22.2.1.08,15.09,13]heptacosa-1,3,5,16,18-pentaene-20,26,27-trione ;
分子量 formula_weight	494.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	743.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	148

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	87.275 Å
晶胞边长 b length_b	87.275 Å
晶胞边长 c length_c	226.042 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	2.530 Å
最低分辨率 resolution_low	59.530 Å
R 因子 r_factor	0.1959
R_work r_work	0.1925
R_free r_free	0.2438

fit	/app/data/saxs_computation/ji/9ji7/9ji7.fit
pddf	/app/data/pr_computation/ji/9ji7/9ji7.pr.out
profile	/app/data/saxs_computation/ji/9ji7/9ji7.dat
