SAXS 散射曲线 SAXS Profile

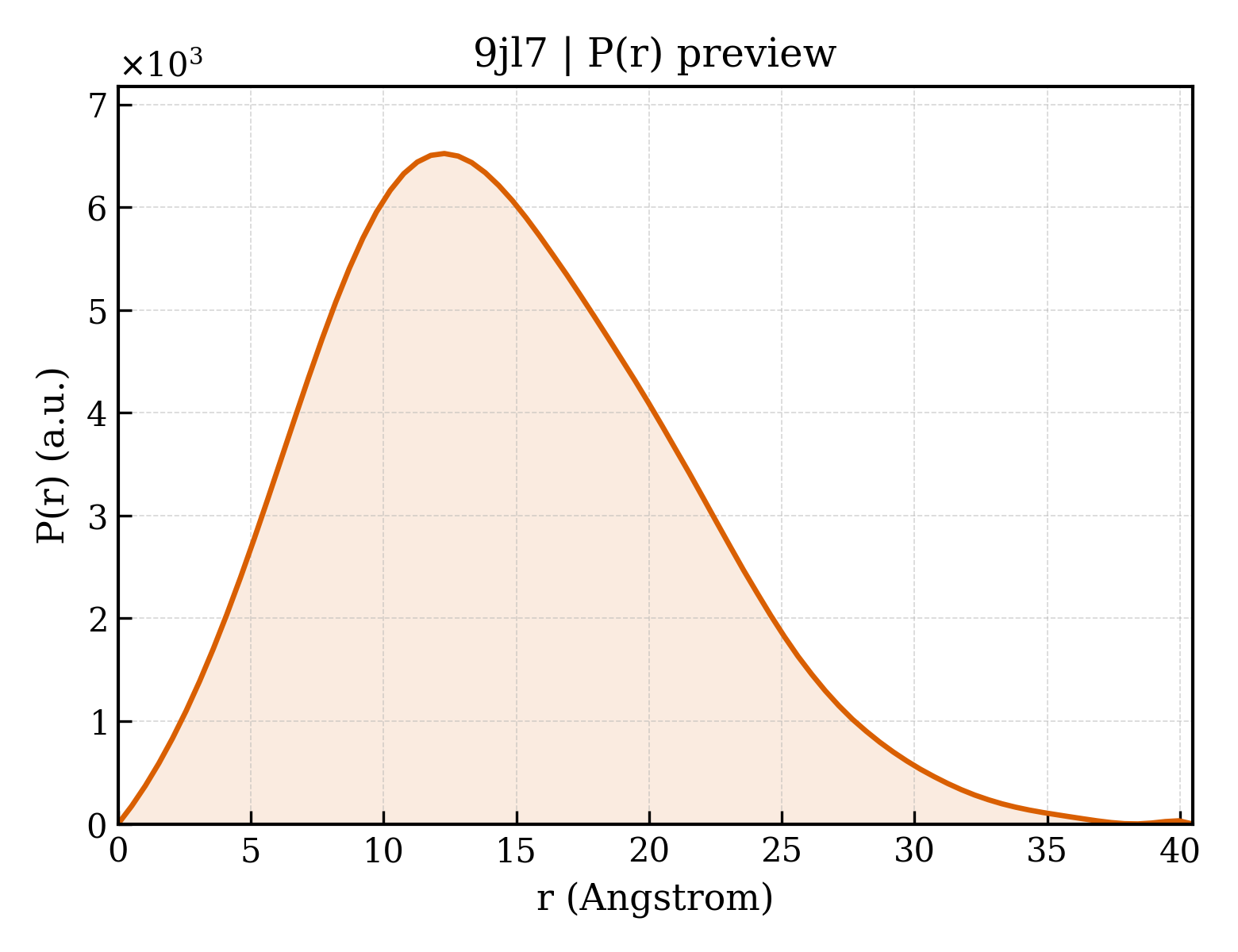

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 9jl7 |
| 沉积日期 deposition_date | 2024-09-18 |
| 结构标题 title | Crystal structure of Actinomycin D-Doxorubicin-d(AGCCGT)2 DNA ternary complex |
| 关键词 keywords | Drug-DNA complex, Actinomycin D, Doxorubicin, DNA, DNA-ANTIBIOTIC complex; DNA/ANTIBIOTIC |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 11.24 Å |
| 回转半径 Rg (电子) rg_electron | 10.16 Å |
| 零角强度 I(0) i0 | 1351750.00 |
| 分子量 molecular_weight | 5729.0 kDa |
| 排除体积 excluded_volume | 6081 ų |
| 包络体积 envelope_volume | 6647 ų |
| 水化壳体积 shell_volume | 6097 ų |
| 包络直径 envelope_diameter | 39.1 Å |
| 壳层 Rg shell_rg | 14.84 Å |
| 包络 Rg envelope_rg | 10.71 Å |
| 形状 Rg shape_rg | 9.96 Å |
| 总 Rg total_rg | 11.44 Å |
| 总原子数 total_atoms | 379 |
| 残基数 n_residues | 16 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 40.5 Å |
| Rg (实空间) rg_real | 11.27 Å |
| Rg 误差 (实空间) rg_real_error | 0.32 Å |
| I(0) (实空间) i0_real | 1.3520e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.3550e+04 |
| Rg (倒空间) rg_reciprocal | 11.27 Å |
| I(0) (倒空间) i0_reciprocal | 1352000.0000 |
| 解质量估计 total_estimate | 0.8436 |
| 解质量评级 solution_quality |
GOOD
a GOOD solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 12.3 Å |
| 偏度 Skewness skewness | 0.417 |
| 峰度 Kurtosis kurtosis | -0.157 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 152300.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.730;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.822;
Smooth: 0.952
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 27.002 Å |
| 晶胞边长 b length_b | 27.002 Å |
| 晶胞边长 c length_c | 205.993 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 120.00 ° |
| 晶胞分子数 Z z_pdb | 12 |
对称性 Symmetry
| 空间群 space_group | P 65 2 2 |
| 空间群编号 int_tables_number | 179 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 1.520 Å |
| 最低分辨率 resolution_low | 22.140 Å |
| R 因子 r_factor | 0.2038 |
| R_work r_work | 0.2025 |
| R_free r_free | 0.2131 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | ;DNA (5'-D(P*AP*GP*CP*CP*GP*T)-3')
; |
| 分子量 formula_weight | 1809.2 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A |
| 原子数 atom_count | 469 |
AGCCGT
Entity 2
polymer
| 描述 description | ;DNA (5'-D(P*AP*CP*GP*GP*CP*T)-3')
; |
| 分子量 formula_weight | 1809.2 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | B |
ACGGCT
Entity 3
polymer
| 描述 description | Actinomycin D |
| 分子量 formula_weight | 1291.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polypeptide(L) |
| 链编号 strand_id | G |
TVPGVXTVPGV
Entity 4
non-polymer
| 描述 description | DOXORUBICIN |
| 分子量 formula_weight | 543.5 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
Entity 5
non-polymer
| 描述 description | MANGANESE (II) ION |
| 分子量 formula_weight | 54.9 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 3 |
Entity 6
non-polymer
| 描述 description | CHLORIDE ION |
| 分子量 formula_weight | 35.5 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
Entity 7
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 90 |
;Structural and Functional Insights into Targeting GCCG Sites in the EGFR Promoter by Two DNA Intercalators to Inhibit Breast Cancer Metastasis.
;
J.Med.Chem. (2025)
