9jvk

Crystal structure of PHBDD-M1-L163G with product N-ethyl-4-methylbenzamide

Method: X-RAY DIFFRACTION D_max: 111.6 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

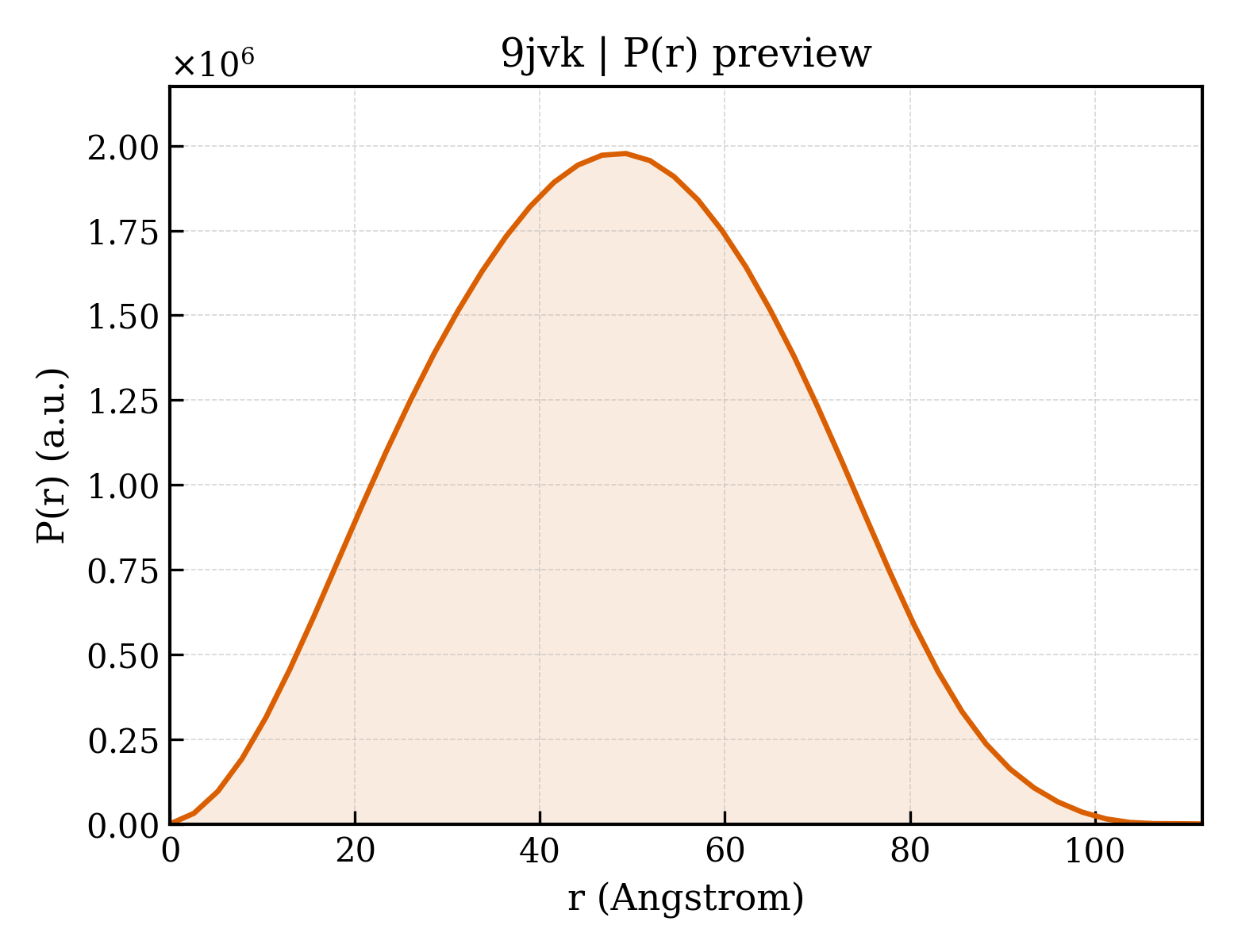

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9jvk
沉积日期 deposition_date	2024-10-09
结构标题 title	Crystal structure of PHBDD-M1-L163G with product N-ethyl-4-methylbenzamide
关键词 keywords	NADP+-dependent aldehyde dehydrognase, Amide bond synthesis, Oxidative aminase, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.90 Å
回转半径 Rg (电子) rg_electron	36.22 Å
零角强度 I(0) i0	1289630000.00
分子量 molecular_weight	193770.0 kDa
排除体积 excluded_volume	186210 Å³
包络体积 envelope_volume	315440 Å³
水化壳体积 shell_volume	68617 Å³
包络直径 envelope_diameter	110.8 Å
壳层 Rg shell_rg	45.20 Å
包络 Rg envelope_rg	36.12 Å
形状 Rg shape_rg	36.21 Å
总 Rg total_rg	36.60 Å
总原子数 total_atoms	14711
残基数 n_residues	1951
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	111.6 Å
Rg (实空间) rg_real	36.62 Å
Rg 误差 (实空间) rg_real_error	0.61 Å
I(0) (实空间) i0_real	1.2900e+09
I(0) 误差 (实空间) i0_real_error	1.9080e+07
Rg (倒空间) rg_reciprocal	36.80 Å
I(0) (倒空间) i0_reciprocal	1290000000.0000
解质量估计 total_estimate	0.9009
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	49.3 Å
偏度 Skewness skewness	0.061
峰度 Kurtosis kurtosis	-0.573
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	170300000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.939; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.915

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	4-hydroxybenzaldehyde dehydrogenase (NADP(+))
分子量 formula_weight	53262.0 kDa
EC 编号 ec_number	1.2.1.96
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	15209

GSMSQRLAAYENMSLQLIAGEWRVGKAGRDLDVLDPFTQEKLLQIPLANREDLDEAYRSARQAQVAWAACGPSERAQVMLNAVRIFDERRDEIIDWIIRESGSTRIKAQIEWGAARAITQESASLPSRVHGRILASDVPGKESRVYREPLGVIGIISPWNFPLHGTAMSLAPALALGNACVIKPASDTPVTGGLLLAHIFEEAGLPKGVLSVVVGSGSEIGDAFVEHEVPGFISFTGSTQVGRNIGRIAAGGEHLKHVALLLGGNSPFVVLADADLDQAVNAAVVGKFLHQGQICMAINRIIVEDSVYDEFVNRYAERVKSLPYGDPSKPETVVGPVINAKQLAGLQDKIATAKSEGARVMVEGEAQGNVLPPHVFADVTADMEIAREEIFGPLVGIQRARDEAHALELANSSEYGLSSAVFTSSLERGVKFARGIRAGMTHINDIPVNDEPNAPFGGEKNSGLGRFNGDWAIEEFTTDHWITVQHAPRRYPF

来源 Source

来源生物 organism	Pseudomonas putida
NCBI 分类编号 ncbi_taxonomy_id	303
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	~{N}-ethyl-4-methyl-benzamide
分子量 formula_weight	163.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	498

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	88.900 Å
晶胞边长 b length_b	122.050 Å
晶胞边长 c length_c	90.850 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	105.72 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.210 Å
最低分辨率 resolution_low	43.350 Å
R 因子 r_factor	0.1845
R_work r_work	0.1833
R_free r_free	0.2383
