1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9jyy
沉积日期 deposition_date	2024-10-13
结构标题 title	core proteins of mature T7
关键词 keywords	Complex, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	72.14 Å
回转半径 Rg (电子) rg_electron	71.50 Å
零角强度 I(0) i0	23134200000.00
分子量 molecular_weight	1250800.0 kDa
排除体积 excluded_volume	1548700 Å³
包络体积 envelope_volume	2418800 Å³
水化壳体积 shell_volume	259520 Å³
包络直径 envelope_diameter	212.1 Å
壳层 Rg shell_rg	86.81 Å
包络 Rg envelope_rg	69.14 Å
形状 Rg shape_rg	71.51 Å
总 Rg total_rg	71.61 Å
总原子数 total_atoms	87740
残基数 n_residues	11284
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	269.7 Å
Rg (实空间) rg_real	75.39 Å
Rg 误差 (实空间) rg_real_error	1.55 Å
I(0) (实空间) i0_real	2.3140e+10
I(0) 误差 (实空间) i0_real_error	4.3740e+08
Rg (倒空间) rg_reciprocal	73.47 Å
I(0) (倒空间) i0_reciprocal	23210000000.0000
解质量估计 total_estimate	0.8649
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	98.1 Å
偏度 Skewness skewness	0.488
峰度 Kurtosis kurtosis	0.751
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.9663
最高正则化参数 α highest_alpha	2337000000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.576; Stabil: 0.891; Sysdev: 1.000; Positv: 1.000; Valcen: 0.927; Smooth: 0.921

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Protein 6.7
分子量 formula_weight	9354.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b,A,D,B,E,C,F
原子数 atom_count	87740

MCFSPKIKTPKMDTNQIRAVEPAPLTQEVSSVEFGGSSDETDTEGTEVSGRKGLKVERDDSVAKSKASGNGSARMKSSIRKSAFGGKK

Entity 2 polymer

描述 description	Internal virion protein gp14
分子量 formula_weight	20990.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S,T,c,d,e,f,g,h

MCWAAAIPIAISGAQAISGQNAQAKMIAAQTAAGRRQAMEIMRQTNIQNADLSLQARSKLEEASAELTSQNMQKVQAIGSIRAAIGESMLEGSSMDRIKRVTEGQFIREANMVTENYRRDYQAIFAQQLGGTQSAASQIDEIYKSEQKQKSKLQMVLDPLAIMGSSAASAYASGAFDSKSTTKAPIVAAKGTKTGR

Entity 3 polymer

描述 description	Internal virion protein gp15
分子量 formula_weight	84454.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,O,P,Q,R,G,H

MSKIESALQAAQPGLSRLRGGAGGMGYRAATTQAEQPRSSLLDTIGRFAKAGADMYTAKEQRARDLADERSNEIIRKLTPEQRREALNNGTLLYQDDPYAMEALRVKTGRNAAYLVDDDVMQKIKEGVFRTREEMEEYRHSRLQEGAKVYAEQFGIDPEDVDYQRGFNGDITERNISLYGAHDNFLSQQAQKGAIMNSRVELNGVLQDPDMLRRPDSADFFEKYIDNGLVTGAIPSDAQATQLISQAFSDASSRAGGADFLMRVGDKKVTLNGATTTYRELIGEEQWNALMVTAQRSQFETDAKLNEQYRLKINSALNQEDPRTAWEMLQGIKAELDKVQPDEQMTPQREWLISAQEQVQNQMNAWTKAQAKALDDSMKSMNKLDVIDKQFQKRINGEWVSTDFKDMPVNENTGEFKHSDMVNYANKKLAEIDSMDIPDGAKDAMKLKYLQADSKDGAFRTAIGTMVTDAGQEWSAAVINGKLPERTPAMDALRRIRNADPQLIAALYPDQAELFLTMDMMDKQGIDPQVILDADRLTVKRSKEQRFEDDKAFESALNASKAPEIARMPASLRESARKIYDSVKYRSGNESMAMEQMTKFLKESTYTFTGDDVDGDTVGVIPKNMMQVNSDPKSWEQGRDILEEARKGIIASNPWITNKQLTMYSQGDSIYLMDTTGQVRVRYDKELLSKVWSENQKKLEEKAREKALADVNKRAPIVAATKAREAAAKRVREKRKQTPKFIYGRKE

Entity 4 polymer

描述 description	Peptidoglycan transglycosylase gp16
分子量 formula_weight	144028.2 kDa
EC 编号 ec_number	4.2.2.-
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,J,K,L

MDKYDKNVPSDYDGLFQKAADANGVSYDLLRKVAWTESRFVPTAKSKTGPLGMMQFTKATAKALGLRVTDGPDDDRLNPELAINAAAKQLAGLVGKFDGDELKAALAYNQGEGRLGNPQLEAYSKGDFASISEEGRNYMRNLLDVAKSPMAGQLETFGGITPKGKGIPAEVGLAGIGHKQKVTQELPESTSFDVKGIEQEATAKPFAKDFWETHGETLDEYNSRSTFFGFKNAAEAELSNSVAGMAFRAGRLDNGFDVFKDTITPTRWNSHIWTPEELEKIRTEVKNPAYINVVTGGSPENLDDLIKLANENFENDSRAAEAGLGAKLSAGIIGAGVDPLSYVPMVGVTGKGFKLINKALVVGAESAALNVASEGLRTSVAGGDADYAGAALGGFVFGAGMSAISDAVAAGLKRSKPEAEFDNEFIGPMMRLEARETARNANSADLSRMNTENMKFEGEHNGVPYEDLPTERGAVVLHDGSVLSASNPINPKTLKEFSEVDPEKAARGIKLAGFTEIGLKTLGSDDADIRRVAIDLVRSPTGMQSGASGKFGATASDIHERLHGTDQRTYNDLYKAMSDAMKDPEFSTGGAKMSREETRYTIYRRAALAIERPELQKALTPSERIVMDIIKRHFDTKRELMENPAIFGNTKAVSIFPESRHKGTYVPHVYDRHAKALMIQRYGAEGLQEGIARSWMNSYVSRPEVKARVDEMLKELHGVKEVTPEMVEKYAMDKAYGISHSDQFTNSSIIEENIEGLVGIENNSFLEARNLFDSDLSITMPDGQQFSVNDLRDFDMFRIMPAYDRRVNGDIAIMGSTGKTTKELKDEILALKAKAEGDGKKTGEVHALMDTVKILTGRARRNQDTVWETSLRAINDLGFFAKNAYMGAQNITEIAGMIVTGNVRALGHGIPILRDTLYKSKPVSAKELKELHASLFGKEVDQLIRPKRADIVQRLREATDTGPAVANIVGTLKYSTQELAARSPWTKLLNGTTNYLLDAARQGMLGDVISATLTGKTTRWEKEGFLRGASVTPEQMAGIKSLIKEHMVRGEDGKFTVKDKQAFSMDPRAMDLWRLADKVADEAMLRPHKVSLQDSHAFGALGKMVMQFKSFTIKSLNSKFLRTFYDGYKNNRAIDAALSIITSMGLAGGFYAMAAHVKAYALPKEKRKEYLERALDPTMIAHAALSRSSQLGAPLAMVDLVGGVLGFESSKMARSTILPKDTVKERDPNKPYTSREVMGAMGSNLLEQMPSAGFVANVGATLMNAAGVVNSPNKATEQDFMTGLMNSTKELVPNDPLTQQLVLKIYEANGVNLRERRK

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	45731

fit	/app/data/saxs_computation/jy/9jyy/9jyy.fit
pddf	/app/data/pr_computation/jy/9jyy/9jyy.pr.out
profile	/app/data/saxs_computation/jy/9jyy/9jyy.dat

core proteins of mature T7

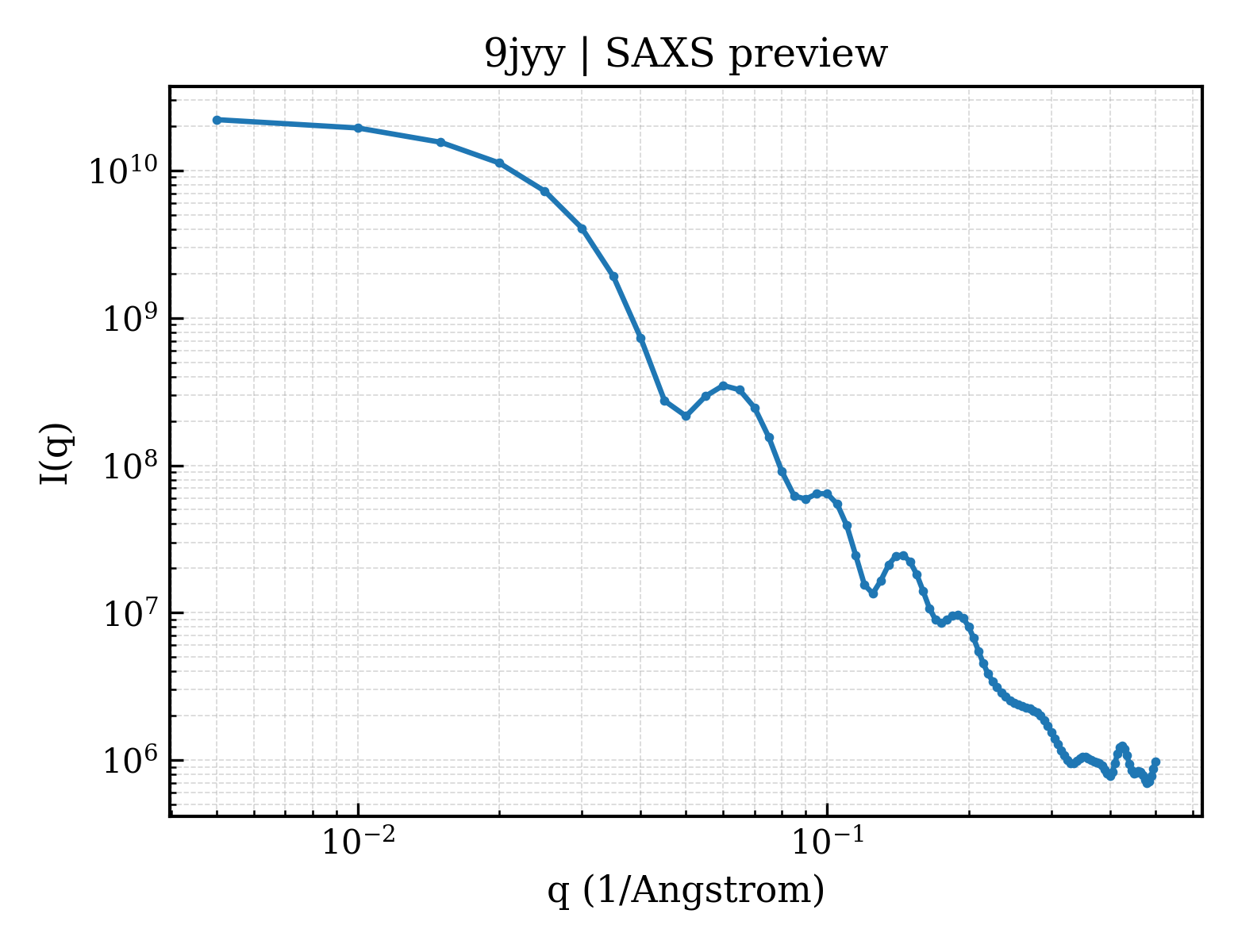

SAXS 散射曲线 SAXS Profile

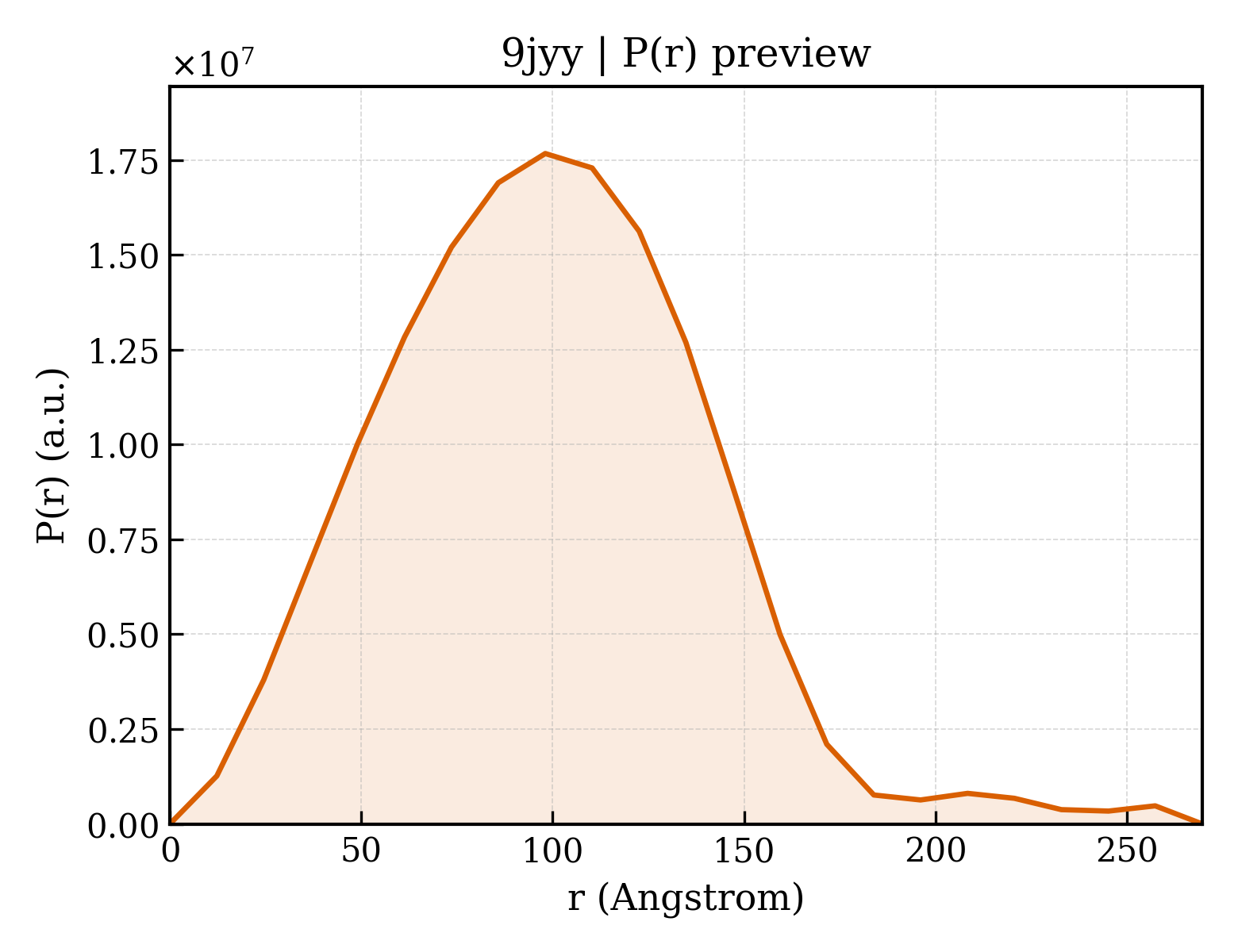

P(r) 距离分布 P(r) Distribution
