SAXSdb — 9jyz

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9jyz
沉积日期 deposition_date	2024-10-13
结构标题 title	portal-tail complex of mature T7
关键词 keywords	Complex, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	86.01 Å
回转半径 Rg (电子) rg_electron	85.93 Å
零角强度 I(0) i0	45930400000.00
分子量 molecular_weight	1803600.0 kDa
排除体积 excluded_volume	2245900 Å³
包络体积 envelope_volume	3241000 Å³
水化壳体积 shell_volume	302440 Å³
包络直径 envelope_diameter	319.8 Å
壳层 Rg shell_rg	90.68 Å
包络 Rg envelope_rg	85.20 Å
形状 Rg shape_rg	85.91 Å
总 Rg total_rg	86.05 Å
总原子数 total_atoms	126948
残基数 n_residues	16140
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	234.5 Å
Rg (实空间) rg_real	81.73 Å
Rg 误差 (实空间) rg_real_error	0.72 Å
I(0) (实空间) i0_real	4.3780e+10
I(0) 误差 (实空间) i0_real_error	7.9190e+08
Rg (倒空间) rg_reciprocal	85.46 Å
I(0) (倒空间) i0_reciprocal	45860000000.0000
解质量估计 total_estimate	0.9112
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	104.2 Å
偏度 Skewness skewness	0.297
峰度 Kurtosis kurtosis	-0.320
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.6261
最高正则化参数 α highest_alpha	3420000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.964; Stabil: 0.981; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.012

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Protein 6.7
分子量 formula_weight	9354.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0,3,4,5,6,7,8,9,AA,AB,AC,AD
原子数 atom_count	126948

MCFSPKIKTPKMDTNQIRAVEPAPLTQEVSSVEFGGSSDETDTEGTEVSGRKGLKVERDDSVAKSKASGNGSARMKSSIRKSAFGGKK

Entity 2 polymer

描述 description	Protein 7.3
分子量 formula_weight	10088.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,2,v,w,y,z

MGKKVKKAVKKVTKSVKKVVKEGARPVKQVAGGLAGLAGGTGEAQMVEVPQAAAQIVDVPEKEVSTEDEAQTESGRKKARAGGKKSLSVARSSGGGINI

Entity 3 polymer

描述 description	Tail fiber protein
分子量 formula_weight	61641.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,a,b,c

MANVIKTVLTYQLDGSNRDFNIPFEYLARKFVVVTLIGVDRKVLTINTDYRFATRTTISLTKAWGPADGYTTIELRRVTSTTDRLVDFTDGSILRAYDLNVAQIQTMHVAEEARDLTTDTIGVNNDGHLDARGRRIVNLANAVDDRDAVPFGQLKTMNQNSWQARNEALQFRNEAETFRNQAEGFKNESSTNATNTKQWRDETKGFRDEAKRFKNTAGQYATSAGNSASAAHQSEVNAENSATASANSAHLAEQQADRAEREADKLENYNGLAGAIDKVDGTNVYWKGNIHANGRLYMTTNGFDCGQYQQFFGGVTNRYSVMEWGDENGWLMYVQRREWTTAIGGNIQLVVNGQIITQGGAMTGQLKLQNGHVLQLESASDKAHYILSKDGNRNNWYIGRGSDNNNDCTFHSYVHGTTLTLKQDYAVVNKHFHVGQAVVATDGNIQGTKWGGKWLDAYLRDSFVAKSKAWTQVWSGSAGGGVSVTVSQDLRFRNIWIKCANNSWNFFRTGPDGIYFIASDGGWLRFQIHSNGLGFKNIADSRSVPNAIMVENE

Entity 4 polymer

描述 description	Tail tubular protein gp12
分子量 formula_weight	89480.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P,Q,R,S,T,x

MALISQSIKNLKGGISQQPDILRYPDQGSRQVNGWSSETEGLQKRPPLVFLNTLGDNGALGQAPYIHLINRDEHEQYYAVFTGSGIRVFDLSGNEKQVRYPNGSNYIKTANPRNDLRMVTVADYTFIVNRNVVAQKNTKSVNLPNYNPNQDGLINVRGGQYGRELIVHINGKDVAKYKIPDGSQPEHVNNTDAQWLAEELAKQMRTNLSDWTVNVGQGFIHVTAPSGQQIDSFTTKDGYADQLINPVTHYAQSFSKLPPNAPNGYMVKIVGDASKSADQYYVRYDAERKVWTETLGWNTEDQVLWETMPHALVRAADGNFDFKWLEWSPKSCGDVDTNPWPSFVGSSINDVFFFRNRLGFLSGENIILSRTAKYFNFYPASIANLSDDDPIDVAVSTNRIAILKYAVPFSEELLIWSDEAQFVLTASGTLTSKSVELNLTTQFDVQDRARPFGIGRNVYFASPRSSFTSIHRYYAVQDVSSVKNAEDITSHVPNYIPNGVFSICGSGTENFCSVLSHGDPSKIFMYKFLYLNEELRQQSWSHWDFGENVQVLACQSISSDMYVILRNEFNTFLARISFTKNAIDLQGEPYRAFMDMKIRYTIPSGTYNDDTFTTSIHIPTIYGANFGRGKITVLEPDGKITVFEQPTAGWNSDPWLRLSGNLEGRMVYIGFNINFVYEFSKFLIKQTADDGSTSTEDIGRLQLRRAWVNYENSGTFDIYVENQSSNWKYTMAGARLGSNTLRAGRLNLGTGQYRFPVVGNAKFNTVYILSDETTPLNIIGCGWEGNYLRRSSGI

Entity 5 polymer

描述 description	Tail tubular protein gp11
分子量 formula_weight	22307.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U,V,W,X,Y,Z,d,e,f,g,h,i

MRSYDMNVETAAELSAVNDILASIGEPPVSTLEGDANADAANARRILNKINRQIQSRGWTFNIEEGITLLPDVYSNLIVYSDDYLSLMSTSGQSIYVNRGGYVYDRTSQSDRFDSGITVNIIRLRDYDEMPECFRYWIVTKASRQFNNRFFGAPEVEGVLQEEEDEARRLCMEYEMDYGGYNMLDGDAFTSGLLTR

Entity 6 polymer

描述 description	Portal protein
分子量 formula_weight	59174.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j,k,l,m,n,o,p,q,r,s,t,u

MAEKRTGLAEDGAKSVYERLKNDRAPYETRAQNCAQYTIPSLFPKDSDNASTDYQTPWQAVGARGLNNLASKLMLALFPMQTWMRLTISEYEAKQLLSDPDGLAKVDEGLSMVERIIMNYIESNSYRVTLFEALKQLVVAGNVLLYLPEPEGSNYNPMKLYRLSSYVVQRDAFGNVLQMVTRDQIAFGALPEDIRKAVEGQGGEKKADETIDVYTHIYLDEDSGEYLRYEEVEGMEVQGSDGTYPKEACPYIPIRMVRLDGESYGRSYIEEYLGDLRSLENLQEAIVKMSMISSKVIGLVNPAGITQPRRLTKAQTGDFVTGRPEDISFLQLEKQADFTVAKAVSDAIEARLSFAFMLNSAVQRTGERVTAEEIRYVASELEDTLGGVYSILSQELQLPLVRVLLKQLQATQQIPELPKEAVEPTISTGLEAIGRGQDLDKLERCVTAWAALAPMRDDPDINLAMIKLRIANAIGIDTSGILLTEEQKQQKMAQQSMQMGMDNGAAALAQGMAAQATASPEAMAAAADSVGLQPGI

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	2.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	65620

fit	/app/data/saxs_computation/jy/9jyz/9jyz.fit
pddf	/app/data/pr_computation/jy/9jyz/9jyz.pr.out
profile	/app/data/saxs_computation/jy/9jyz/9jyz.dat

portal-tail complex of mature T7

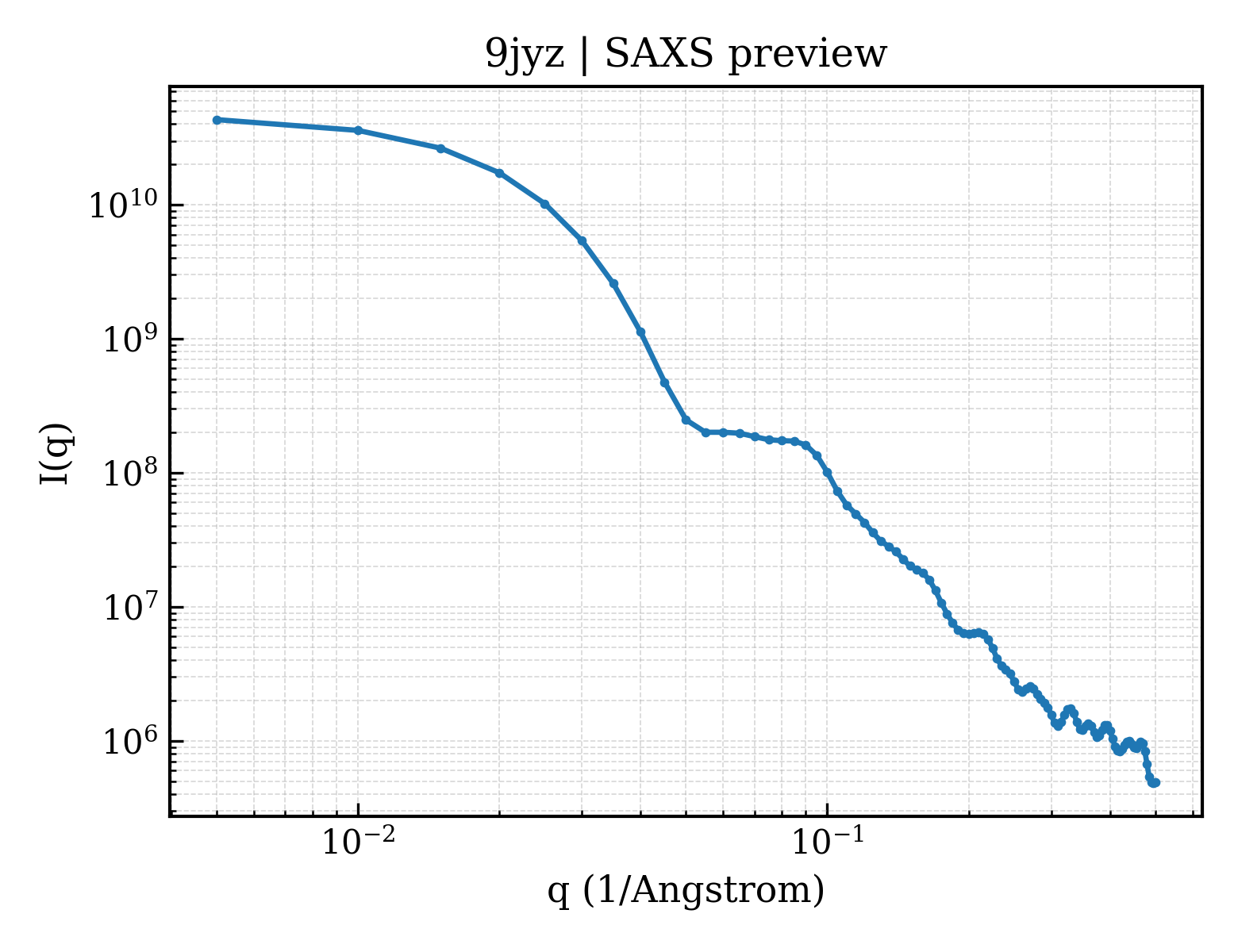

SAXS 散射曲线 SAXS Profile

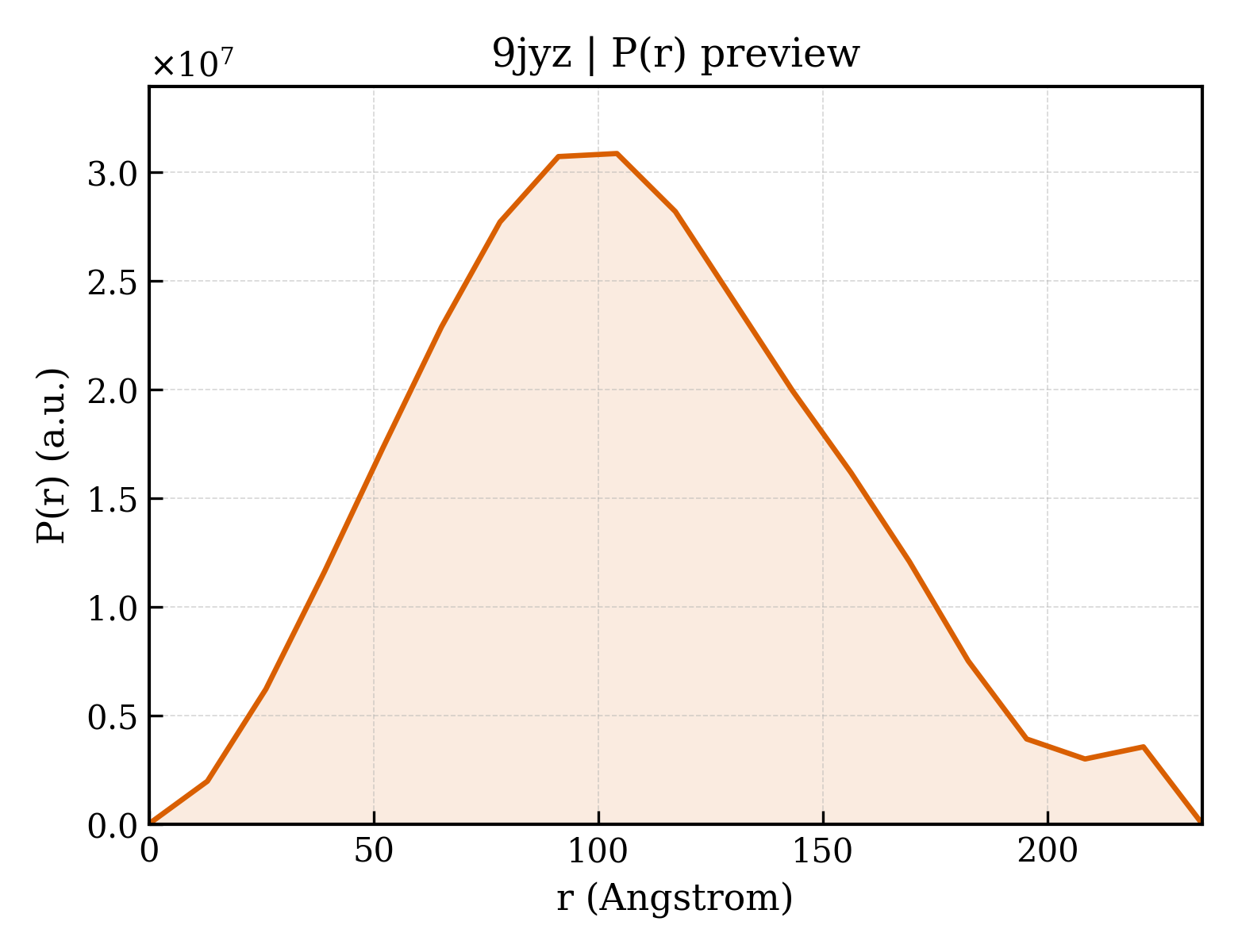

P(r) 距离分布 P(r) Distribution
