SAXSdb — 9jz0

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9jz0
沉积日期 deposition_date	2024-10-13
结构标题 title	portal-tail complex of DNA-ejected T7
关键词 keywords	Complex, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	87.75 Å
回转半径 Rg (电子) rg_electron	87.68 Å
零角强度 I(0) i0	42443600000.00
分子量 molecular_weight	1737300.0 kDa
排除体积 excluded_volume	2164200 Å³
包络体积 envelope_volume	3248500 Å³
水化壳体积 shell_volume	300950 Å³
包络直径 envelope_diameter	309.1 Å
壳层 Rg shell_rg	91.09 Å
包络 Rg envelope_rg	86.26 Å
形状 Rg shape_rg	87.65 Å
总 Rg total_rg	87.82 Å
总原子数 total_atoms	122376
残基数 n_residues	15474
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	243.4 Å
Rg (实空间) rg_real	84.45 Å
Rg 误差 (实空间) rg_real_error	0.65 Å
I(0) (实空间) i0_real	4.0730e+10
I(0) 误差 (实空间) i0_real_error	7.4600e+08
Rg (倒空间) rg_reciprocal	87.17 Å
I(0) (倒空间) i0_reciprocal	42370000000.0000
解质量估计 total_estimate	0.9114
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	108.2 Å
偏度 Skewness skewness	0.364
峰度 Kurtosis kurtosis	-0.243
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.6397
最高正则化参数 α highest_alpha	2501000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.946; Stabil: 0.981; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.072

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Internal virion protein gp14
分子量 formula_weight	20990.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0,1,Y,Z,y,z
原子数 atom_count	122376

MCWAAAIPIAISGAQAISGQNAQAKMIAAQTAAGRRQAMEIMRQTNIQNADLSLQARSKLEEASAELTSQNMQKVQAIGSIRAAIGESMLEGSSMDRIKRVTEGQFIREANMVTENYRRDYQAIFAQQLGGTQSAASQIDEIYKSEQKQKSKLQMVLDPLAIMGSSAASAYASGAFDSKSTTKAPIVAAKGTKTGR

Entity 2 polymer

描述 description	Protein 6.7
分子量 formula_weight	9354.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2,3,4,5,6,7,8,9,AA,AB,AC,AD

MCFSPKIKTPKMDTNQIRAVEPAPLTQEVSSVEFGGSSDETDTEGTEVSGRKGLKVERDDSVAKSKASGNGSARMKSSIRKSAFGGKK

Entity 3 polymer

描述 description	Portal protein
分子量 formula_weight	59174.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L

MAEKRTGLAEDGAKSVYERLKNDRAPYETRAQNCAQYTIPSLFPKDSDNASTDYQTPWQAVGARGLNNLASKLMLALFPMQTWMRLTISEYEAKQLLSDPDGLAKVDEGLSMVERIIMNYIESNSYRVTLFEALKQLVVAGNVLLYLPEPEGSNYNPMKLYRLSSYVVQRDAFGNVLQMVTRDQIAFGALPEDIRKAVEGQGGEKKADETIDVYTHIYLDEDSGEYLRYEEVEGMEVQGSDGTYPKEACPYIPIRMVRLDGESYGRSYIEEYLGDLRSLENLQEAIVKMSMISSKVIGLVNPAGITQPRRLTKAQTGDFVTGRPEDISFLQLEKQADFTVAKAVSDAIEARLSFAFMLNSAVQRTGERVTAEEIRYVASELEDTLGGVYSILSQELQLPLVRVLLKQLQATQQIPELPKEAVEPTISTGLEAIGRGQDLDKLERCVTAWAALAPMRDDPDINLAMIKLRIANAIGIDTSGILLTEEQKQQKMAQQSMQMGMDNGAAALAQGMAAQATASPEAMAAAADSVGLQPGI

Entity 4 polymer

描述 description	Tail tubular protein gp11
分子量 formula_weight	22307.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,O,P,Q,R,S,T,U,V,W,X

MRSYDMNVETAAELSAVNDILASIGEPPVSTLEGDANADAANARRILNKINRQIQSRGWTFNIEEGITLLPDVYSNLIVYSDDYLSLMSTSGQSIYVNRGGYVYDRTSQSDRFDSGITVNIIRLRDYDEMPECFRYWIVTKASRQFNNRFFGAPEVEGVLQEEEDEARRLCMEYEMDYGGYNMLDGDAFTSGLLTR

Entity 5 polymer

描述 description	Tail fiber protein
分子量 formula_weight	61641.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,b,c,d,e,f,g,h,i,j,k,l,m,n,o,p,q,r

MANVIKTVLTYQLDGSNRDFNIPFEYLARKFVVVTLIGVDRKVLTINTDYRFATRTTISLTKAWGPADGYTTIELRRVTSTTDRLVDFTDGSILRAYDLNVAQIQTMHVAEEARDLTTDTIGVNNDGHLDARGRRIVNLANAVDDRDAVPFGQLKTMNQNSWQARNEALQFRNEAETFRNQAEGFKNESSTNATNTKQWRDETKGFRDEAKRFKNTAGQYATSAGNSASAAHQSEVNAENSATASANSAHLAEQQADRAEREADKLENYNGLAGAIDKVDGTNVYWKGNIHANGRLYMTTNGFDCGQYQQFFGGVTNRYSVMEWGDENGWLMYVQRREWTTAIGGNIQLVVNGQIITQGGAMTGQLKLQNGHVLQLESASDKAHYILSKDGNRNNWYIGRGSDNNNDCTFHSYVHGTTLTLKQDYAVVNKHFHVGQAVVATDGNIQGTKWGGKWLDAYLRDSFVAKSKAWTQVWSGSAGGGVSVTVSQDLRFRNIWIKCANNSWNFFRTGPDGIYFIASDGGWLRFQIHSNGLGFKNIADSRSVPNAIMVENE

Entity 6 polymer

描述 description	Tail tubular protein gp12
分子量 formula_weight	89480.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s,t,u,v,w,x

MALISQSIKNLKGGISQQPDILRYPDQGSRQVNGWSSETEGLQKRPPLVFLNTLGDNGALGQAPYIHLINRDEHEQYYAVFTGSGIRVFDLSGNEKQVRYPNGSNYIKTANPRNDLRMVTVADYTFIVNRNVVAQKNTKSVNLPNYNPNQDGLINVRGGQYGRELIVHINGKDVAKYKIPDGSQPEHVNNTDAQWLAEELAKQMRTNLSDWTVNVGQGFIHVTAPSGQQIDSFTTKDGYADQLINPVTHYAQSFSKLPPNAPNGYMVKIVGDASKSADQYYVRYDAERKVWTETLGWNTEDQVLWETMPHALVRAADGNFDFKWLEWSPKSCGDVDTNPWPSFVGSSINDVFFFRNRLGFLSGENIILSRTAKYFNFYPASIANLSDDDPIDVAVSTNRIAILKYAVPFSEELLIWSDEAQFVLTASGTLTSKSVELNLTTQFDVQDRARPFGIGRNVYFASPRSSFTSIHRYYAVQDVSSVKNAEDITSHVPNYIPNGVFSICGSGTENFCSVLSHGDPSKIFMYKFLYLNEELRQQSWSHWDFGENVQVLACQSISSDMYVILRNEFNTFLARISFTKNAIDLQGEPYRAFMDMKIRYTIPSGTYNDDTFTTSIHIPTIYGANFGRGKITVLEPDGKITVFEQPTAGWNSDPWLRLSGNLEGRMVYIGFNINFVYEFSKFLIKQTADDGSTSTEDIGRLQLRRAWVNYENSGTFDIYVENQSSNWKYTMAGARLGSNTLRAGRLNLGTGQYRFPVVGNAKFNTVYILSDETTPLNIIGCGWEGNYLRRSSGI

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	23461

fit	/app/data/saxs_computation/jz/9jz0/9jz0.fit
pddf	/app/data/pr_computation/jz/9jz0/9jz0.pr.out
profile	/app/data/saxs_computation/jz/9jz0/9jz0.dat

portal-tail complex of DNA-ejected T7

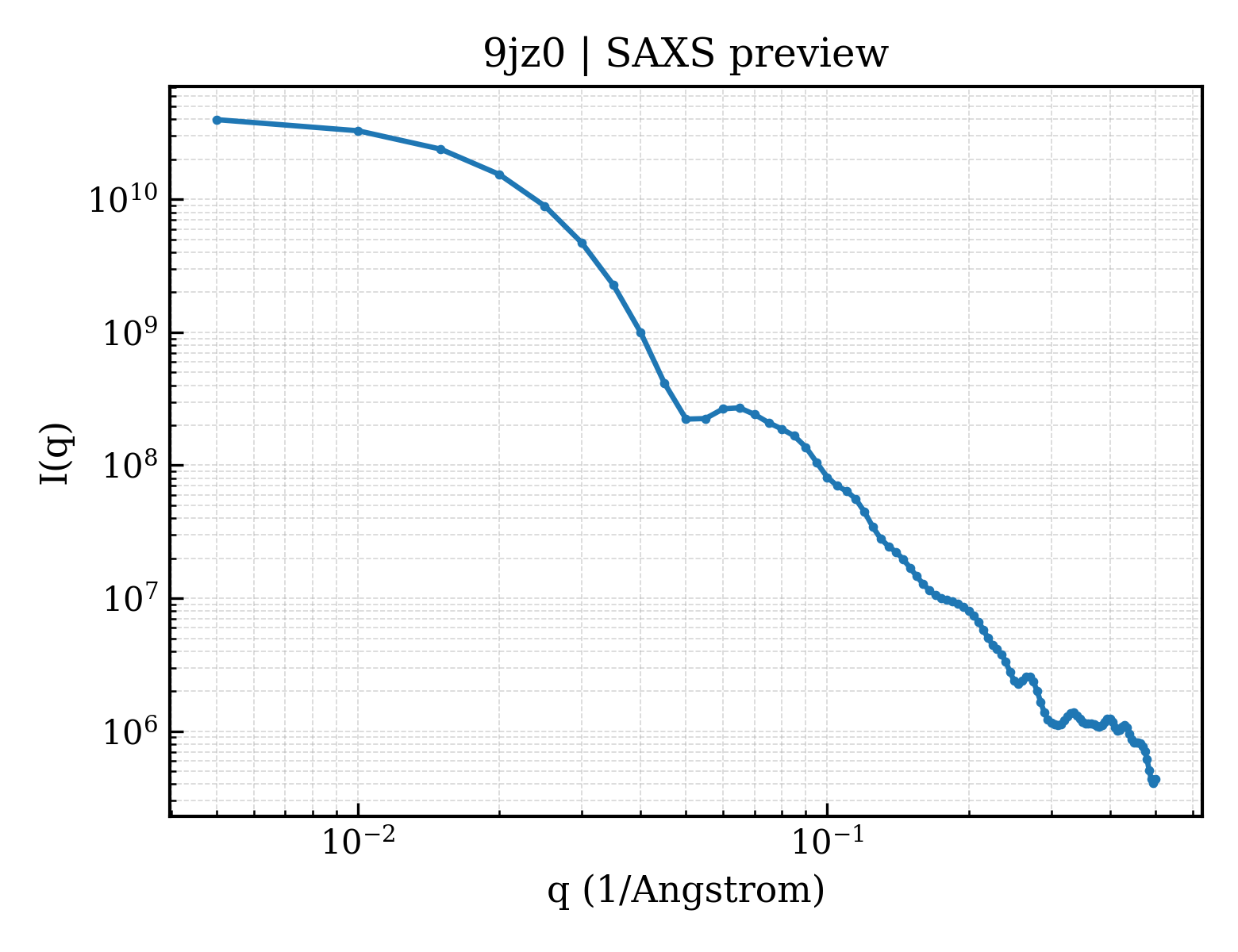

SAXS 散射曲线 SAXS Profile

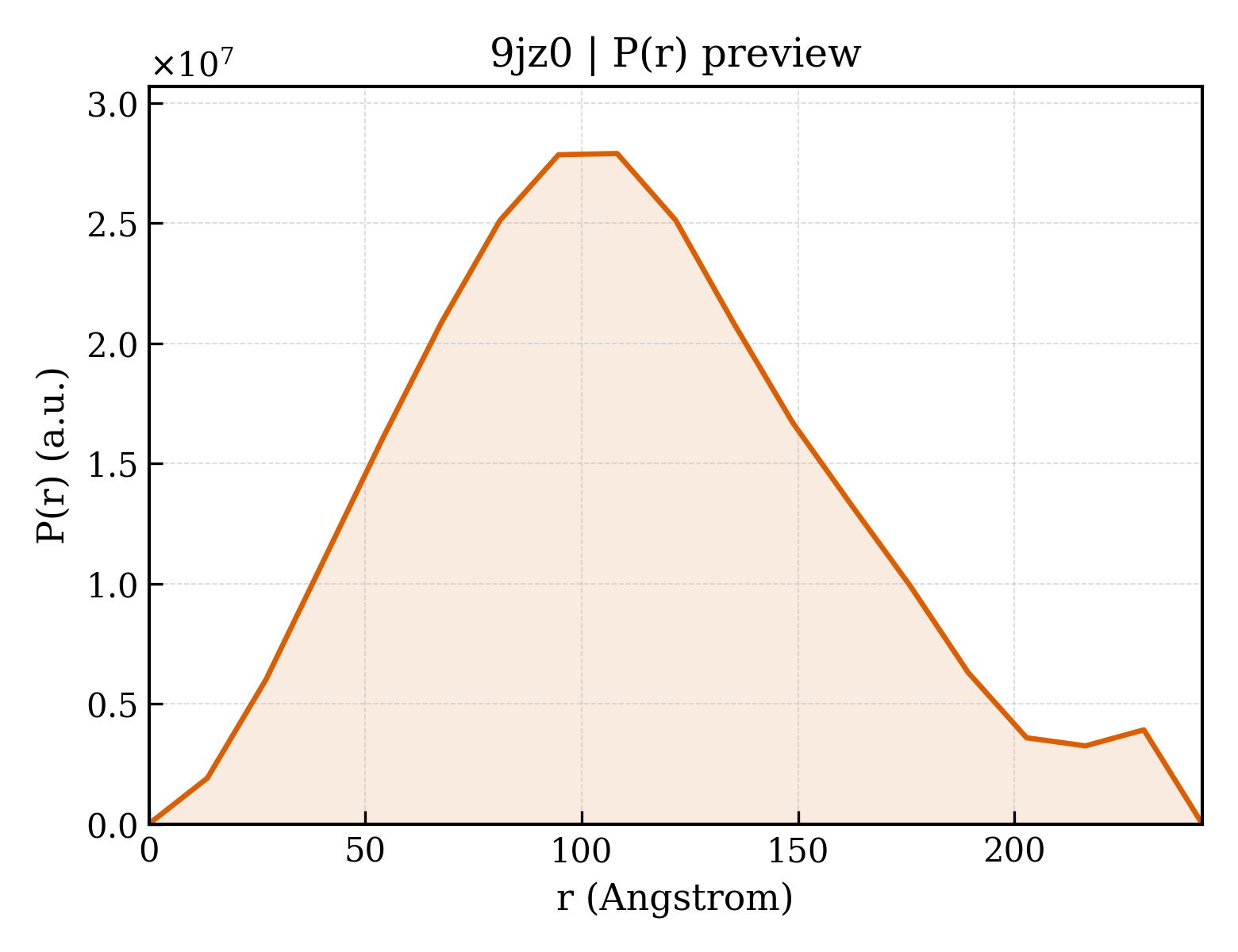

P(r) 距离分布 P(r) Distribution
