SAXSdb — 9k09

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9k09
沉积日期 deposition_date	2024-10-15
最后修订 last_revision	2025-04-09
结构标题 title	Cyanophage A4 portal-tail complex
关键词 keywords	Cyanophage, Virus, Tail, Portal, Zozzle, Adaptor, Tail Fiber, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	95.32 Å
回转半径 Rg (电子) rg_electron	94.77 Å
零角强度 I(0) i0	82925000000.00
分子量 molecular_weight	2451400.0 kDa
排除体积 excluded_volume	3058300 Å³
包络体积 envelope_volume	4751600 Å³
水化壳体积 shell_volume	394620 Å³
包络直径 envelope_diameter	318.0 Å
壳层 Rg shell_rg	103.80 Å
包络 Rg envelope_rg	92.26 Å
形状 Rg shape_rg	94.81 Å
总 Rg total_rg	94.67 Å
总原子数 total_atoms	173160
残基数 n_residues	21978
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	240.6 Å
Rg (实空间) rg_real	92.67 Å
Rg 误差 (实空间) rg_real_error	0.36 Å
I(0) (实空间) i0_real	7.9520e+10
I(0) 误差 (实空间) i0_real_error	1.4110e+09
Rg (倒空间) rg_reciprocal	97.37 Å
I(0) (倒空间) i0_reciprocal	83490000000.0000
解质量估计 total_estimate	0.9161
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	120.3 Å
偏度 Skewness skewness	0.062
峰度 Kurtosis kurtosis	-0.602
角度范围 angular_range	— – 0.0800 Å⁻¹
当前正则化参数 α current_alpha	0.9283
最高正则化参数 α highest_alpha	3917000000.0000
实空间数据点数 n_real_points	17
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.999; Stabil: 0.972; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Tail fiber protein
分子量 formula_weight	39873.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,P,Q,R,X,Y,Z,a,b,c,p,q,r,x,y,z
原子数 atom_count	173160

MATSNVVVSRTGTGWTVDVTACNLLSDTGIKDFIVLHNAIVVSNVTYAKTTATTLTYTGAALPSNTPVEIRRKTPNSIIQLVTYGQKLSSNLWNSEIDRNIRWREEVDLNGAGLVASTPTPQNDAYGLVWAGDTFYPPTRKSVYDKIETLATKSGAVLTGATANVSPSTADNTLALATTAYVKANLADYATLVSPILTGDPRAVTTSVTDNDTSIATTAHVRAFANSRLAFNAFRGGQQGVPSLNYITTVCQFTSSAVRSGWGDNFSSNRWLVGQGGTYYVSVTCRFATTGGTPPTYMDVLLFVGLSPTGVENFVIRQQTNYPSFGYTLTWSGVLFFNTNDNVYLTYQAQAIGGGGYAVVIEDARFNAIQLS

Entity 2 polymer

描述 description	Portal protein
分子量 formula_weight	74284.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F,G,H,I,J,K,L,M,N,O

MIRIKDFNHVITGREQPLDINEAIASYITSRYVYFKDARRVAEETWLEAWSLYSGTPEAVDHQRTQTINTVGEVNNDWRHRLNTGKAYECIETVHGYLMGALFPNREWFDLTPNNPGYANEARIIRKYLTKKFNEGKFRVSFEKYLRQLLVCGYSVMALPWRYESRPYKYNVTIKREENEYYDNSTQKANYRTVTENRVTRNAPEFECLDVFDVYLSPTSNDPNESDFIRRIKKTRADIITAIKRGYYTDIDPYDIVNMSAYEVNDRVDKLTSFQGIETNHPYCMDDIIEVVEYWGDLHLDGVSLYDVKATVIGQTLVCCEPNPFWAGKPFVVGSITELPETPYSVGLLQPNMGLLHQLNIITNQRCDNLELAIDEMWTLVQNSSLNPDEVQVAPGKVFLVDSHDDLRPIQRGGNNFVVSYQEAGLLESTIDRNTGTGNLISANASRSGERVTAAEIQAVRDAGGNRLSNIHRHIEDTSLMEILRRVYRSAQQFVTEPEMIRVSGAKPGEYLFLEVDPESLNKEYSLEPIGADFVTDATKYVRQRMDFIAFASQIPQMAERLNYEALLNDVVNHSGFDDPYSYIVKPQQPAPQPDMGATPEPQTGQAPPDEQTNPFYDIGGVSLQNAIGANIQADGANELINFTTGVNTNADQ

Entity 3 polymer

描述 description	Tail tubular protein B
分子量 formula_weight	113330.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U,V,W,u,v,w

MTDQFERNNIRNNEVAAEQSIQSNNFGGLNTLASPLNVPYQDSPLLLNTTVDTSGQVYKRKGTRITYTTTGTSTGCYITGFTSGLAYQFQVAKRGRDILLFQTTNDVTSLLLTKSNVWDTRAEAVRPSVVTTSEVTPRVIFATGVNKPVQLLFVEQQTTQTANGTSVVFSSADRFVNASTANCLVYVNRVLVSAPSFSYNAGTKQLTVSNLGSTVIGDVIDLVSVTWQWWAESQFWYGDRFFGSTTRFNSVSFDRVVKIPTSITTQNNGSDPYYRMRLYKQSNRTGSPNLNEVVQPQLADDWAFSDGSIYNYSVNDYPNPSPFWVVFGALVGGGQPSTVYFSRRRGLGFANGTSVQASKIDVVVNGVQRTPIYTPGSAPDSVYRNYYTYFADTTGAATGTSSTSLVNGIFFDAIPLGLATNDTVEASNNTNIHIGSASIATRYNYNDGSYIPAFGLGDFADYLNGYYPSVVTFFQGRLVFGGFPHRPLQVVFSNVNDNITPGRYYNSFSITDDNTALSSAFDIILNSRPDDRVVALIEWQSSLFILTRQAVFRANGGSSILSSTNRVISYVSSNGCTNSRCIVRTDFNVMYLSDTGVYNINPLVENGEYTVKELSIKIRDKFGVTREPVYEELPWMAYDSVNKQVLLGYPDVGQTNTSRYVYVYNTYRESWTEYNTPCGFNIWSTTEYTDRLLGTSVCSILYTTTSSGTPSNFIIIRWNASLYIDFIQRKTHNGSSYELTTQPAVTHTTNVNQRRYGVNFTLTRQNTAFTINPVTTVNDLYVTLDGTLLTPNVDYIKEETGYIYLLSTFSTGQTLKIASSPEGNTTPNSWYTVYVNNIRQVSPTPSAGTFTLGATNGDIINWGVNYLTIYTTPQFLWNSLGNFKRTQHAYLFLDNRDGVGVYVASDVNNGQDINQLTELYRVPINFNLSVMYNNQLDGSTSYDVMGYDSMYWDEGVFDVSSPYDQYQPYQTLKIPITGIGYAFQMLIWNHSDEYFKLGGYQIIAKQKGKRHIGRY

Entity 4 polymer

描述 description	Tail tubular protein A
分子量 formula_weight	24783.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d,e,f,g,h,i,j,k,l,m,n,o

MPKTTTFIQLVNKCLENIGERPVISFNNSVARKAADTVRDAITDVSYSYDWSWLTTSIIANSWINERADLGDVQSVKHVSYGSSSDGYRELTFTDERTFDAAKIYPGVGQVFTFNEYGGVRINPYPETVEEQVKYKFYVVKEATLPSVEIDVINIPDRFIQLITYNACTQLSISHLDDAQASQMWNSKYIDQLSRLRARERNTTQSGANMFKFRGTR

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	106052

fit	/app/data/saxs_computation/k0/9k09/9k09.fit
pddf	/app/data/pr_computation/k0/9k09/9k09.pr.out
profile	/app/data/saxs_computation/k0/9k09/9k09.dat

Cyanophage A4 portal-tail complex

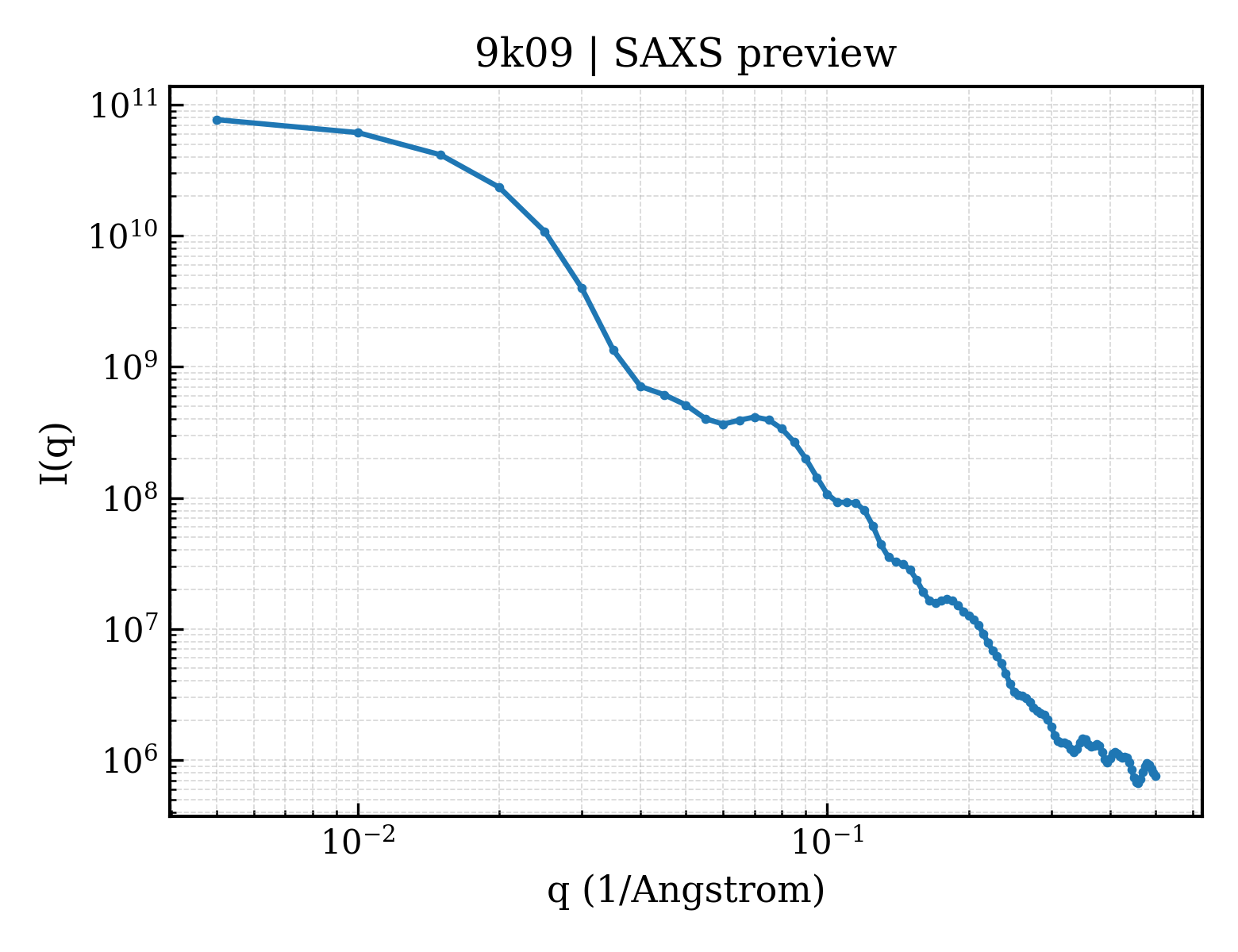

SAXS 散射曲线 SAXS Profile

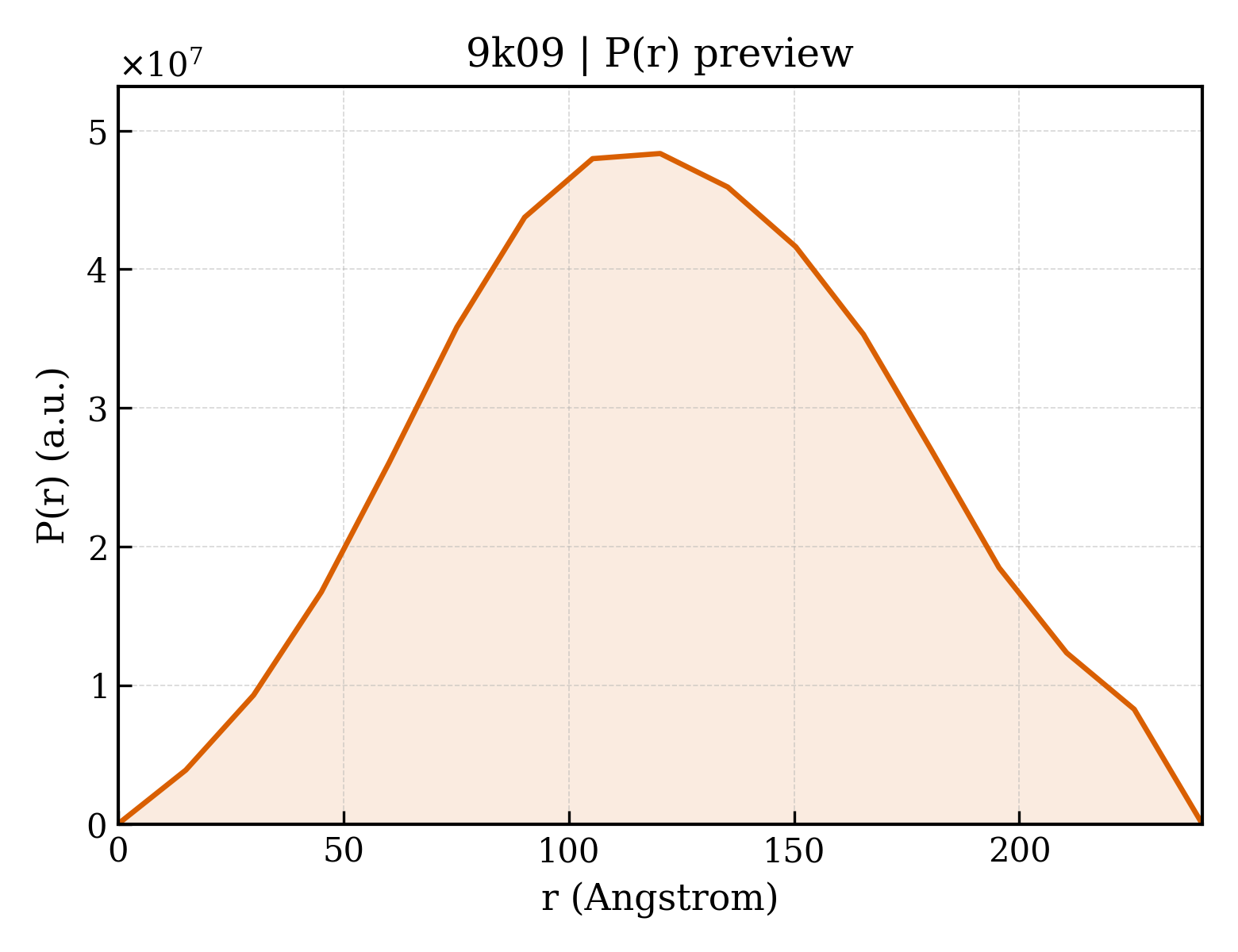

P(r) 距离分布 P(r) Distribution
