9k17

A cryo-EM structure of B. oleracea RNA polymerase V in complex with 6U sacffold at 3.04 Angstrom

Method: ELECTRON MICROSCOPY D_max: 157.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9k17
沉积日期 deposition_date	2024-10-16
结构标题 title	A cryo-EM structure of B. oleracea RNA polymerase V in complex with 6U sacffold at 3.04 Angstrom
关键词 keywords	DNA-dependent RNA polymerase V, TRANSCRIPTION, plant; TRANSCRIPTION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.96 Å
回转半径 Rg (电子) rg_electron	48.37 Å
零角强度 I(0) i0	1643640000.00
分子量 molecular_weight	330480.0 kDa
排除体积 excluded_volume	410830 Å³
包络体积 envelope_volume	610170 Å³
水化壳体积 shell_volume	101020 Å³
包络直径 envelope_diameter	156.3 Å
壳层 Rg shell_rg	55.71 Å
包络 Rg envelope_rg	47.51 Å
形状 Rg shape_rg	48.36 Å
总 Rg total_rg	48.67 Å
总原子数 total_atoms	23142
残基数 n_residues	2868
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

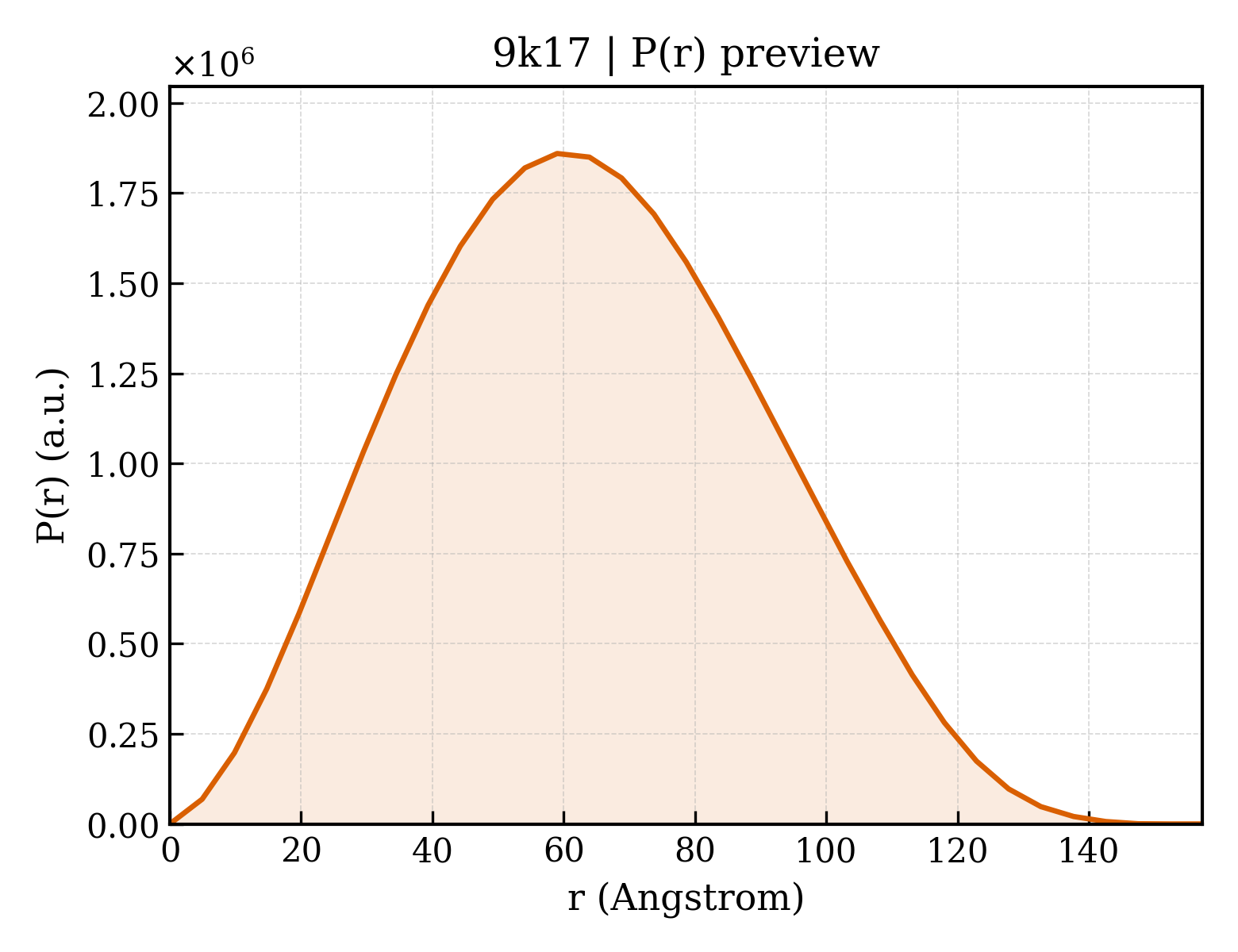

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	157.3 Å
Rg (实空间) rg_real	48.69 Å
Rg 误差 (实空间) rg_real_error	1.07 Å
I(0) (实空间) i0_real	1.6440e+09
I(0) 误差 (实空间) i0_real_error	2.8950e+07
Rg (倒空间) rg_reciprocal	48.96 Å
I(0) (倒空间) i0_reciprocal	1644000000.0000
解质量估计 total_estimate	0.8915
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	59.0 Å
偏度 Skewness skewness	0.165
峰度 Kurtosis kurtosis	-0.525
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	218000000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.895

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (15)

Entity 1 polymer

描述 description	DNA (34-MER)
分子量 formula_weight	10500.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	T
原子数 atom_count	23142

AAGCTCAAGTACTTAAAAAAAAGCATTACGAGTA

Entity 2 polymer

描述 description	DNA (34-MER)
分子量 formula_weight	10433.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	N

TACTCGTAAGTGCCTAGCACAAGTACTTGAGCTT

Entity 3 polymer

描述 description	;RNA (5'-R(UPAPUPAPUPGPCPAPGPAPAPAPGPCPUPUPUPUPUPU)-3') ;
分子量 formula_weight	6331.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	P

UAUAUGCAGAAAGCUUUUUU

Entity 4 polymer

描述 description	DNA-directed RNA polymerase V largest subunit
分子量 formula_weight	222876.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MEEASSSDILEAEIVGISFALATHRQIRLASISDAGINHASQLSNAFLGLPLEFGKCEACGATEPDKCEGHFGYIHLPVPIYHPAHVSELKQMLSLLCLKCLKIKKIKSTSSGLAERLLGVCCEEASNITIKDKSSDGASYLQLKLPSRTRLQEGFWNFLERYGYRYGSDHTRPLLAREVKEILRRIPEETRKKLTAKGHIPQEGYILEYLPVPPNCLSVPEVSDGSNSMSVDPSRIELKDVLRKVVAINNSRSGETNFESHRAEANEMFRVVDTYLQVRGTAKPTRNIDMRFGVSKISDSSSSKAWTEKMRTLFIRKGSGFSSRSVITGDAFRNVNEVGIPMEIAHRITFEERVSVHNIGYLQELVDNKMCLSYTQGSTTYSLRDGSKGHTVLKPGQIVHRRVMDGDVVFINRPPTTHKHSLQALRVYVHEDNTVKINPLMCGPLSADFDGDCVHLFYPQSLTAKAEVLELFSVDKQLRSSHTGQLILQLGLDSLLSLRVMMEQVFLDKASAQQLAMYGSRSLPSPAVVKSSKSGPAWTFFQILQLAFPERLSCRGDGFIVGGSDLLSFDFGVDALASIINGIVTGIMVEKGPKEALAFFDSLQPLLMEHLDPQGFSLSLEDLSMSREDMGVIHNLIVREISPMVSRLRLSYEDELQLENSIQKVKEVAANFMLKSYSMRNLIDIKSNSAINKLVQQIGFLGLQLSDKKKLYTKTLVEDMAQFYKKKYVSTSSSGDFGIVKGCFFHGLDPYEEMAHSVAAREVIVRSSRGLAEPGTLFKNLMAVLRDIVITNDGTVRNTCSNSIVQFKYELSSDNENQGLFEAGDPVGVLAATAMSNPAYKAVLDSSPNSNSSWELMKEVLLCKVNFQNTTNDRRVILYLNECRCGKKYCQENSAYTVRNKLKKVSLKDTAVEFLVEYRKQQAISEIFGMDICLHGHIHLNKTLLEGWNISMQDILQRCEDAINSLVQKKKKKAEDFKKMNLSVSECCSFRGPGSSKDSDMPCLMFSSYNATDPDLERTLDVLCNTIYPVLLETVIKGDPRIASANIIWNSPETTTWIRSLHASRRGEWVLDVTVEKSDVKQSGDAWRVVIDSCLSVLHLIDTKRSIPYSIKQVQELLGLSCAFEQAVQRLSASVRKVSKGVLKEHIILVANNMTCSGDMLGFNYGGYKALTRSLNIKAPFTEATLIAPRKCFEKAAEKCHKDSLSTVVGSCSWGKRVDVGTGSQFELLWNKKETGLENDDETDVFSFLQMVRSTKTADAYVSSPGFDVTEEEMAEWAESPERDSALGEPKFDDSAEFQNLLDEGKASESKWDNGSLWENGCSSGSEWGVSKNAGGEENTQSGWGKAANVENEDASSGWNSKKDAQEATNTDSWGAWGSKTKDDAENATPNWGTKPAQNDSVVIENGEPSSDVWGPKAVSDKPWGKKNSETEPAPAAWGKTNSESESAAAAWGSDDEKNTGTESDAAGWGSTYKKNPETELNAAAWGSGAKMNKETEPAPAAWGSWGKKSSETVSGGADWGNRGKRVSETESGAGGWASRNRSLENQSGGATWGSRDKSKFETESGGAAWGSQAKNNSETEPGSGAAALGTWDKKKPETETGGGGAAWGSQAKNNSETESGSGAAAWGTWDKKKSETESGGGAWGSQAKKNSETESGAGASTWGAWDKKKPETESGGGGAAWGSQAKNNSETESGSGAAAWGSQAKKNSESQLGTANWGSKDTNNSENGSDSAAWGKKKNSEAEPTSVAWCSWGQPSPPASDKDAQEDDGNPWVSLKATSSGDKEGNETSQWGVPNKRYPSAGSQSQGGGGGADWKRNRPPRTPGSESILGPMFTATRQRVDMFTSEEQELLSDVDPVMRRLRKIMHQSGYTDGEPISDEDKTYVLEQILNYHPDKDAKLGPGLDFITVDKHTTFTESRCFFVVSTDGTKQDFSYRKCINNYLVEKHPNLAEEFIAKYFRKRDNENRDKNSQEATPPGEQESQTQPIDNGSQDSQPQPIGNEGGDTQPQSQIEDIQPIGNGGEDSQTEPQA

Entity 5 polymer

描述 description	DNA-directed RNA polymerase RpoA/D/Rpb3-type domain-containing protein
分子量 formula_weight	35484.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MDTGATYQRFPKVKIRELKDDYAKFELRDTDVSMANALRRVMISEVPTVAIDLVEIEVNSSVLNDEFIAHRLGLIPLTSERAMSMRFSRDCDACDGDGQCEFCSVEFRLSAKCVTDQTLDVTSKDLYSADPTVTPVDFGDSSGADSSEQRGIIIVKLRRGQELKLRAIARKGIGKDHAKWSPAATVTFMYEPDIIINEDMMDTLTDDEKIDLIESSPTKVFDFDAVTRQVVVVDPEAYTYDEEVIKKAEAMGKQGLIEIRPKDDSFIFTVESTGAVKASQLVLNAIDLLKQKLDAVRLSDDTVEADDQFGELGAHMRGG

Entity 6 polymer

描述 description	DNA-directed RNA polymerase RpoA/D/Rpb3-type domain-containing protein
分子量 formula_weight	16686.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MAEDDYNEVDDLGYEDEPAEPEIEEGIEEDADMKDNDDINGEPLETEDKVETEPVQRPRKTSKFMTKYERARILGTRALQISMNAPVMVELEGETDPLEIAMKELRQRKIPFTIRRYLPDGSFEEWGVDELIVEDSWKRQVGGD

Entity 7 polymer

描述 description	DNA-directed RNA polymerase II, IV and V subunit 10
分子量 formula_weight	8167.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MIIPVRCFTCGKVIGNKWDTYLDLLQADYTEGDALDAIGLVRYCCRRMLMTHVDLIEKLLNYNTLEKSDAN

Entity 8 polymer

描述 description	DNA-directed RNA polymerase RBP11-like dimerisation domain-containing protein
分子量 formula_weight	13538.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MNAPDRYERFVVPEGTKKVSYERDTKIINAASFTIEREDHTIGNIVRMQLHRDENVLFAGYQLPHPLKYKIIVRIHTTSQSSPMQAYNQAINDLDKELDFLKSQFEAEVAKFSNPY

Entity 9 polymer

描述 description	DNA-directed RNA polymerase II, IV and V subunit 12
分子量 formula_weight	5983.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MDQQSEPVTYVCGDCGQENTLKSGDVIQCRECGYRILYKKRTRRVVQYEAR

Entity 10 polymer

描述 description	DNA-directed RNA polymerase II, IV and V subunit 8
分子量 formula_weight	16607.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MASSIIMFEDIFVVDKLDPDGKKFDKVTRIEATSHNLDMFMHLDVNTEVYPMAVGDKFTLAMAPTLNLDGTPDTGYFTPGAKKTLADKYEYVMHGKLYKITERDGQTPKAEMYVSFGGLLMLLRGDPAHISHFELDQRLFLLMRKL

Entity 11 polymer

描述 description	DNA-directed RNA polymerase subunit
分子量 formula_weight	13123.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MSTMKFCRECNNILYPKEDREQSILLYACRNCDHQEAADDNCVYRNEVHHSVSEQTQILSDVASDPTLPRTKAVRCAKCQHGEAVFFQATARGEEGMTLFFVCCNPNCGHRWRE

Entity 12 polymer

描述 description	RNA polymerase subunit H/Rpb5 C-terminal domain-containing protein
分子量 formula_weight	26260.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MEGIGNDKSSCSSSSTVPSPCLSKYVDPSSEESHRYYLARRNALEMLRDRGYEVSLEDINLSLQDFRTVYGERPDVDRLRISAHHRSDSSNKVKVVFFGTGKVKVNTIRSVAAEILSQETITGLILVLQNQVTDKALKAIELFTFKVEIFQITDLLVNLTKHVLSLRHRVLTDGEKKALLKQFNIEEKQLPRISKKDAVVRYYGLEKGQIVKVSYRGELTESYVAYRCVW

Entity 13 polymer

描述 description	DNA-directed RNA polymerase IV and V subunit 2
分子量 formula_weight	132377.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MTDIDIEEIEAAGEVDLRDLGEPFLQSFCKKAATSFFDEYGLVSHQLNSYNFFIEHGLQSVFESSGEMLVEPSFDPTKNKDHEWRYATVKFGEVSVDKPTLYSDDKELVFLPWHARLQNMTYSARMKVNVDVEVFVKKVVKRDKFKTGQDEYVEKQILSKKTQDIPIGRIPVMVKSVLCNTTEKGKNGESYRKGECAFDQGGYFVIKGAEKVFIAQEQICTKRLWISNSPWTVSYRSETKRNRFIVRLSENQKAEDFKRKEKVLTVYFLSTEIPVWVLFFALGVASDKEAVDLIAFDGGDASITNSVVASIQEADSVCEDFRHGRNALAYVEQQIKGTKFPPGESVDECLSLYLFPGLKSLTQKARFLGYMVKCLFSAYAGKRKCENRDNFRNKRIELAGELLERELRVHLAHARRTMTKAMQRHLTGDGDLKPIEHYLDASIITNGLSRAFSTGAWCHPFRKMERVSGVVANLGRANPLQSLIDLRRTRQQVLYTGRVGDARYPHPSHWGRLCFLSTPDGENCGLVKNLSLLGLVSTQIMEPVVEELFDSGMEELMDDTSTPLSGKHKVLLNGDWVGVCSDSDYFVADLKSRRRQSELPRQMEIKLDKDDKEVRIFTDAGRLLRPLLVVENLHKLKQSKPSKYTFEHLLDQGILELIGIEEEEDCTTAWGTKQLLKQQKSYTHCELDLSFLLGVSCAIVPFANHDHGRRVLYQSQKHCQQAIGFCSTNPNIRCDTLSQQLFYPQRPLFKTMASECLQKDVLFNGQNAIVAVNVHLGFNQEDSIVMNKASLERGMFRSEQIRSYKADVDSKDSEKRKKMDEVVQFGKTHSKIGRVDSLDDDGFPFVGANMHSGDIVIGRCTESGTDHSVKLKHTERGIVQKVVLSSNDDGKNYATVSLRQVRSPCLGDKFSSMHGQKGVLGYIEEQENFAFTNQGIVPDIVINPHAFPSRQTPGQLLEAALSKGIACPMQKKKGKSDAYSKVTRHATPFSTPSVDDITDQLHRAGFSRSGNERVYNGRTGEMMRSLIFMGPNFYQRLIHMSEDKVKFRNTGPVHPLTRQPVADRKRFGGIKFGEMERDCLIAHGASANLHERLFTLSDSSQMHICRNCKSAANVIERVASSGRRIRGPYCRLCESPDYVVMVNVPYGAKLLYQELFSMGICLNFETNLC

Entity 14 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 15 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.04 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	70717

fit	/app/data/saxs_computation/k1/9k17/9k17.fit
pddf	/app/data/pr_computation/k1/9k17/9k17.pr.out
profile	/app/data/saxs_computation/k1/9k17/9k17.dat
