9k7d

Crystal structure of GH57 family amylopullulanase from Aquifex aeolicus mutant E256Q in complex with Maltohexaose

Method: X-RAY DIFFRACTION D_max: 119.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9k7d
沉积日期 deposition_date	2024-10-23
最后修订 last_revision	2025-06-04
结构标题 title	Crystal structure of GH57 family amylopullulanase from Aquifex aeolicus mutant E256Q in complex with Maltohexaose
关键词 keywords	GH57, amylopullulanase, Aquifex aeolicus, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.07 Å
回转半径 Rg (电子) rg_electron	35.65 Å
零角强度 I(0) i0	188740000.00
分子量 molecular_weight	117680.0 kDa
排除体积 excluded_volume	149670 Å³
包络体积 envelope_volume	177950 Å³
水化壳体积 shell_volume	42002 Å³
包络直径 envelope_diameter	120.4 Å
壳层 Rg shell_rg	41.25 Å
包络 Rg envelope_rg	35.67 Å
形状 Rg shape_rg	35.62 Å
总 Rg total_rg	36.13 Å
总原子数 total_atoms	8334
残基数 n_residues	952
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

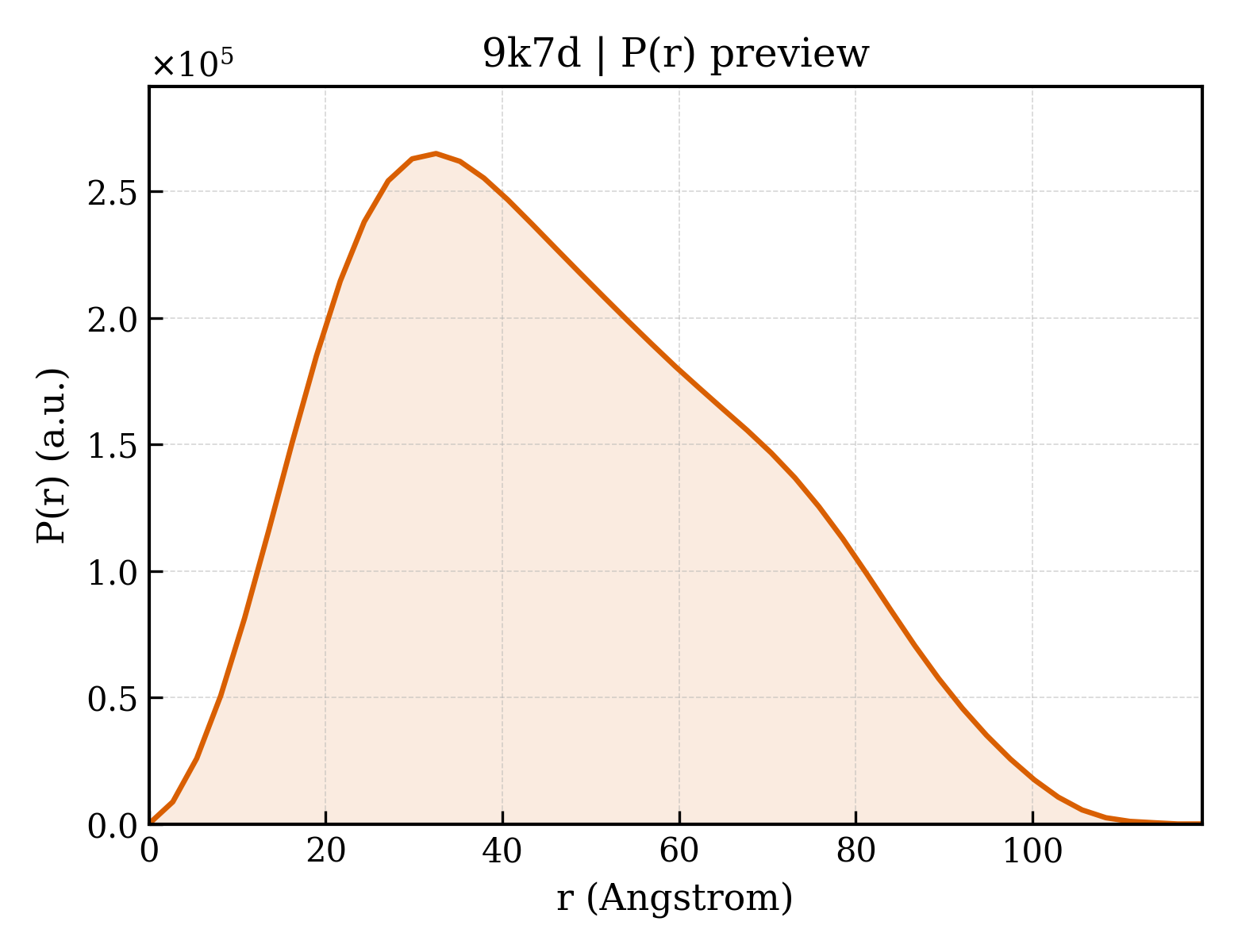

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	119.2 Å
Rg (实空间) rg_real	36.21 Å
Rg 误差 (实空间) rg_real_error	0.99 Å
I(0) (实空间) i0_real	1.8870e+08
I(0) 误差 (实空间) i0_real_error	2.8930e+06
Rg (倒空间) rg_reciprocal	36.13 Å
I(0) (倒空间) i0_reciprocal	188700000.0000
解质量估计 total_estimate	0.8670
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	32.5 Å
偏度 Skewness skewness	0.369
峰度 Kurtosis kurtosis	-0.632
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	121100000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.838; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.876; Smooth: 0.878

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Glycoside hydrolase family 57 N-terminal domain-containing protein
分子量 formula_weight	57252.2 kDa
突变 mutation	E256Q
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	8937

MKKLFLVFWWHMHQPLYREPYTGEYLLPWTFFHAVKDYYDMPAYLKDFEIKLNFNLTPVLIDQIQEYAQGKAKDVFLEAIRKDPDDLEKEEVEKLIEFTKLNYEKPIYRFERIRELMNKEKLNREELLDLQTLNLLAWCGRTLRKDLKDLLNKGRNYTQEEKEYVLNKYFEIIKKTLSIYREIKEEGKGSVSTSPYYHPLIPILLNPNCVYETTPNVKIPDFAVSFREDASKHVELAKEKYFEIFGEHPVYMWPPQASVSNEALELYYEKGINMLATDEVILKNSVERASPYLRYYFRELISVFFRDKTLSDLIGFSYHAWNAEDAVRDFIGRLKKIHESVDFQPVVFVVLDGENCWEYYEENGIPFLEKLYSTLEKEEWIETLTLEEAMRKEDVKTEVIESVKAGTWFDGNFLKWIGNKEKNEYWKILIEAKKKAKNDYILVAEGSDWFWWQGEEKAPFVEVFDKLFRSFVRRAQE

来源 Source

来源生物 organism	Aquifex aeolicus VF5
NCBI 分类编号 ncbi_taxonomy_id	224324
宿主生物 host_organism	Escherichia coli

Entity 2 branched

描述 description	;alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose ;
分子量 formula_weight	828.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 branched

描述 description	;alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose ;
分子量 formula_weight	990.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	587

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	61.420 Å
晶胞边长 b length_b	40.790 Å
晶胞边长 c length_c	196.760 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	95.99 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 2 1
空间群编号 int_tables_number	3
晶系 crystal_system	—

分辨率 resolution	1.720 Å
最低分辨率 resolution_low	39.137 Å
R 因子 r_factor	0.1746
R_work r_work	0.1726
R_free r_free	0.2127
