9kd2

Crystal structure of Bacteroides ovatus DhuD complexed with NAD+ responsible for metabolism of glycosaminoglycan

Method: X-RAY DIFFRACTION D_max: 126.5 Å Quality: GOOD

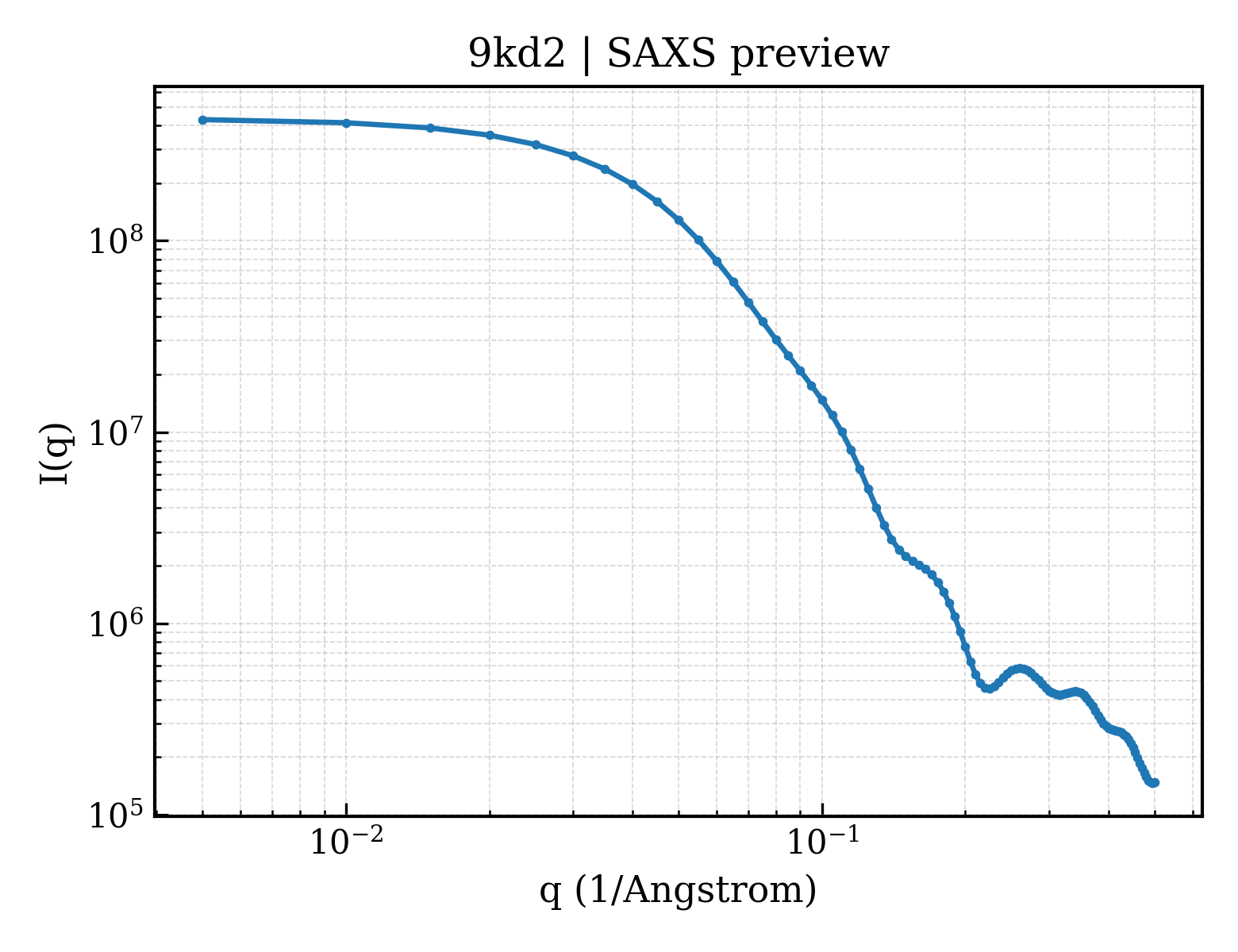

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9kd2
沉积日期 deposition_date	2024-11-02
最后修订 last_revision	2025-10-29
结构标题 title	Crystal structure of Bacteroides ovatus DhuD complexed with NAD+ responsible for metabolism of glycosaminoglycan
关键词 keywords	Reductase, NAD+, Glycosaminoglycan metabolism, Bacteroides, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.63 Å
回转半径 Rg (电子) rg_electron	38.27 Å
零角强度 I(0) i0	434438000.00
分子量 molecular_weight	169300.0 kDa
排除体积 excluded_volume	211550 Å³
包络体积 envelope_volume	262050 Å³
水化壳体积 shell_volume	56675 Å³
包络直径 envelope_diameter	137.0 Å
壳层 Rg shell_rg	44.52 Å
包络 Rg envelope_rg	38.07 Å
形状 Rg shape_rg	38.29 Å
总 Rg total_rg	38.55 Å
总原子数 total_atoms	11856
残基数 n_residues	1551
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	126.5 Å
Rg (实空间) rg_real	38.63 Å
Rg 误差 (实空间) rg_real_error	0.93 Å
I(0) (实空间) i0_real	4.3440e+08
I(0) 误差 (实空间) i0_real_error	6.6730e+06
Rg (倒空间) rg_reciprocal	38.63 Å
I(0) (倒空间) i0_reciprocal	434400000.0000
解质量估计 total_estimate	0.8938
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	43.2 Å
偏度 Skewness skewness	0.300
峰度 Kurtosis kurtosis	-0.541
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	87810000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.908

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Oxidoreductase, short chain dehydrogenase/reductase family protein
分子量 formula_weight	29576.9 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	11858

MNQFLNFSLEGKVALVTGASYGIGFAIASAFAEQGAKVCFNDINQELVDKGMAAYAAKGIKAHGYVCDVTDEPAVQAMVATIAKEVGTIDILVNNAGIIRRVPMHEMDAADFRRVIDIDLNAPFIVAKAVLPAMMEKRAGKIINICSMMSELGRETVSAYAAAKGGLKMLTRNICSEYGEYNIQCNGIGPGYIATPQTAPLREPQADGSRHPFDSFICAKTPAGRWLDPEELTGPAVFLASEASNAVNGHILYVDGGILAYIGKQPKLEHHHHHH

来源 Source

来源生物 organism	Bacteroides ovatus ATCC 8483
NCBI 分类编号 ncbi_taxonomy_id	411476
宿主生物 host_organism	Escherichia coli B

Entity 2 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	161.943 Å
晶胞边长 b length_b	126.911 Å
晶胞边长 c length_c	71.657 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	102.38 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	48.690 Å
R 因子 r_factor	0.1977
R_work r_work	0.1954
R_free r_free	0.2417
