9ke3

;Cryo-EM structure of lipid-mediated dimer of human norepinephrine transporter NET in the presence of the F3288-0031 in an inward-open state at resolution of 3.1 angstrom ;

Method: ELECTRON MICROSCOPY D_max: 103.9 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

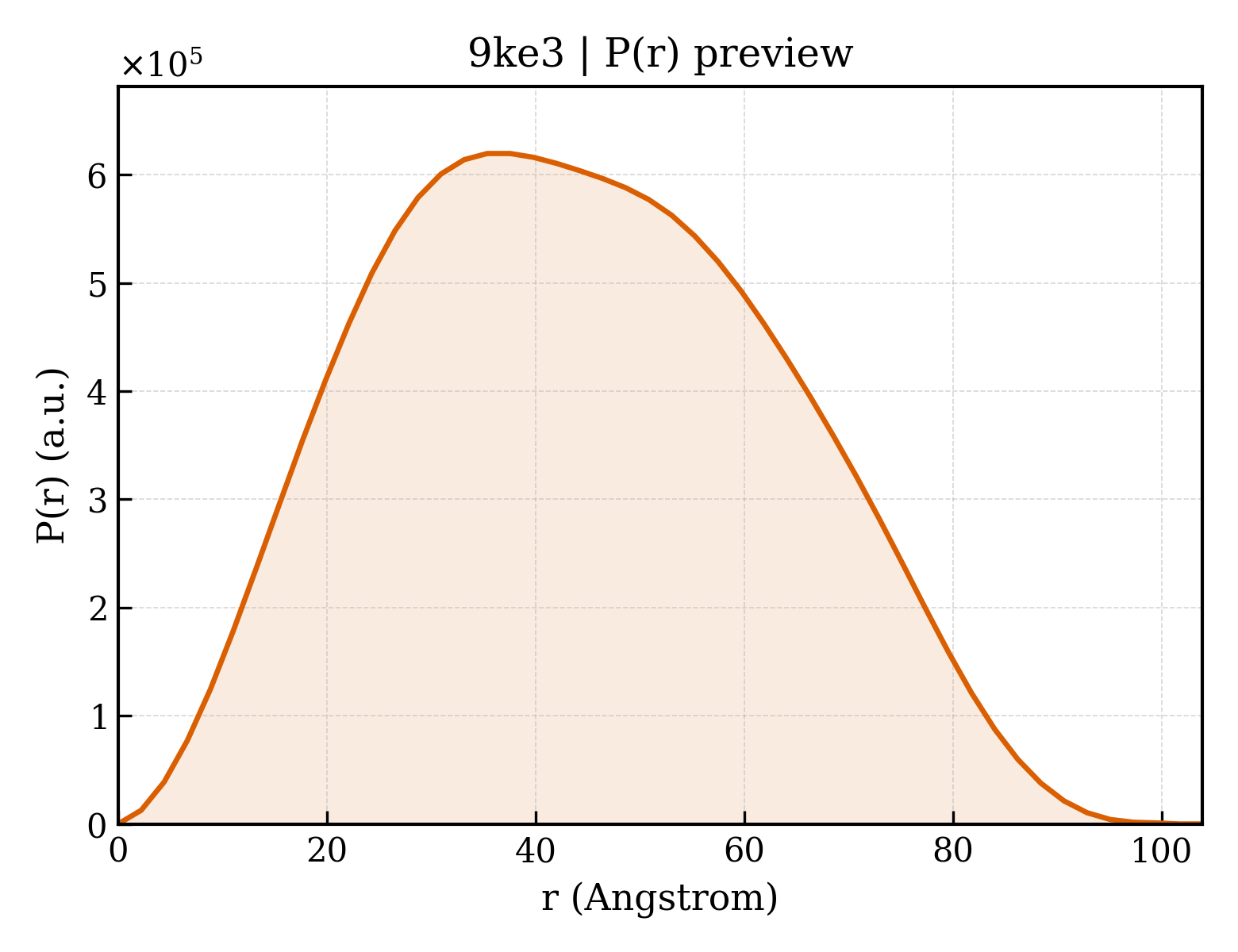

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ke3
沉积日期 deposition_date	2024-11-04
结构标题 title	;Cryo-EM structure of lipid-mediated dimer of human norepinephrine transporter NET in the presence of the F3288-0031 in an inward-open state at resolution of 3.1 angstrom ;
关键词 keywords	Complex, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.03 Å
回转半径 Rg (电子) rg_electron	32.97 Å
零角强度 I(0) i0	421839000.00
分子量 molecular_weight	121830.0 kDa
排除体积 excluded_volume	123800 Å³
包络体积 envelope_volume	197220 Å³
水化壳体积 shell_volume	48969 Å³
包络直径 envelope_diameter	103.0 Å
壳层 Rg shell_rg	40.77 Å
包络 Rg envelope_rg	32.87 Å
形状 Rg shape_rg	32.91 Å
总 Rg total_rg	33.52 Å
总原子数 total_atoms	9336
残基数 n_residues	1106
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	103.9 Å
Rg (实空间) rg_real	33.92 Å
Rg 误差 (实空间) rg_real_error	0.72 Å
I(0) (实空间) i0_real	4.2180e+08
I(0) 误差 (实空间) i0_real_error	6.7090e+06
Rg (倒空间) rg_reciprocal	33.99 Å
I(0) (倒空间) i0_reciprocal	421900000.0000
解质量估计 total_estimate	0.9097
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	0
主峰位置 r_peak_primary	— Å
偏度 Skewness skewness	0.150
峰度 Kurtosis kurtosis	-0.714
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	73930000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.970; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.912

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Sodium-dependent noradrenaline transporter
分子量 formula_weight	70715.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	9336

MDYKDDDDKGSGMLLARMNPQVQPENNGADTGPEQPLRARKTAELLVVKERNGVQCLLAPRDGDAQPRETWGKKIDFLLSVVGFAVDLANVWRFPYLCYKNGGGAFLIPYTLFLIIAGMPLFYMELALGQYNREGAATVWKICPFFKGVGYAVILIALYVGFYYNVIIAWSLYYLFSSFTLNLPWTDCGHTWNSPNCTDPKLLNGSVLGNHTKYSKYKFTPAAEFYERGVLHLHESSGIHDIGLPQWQLLLCLMVVVIVLYFSLWKGVKTSGKVVWITATLPYFVLFVLLVHGVTLPGASNGINAYLHIDFYRLKEATVWIDAATQIFFSLGAGFGVLIAFASYNKFDNNCYRDALLTSSINCITSFVSGFAIFSILGYMAHEHKVNIEDVATEGAGLVFILYPEAISTLSGSTFWAVVFFVMLLALGLDSSMGGMEAVITGLADDFQVLKRHRKLFTFGVTFSTFLLALFCITKGGIYVLTLLDTFAAGTSILFAVLMEAIGVSWFYGVDRFSNDIQQMMGFRPGLYWRLCWKFVSPAFLLFVVVVSIINFKPLTYDDYIFPPWANWVGWGIALSSMVLVPIYVIYKFLSTQGSLWERLAYGITPENEHHLVAQRDIRQFQLQHWLAI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 non-polymer

描述 description	(2~{S})-1-[2-methoxy-4-[(~{E})-prop-1-enyl]phenoxy]-3-[4-(phenylmethyl)piperazin-1-yl]propan-2-ol
分子量 formula_weight	396.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	CHOLESTEROL
分子量 formula_weight	386.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	14

Entity 4 non-polymer

描述 description	[(2~{R})-1-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-3-nonanoyloxy-propan-2-yl] decanoate
分子量 formula_weight	540.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.13 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	171003
