9kgt

;Crystal structure of topoisomerase IV from Klebsiella pneumoniae in complex with DNA and BWC0977, a dual-targeting broad-spectrum novel bacterial topoisomerase inhibitor. ;

Method: X-RAY DIFFRACTION D_max: 197.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

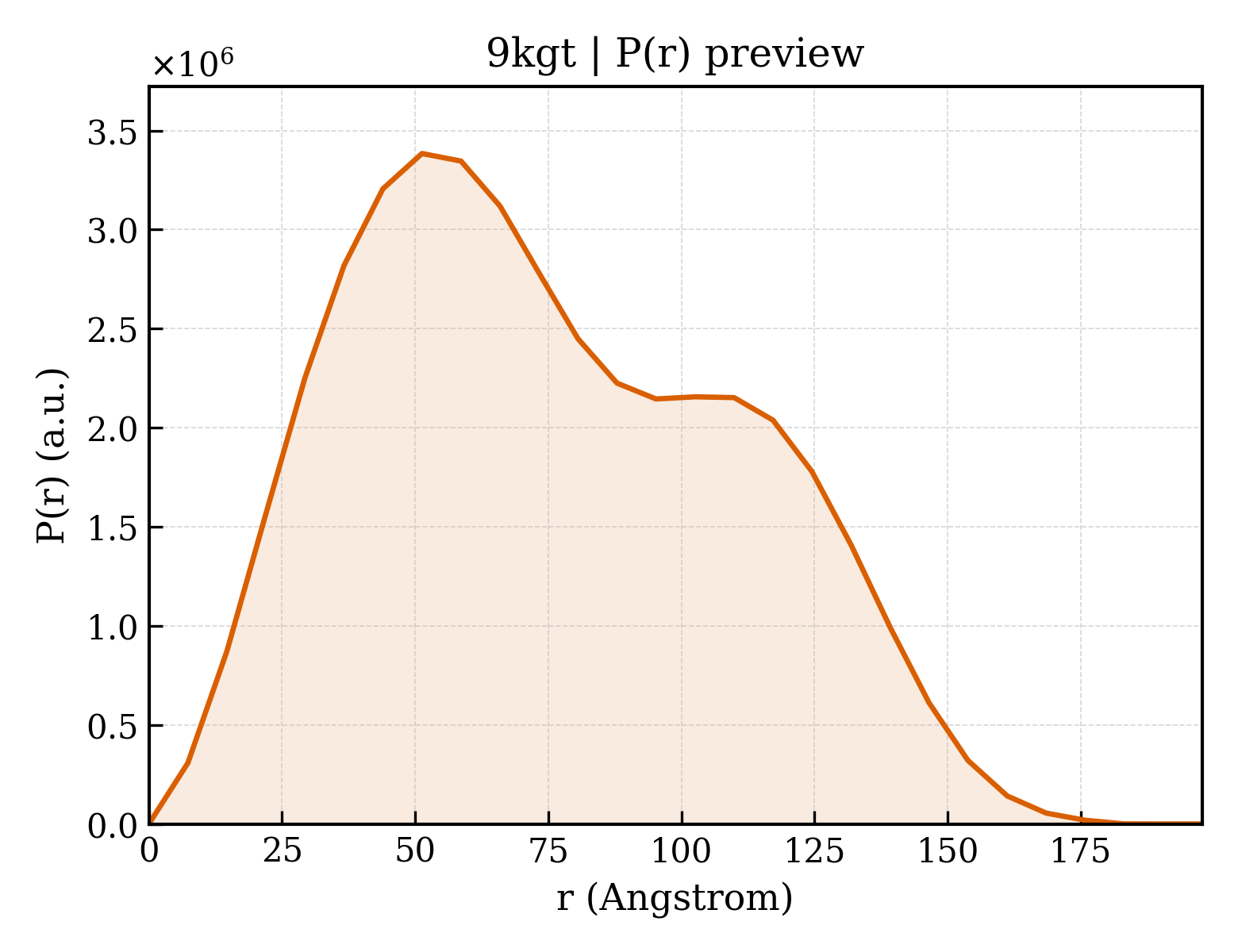

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9kgt
沉积日期 deposition_date	2024-11-09
结构标题 title	;Crystal structure of topoisomerase IV from Klebsiella pneumoniae in complex with DNA and BWC0977, a dual-targeting broad-spectrum novel bacterial topoisomerase inhibitor. ;
关键词 keywords	DNA-TOPOISOMERASE, GYRASE, PARC PARE ISOMERASE-DNA-ISOMERASE INHIBITOR COMPLEX, NBTIs, ISOMERASE-DNA-ISOMERASE INHIBITOR complex; ISOMERASE/DNA/ISOMERASE INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.35 Å
回转半径 Rg (电子) rg_electron	58.14 Å
零角强度 I(0) i0	3879000000.00
分子量 molecular_weight	331470.0 kDa
排除体积 excluded_volume	312410 Å³
包络体积 envelope_volume	664200 Å³
水化壳体积 shell_volume	96153 Å³
包络直径 envelope_diameter	193.7 Å
壳层 Rg shell_rg	59.11 Å
包络 Rg envelope_rg	56.18 Å
形状 Rg shape_rg	58.04 Å
总 Rg total_rg	58.32 Å
总原子数 total_atoms	24887
残基数 n_residues	2982
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	197.8 Å
Rg (实空间) rg_real	58.53 Å
Rg 误差 (实空间) rg_real_error	2.10 Å
I(0) (实空间) i0_real	3.8790e+09
I(0) 误差 (实空间) i0_real_error	8.0670e+07
Rg (倒空间) rg_reciprocal	58.15 Å
I(0) (倒空间) i0_reciprocal	3877000000.0000
解质量估计 total_estimate	0.8409
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	51.3 Å
偏度 Skewness skewness	0.301
峰度 Kurtosis kurtosis	-0.798
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	170100000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.728; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.923; Smooth: 0.819

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	DNA topoisomerase 4 subunit B,DNA topoisomerase 4 subunit A
分子量 formula_weight	83143.1 kDa
EC 编号 ec_number	5.6.2.2
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	24940

MGSSGKLADCTAQDLNRTELFLVEGDSAGGSAKQARDREYQAIMPLKGKILNTWEVSSDEVLASQEVHDISVAIGIDPDSDDLSQLRYGKICILADADSDGLHIATLLCALFVRHFRTLVKEGHVYVALPPLYRIDLGKEVYYALTEEEKTGVLEQLKRKKGKPNVQRFKGLGEMNPMQLRETTLDPNTRRLVQLVISDEDEQQTTAIMDMLLAKKRSEDRRNWLQEKGDMADLEVESMSDMAERLALHEFTENAYLNYSMYVIMDRALPFIGDGLKPVQRRIVYAMSELGLNASAKFKKSARTVGDVLGKYHPHGDSACYEAMVLMAQPFSYRYPLVDGQGNWGAPDDPKSFAAMRYTESRLSKYAELLLSELGQGTVDWVPNFDGTLQEPKMLPARLPNILLNGTTGIAVGMATDIPPHNLREVAKAAITLIEQPKTTLDELLDIVQGPDFPTEAEIITSRAEIRKIYQNGRGSVRMRAVWSKEDGAVVISALPHQVSGAKVLEQIAAQMRNKKLPMVDDLRDESDHENPTRLVIVPRSNRVDMEQVMNHLFATTDLEKSYRINLNMIGLDGRPAVKNLLEILSEWLVFRRDTVRRRLNHRLEKVLKRLHILEGLLVAFLNIDEVIEIIRTEDEPKPALMSRFGISETQAEAILELKLRHLAKLEEMKIRGEQSELEKERDQLQAILASERKMNNLLKKELQADADAFGDDRRSPLHEREEAKALEHHHHHH

来源 Source

来源生物 organism	Klebsiella pneumoniae subsp. pneumoniae MGH 78578
NCBI 分类编号 ncbi_taxonomy_id	272620
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	;DNA (5'-D(PTPTPAPCPGPTPTPGPTPAPTPGPAPTPCPAPTPAPCPAPAPCPGPTPAPA)-3') ;
分子量 formula_weight	7985.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,F,G,H

TTACGTTGTATGATCATACAACGTAA

Entity 3 non-polymer

描述 description	;6-[(5S)-5-[[[2-(7-Fluoro-1,2-dihydro-1-methyl-2-oxo-8-quinolinyl)ethyl]amino]methyl]-2-oxo-3-oxazolidinyl]-2H-pyrazino[2,3-b]-1,4-oxazin-3(4H)-one ;
分子量 formula_weight	468.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	53

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	95.444 Å
晶胞边长 b length_b	163.265 Å
晶胞边长 c length_c	145.842 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.55 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	monoclinic

分辨率 resolution	3.050 Å
最低分辨率 resolution_low	46.460 Å
R 因子 r_factor	0.2255
R_work r_work	0.2233
R_free r_free	0.2686

fit	/app/data/saxs_computation/kg/9kgt/9kgt.fit
pddf	/app/data/pr_computation/kg/9kgt/9kgt.pr.out
profile	/app/data/saxs_computation/kg/9kgt/9kgt.dat
