SAXSdb — 9kz7

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9kz7
沉积日期 deposition_date	2024-12-10
结构标题 title	The cryo-EM structure of porcine serum MGAM bound with Acarviosyl-maltotriose.
关键词 keywords	alpha-glucosidase, HYDROLASE; HYDROLASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.21 Å
回转半径 Rg (电子) rg_electron	44.86 Å
零角强度 I(0) i0	621416000.00
分子量 molecular_weight	207260.0 kDa
排除体积 excluded_volume	259030 Å³
包络体积 envelope_volume	330460 Å³
水化壳体积 shell_volume	61243 Å³
包络直径 envelope_diameter	155.6 Å
壳层 Rg shell_rg	49.42 Å
包络 Rg envelope_rg	44.24 Å
形状 Rg shape_rg	44.84 Å
总 Rg total_rg	45.12 Å
总原子数 total_atoms	14642
残基数 n_residues	1771
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	152.2 Å
Rg (实空间) rg_real	45.37 Å
Rg 误差 (实空间) rg_real_error	1.42 Å
I(0) (实空间) i0_real	6.2140e+08
I(0) 误差 (实空间) i0_real_error	1.1880e+07
Rg (倒空间) rg_reciprocal	45.22 Å
I(0) (倒空间) i0_reciprocal	621300000.0000
解质量估计 total_estimate	0.8574
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	39.1 Å
偏度 Skewness skewness	0.329
峰度 Kurtosis kurtosis	-0.674
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	147300000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.815; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.855; Smooth: 0.842

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Maltase-glucoamylase
分子量 formula_weight	203509.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	14659

VLSARESLESKDAGTPGPSTPDSAECAVANELERINCIPDQSPTKATCDQRGCCWKPQGAISVPWCYYSTNHGYQVEGDLVNTNAGFTAQLKRLPSPSLFGNDINNVLLRAEYQTATRFHFKLTDQNQDRYEVPHEHVQPFQGNAASPLTYEVMVSKQPFSIKVIRTSNSRVLFDSSIGPLLFADQFLQLSIRLPSANVYGLGEHVHQQYRHDMNWKTWPIFARDTVPNGDGNNLYGAQTFFLCLEDASGLSFGVFLMNSNAMEVALQPAPAVTYRTTGGILDFYVLLGNTPEQVVQEYLQLIGLPALPPYWALGFHLSRYDYETLDNMREVVERNRAAQLPYDVQHADIDYMDKRRDFTYNPVDFKGFPELAQDLHNNGQKLVIIVDPAISNDSSPSSPYGPYDRGSDAKIWVNDPDGVTPLIGEVWPGKTVFPDYTNPKCTTWWENEFKLFHNQVDFDGIWIDMNEVANFVDGSVSGCSTSNLNYPPFTPRILDGYLFSKTLCMDAVQHWGKQYDVHNLYGYSMAIATAEAVKTVFSNKRSFILTRSTFAGSGKFAAHWLGDNAATWDDLRWSIPGMLEFNLFGIPMVGSDICGFLLDTSEELCRRWMQVGAFYPFSRNHNGQGYKVQDPASFGADSLLLNSSRHYLSIRYTLLPYLYTLFYHAHSRGDTVARPLLHEFYEDSNTWDVYQQFLWGPGLLITPVLDEGAEKVTAYVPDAVWYDYETGGRVTWRKQKVEMELPGDKIGLHLRGGYIFPTQQPATTTVASRQNPLGLIIALDDNKEAKGELFWDDGEAKDTVANKVYLLYEFSVTQNRLDVKILQSTYTDPNNLVFKEIKILGTQEPSNVIVKQNDIPVQVSPNVAYDSNLQVALITEIELELGKNYTVEWDVKIRDEEKIDCYPDETGASEGNCVARGCAWEASTSPGVPHCYFVDELYSVSDVQYDSFGATAAISLKSSLYASALPSVPVNSLRLSVTYHKENMLQFKIYDPSNNRYEVPVPLNVPRVPSGTSESRLYDVLIKKNPFGIEIRRKSTGTVIWDSQLLGFTFNDMFIQISTRLPSQYLYGFGETEHTAFRRNLNWHTWGMFSRDQPPGYKMNSYGVHPYYMALEEDGNAHGVLLLNSNAMDVTFQPLPALTYRTTGGILDFYVLLGPTPELVTQQYTELIGRPVMVPYWSLGFQLCRYGYENDSEIASLYEDMVAAQIPYDVQYSDIDYMERQLDFTLSPKFDGFPALINRMKANGMRVILILDPAISGNETKPYPPFTRGVEDDVFIKYPNDGSIVWGKVWPDFPDIFVNSSLDWDSQVEQYRAYVAFPDFFRNSTITWWKRELRELYTNPQDPEKSLKFDGMWIDMNEPSSFVNGAVSPGCRDSSLNHPPYMPYLESRNSGLSSKTLCMEGEQILPDGSRVRHYDVHSLYGWSQTRPTYEVVQEVTGERGIIISRSTYPSSGRWSGHWLGDNTAAWDQLRKSIIGMMEFSLFGISYTGADICGFFQDAEFEMCARWMQLGAFYPFSRNHNSIGTRRQDPVSWNDTFVNISRSVLETRYTLLPYLYTLMHMAHTEGSTVVRALLHEFVSDRVTWDLDSQFLLGPAFLVSPVLEPNARNVTAYFPRARWYDYYTGVDINARGEWRDLSAPLDHINLHIRGGYILPWQEPAQNTYFSRQKFMGFKVALDDDGTAEGWLFWDDGQSIDTYEQGLYYLANFSVSQNTMQSHVIFNKYISDANPLKLGYIEIWGVGSAPISSVSISASGEVITPIFIHDSATQVLNINVTNGNLSLHNFSSLTWTSAPDS

Entity 2 branched

描述 description	;4,6-dideoxy-4-{[(1S,4R,5S,6S)-4,5,6-trihydroxy-3-(hydroxymethyl)cyclohex-2-en-1-yl]amino}-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-beta-D-glucopyranose ;
分子量 formula_weight	807.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	8

Entity 4 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	570.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.77 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	607435

fit	/app/data/saxs_computation/kz/9kz7/9kz7.fit
pddf	/app/data/pr_computation/kz/9kz7/9kz7.pr.out
profile	/app/data/saxs_computation/kz/9kz7/9kz7.dat

The cryo-EM structure of porcine serum MGAM bound with Acarviosyl-maltotriose.

SAXS 散射曲线 SAXS Profile

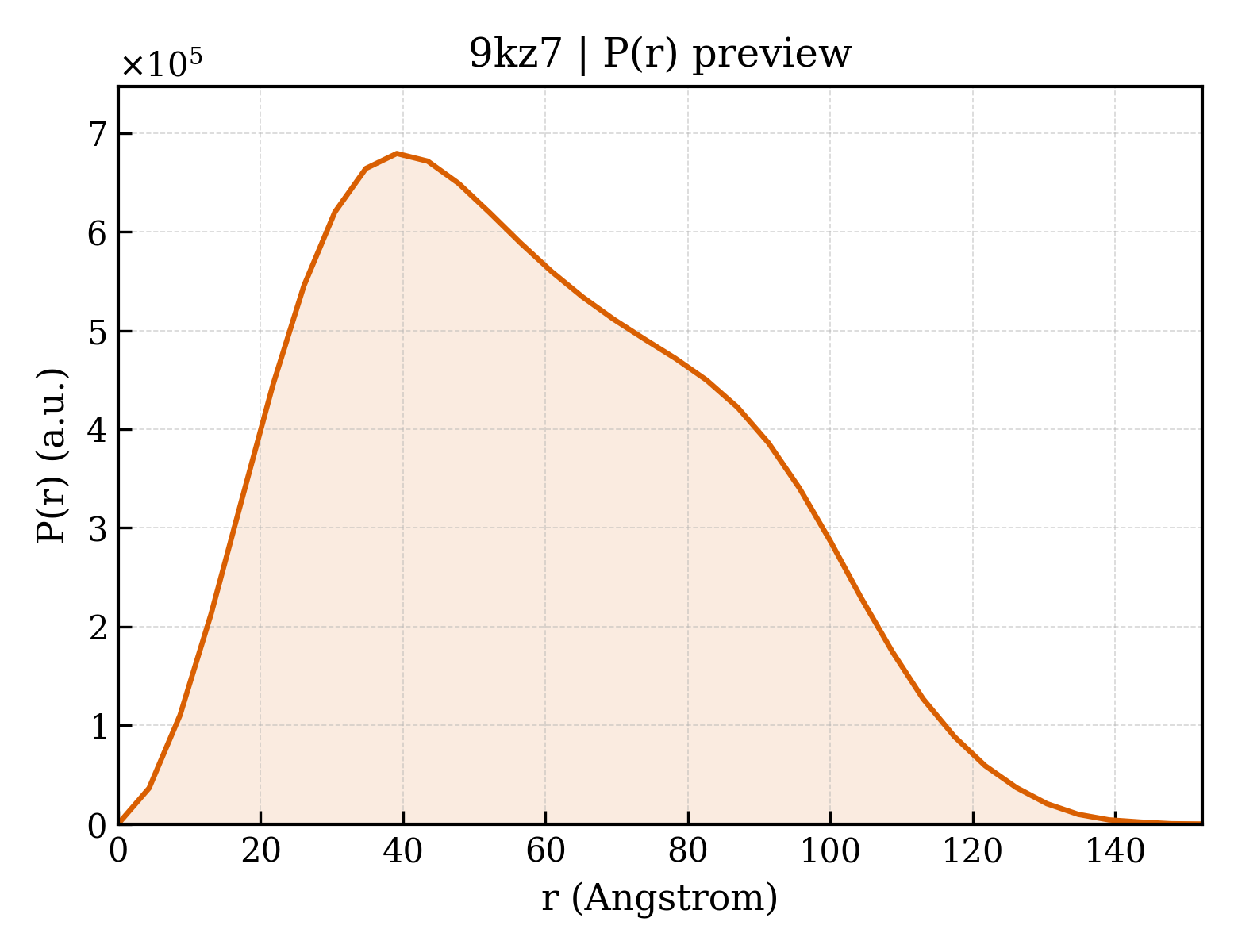

P(r) 距离分布 P(r) Distribution
