9lac

Comparative analysis of functions and catalytic mechanisms of methyltransferases involved in anthracycline biosynthesis

Method: X-RAY DIFFRACTION D_max: 100.1 Å Quality: GOOD

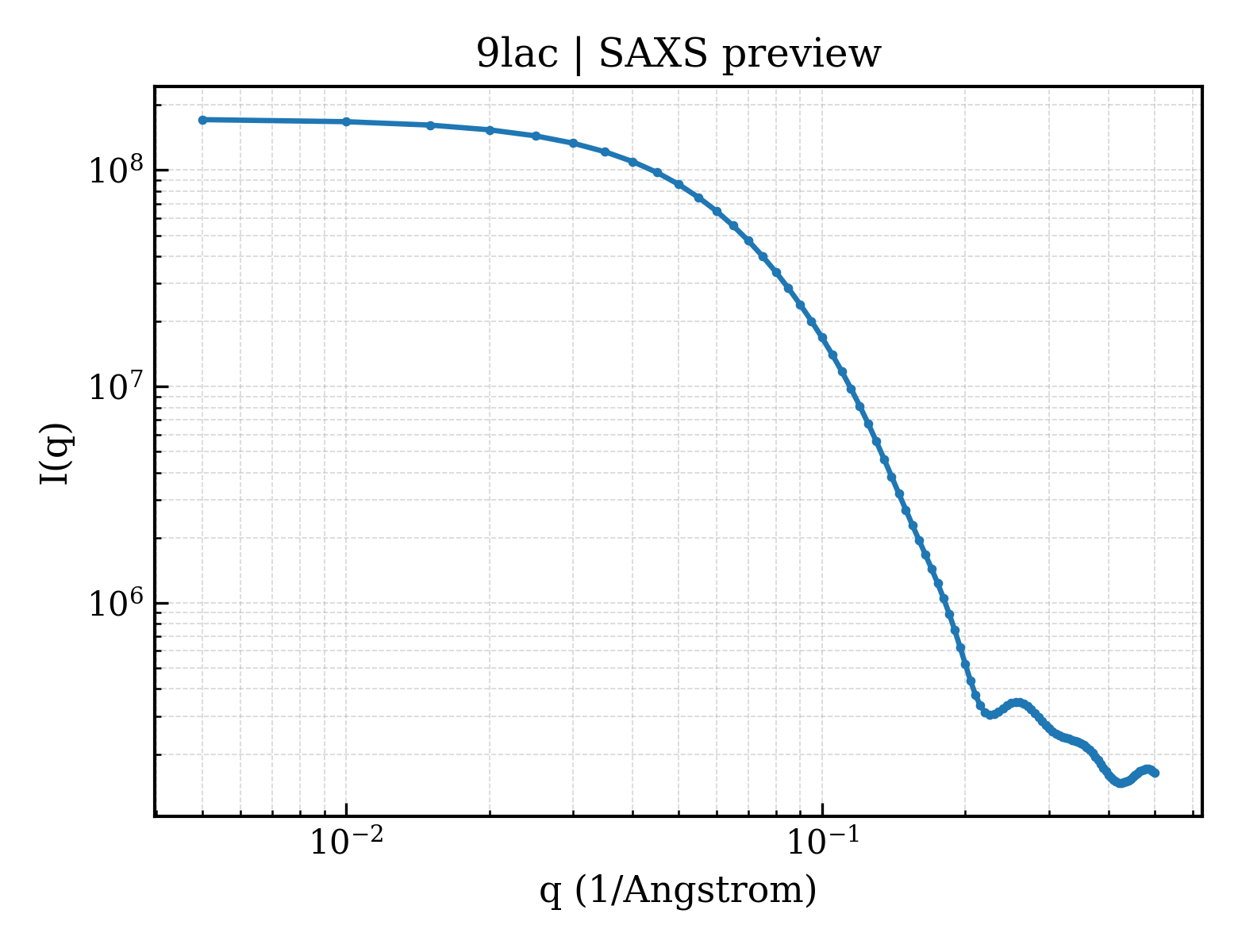

SAXS 散射曲线 SAXS Profile

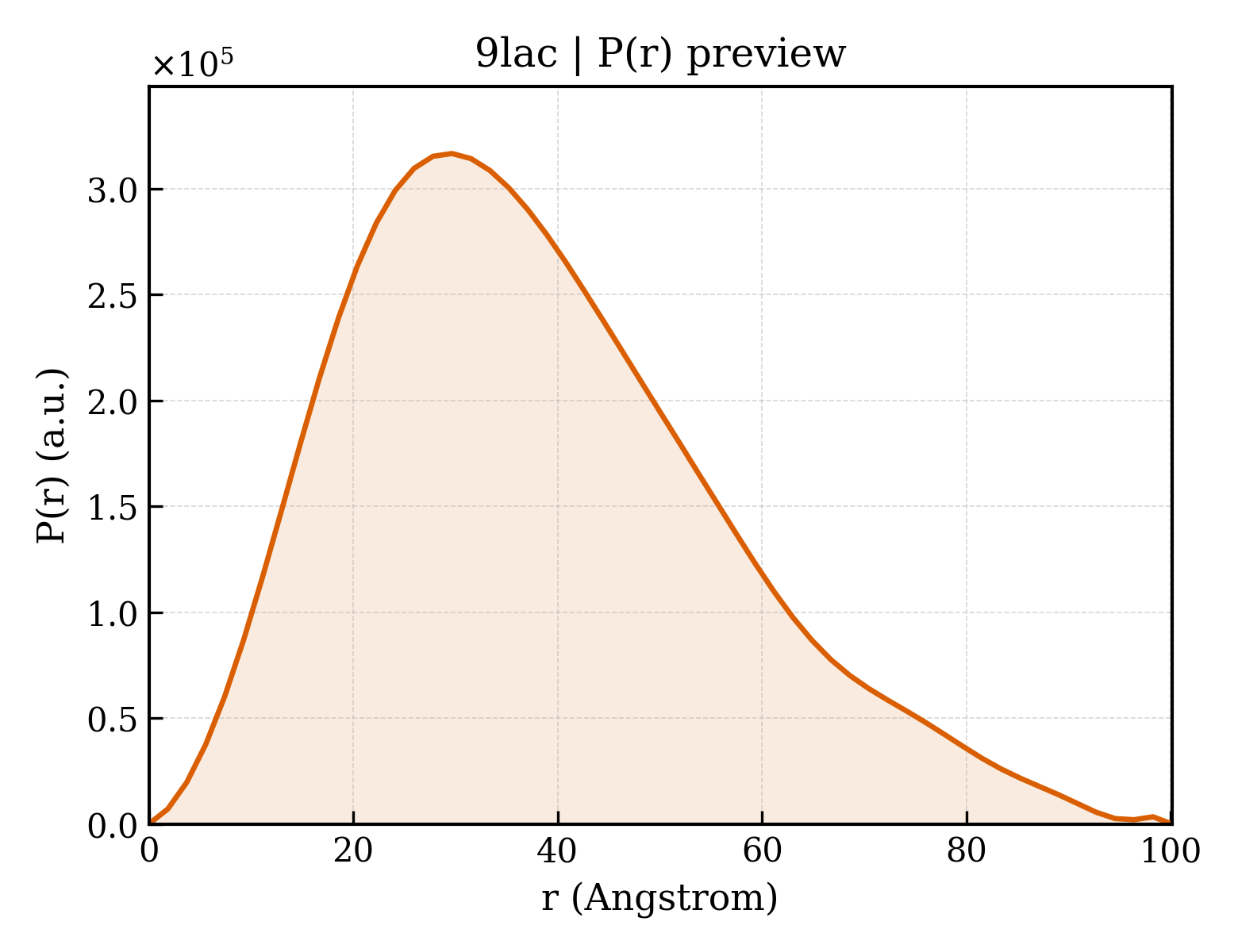

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9lac
沉积日期 deposition_date	2025-01-02
最后修订 last_revision	2026-01-07
结构标题 title	Comparative analysis of functions and catalytic mechanisms of methyltransferases involved in anthracycline biosynthesis
关键词 keywords	DnrK, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.31 Å
回转半径 Rg (电子) rg_electron	28.94 Å
零角强度 I(0) i0	172415000.00
分子量 molecular_weight	69519.0 kDa
排除体积 excluded_volume	66945 Å³
包络体积 envelope_volume	109980 Å³
水化壳体积 shell_volume	32943 Å³
包络直径 envelope_diameter	104.5 Å
壳层 Rg shell_rg	34.82 Å
包络 Rg envelope_rg	29.15 Å
形状 Rg shape_rg	28.91 Å
总 Rg total_rg	29.35 Å
总原子数 total_atoms	5283
残基数 n_residues	671
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	100.1 Å
Rg (实空间) rg_real	29.50 Å
Rg 误差 (实空间) rg_real_error	0.81 Å
I(0) (实空间) i0_real	1.7240e+08
I(0) 误差 (实空间) i0_real_error	2.5690e+06
Rg (倒空间) rg_reciprocal	29.42 Å
I(0) (倒空间) i0_reciprocal	172400000.0000
解质量估计 total_estimate	0.8471
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.7 Å
偏度 Skewness skewness	0.577
峰度 Kurtosis kurtosis	-0.078
角度范围 angular_range	— – 0.2700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	47940000.0000
实空间数据点数 n_real_points	55
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.758; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.924; Smooth: 0.810

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Methyltransferase domain-containing protein
分子量 formula_weight	40942.4 kDa
突变 mutation	E299A
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	6049

MGSSHHHHHHSSGLVPRGSHMTAEPTVAARPQQIDALRTLIRLGSLHTPMVVRTAATLRLVDHILAGARTVKALAARTDTRPEALLRLIRHLVAIGLLEEDAPGEFVPTEVGELLADDHPAAQRAWHDLTQAVARADISFTRLPDAIRTGRPTYESIYGKPFYEDLAGRPDLRASFDSLLACDQDVAFDAPAAAYDWTNVRHVLDVGGGKGGFAAAIARRAPHVSATVLEMAGTVDTARSYLKDEGLSDRVDVVEGDFFEPLPRKADAIILSFVLLNWPDHDAVRILTRCAEALEPGGRILIHERDDLHENSFNEQFTALDLRMLVFLGGALRTREKWDGLAASAGLVVEEVRQLPSPTIPYDLSLLVLAPAATGA

来源 Source

来源生物 organism	Streptomyces coeruleorubidus
NCBI 分类编号 ncbi_taxonomy_id	116188
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;(7S,9R,10R)-7-[(2R,4S,5S,6S)-4-azanyl-6-methyl-5-oxidanyl-oxan-2-yl]oxy-9-ethyl-4-methoxy-6,9,10,11-tetrakis(oxidanyl)-8,10-dihydro-7H-tetracene-5,12-dione ;
分子量 formula_weight	529.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	S-ADENOSYL-L-HOMOCYSTEINE
分子量 formula_weight	384.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	766

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	60.501 Å
晶胞边长 b length_b	104.553 Å
晶胞边长 c length_c	120.296 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	33.049 Å
R 因子 r_factor	—
R_work r_work	0.1962
R_free r_free	0.2218
