1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9lfn
沉积日期 deposition_date	2025-01-08
结构标题 title	Cryo-EM structure of the rice isoamylase ISA1-ISA2 heterocomplex incubated with Amylopectin
关键词 keywords	isoamylase ISA1-ISA2, HYDROLASE; HYDROLASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	57.41 Å
回转半径 Rg (电子) rg_electron	58.64 Å
零角强度 I(0) i0	855858000.00
分子量 molecular_weight	243400.0 kDa
排除体积 excluded_volume	303510 Å³
包络体积 envelope_volume	397600 Å³
水化壳体积 shell_volume	64057 Å³
包络直径 envelope_diameter	213.6 Å
壳层 Rg shell_rg	50.14 Å
包络 Rg envelope_rg	58.59 Å
形状 Rg shape_rg	58.64 Å
总 Rg total_rg	58.41 Å
总原子数 total_atoms	33516
残基数 n_residues	2131
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	196.8 Å
Rg (实空间) rg_real	58.39 Å
Rg 误差 (实空间) rg_real_error	2.40 Å
I(0) (实空间) i0_real	8.5580e+08
I(0) 误差 (实空间) i0_real_error	1.8750e+07
Rg (倒空间) rg_reciprocal	56.55 Å
I(0) (倒空间) i0_reciprocal	853400000.0000
解质量估计 total_estimate	0.4579
解质量评级 solution_quality	SUSPICIOUS a SUSPICIOUS solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.5 Å
偏度 Skewness skewness	0.623
峰度 Kurtosis kurtosis	-0.421
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	57410000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.471; Stabil: 1.000; Sysdev: 0.009; Positv: 1.000; Valcen: 0.349; Smooth: 0.158

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Isoamylase 1, chloroplastic
分子量 formula_weight	87281.6 kDa
EC 编号 ec_number	3.2.1.68
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	33516

MGSSHHHHHHSSGLVPRGSHSDEVDAHMSVASAVEVGVGEDEEEGVEEEEEEVEAVVMPERYALGGACRVLAGMPAPLGATALDGGVNFAVYSAGASAASLCLFTPDDLEADEVTEEVPLDPLFNRTGNVWHVFIEGELHNMLYGYRFDGMFAPHCGQYFDVSNVVVDPYAKAVISRGEYGVPGPGGDCWPQMAGMIPLPYSTFDWQGDLPLRYPQKDLVIYEMHLRGFTKHSSSNVEHPGTYIGAISKLDYLKELGVNCVELMPCHEFNELEYFSCSSKMNFWGYSTINFFSPMIRYSSGGIRNCGRDAINEFKTFVREAHKRGIEVIMDVVFNHTAEGNEKGPILSFRGIDNSTYYMLAPKGEFYNYSGCGNTFNCNHPVVREFIVDCLRYWVTEMHVDGFRFDLASIMTRGCSLWDPVNVYGSPVEGDMTTTGTPLATPPLIDMISNDPILGDVKLIAEAWDAGGLYQVGQFPHWKIWSEWNGKYRDIVRQFIKGTDGFAGGFAECLCGSPHLYQAGGRKPWHSINFVCAHDGFTLADLVTYNKKYNSSNGEDNRDGENHNLSWNCGEEGEFAGLSVKRLRKRQMRNFFVSLMVSQGVPMFYMGDEYGHTKGGNNNTYCHDHYVNYFRWDKKEESSDLQRFCSLMTKFRKQCESLGLADFPTAQRLHWHGHQPGKPDWSETSRFVAFSTKDETKGEIYVAFNASHLPAVVGLPERPGYRWEPLVDTGKPAPYDFLTDDLPDRAHAVHLFSHFLNSNLYPMLSYSSIILELQPDD

来源 Source

来源生物 organism	Oryza sativa Japonica Group
通用名 common_name	Japanese rice
NCBI 分类编号 ncbi_taxonomy_id	39947
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Isoamylase 2, chloroplastic
分子量 formula_weight	86622.0 kDa
EC 编号 ec_number	3.2.1.68
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MASLPAPPTPLGSCPRGRGGGRVVARPRRAGLACAARSCYRFRTDDDGVVDVAVSGEDGDGGGGGYAVSVEVPGTRGREGGLVLRASGSGEGVPLAPAAGGASLAAELSFDPTRAPFYLSFLLTDASGAEIRTHRKTSFRVPVGVGPGSPAPLGMSISGDGAVNFAVYSKNANAVSLYLYAAAVGGGGGDEPALEIDLDPYIHRTGNVWHVSLASVDGYVSYAFCCGGIRRPLLDPYAKVIGDFVSSNSVYDEGVTAPSMRCFASLAIAPSYNWGRDRHPRLPLEKLVVYRANVALFTKDRSSGLPDDAAGTFTGLSAKVEHFRSLGVNAILLEPVFPFHQVKGPYFPYHFFSPMNLYSSKGLSVSAIKSMKDMVRVMHRNGIEVLLEVVFTHTAEGESECQTISMRGIDNSSYYIANGIAGCKASILNCNHPVTQKLILDSLRHWVLDFHVDGFCFINAPFLVRGPGGEYLSRPPLLEAITFDPVLSMTKIIADPWSPLDISNVQFPFPHWKRWAEVNTRFSIDVRKFLKREALISDLATRLCGSGDLFSTRGPAFSFNHVSRNSGLSLVDLVSFSNDDLLSESSWNCGEEGPSENSAVLQTRLRQIRNFLFILFVSLGVPVLNMGDECGHSAAGSVSYKDRGPLNWRGMKTTFVKEVTGFISFLTALRSRRGDIFQRREFLKLENIHWYGSDLCEPGWDDPTSNFLCMHINAEVDEMAADSVRGDLYICFNANEESVSAALPALAEGSVWLRLVDTSLAFPGFFATESNPKVQQVPGLSSYHVEAHTCVLFESKSALA

来源 Source

来源生物 organism	Oryza sativa Japonica Group
通用名 common_name	Japanese rice
NCBI 分类编号 ncbi_taxonomy_id	39947
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 branched

描述 description	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
分子量 formula_weight	504.4 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 4 branched

描述 description	;alpha-L-Glucopyranose-(1-4)-alpha-L-Glucopyranose-(1-4)-alpha-L-Glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose ;
分子量 formula_weight	1153.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	alpha-D-glucopyranose
分子量 formula_weight	180.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	7315

fit	/app/data/saxs_computation/lf/9lfn/9lfn.fit
pddf	/app/data/pr_computation/lf/9lfn/9lfn.pr.out
profile	/app/data/saxs_computation/lf/9lfn/9lfn.dat

Cryo-EM structure of the rice isoamylase ISA1-ISA2 heterocomplex incubated with Amylopectin

SAXS 散射曲线 SAXS Profile

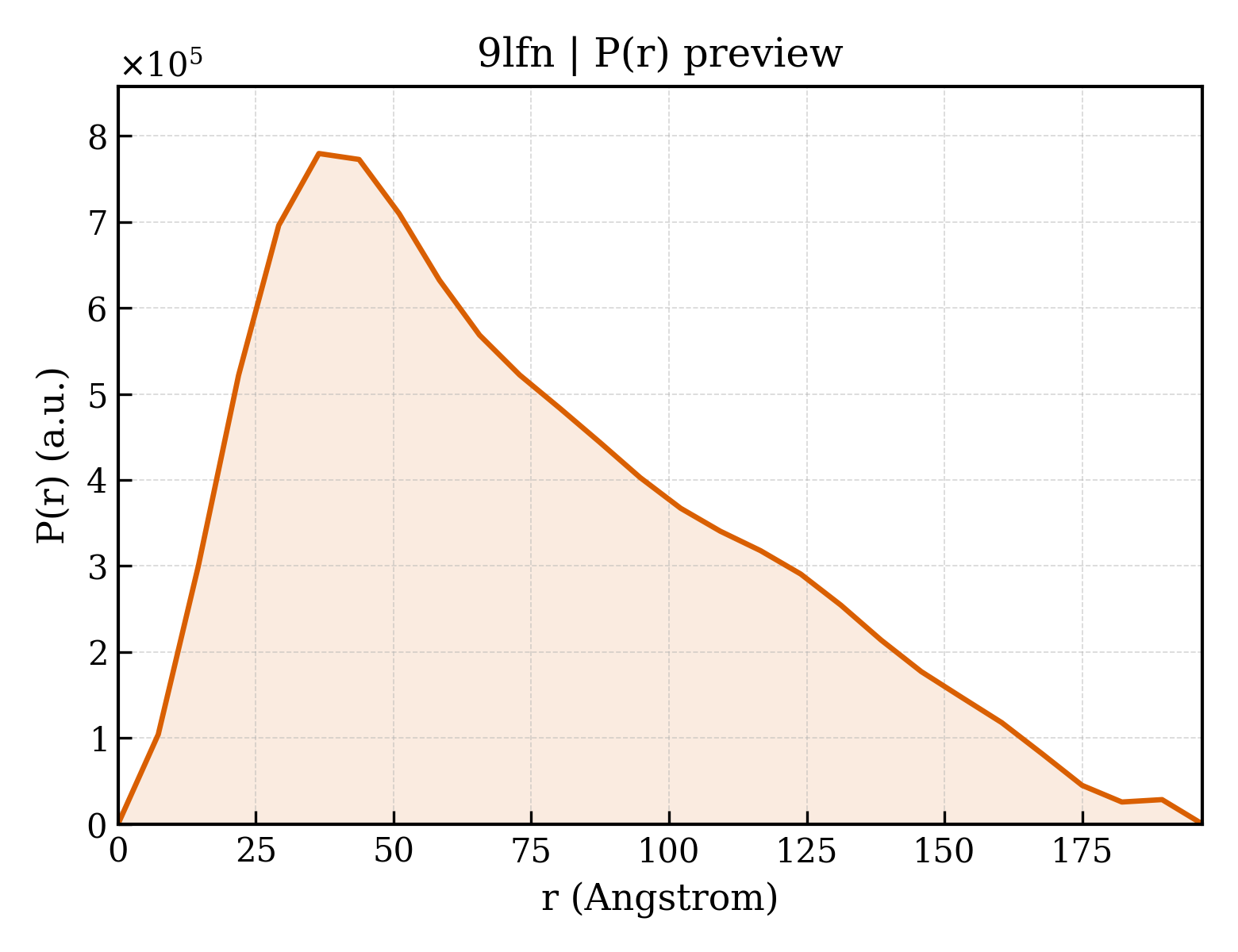

P(r) 距离分布 P(r) Distribution
