9lft

Biochemical and structural characterization of a novel 4-hydroxyphenylacetate-3-monooxygenase from Geobacillus mahadii Geo-05

Method: X-RAY DIFFRACTION D_max: 127.6 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9lft
沉积日期 deposition_date	2025-01-09
最后修订 last_revision	2025-09-10
结构标题 title	Biochemical and structural characterization of a novel 4-hydroxyphenylacetate-3-monooxygenase from Geobacillus mahadii Geo-05
关键词 keywords	Hydroxylation, two-component monooxygenases, thermophilic enzyme, flavoprotein, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.78 Å
回转半径 Rg (电子) rg_electron	37.52 Å
零角强度 I(0) i0	732063000.00
分子量 molecular_weight	220220.0 kDa
排除体积 excluded_volume	274740 Å³
包络体积 envelope_volume	330310 Å³
水化壳体积 shell_volume	70331 Å³
包络直径 envelope_diameter	193.7 Å
壳层 Rg shell_rg	45.89 Å
包络 Rg envelope_rg	38.68 Å
形状 Rg shape_rg	37.42 Å
总 Rg total_rg	38.31 Å
总原子数 total_atoms	15493
残基数 n_residues	1930
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

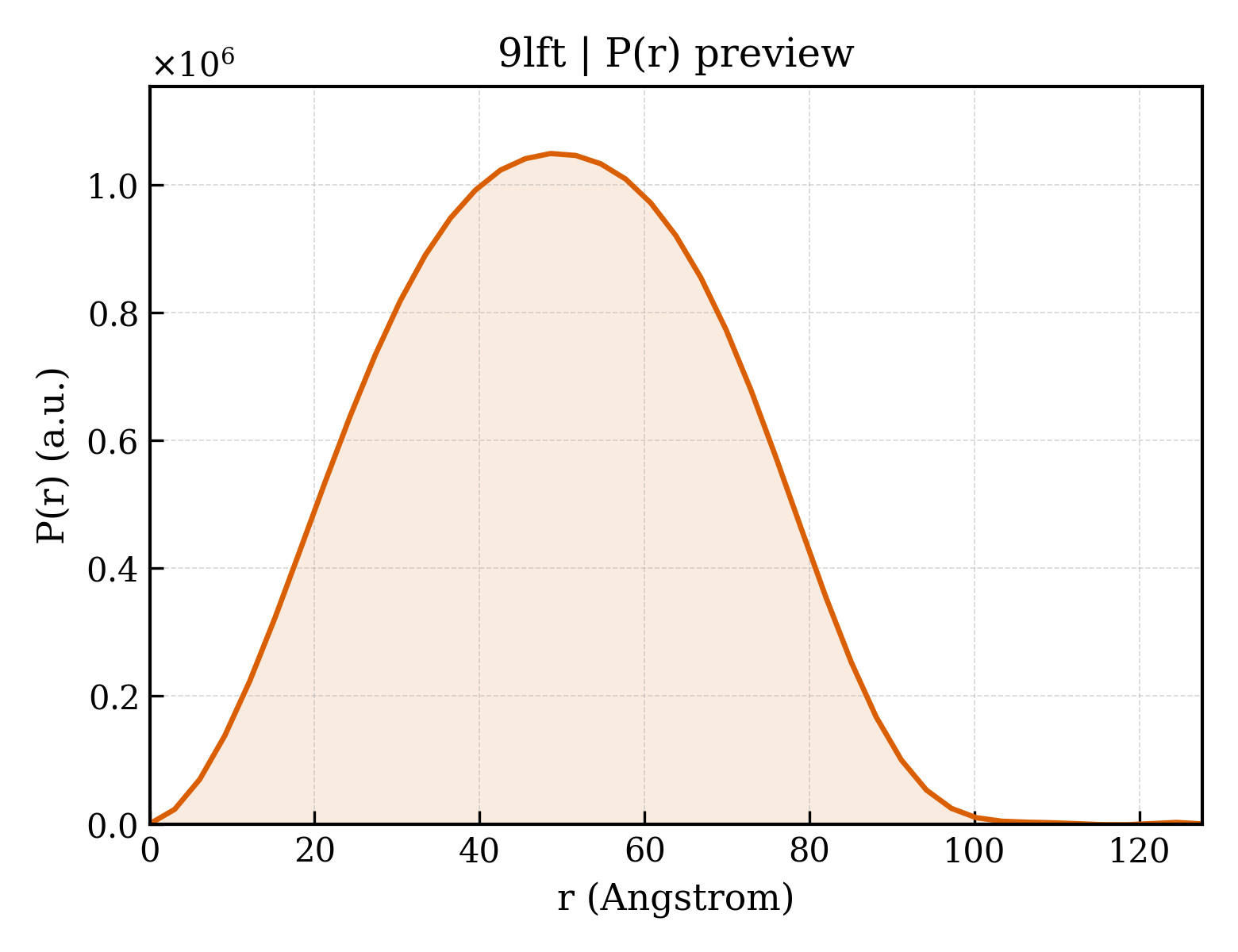

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	127.6 Å
Rg (实空间) rg_real	37.42 Å
Rg 误差 (实空间) rg_real_error	0.59 Å
I(0) (实空间) i0_real	7.3150e+08
I(0) 误差 (实空间) i0_real_error	1.1520e+07
Rg (倒空间) rg_reciprocal	37.66 Å
I(0) (倒空间) i0_reciprocal	731900000.0000
解质量估计 total_estimate	0.5694
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	48.6 Å
偏度 Skewness skewness	0.028
峰度 Kurtosis kurtosis	-0.653
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0137
最高正则化参数 α highest_alpha	382100000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.785; Stabil: 1.000; Sysdev: 0.020; Positv: 1.000; Valcen: 0.984; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	4-Hydroxyphenylacetate-3-monooxygenase
分子量 formula_weight	58804.8 kDa
EC 编号 ec_number	1.14.14.9
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	15614

MASMTGGQQMGRGSPAKTGQEYMERLKRAKSSVYIHGEKVEDVTVHPAFCNVVRSMAALYDRQYEKPEKMLYRSPTTGQLVGMTFIQPTTIDELIARREATQEWARMSAGMMGRSPDYLNAEVMAMGVANDLFAEDDPMFAENAKNYYEYARENDISLTHTLIHPQMNRAKALHEQNDADVPLHLVERRKDGIIVSGIRLLATQGGITDEILVFPSTVKKSTAGEDPYALAFAIPNNTPGVKFICREAFDYGRSSWDHPLASRFEEGDAIVSFENVFVPWERVFVCGNSSICNRTFRETNAVIHMSHQVVAKNIVKTEFLLGVTLCLIEAIGIGEFQHVKDKGAEIMLVLETMKSHLYRAEHNAKRDRWGTMTPDFAALDAARNWYPRIYPRLSEIIRILGASGLMAIPTEADFHNEEIGEIVSRAMQGATVDGYERVQLFRLAWDLTMSAFGARQTHYEYYFFGDPVRMGMAYFDGYEKEPYKQFVREFLRGAKSVFIPSDNKHKLAAALEHHHHHH

来源 Source

来源生物 organism	Geobacillus mahadia
NCBI 分类编号 ncbi_taxonomy_id	1381941
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	2,5,8,11,14,17,20,23,26,29,32,35,38,41,44,47,50,53,56,59,62,65,68,71,74,77,80-HEPTACOSAOXADOOCTACONTAN-82-OL
分子量 formula_weight	1221.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	121

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	90.571 Å
晶胞边长 b length_b	108.202 Å
晶胞边长 c length_c	99.055 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	99.46 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	97.900 Å
R 因子 r_factor	0.1871
R_work r_work	0.1840
R_free r_free	0.2499

fit	/app/data/saxs_computation/lf/9lft/9lft.fit
pddf	/app/data/pr_computation/lf/9lft/9lft.pr.out
profile	/app/data/saxs_computation/lf/9lft/9lft.dat

Biochemical and structural characterization of a novel 4-hydroxyphenylacetate-3-monooxygenase from Geobacillus mahadii Geo-05

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction
