9lr9

Local reconstruction of bovine adenovirus type 3 capsid

Method: ELECTRON MICROSCOPY D_max: 226.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

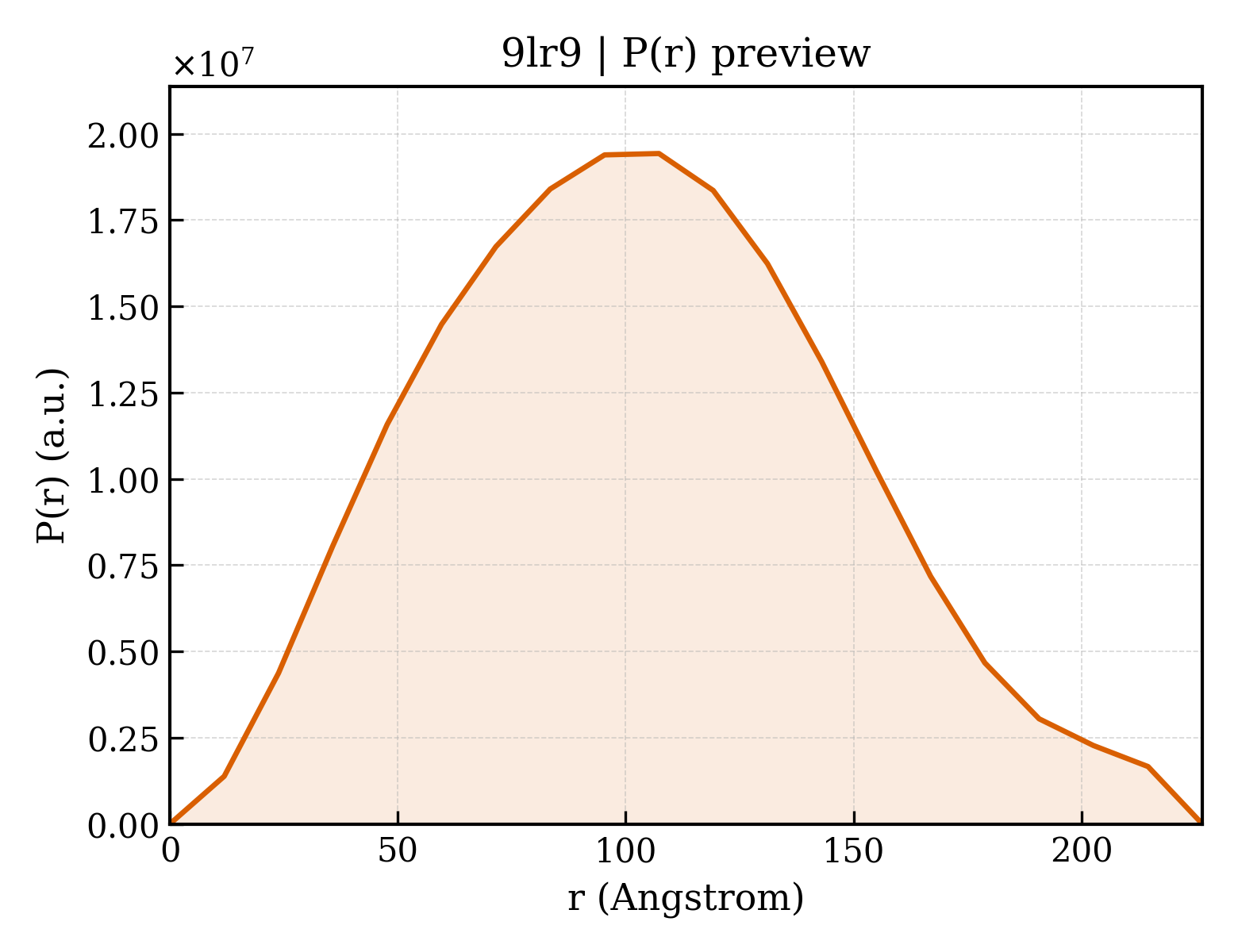

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9lr9
沉积日期 deposition_date	2025-01-30
结构标题 title	Local reconstruction of bovine adenovirus type 3 capsid
关键词 keywords	Complex, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	81.86 Å
回转半径 Rg (电子) rg_electron	81.69 Å
零角强度 I(0) i0	29702100000.00
分子量 molecular_weight	1441700.0 kDa
排除体积 excluded_volume	1789300 Å³
包络体积 envelope_volume	2588200 Å³
水化壳体积 shell_volume	252980 Å³
包络直径 envelope_diameter	328.5 Å
壳层 Rg shell_rg	86.90 Å
包络 Rg envelope_rg	81.68 Å
形状 Rg shape_rg	81.67 Å
总 Rg total_rg	81.78 Å
总原子数 total_atoms	101800
残基数 n_residues	12783
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	226.5 Å
Rg (实空间) rg_real	79.19 Å
Rg 误差 (实空间) rg_real_error	0.69 Å
I(0) (实空间) i0_real	2.8600e+10
I(0) 误差 (实空间) i0_real_error	5.3770e+08
Rg (倒空间) rg_reciprocal	81.59 Å
I(0) (倒空间) i0_reciprocal	29680000000.0000
解质量估计 total_estimate	0.6528
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	107.3 Å
偏度 Skewness skewness	0.220
峰度 Kurtosis kurtosis	-0.451
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	1.1500
最高正则化参数 α highest_alpha	2782000000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.994; Stabil: 0.974; Sysdev: 0.008; Positv: 1.000; Valcen: 0.950; Smooth: 0.008

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Hexon protein
分子量 formula_weight	103148.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D,F,G,H,I,J,X,Y,g,h,i
原子数 atom_count	101800

MATPSMLPQWSYMHIAGQDASEYLSPGLVQFAQATESYFNIGNKFRNPTVAPTHDVTTERSQRLQLRFVPVDREDTQYSYKTRFQLAVGDNRVLDMASTYFDIRGTLDRGASFKPYSGTAYNSFAPKSAPNNTQFRQANNGHPAQTIAQASYVATIGGANNDLQMGVDERQLPVYANTTYQPEPQLGIEGWTAGSMAVIDQAGGRVLRNPTQTPCYGSYAKPTNEHGGITKANTQVEKKYYRTGDNGNPETVFYTEEADVLTPDTHLVHAVPAADRAKVEGLSQHAAPNRPNFIGFRDCFVGLMYYNSGGNLGVLAGQSSQLNAVVDLQDRNTELSYQMLLANTTDRSRYFSMWNQAMDSYDPEVRVIDNVGVEDEMPNYCFPLSGVQIGNRSHEVQRNQQQWQNVANSDNNYIGKGNLPAMEINLAANLWRSFLYSNVALYLPDNLKFTPHNIQLPPNTNTYEYMNGRIPVSGLIDTYVNIGTRWSPDVMDNVNPFNHHRNSGLRYRSQLLGNGRFCDFHIQVPQKFFAIRNLLLLPGTYTYEWSFRKDVNMILQSTLGNDLRVDGATVNITSVNLYASFFPMSHNTASTLEAMLRNDTNDQSFNDYLSAANMLYPIPPNATQLPIPSRNWAAFRGWSLTRLKQRETPALGSPFDPYFTYSGTIPYLDGTFYLSHTFRKVAIQFDSSVTWPGNDRLLTPNEFEIKISVDGEGYNVAQSNMTKDWFLVQMLANYNIGYQGYHLPPDYKDRTFSFLHNFIPMCRQVPNPATEGYFGLGIVNHRTTPAYWFRFCRAPREGHPYPQLALPPHWDPRHALRDPERKFLCDRTLWRIPFSSNFMSMGSLTDLGQNLLYANAAHALDMTFEMDPINEPTLLYVLFEVFDVARVHQPHRGVIEVVYLRTPFSAGNATT

Entity 2 polymer

描述 description	PVI
分子量 formula_weight	28249.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	9

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,L,S,T,Z,a,b,c,d

MDEYNYAALAPRQGSRPMLSQWSGIGTHEMHGGRFNLGSLWSGIRNVGSALRTGALGPGTAMRASVARPAEKDGLARKDIEGVSAGIHGAVDLGRQQLEKAIEQRLERRPTAAGVEDLPLPPGTVLEADRLPPSYAEAVAERPPPADVLLPASSKPPVAVVTLPPKKRVSEEPVEEVVIRSSAPPSYDEVMAPQPTLVAEQGAMKAVPVIKPAQPFTPAVHETQRIVTNLPITTAVTRRRGWQGTLNDIVGLGVRTVKRRRCY

Entity 3 polymer

描述 description	Pre-histone-like nucleoprotein
分子量 formula_weight	19002.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,U,e,f

MAILISPSNNTGWGLGCNKMYGGARIRSDLHPVKVRSHYRAAWGSRTGRVGRRATAALADAVAATGDPVADTIEAVVADARQYRRRRRRGVRRVRRLRRSPRTALQRRVRSVRRQVARARRVGRRAAAIAADAAMAMAAPARRRRNIYWVRDAATGARVPVTTRPTVSNTV

Entity 4 polymer

描述 description	PX
分子量 formula_weight	8514.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSPRGNLTYRLRIPVALSGRRRRRTGLRGGSAYLLGRRRRRAGGGRLRGGFLPLLAPIIAAAIGAIPGIASVAIQAAHNK

Entity 5 polymer

描述 description	Pre-hexon-linking protein IIIa
分子量 formula_weight	63270.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MSDADPRIFQLVSRQETVAMAEAPRSLGPAPSNPSLQALFQSQPSAEQEWHGVLERVMALNKNGDFGSQPQANRFGAILEAVVPPRSDPTHEKVLAIVNALLETQAIRRDEAGQMYTALLQRVARYNSVNVQGNLDRLIQDVKEALAQRERTGPGAGLGSVVALNAFLSTQPAVVERGQENYVAFVSALKLMVTEAPQSEVYQAGPSFFFQTSRHGSQTVNLSQAFDNLRPLWGVRAPVHERTTISSLLTPNTRLLLLLIAPFTDSVGISRDSYLGHLLTLYRETIGNTRVDETTYNEITEVSRALGAEDASNLQATLNYLLTNKQSKLPQEFSLSPEEERVLRYVQQSVSLFLMQDGHTATTALDQAAANIAPSFYASHRDFINRLMDYFQRAAAMAPDYFLQAVMNPHWLPPPGFFTQEFDFPEPNEGFLWDDLDSALLRAHVKEEEDQGAVGGTPAASAPASRAHTPPPPPGAADLFAPNAFRNVQNNGVDELIDGLSRWKTYAQERQEVVERHRRREARRRAREARLESSDDDDSDLGPFLRGTGHLVHNQFMHLKPRGPRQFW

Entity 6 polymer

描述 description	PV
分子量 formula_weight	45388.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MASSRLIKEEMLDIVAPEIYKRKRPRRERAAPYAVKQEEKPLVKAERKIKRGSRKRALSGVDVPLPDDGFEDDEPHIEFVSAPRRPYQWKGRRVRRVLRPGVAVSFTPGARSLRPSSKRVYDEVYADDDFLEAAAAREGEFAYGKRGREAAQAQLLPAVAVPEPTYVVLDESNPTPSYKPVTEQKVILSRKRGVGKVEPTIQVLASKKRRMAENEDDRGAGSVAEVQMREVKPVTAALGIQTVDVSVPDHSTPMEVVQSLSRAAQVAQRLTQQQVRPSAKIKVEAMDLSAPVDAKPLDLKPVDVKPTPTFVLPSFRSLSTQTDSLPAAVVVPRKPRVHRATRRTARGLLPYYRLHPSITPTPGYRGSVYTSSGVRLPAVRAPPSPPYPQGDSPPQRCRGRGAAARRALSP

Entity 7 polymer

描述 description	Pre-hexon-linking protein VIII
分子量 formula_weight	23746.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,R

MSKEIPTPYVWTFQPQMGAAAGASQDYSTRMNWFSAGPDMIHDVNNIRDAQNRILMTQSAITATPRNLIDPRQWAAHLIKQPVVGTTHVEMPRNEVLEQHLTSHGAQIAGGGAAGDYFKSPTSARTLIPLTASCLRPDGVFQLGGGSRSSFNPLQTDFAFHALPSRPRHGGIGSRQFVEEFVPAVYLNPYSGPPDSYPDQFIRHYNVYSNSVSGYS

Entity 8 polymer

描述 description	PIX
分子量 formula_weight	13719.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,P,Q,V

MAEEGRIYVPYVTARLPKWSGSVQDKTGSNMLGGVVLPPNSQAHRTETVGTEATRDNLHAEGARRPEDQTPYMILVEDSLGGLKRRMDLLEESNQQLLATLNRLRTGLAAYVQANLVGGQVNPFV

Entity 9 polymer

描述 description	Penton protein
分子量 formula_weight	55135.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MLQPELQPIPLSRRRLMRRWWLGPSRRFLFDEIHVPPRYAAASAGRNSIRYSMLPPLYDTTKIYLIDNKSSDIQTLNYQNDHSDYLTTIVQNSDFTPLEASNHSIELDERSRWGGNLKTILYTNLPNITQHMFSNSFRVKMMASKKDGVPQYEWFPLRLPEGNFSETMVIDLMNNAIVELYLALGRQEGVKEEDIGVKIDTRNFSLGYDPQTQLVTPGVYTNEAMHADIVLLPGCAIDFTHSRLNNLLGIRKRFPYQEGFVISYEDLKGGNIPALMDVEEFNKSKTVRALREDPKGRSYHVGEDPEARENETAYRSWYLAYNYGDPEKGVRATTLLTTGDVTCGVEQIYWSLPDMALDPVTFKASLKTSNYPVVGTELLPLVPRSFYNAQAVYSQWIQEKTNQTHVFNRFPENQILVRPPAPTITSISENKPSLTDHGIVPLRNRLGGVQRVTLTDARRRSCPYVYKSLGIVTPQVLSSRTF

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	45262

fit	/app/data/saxs_computation/lr/9lr9/9lr9.fit
pddf	/app/data/pr_computation/lr/9lr9/9lr9.pr.out
profile	/app/data/saxs_computation/lr/9lr9/9lr9.dat
