9m2a

The crystal structure of the trypanosome alternative oxidase complexed with a trypanocidal phosphonium derivative (compound1)

Method: X-RAY DIFFRACTION D_max: 132.8 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9m2a
沉积日期 deposition_date	2025-02-27
最后修订 last_revision	2025-09-10
结构标题 title	The crystal structure of the trypanosome alternative oxidase complexed with a trypanocidal phosphonium derivative (compound1)
关键词 keywords	ALTERNATIVE OXIDASE, INHIBITOR, DRUG, AFRICAN TRYPANOSOMES, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.52 Å
回转半径 Rg (电子) rg_electron	38.96 Å
零角强度 I(0) i0	456659000.00
分子量 molecular_weight	116280.0 kDa
排除体积 excluded_volume	112500 Å³
包络体积 envelope_volume	199590 Å³
水化壳体积 shell_volume	44920 Å³
包络直径 envelope_diameter	137.0 Å
壳层 Rg shell_rg	41.73 Å
包络 Rg envelope_rg	39.04 Å
形状 Rg shape_rg	38.99 Å
总 Rg total_rg	39.03 Å
总原子数 total_atoms	8805
残基数 n_residues	1078
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

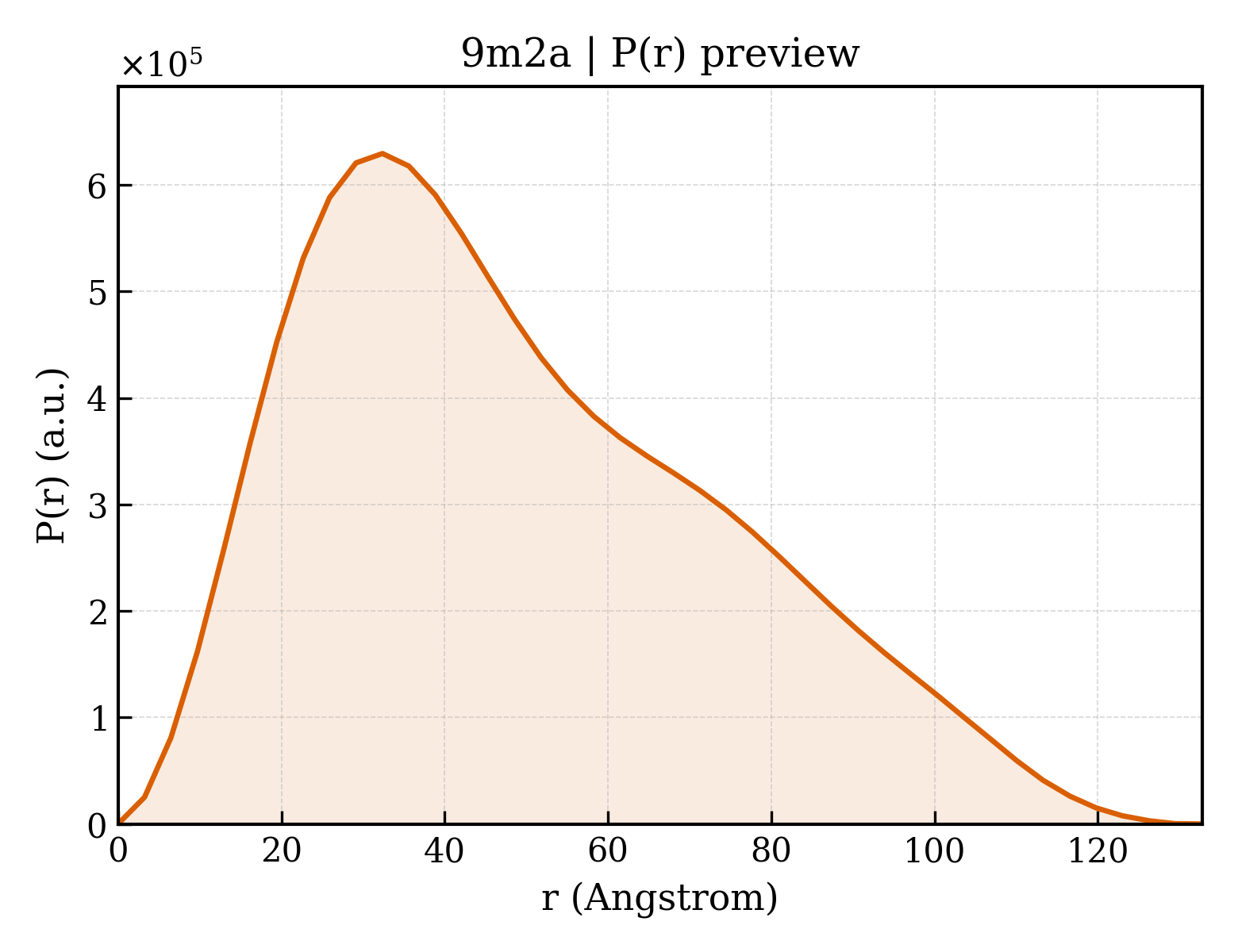

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	132.8 Å
Rg (实空间) rg_real	39.03 Å
Rg 误差 (实空间) rg_real_error	1.22 Å
I(0) (实空间) i0_real	4.5670e+08
I(0) 误差 (实空间) i0_real_error	7.1280e+06
Rg (倒空间) rg_reciprocal	38.72 Å
I(0) (倒空间) i0_reciprocal	456500000.0000
解质量估计 total_estimate	0.5570
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	32.4 Å
偏度 Skewness skewness	0.552
峰度 Kurtosis kurtosis	-0.457
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	107800000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.612; Stabil: 1.000; Sysdev: 0.035; Positv: 1.000; Valcen: 0.676; Smooth: 0.621

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Alternative oxidase, mitochondrial
分子量 formula_weight	31372.3 kDa
EC 编号 ec_number	1.-.-.-
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	8805

AAVWGHTQLNRLSFLETVPVVPLRVSDESSEDRPTWSLPDIENVAITHKKPNGLVDTLAYRSVRTCRWLFDTFSLYRFGSITESKVISRCLFLETVAGVPGMVGGMLRHLSSLRYMTRDKGWINTLLVEAENERMHLMTFIELRQPGLPLRVSIIITQAIMYLFLLVAYVISPRFVHRFVGYLEEEAVITYTGVMRAIDEGRLRPTKNDVPEVARVYWNLSKNATFRDLINVIRADEAEHRVVNHTFADMHEKRLQNSVNPFVVLKKNPEEM

来源 Source

来源生物 organism	Trypanosoma brucei brucei
NCBI 分类编号 ncbi_taxonomy_id	5702
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	FE (III) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 non-polymer

描述 description	HYDROXIDE ION
分子量 formula_weight	17.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	14-[diphenyl(pyridin-2-yl)-$l^{5}-phosphanyl]tetradecyl 2-methyl-4-oxidanyl-benzoate
分子量 formula_weight	611.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	151.368 Å
晶胞边长 b length_b	221.727 Å
晶胞边长 c length_c	62.855 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	114.50 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.010 Å
最低分辨率 resolution_low	44.960 Å
R 因子 r_factor	0.1975
R_work r_work	0.1945
R_free r_free	0.2535
