9m3v

Arabidopsis thaliana CDC48A, nucleotide-free (Apo)

Method: ELECTRON MICROSCOPY D_max: 162.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

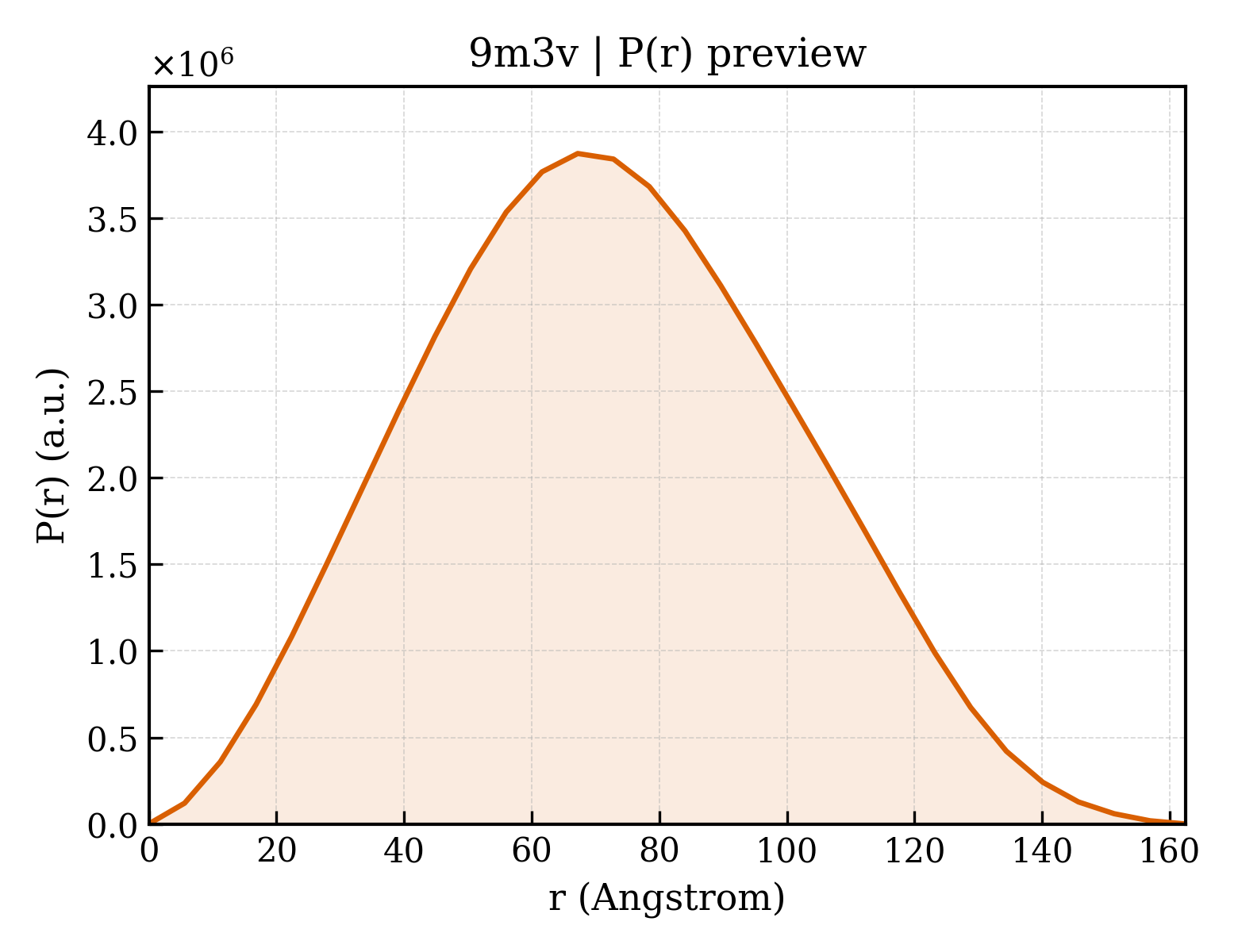

P(r) distribution for 9m3v

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9m3v
沉积日期 deposition_date	2025-03-03
结构标题 title	Arabidopsis thaliana CDC48A, nucleotide-free (Apo)
关键词 keywords	;Targeted protein degradation, plant protein quality control, AAA+ ATPase, cryo-EM, adaptation, ubiquitin-proteasome system, PLANT PROTEIN ;; PLANT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	55.03 Å
回转半径 Rg (电子) rg_electron	54.48 Å
零角强度 I(0) i0	3676490000.00
分子量 molecular_weight	502360.0 kDa
排除体积 excluded_volume	626530 Å³
包络体积 envelope_volume	948240 Å³
水化壳体积 shell_volume	137100 Å³
包络直径 envelope_diameter	168.8 Å
壳层 Rg shell_rg	62.58 Å
包络 Rg envelope_rg	53.83 Å
形状 Rg shape_rg	54.49 Å
总 Rg total_rg	54.63 Å
总原子数 total_atoms	70572
残基数 n_residues	4518
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	162.5 Å
Rg (实空间) rg_real	54.75 Å
Rg 误差 (实空间) rg_real_error	0.65 Å
I(0) (实空间) i0_real	3.6760e+09
I(0) 误差 (实空间) i0_real_error	6.6520e+07
Rg (倒空间) rg_reciprocal	55.26 Å
I(0) (倒空间) i0_reciprocal	3679000000.0000
解质量估计 total_estimate	0.8516
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	67.2 Å
偏度 Skewness skewness	0.136
峰度 Kurtosis kurtosis	-0.496
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0003
最高正则化参数 α highest_alpha	450600000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.962; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.220

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▶

7. 引用文献 (1)

▶

8. 文件与曲线 (10)
