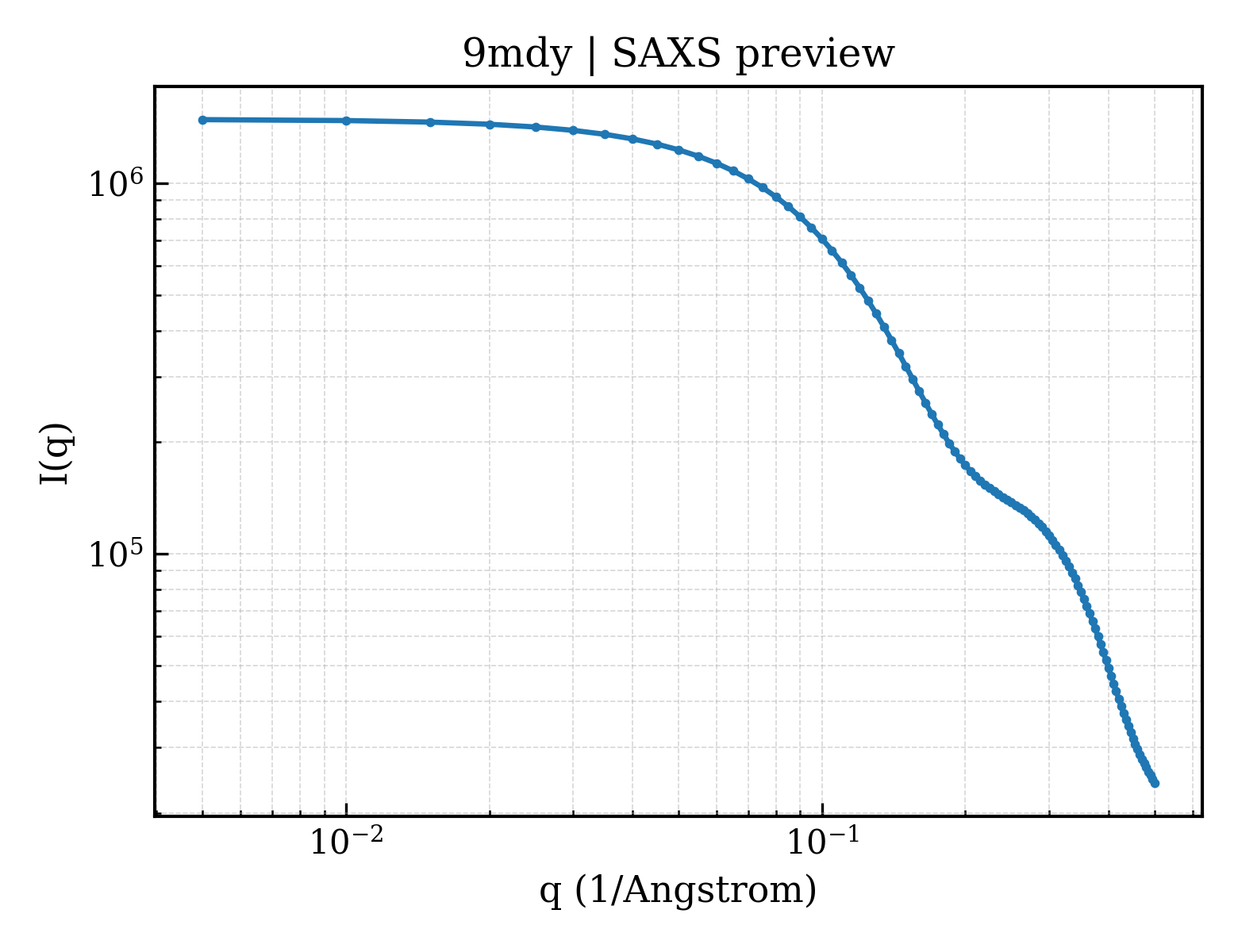

SAXS 散射曲线 SAXS Profile

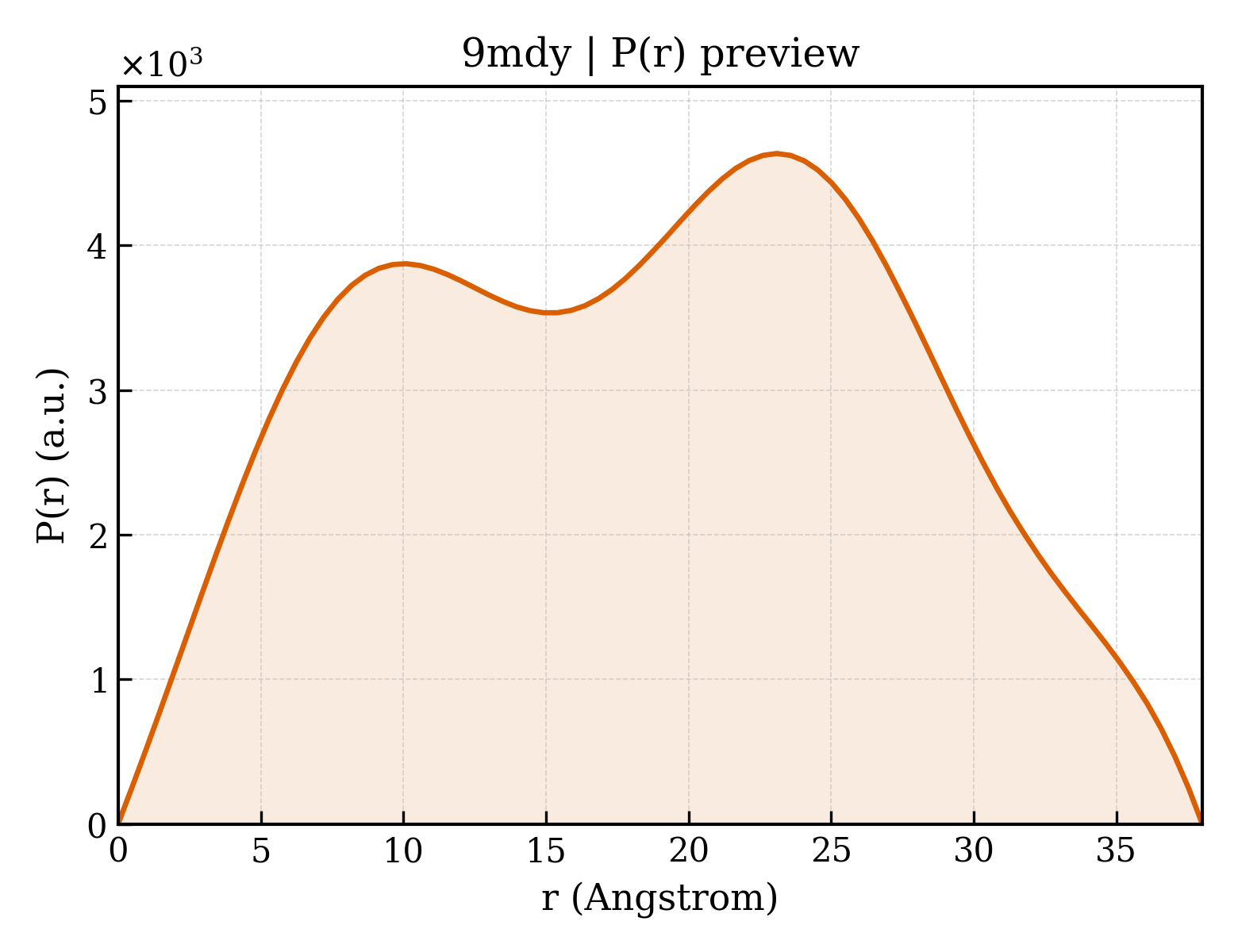

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 9mdy |
| 沉积日期 deposition_date | 2024-12-05 |
| 结构标题 title | 16mer self-complementary duplex RNA with s(2)U:A pair sequence 2 |
| 关键词 keywords | 2-Thiouridine, Nucleobase modification, Non-canonical Base Pair, RNA, Orgin of Life; RNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 15.06 Å |
| 回转半径 Rg (电子) rg_electron | 14.69 Å |
| 零角强度 I(0) i0 | 1487270.00 |
| 分子量 molecular_weight | 5169.0 kDa |
| 排除体积 excluded_volume | 4858 ų |
| 包络体积 envelope_volume | 8105 ų |
| 水化壳体积 shell_volume | 5352 ų |
| 包络直径 envelope_diameter | 47.5 Å |
| 壳层 Rg shell_rg | 18.53 Å |
| 包络 Rg envelope_rg | 14.09 Å |
| 形状 Rg shape_rg | 14.65 Å |
| 总 Rg total_rg | 15.32 Å |
| 总原子数 total_atoms | 339 |
| 残基数 n_residues | 15 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 38.0 Å |
| Rg (实空间) rg_real | 14.39 Å |
| Rg 误差 (实空间) rg_real_error | 0.05 Å |
| I(0) (实空间) i0_real | 1.4230e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.1580e+04 |
| Rg (倒空间) rg_reciprocal | 15.11 Å |
| I(0) (倒空间) i0_reciprocal | 1487000.0000 |
| 解质量估计 total_estimate | 0.6616 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 23.1 Å |
| 偏度 Skewness skewness | 0.005 |
| 峰度 Kurtosis kurtosis | -0.951 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 5.4790 |
| 最高正则化参数 α highest_alpha | 33390.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.993;
Stabil: 0.962;
Sysdev: 0.000;
Positv: 1.000;
Valcen: 0.742;
Smooth: 0.000
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 40.995 Å |
| 晶胞边长 b length_b | 40.995 Å |
| 晶胞边长 c length_c | 122.920 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 120.00 ° |
| 晶胞分子数 Z z_pdb | 18 |
对称性 Symmetry
| 空间群 space_group | H 3 2 |
| 空间群编号 int_tables_number | 155 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 1.360 Å |
| 最低分辨率 resolution_low | 40.973 Å |
| R 因子 r_factor | — |
| R_work r_work | 0.1856 |
| R_free r_free | 0.2175 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | RNA strand with s(2)U:A pair sequence 2 |
| 分子量 formula_weight | 5099.1 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polyribonucleotide |
| 链编号 strand_id | A |
| 原子数 atom_count | 439 |
AGAGAAGAUCUUCUCU
Entity 2
non-polymer
| 描述 description | MAGNESIUM ION |
| 分子量 formula_weight | 24.3 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 3 |
Entity 3
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 100 |
Nonenzymatic RNA copying with a potentially primordial genetic alphabet.
Proc.Natl.Acad.Sci.USA (2025)
