1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9meh
沉积日期 deposition_date	2024-12-06
结构标题 title	Crystal structure of the dimodular LgrA after protein ligation
关键词 keywords	NRPS, Condensation, Dimodule, Complex, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.55 Å
回转半径 Rg (电子) rg_electron	45.23 Å
零角强度 I(0) i0	592232000.00
分子量 molecular_weight	204680.0 kDa
排除体积 excluded_volume	257760 Å³
包络体积 envelope_volume	349380 Å³
水化壳体积 shell_volume	65141 Å³
包络直径 envelope_diameter	199.1 Å
壳层 Rg shell_rg	48.94 Å
包络 Rg envelope_rg	45.46 Å
形状 Rg shape_rg	45.25 Å
总 Rg total_rg	45.32 Å
总原子数 total_atoms	14432
残基数 n_residues	1811
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	180.9 Å
Rg (实空间) rg_real	45.56 Å
Rg 误差 (实空间) rg_real_error	2.35 Å
I(0) (实空间) i0_real	5.9220e+08
I(0) 误差 (实空间) i0_real_error	1.2230e+07
Rg (倒空间) rg_reciprocal	45.55 Å
I(0) (倒空间) i0_reciprocal	592200000.0000
解质量估计 total_estimate	0.7974
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	62.0 Å
偏度 Skewness skewness	0.322
峰度 Kurtosis kurtosis	-0.085
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	89880000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.546; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.791; Smooth: 0.932

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Linear gramicidin synthase subunit A
分子量 formula_weight	206064.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	14432

SAMGRILFLTTFMSKGNKVVRYLESLHHEVVICQEKVHAQSANLQEIDWIVSYAYGYILDKEIVSRFRGRIINLHPSLLPWNKGRDPVFWSVWDETPKGVTIHLIDEHVDTGDILVQEEIAFADEDTLLDCYNKANQAIEELFIREWENIVHGRIAPYRQTAGGTLHFKADRDFYKNLNMTTVRELLALKRLCAEPKRGEKPIDKTFHQLFEQQVEMTPDHVAVVDRGQSLTYKQLNERANQLAHHLRGKGVKPDDQVAIMLDKSLDMIVSILAVMKAGGAYVPIDPDYPGERIAYMLADSSAAILLTNALHEEKANGACDIIDVHDPDSYSENTNNLPHVNRPDDLVYVMYTSGSTGLAKGVMIEHHNLVNFCEWYRPYFGVTPADKALVYSSFSFDGSALDIFTHLLAGAALHIVPSERKYDLDALNDYCNQEGITISYLPTGAAEQFMQMDNQSFRVVITGGDVLKKIERNGTYKLYNGYGPTECTIMVTMFEVDKPYANIPIGKPIDRTRILILDEALALQPIGVAGELFIVGEGLGRGYLNRPELTAEKFIVHPQTGERMYRTGDRARFLPDGNIEFLGRLDNLVKIRGYRIEPGEIEPFLMNHPLIELTTVLAKEQADGRKYLVGYYVAPEEIPHGELREWLGNDLPDYMIPTYFVHMKAFPLTANGKVDRRALPDVQADAELLGEDYVAPTDELEQQLAQVWSHVLGIPQMGIDDHFLERGGDSIKVMQLIHQLKNIGLSLRYDQLFTHPTIRQLKRLLTEQKQVNGLLEPLRELDEQAEYETSAVEKRMYIIQQQDVESIAYNVVYTINFPLTVDTEQIRVALEQLVLRHEGLRSTYHMRGDEIVKRIVPRAELSFVRQTGEEESVQSLLAEQIKPFDLAKAPLLRAGVIETADKKVLWFDSHHILLDGLSKSILARELQALLGQQVLSPVEKTYKSFARWQNEWFASDEYEQQIAYWKTLLQGELPAVQLPTKKRPPQLTFDGAIQMYRVNPEITRKLKATAAKHDLTLYMLMLTIVSIWLSKMNSDSNQVILGTVTDGRQHPDTRELLGMFVNTLPLLLSIDHEESFLHNLQQVKAKLLPALQNQYVPFDKILEAARVKREGNRHPLFDVMFMMQGAPETELESNMHHINAGISKFDLTLEVLERENGLNIVFEYNTHLFDEGMILRMVAQFEHLLLQAVHGLDQQVKRFELVTEDEKRDLFLRVNDTAKAYPNKLIMSMLEDWAAATPDKTALVFREQRVTYRELNERVNQLAHTLREKGVQPDDLVMLMAERSVEMMVAIFAVLKAGGAYLPIDPHSPAERIAYIFADSGAKLVLAQSPFVEKASMAEVVLDLNSASSYAADTSNPPLVNQPGDLVYVMYTSGSTGKPKGVMIEHGALLNVLHGMQDEYPLLQDDAFLLKTTYIFDISVAEIFGWVPGRGKLVILEPEAEKNPKAIWQAVVGAGITHINFVPSMLIPFVEYLEGRTEANRLRYILACGEAMPDELVPKVYEVLPEVKLENIYGPTEATIYASRYSLAKGSQESPVPIGKPLPNYRMYIINRHGQLQPIGVPGELCIAGASLARGYLNNPALTEEKFTPHPLEKGERIYRTGDLARYREDGNIEYLGRMDHQVKIRGYRIELDEIRSKLIQEETIQDAVVVARNDQNGQAYLCAYLLSEQEWTVGQLRELLRRELPEYMIPAHFVLLKQFPLTANGKLDRKALPEPDGSVKAEAEYAAPRTELEATLAHIWGEVLGIERIGIRDNFFELGGDSIKGLQIASRLQRINWTMVINHLFLYPTIEQIAPFVTSEQVVIEAAAENLYFQ

来源 Source

来源生物 organism	Brevibacillus parabrevis
NCBI 分类编号 ncbi_taxonomy_id	54914
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	[(3~{R})-4-azanyl-2,2-dimethyl-3-oxidanyl-4-oxidanylidene-butyl] dihydrogen phosphate
分子量 formula_weight	227.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	119.235 Å
晶胞边长 b length_b	166.281 Å
晶胞边长 c length_c	178.491 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	3.600 Å
最低分辨率 resolution_low	48.380 Å
R 因子 r_factor	0.2672
R_work r_work	0.2669
R_free r_free	0.2734

fit	/app/data/saxs_computation/me/9meh/9meh.fit
pddf	/app/data/pr_computation/me/9meh/9meh.pr.out
profile	/app/data/saxs_computation/me/9meh/9meh.dat

Crystal structure of the dimodular LgrA after protein ligation

SAXS 散射曲线 SAXS Profile

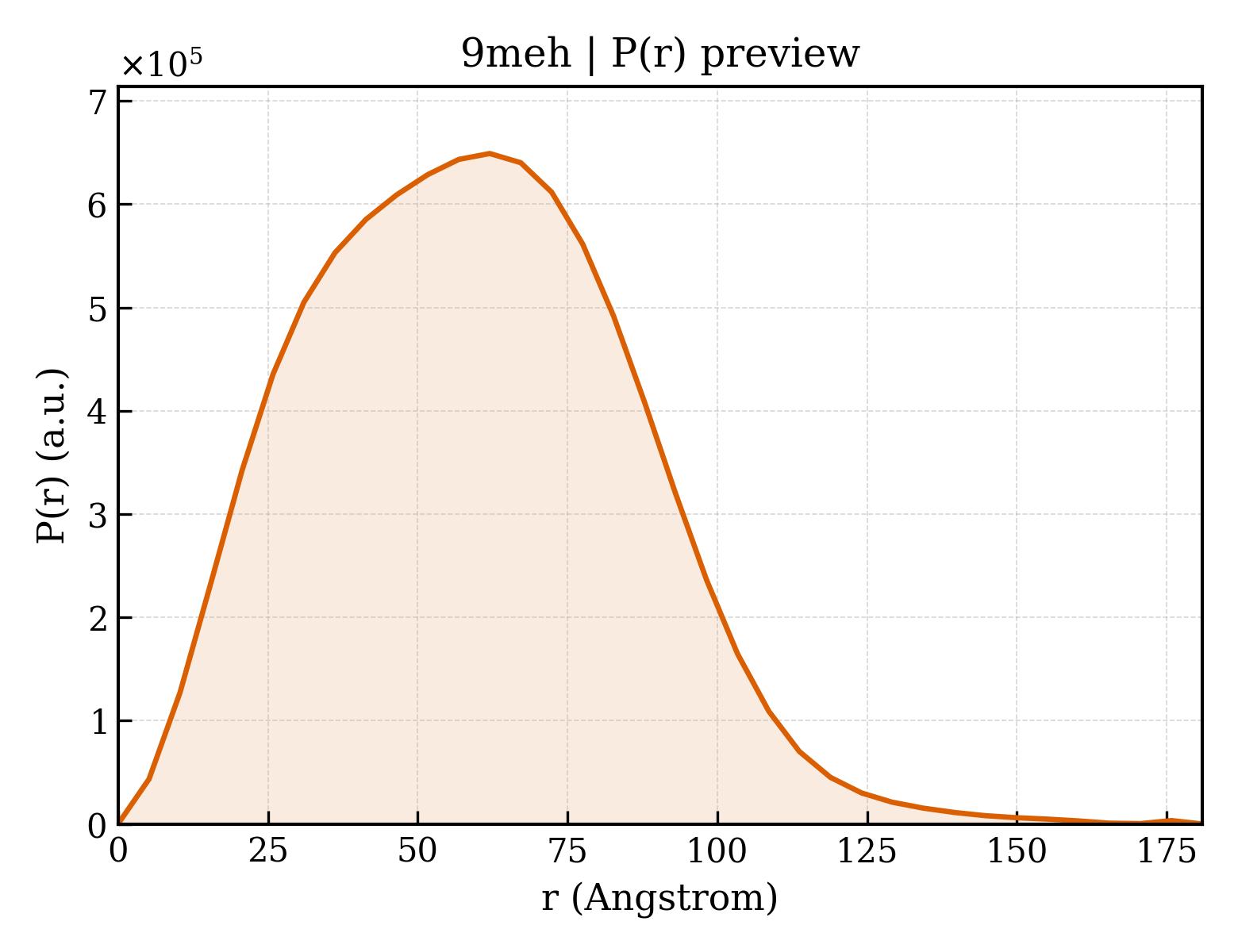

P(r) 距离分布 P(r) Distribution
