9mm6

ROOLefa-octamer-wild type

Method: ELECTRON MICROSCOPY D_max: 241.8 Å Quality: GOOD

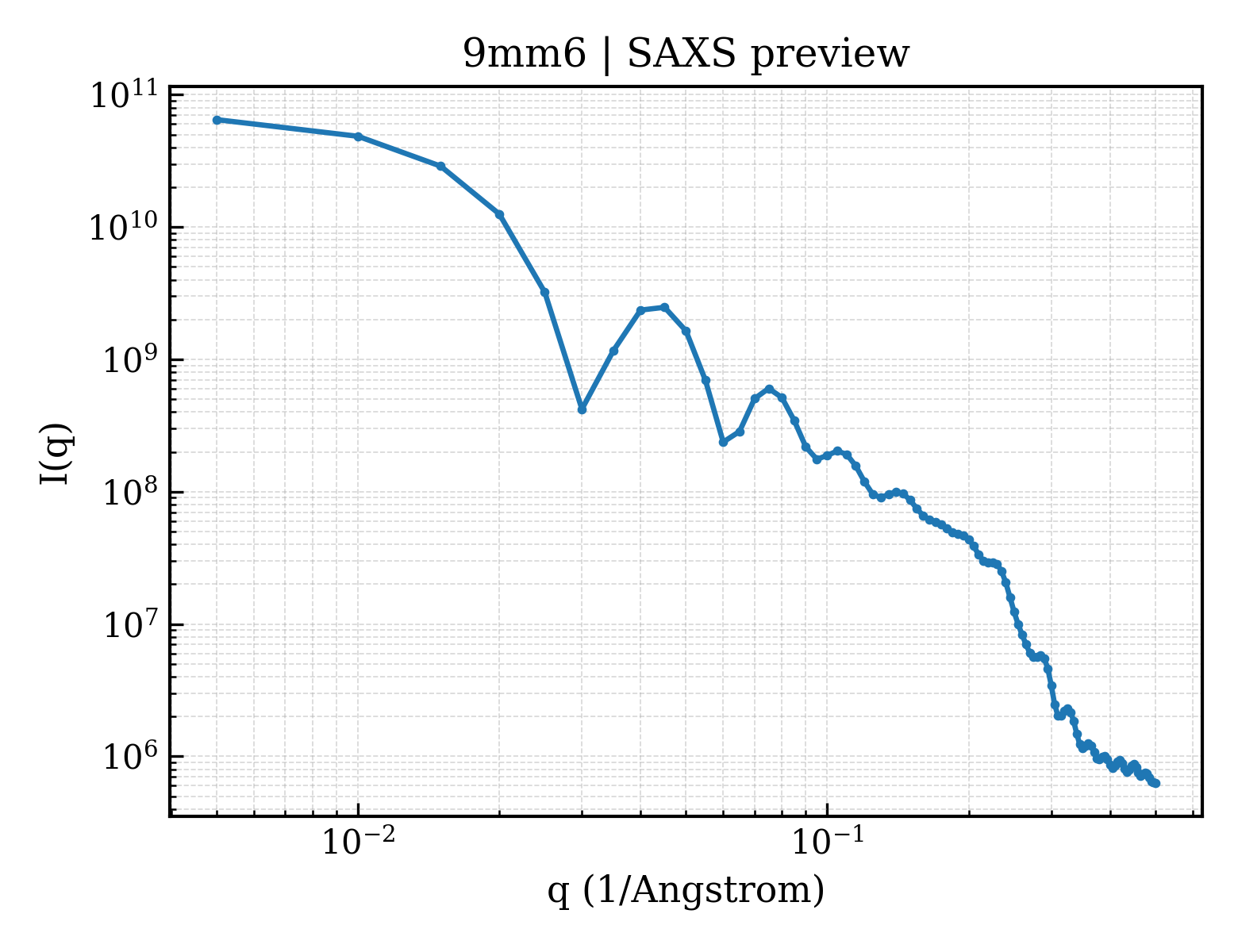

SAXS 散射曲线 SAXS Profile

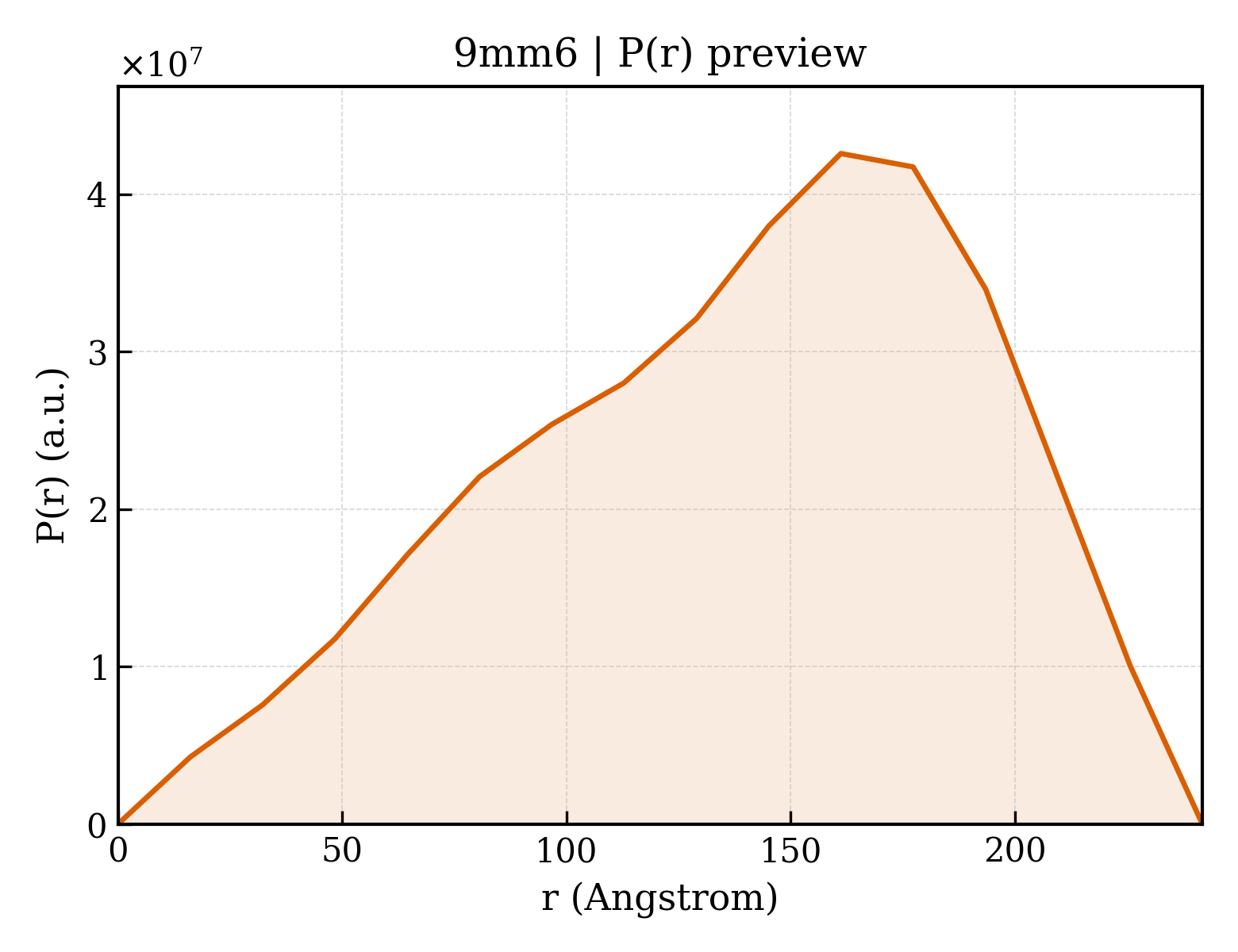

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9mm6
沉积日期 deposition_date	2024-12-20
结构标题 title	ROOLefa-octamer-wild type
关键词 keywords	natural RNA nanocage, drug delivery, RNA; RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	105.40 Å
零角强度 I(0) i0	71116000000.00
分子量 molecular_weight	1287000.0 kDa
排除体积 excluded_volume	1199800 Å³
包络体积 envelope_volume	4734400 Å³
水化壳体积 shell_volume	392420 Å³
包络直径 envelope_diameter	288.5 Å
壳层 Rg shell_rg	112.00 Å
包络 Rg envelope_rg	88.14 Å
形状 Rg shape_rg	105.30 Å
总 Rg total_rg	105.40 Å
总原子数 total_atoms	84934
残基数 n_residues	3952
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	241.8 Å
Rg (实空间) rg_real	104.50 Å
Rg 误差 (实空间) rg_real_error	0.18 Å
I(0) (实空间) i0_real	6.8150e+10
I(0) 误差 (实空间) i0_real_error	9.5220e+08
Rg (倒空间) rg_reciprocal	114.00 Å
I(0) (倒空间) i0_reciprocal	73020000000.0000
解质量估计 total_estimate	0.8971
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	161.2 Å
偏度 Skewness skewness	-0.393
峰度 Kurtosis kurtosis	-0.636
角度范围 angular_range	— – 0.0750 Å⁻¹
当前正则化参数 α current_alpha	1.9360
最高正则化参数 α highest_alpha	4096000000.0000
实空间数据点数 n_real_points	16
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.975; Stabil: 0.955; Sysdev: 1.000; Positv: 1.000; Valcen: 0.878; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	RNA (526-MER)
分子量 formula_weight	187837.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A,E,I,M,Q,U,Y,c
原子数 atom_count	84934

AAUUGAAAAAUCAAUAGAUUUAAACCUAGUGAAGAGCAUUUGAACAAUGUGCUAGGGUAGUAUGGGAUAAGUCGAUAACUAAAAUGAAUUGGGAUACUGAUUGAUUUUAGUGGUGGAUUUUACAGCAAUGUAAAAAGGACUAAUAGUAAAAGCUAUUAAUCGCAAAGUACUACGUGGAAUUUGUGCAGGUGUAAGGUACGAAACUUUCGAGUGUGACAAUAGACGCUCCAGUGGAGAAUAAUCUAAGUUAGGUGGAAGUGUGAGAAGCUUGGCAGACCUUAGAAAACUCAAACCAAGCGCUUUGCAGAGAAACUGAGAAAUCAGUGUUUAACGAAAGAAGUCGGUACGAGUAGCUUAAUGCAGCAAUUUAUUUACAGAUGACAAAUAAUAAAAAUGGGACUCUUAUGUAAAUGCUGAAUGUUCAAGUGAAAGUUAUUAGCCAGUAGAGCUAGAUCAUACAGAAAAAGCAAAGAGAAGCUAUUGGGUAGCGCCCGAUAGUUCAGCCUCUUUGGGUAUGUGACUGAAUAACACUGUAAACAAAGGAAGCAGGAAGAAAAGCCUAAAUCUGUUGAUUUUUGAG

Entity 2 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	43

Entity 3 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	11

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.940 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.94 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	225901

fit	/app/data/saxs_computation/mm/9mm6/9mm6.fit
pddf	/app/data/pr_computation/mm/9mm6/9mm6.pr.out
profile	/app/data/saxs_computation/mm/9mm6/9mm6.dat
