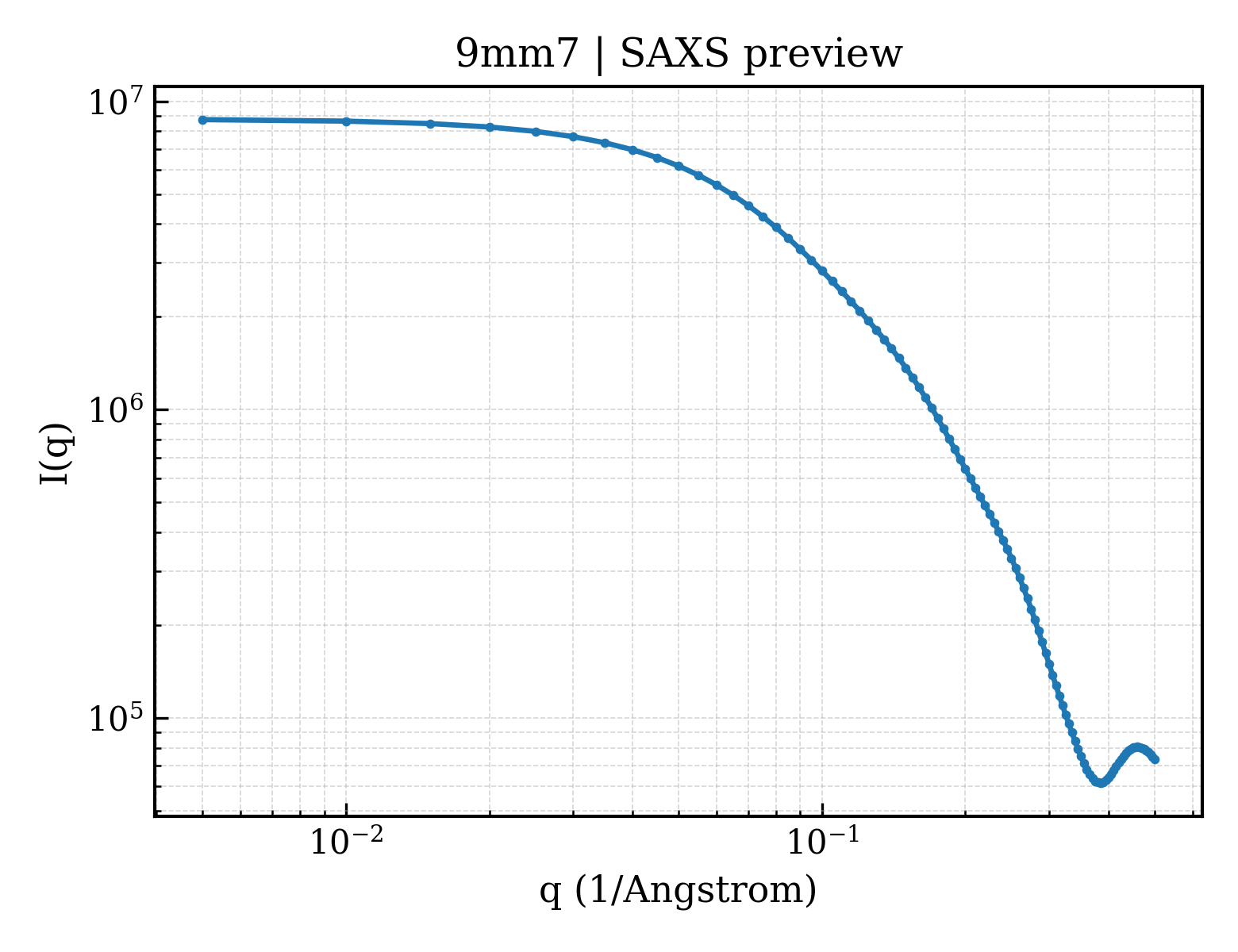

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 9mm7 |
| 沉积日期 deposition_date | 2024-12-20 |
| 最后修订 last_revision | 2025-10-29 |
| 结构标题 title | [T:Ag+/Hg2+:T--(pH8-pH9.5; 4s)] Metal-mediated DNA base pair in tensegrity triangle grown at pH 8 and soaked in pH 9.5 for 4s |
| 关键词 keywords | Tensegrity triangle, metal-mediated DNA, DNA; DNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 20.61 Å |
| 回转半径 Rg (电子) rg_electron | 21.08 Å |
| 零角强度 I(0) i0 | 8758550.00 |
| 分子量 molecular_weight | 13364.0 kDa |
| 排除体积 excluded_volume | 12626 ų |
| 包络体积 envelope_volume | 19929 ų |
| 水化壳体积 shell_volume | 9654 ų |
| 包络直径 envelope_diameter | 71.5 Å |
| 壳层 Rg shell_rg | 23.35 Å |
| 包络 Rg envelope_rg | 21.38 Å |
| 形状 Rg shape_rg | 21.23 Å |
| 总 Rg total_rg | 21.09 Å |
| 总原子数 total_atoms | 860 |
| 残基数 n_residues | 42 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 72.7 Å |
| Rg (实空间) rg_real | 21.04 Å |
| Rg 误差 (实空间) rg_real_error | 0.82 Å |
| I(0) (实空间) i0_real | 8.7590e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.2420e+05 |
| Rg (倒空间) rg_reciprocal | 20.96 Å |
| I(0) (倒空间) i0_reciprocal | 8758000.0000 |
| 解质量估计 total_estimate | 0.6883 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 14.8 Å |
| 偏度 Skewness skewness | 0.659 |
| 峰度 Kurtosis kurtosis | -0.307 |
| 角度范围 angular_range | — – 0.3850 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 515800.0000 |
| 实空间数据点数 n_real_points | 70 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.419;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.141;
Smooth: 0.547
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 104.798 Å |
| 晶胞边长 b length_b | 104.798 Å |
| 晶胞边长 c length_c | 95.355 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 120.00 ° |
| 晶胞分子数 Z z_pdb | 9 |
对称性 Symmetry
| 空间群 space_group | H 3 |
| 空间群编号 int_tables_number | 146 |
| 晶系 crystal_system | trigonal |
精修参数 Refinement
| 分辨率 resolution | 4.880 Å |
| 最低分辨率 resolution_low | 19.800 Å |
| R 因子 r_factor | 0.1720 |
| R_work r_work | 0.1700 |
| R_free r_free | 0.2094 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | ;DNA (5'-D(*GP*AP*GP*CP*AP*GP*CP*CP*TP*GP*TP*TP*TP*GP*GP*AP*CP*AP*TP*CP*A)-3')
; |
| 分子量 formula_weight | 6463.2 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A |
| 原子数 atom_count | 860 |
GAGCAGCCTGTTTGGACATCA
Entity 2
polymer
| 描述 description | ;DNA (5'-D(P*CP*CP*AP*TP*AP*CP*A)-3')
; |
| 分子量 formula_weight | 2066.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | B |
CCATACA
Entity 3
polymer
| 描述 description | ;DNA (5'-D(P*GP*GP*CP*TP*GP*CP*T)-3')
; |
| 分子量 formula_weight | 2129.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | C |
GGCTGCT
Entity 4
polymer
| 描述 description | ;DNA (5'-D(P*CP*TP*GP*AP*TP*GP*T)-3')
; |
| 分子量 formula_weight | 2128.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | D |
CTGATGT
Entity 5
non-polymer
| 描述 description | MERCURY (II) ION |
| 分子量 formula_weight | 200.6 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
Transmetalation for DNA-Based Molecular Electronics.
Small (2025)
Files (7)
- pr_distribution /app/data/pr_computation/mm/9mm7/pr_distribution.json
- pr_output /app/data/pr_computation/mm/9mm7/9mm7.pr.out
- pr_plot /app/data/visualization/pr_computation/mm/9mm7/9mm7_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/mm/9mm7/9mm7.dat
- saxs_fit /app/data/saxs_computation/mm/9mm7/9mm7.fit
- saxs_log /app/data/saxs_computation/mm/9mm7/9mm7.log
- saxs_plot /app/data/visualization/saxs_computation/mm/9mm7/9mm7_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/mm/9mm7/9mm7.fit |
| pddf |
/app/data/pr_computation/mm/9mm7/9mm7.pr.out |
| profile |
/app/data/saxs_computation/mm/9mm7/9mm7.dat |
