9mof

Structure of the bacteriophage T4 portal-neck-tail connector complex

Method: ELECTRON MICROSCOPY D_max: 456.2 Å Quality: GOOD

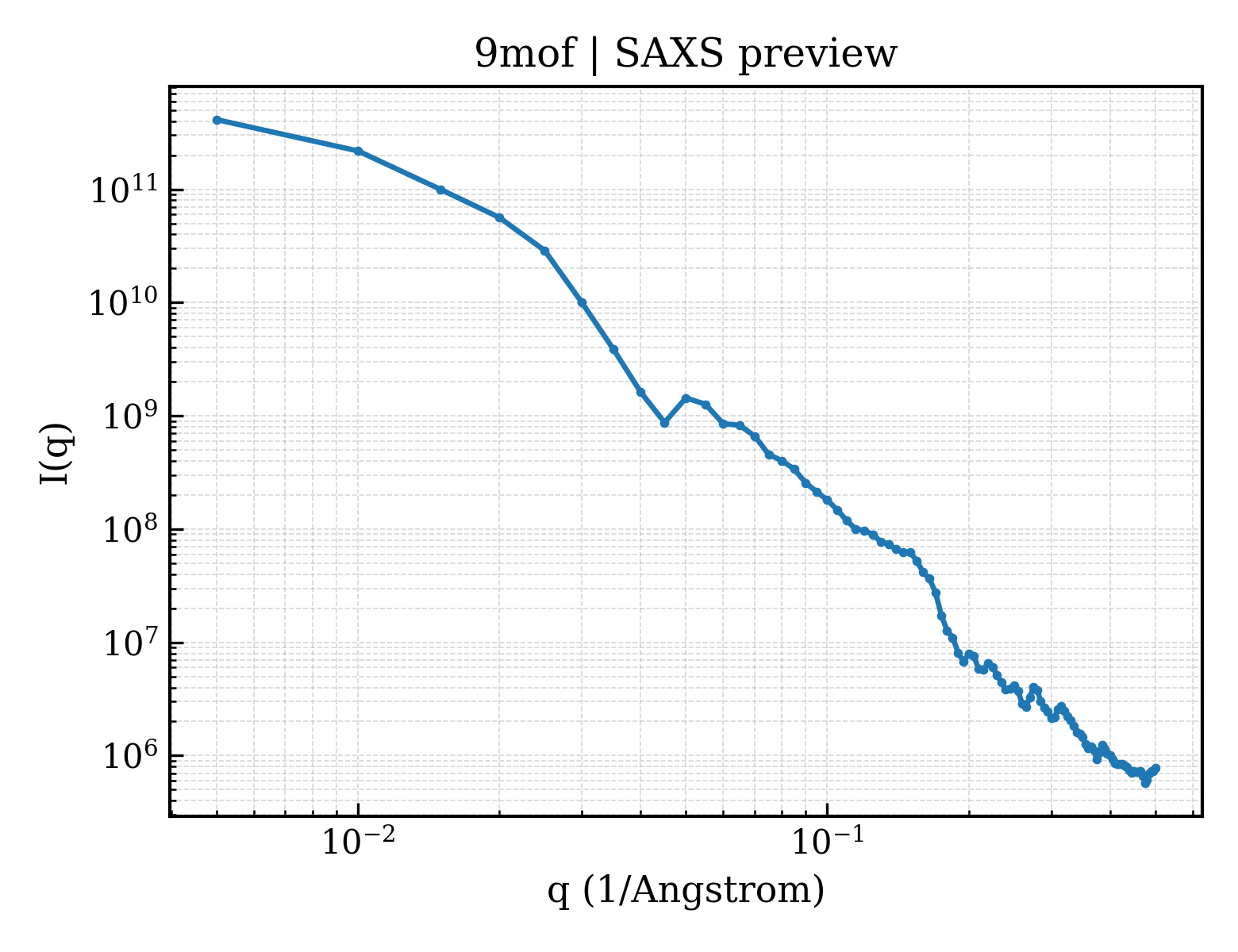

SAXS 散射曲线 SAXS Profile

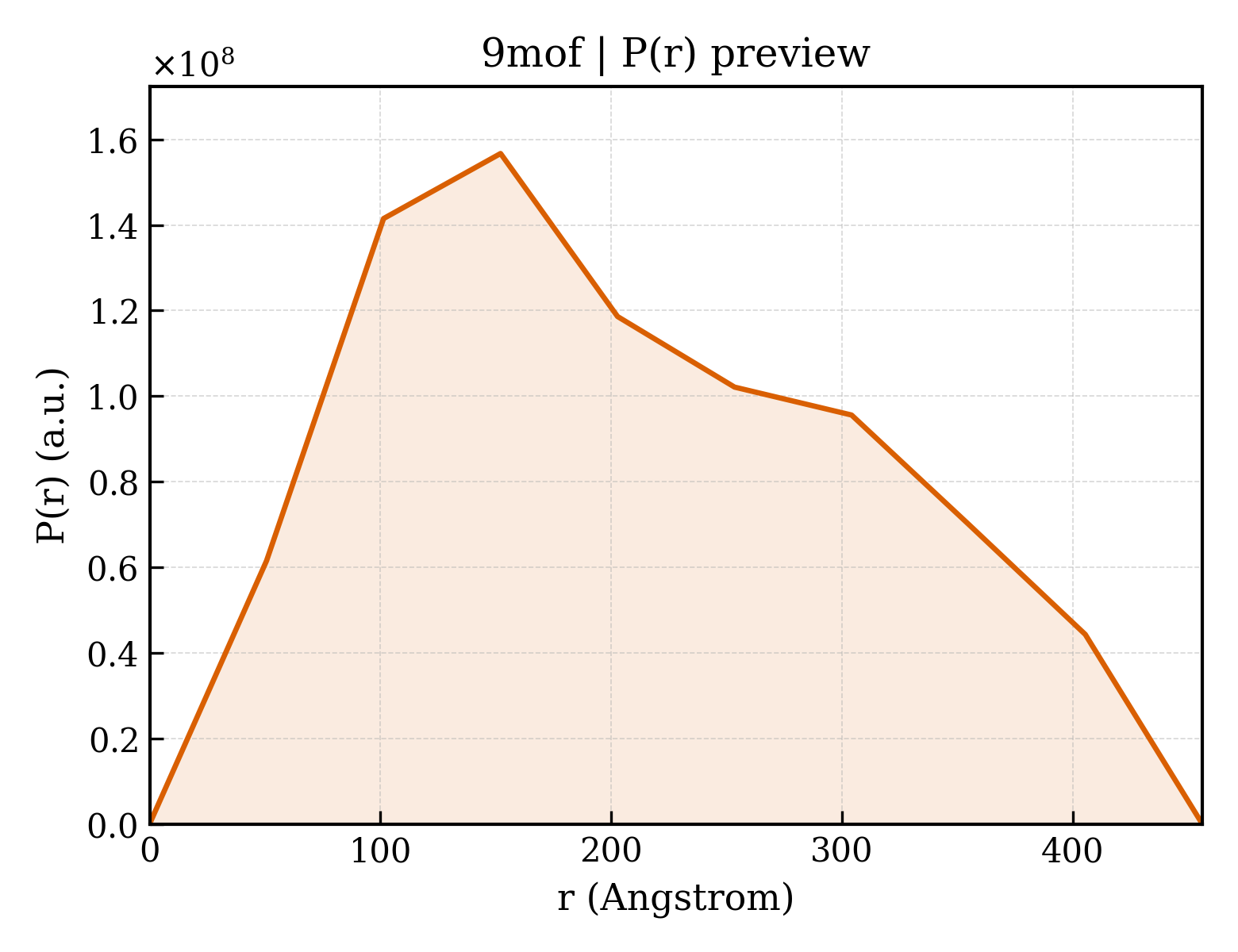

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9mof
沉积日期 deposition_date	2024-12-26
结构标题 title	Structure of the bacteriophage T4 portal-neck-tail connector complex
关键词 keywords	;bacteriophage T4, portal vertex, phage neck, tail terminator protein, tube terminator protein, asymmetric phage reconstruction, DNA retention, neck stopper protein, head completion proteins, VIRAL PROTEIN ;; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	166.00 Å
零角强度 I(0) i0	517050000000.00
分子量 molecular_weight	6170800.0 kDa
排除体积 excluded_volume	7715300 Å³
包络体积 envelope_volume	13183000 Å³
水化壳体积 shell_volume	660000 Å³
包络直径 envelope_diameter	529.4 Å
壳层 Rg shell_rg	133.50 Å
包络 Rg envelope_rg	162.50 Å
形状 Rg shape_rg	165.90 Å
总 Rg total_rg	166.00 Å
总原子数 total_atoms	435087
残基数 n_residues	56085
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	456.2 Å
Rg (实空间) rg_real	162.30 Å
Rg 误差 (实空间) rg_real_error	2.40 Å
I(0) (实空间) i0_real	5.0350e+11
I(0) 误差 (实空间) i0_real_error	1.3410e+10
Rg (倒空间) rg_reciprocal	129.30 Å
I(0) (倒空间) i0_reciprocal	442900000000.0000
解质量估计 total_estimate	0.8535
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	152.1 Å
偏度 Skewness skewness	0.323
峰度 Kurtosis kurtosis	-0.907
角度范围 angular_range	— – 0.0450 Å⁻¹
当前正则化参数 α current_alpha	1.2380
最高正则化参数 α highest_alpha	45550000000.0000
实空间数据点数 n_real_points	10
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.028; Oscil: 0.975; Stabil: 0.983; Sysdev: 1.000; Positv: 1.000; Valcen: 0.871; Smooth: 0.002

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	gp14, neck protein
分子量 formula_weight	29597.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0,k,l,m,n,p
原子数 atom_count	435087

MATYDKNLFAKLENRTGYSQTNETEILNPYVNFNHYKNSQILADVLVAESIQMRGVECYYVPREYVSPDLIFGEDLKNKFTKAWKFAAYLNSFEGYEGAKSFFSNFGMQVQDEVTLSINPNLFKHQVNGKEPKEGDLIYFPMDNSLFEINWVEPYDPFYQLGQNAIRKITAGKFIYSGEEINPVLQKNEGINIPEFSELELNAVRNLNGIHDINIDQYAEVDQINSEAKEYVEPYVVVNNRGKSFESSPFDNDFMD

Entity 2 polymer

描述 description	gp18, tail sheath protein
分子量 formula_weight	71348.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	30

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,2,3,4,5,AD,AK,AL,AM,AN,AO,AP,B1,B2,B3,B4,B5,B6,B7,Bp,Bq,Br,Bs,Bt,Bu,Bv,Bw,Bx,By,Bz

MTLLSPGIELKETTVQSTVVNNSTGTAALAGKFQWGPAFQIKQVTNEVDLVNTFGQPTAETADYFMSAMNFLQYGNDLRVVRAVDRDTAKNSSPIAGNIEYTISTPGSNYAVGDKITVKYVSDDIETEGKITEVDADGKIKKINIPTAKIIAKAKEVGEYPTLGSNWTAEISSSSSGLAAVITLGKIITDSGILLAEIENAEAAMTAVDFQANLKKYGIPGVVALYPGELGDKIEIEIVSKADYAKGASALLPIYPGGGTRASTAKAVFGYGPQTDSQYAIIVRRNDAIVQSVVLSTKRGGKDIYDSNIYIDDFFAKGGSEYIFATAQNWPEGFSGILTLSGGLSSNAEVTAGDLMEAWDFFADRESVDVQLFIAGSCAGESLETASTVQKHVVSIGDVRQDCLVLCSPPRETVVGIPVTRAVDNLVNWRTAAGSYTDNNFNISSTYAAIDGNYKYQYDKYNDVNRWVPLAADIAGLCARTDNVSQTWMSPAGYNRGQILNVIKLAIETRQAQRDRLYQEAINPVTGTGGDGYVLYGDKTATSVPSPFDRINVRRLFNMLKTNIGRSSKYRLFELNNAFTRSSFRTETAQYLQGIKALGGIYEYRVVCDTTNNTPSVIDRNEFVATFYIQPARSINYITLNFVATATGADFDELTGLAG

Entity 3 polymer

描述 description	gp19, tail tube protein
分子量 formula_weight	18479.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	30

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6,7,8,9,AA,AE,AF,AG,AH,AI,AJ,BX,BY,BZ,Ba,Bb,Bc,Bd,Be,Bf,Bg,Bh,Bi,Bj,Bk,Bl,Bm,Bn,Bo,o

MFVDDVTRAFESGDFARPNLFQVEISYLGQNFTFQCKATALPAGIVEKIPVGFMNRKINVAGDRTFDDWTVTVMNDEAHDARQKFVDWQSIAAGQGNEITGGKPAEYKKSAIVRQYARDAKTVTKEIEIKGLWPTNVGELQLDWDSNNEIQTFEVTLALDYWE

Entity 4 polymer

描述 description	gpwac, fibritin
分子量 formula_weight	51909.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	36

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,a,b,c,d,e,f,g,h,i,j

MTDIVLNDLPFVDGPPAEGQSRISWIKNGEEILGADTQYGSEGSMNRPTVSVLRNVEVLDKNIGILKTSLETANSDIKTIQGILDVSGDIEALAQIGINKKDISDLKTLTSEHTEILNGTNNTVDSILADIGPFNAEANSVYRTIRNDLLWIKRELGQYTGQDINGLPVVGNPSSGMKHRIINNTDVITSQGIRLSELETKFIESDVGSLTIEVGNLREELGPKPPSFSQNVYSRLNEIDTKQTTVESDISAIKTSIGYPGNNSIITSVNTNTDNIASINLELNQSGGIKQRLTVIETSIGSDDIPSSIKGQIKDNTTSIESLNGIVGENTSSGLRANVSWLNQIVGTDSSGGQPSPPGSLLNRVSTIETSVSGLNNAVQNLQVEIGNNSAGIKGQVVALNTLVNGTNPNGSTVEERGLTNSIKANETNIASVTQEVNTAKGNISSLQGDVQALQEAGYIPEAPRDGQAYVRKDGEWVFLSTFLSPA

Entity 5 polymer

描述 description	gp20, portal protein
分子量 formula_weight	61117.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A0,A1,A2,A3,Av,Ax,BA,BB,BD,BF,BG,BH

MKFNVLSLFAPWAKMDERNFKDQEKEDLVSITAPKLDDGAREFEVSSNEAASPYNAAFQTIFGSYEPGMKTTRELIDTYRNLMNNYEVDNAVSEIVSDAIVYEDDTEVVALNLDKSKFSPKIKNMMLDEFSDVLNHLSFQRKGSDHFRRWYVDSRIFFHKIIDPKRPKEGIKELRRLDPRQVQYVREIITETEAGTKIVKGYKEYFIYDTAHESYACDGRMYEAGTKIKIPKAAVVYAHSGLVDCCGKNIIGYLHRAVKPANQLKLLEDAVVIYRITRAPDRRVWYVDTGNMPARKAAEHMQHVMNTMKNRVVYDASTGKIKNQQHNMSMTEDYWLQRRDGKAVTEVDTLPGADNTGNMEDIRWFRQALYMALRVPLSRIPQDQQGGVMFDSGTSITRDELTFAKFIRELQHKFEEVFLDPLKTNLLLKGIITEDEWNDEINNIKIEFHRDSYFAELKEAEILERRINMLTMAEPFIGKYISHRTAMKDILQMTDEEIEQEAKQIEEESKEARFQDPDQEQEDF

Entity 6 polymer

描述 description	gp23, major capsid protein
分子量 formula_weight	56074.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	30

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A4,A5,A7,A8,A9,AV,AW,AX,AZ,Ac,Ad,Ae,Af,Ag,Ah,Ai,Aj,Ak,Am,An,Ao,Ap,Au,Aw,Ay,Az,BI,BJ,BK,BM

MTIKTKAELLNKWKPLLEGEGLPEIANSKQAIIAKIFENQEKDFQTAPEYKDEKIAQAFGSFLTEAEIGGDHGYNATNIAAGQTSGAVTQIGPAVMGMVRRAIPNLIAFDICGVQPMNSPTGQVFALRAVYGKDPVAAGAKEAFHPMYGPDAMFSGQGAAKKFPALAASTQTTVGDIYTHFFQETGTVYLQASVQVTIDAGATDAAKLDAEIKKQMEAGALVEIAEGMATSIAELQEGFNGSTDNPWNEMGFRIDKQVIEAKSRQLKAAYSIELAQDLRAVHGMDADAELSGILATEIMLEINREVVDWINYSAQVGKSGMTLTPGSKAGVFDFQDPIDIRGARWAGESFKALLFQIDKEAVEIARQTGRGEGNFIIASRNVVNVLASVDTGISYAAQGLATGFSTDTTKSVFAGVLGGKYRVYIDQYAKQDYFTVGYKGPNEMDAGIYYAPYVALTPLRGSDPKNFQPVMGFKTRYGIGINPFAESAAQAPASRIQSGMPSILNSLGKNAYFRRVYVKGI

Entity 7 polymer

描述 description	gp13, neck protein
分子量 formula_weight	34772.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A6,AY,Aa,Ab,Al,Aq,Ar,As,At,BC,BE,BL

MSGYNPQNPKELKDVILRRLGAPIINVELTPDQIYDCIQRALELYGEYHFDGLNKGFHVFYVGDDEERYKTGVFDLRGSNVFAVTRILRTNIGSITSMDGNATYPWFTDFLLGMAGINGGMGTSCNRFYGPNAFGADLGYFTQLTSYMGMMQDMLSPIPDFWFNSANEQLKVMGNFQKYDLIIVESWTKSYIDTNKMVGNTVGYGTVGPQDSWSLSERYNNPDHNLVGRVVGQDPNVKQGAYNNRWVKDYATALAKELNGQILARHQGMMLPGGVTIDGQRLIEEARLEKEALREELYLLDPPFGILVG

Entity 8 polymer

描述 description	gp15, tail terminator protein
分子量 formula_weight	31587.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AB,q,r,s,t,u

MFGYFYNSSFRRYATLMGDLFSNIQIKRQLESGDKFIRVPITYASKEHFMMKLNKWTSINSQEDVAKVETILPRINLHLVDFSYNAPFKTNILNQNLLQKGATSVVSQYNPSPIKMIYELSIFTRYEDDMFQIVEQILPYFQPHFNTTMYEQFGNDIPFKRDIKIVLMSAAIDEAIDGDNLSRRRIEWSLTFEVNGWMYPPVDDAEGLIRTTYTDFHANTRDLPDGEGVFESVDSEVVPRDIDPEDWDGTVKQTFTSNVNRPTPPEPPGPRT

Entity 9 polymer

描述 description	gp3, tube terminator protein
分子量 formula_weight	19723.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AC,v,w,x,y,z

MSQALQQIFNQANTTNFVVSIPHSNTTSAFTLNAQSVPIPGIRIPVTDTVTGPFGLGRAQRPGVTFEYDPLIVRFIVDEELKSWIGMYEWMLGTSNYLTGENTAQKTGPEYITLYILDNSKTEIVMSINFYKPWVSDLSEVEFSYTEDSDPALVCTATIPYTYFQVEKDGKIIAEV

Entity 10 polymer

描述 description	Hoc, highly immunogenic outer capsid protein
分子量 formula_weight	40416.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	AQ,AR,AS,AT,AU

MTFTVDITPKTPTGVIDETKQFTATPSGQTGGGTITYAWSVDNVPQDGAEATFSYVLKGPAGQKTIKVVATNTLSEGGPETAEATTTITVKNKTQTTTLAVTPASPAAGVIGTPVQFTAALASQPDGASATYQWYVDDSQVGGETNSTFSYTPTTSGVKRIKCVAQVTATDYDALSVTSNEVSLTVNKKTMNPQVTLTPPSINVQQDASATFTANVTGAPEEAQITYSWKKDSSPVEGSTNVYTVDTSSVGSQTIEVTATVTAADYNPVTVTKTGNVTVTAKVAPEPEGELPYVHPLPHRSSAYIWCGWWVMDEIQKMTEEGKDWKTDDPDSKYYLHRYTLQKMMKDYPEVDVQESRNGYIIHKTALETGIIYTYP

Entity 11 polymer

描述 description	Soc, small outer capsid protein
分子量 formula_weight	9129.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	10

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	BN,BO,BP,BQ,BR,BS,BT,BU,BV,BW

MASTRGYVNIKTFEQKLDGNKKIEGKEISVAFPLYSDVHKISGAHYQTFPSEKAAYSTVYEENQRTEWIAANEDLWKVTG

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	69000

fit	/app/data/saxs_computation/mo/9mof/9mof.fit
pddf	/app/data/pr_computation/mo/9mof/9mof.pr.out
profile	/app/data/saxs_computation/mo/9mof/9mof.dat
