Electron-bifurcating Tungstopyranopterin-containing aldehyde oxidoreductase with NADH

Method: ELECTRON MICROSCOPY D_max: 203.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9mqx
沉积日期 deposition_date	2025-01-06
结构标题 title	Electron-bifurcating Tungstopyranopterin-containing aldehyde oxidoreductase with NADH
关键词 keywords	electron bifurcation, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.41 Å
回转半径 Rg (电子) rg_electron	59.20 Å
零角强度 I(0) i0	2085230000.00
分子量 molecular_weight	369290.0 kDa
排除体积 excluded_volume	455410 Å³
包络体积 envelope_volume	602170 Å³
水化壳体积 shell_volume	86748 Å³
包络直径 envelope_diameter	209.3 Å
壳层 Rg shell_rg	57.95 Å
包络 Rg envelope_rg	58.78 Å
形状 Rg shape_rg	59.38 Å
总 Rg total_rg	58.58 Å
总原子数 total_atoms	25410
残基数 n_residues	3292
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

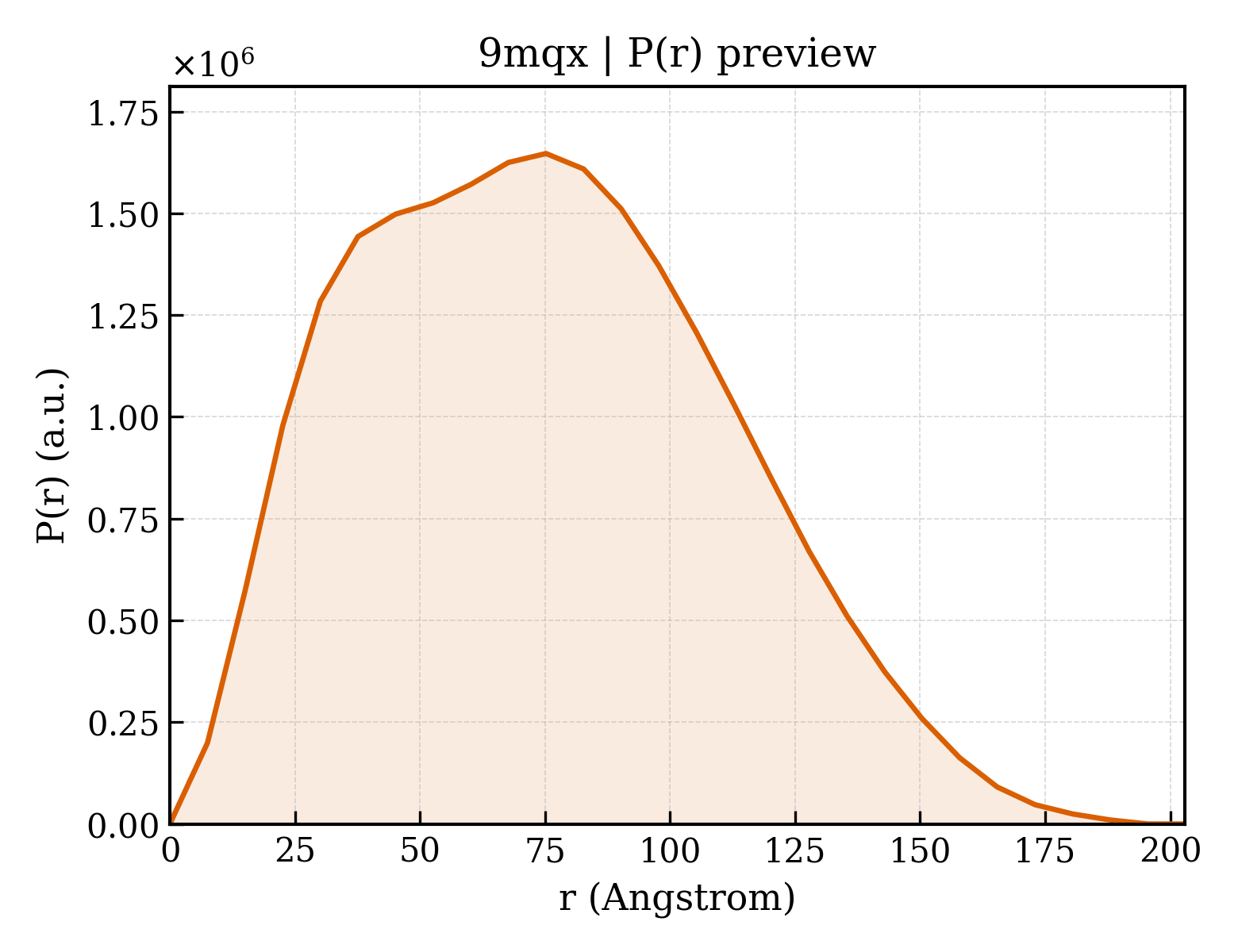

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	203.0 Å
Rg (实空间) rg_real	58.61 Å
Rg 误差 (实空间) rg_real_error	2.17 Å
I(0) (实空间) i0_real	2.0850e+09
I(0) 误差 (实空间) i0_real_error	4.2680e+07
Rg (倒空间) rg_reciprocal	58.21 Å
I(0) (倒空间) i0_reciprocal	2084000000.0000
解质量估计 total_estimate	0.8539
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	75.2 Å
偏度 Skewness skewness	0.309
峰度 Kurtosis kurtosis	-0.536
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	70330000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.841; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.874; Smooth: 0.699

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (12)

Entity 1 polymer

描述 description	NADH:ubiquinone oxidoreductase chain G-like protein
分子量 formula_weight	27662.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	25410

MRDPIDIVIDGVSLSVPMETTVLEAAQMAGVEIPTLCHHPALPPDGNCRLCMVEILRPGRRGELAISCMYPIRAQIEVNTKSDEVIRARKFVLKLLLNRAPKSARLNALANEYGVSVESRFSFDPDECVRCDRCVRACETLGPSAIGPAWRGFNKRIVPPFMEPPRQCIGCGACADVCPTGYIECVDEGDERTIWDRKFTLIRCPICGQTYTTEEALKFTGIEDPDARLCPTCRKREYASKFRIFVH

Entity 2 polymer

描述 description	NADH:ubiquinone oxidoreductase, NADH-binding (51 kD) subunit
分子量 formula_weight	67862.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MPLFLKPDDLRNYRLKLKDDLKRASLLPVVRVCCGTGCVSNGSMEVLSALEEALKGIGKVEPVVKFTGCHGFCERGPIVIVSPGEIFYQNVKTKDVPEIVQKTILDGEVIERLLYRDPVTKKTYRSDHEIPFYANQQRLVLRRSGHIDPTSIEDYIATDGYEALCLAFKLGPDEIIKQITDSYLRGRGGGGFRTGYKWKSCREVDDFPKYVIANGDEGDPGAFMDRSLMEGDPHSVIEGMIIGAYAIGANEGYIYVRNEYPLAVRRLQIAIERAREYGLLGKNILGSGFDFDIQICKGGGAFVCGESSALMRSIEGYPGVPRVKYIHATEQGLWDKPTVLNNVETWANVPIILMNGVEWYKSLGTERNSGTKIFALVGKVKNTGLVEVPMGVTLRKIIYEIGGGTLKDKAFKAVQTGGPSGGCIPASLLDLSVDFDTLVKAGSMMGSGGMIVMDERSCMVDVAKYFIDFLVEESCGKCTPCREGLKVLQKLLHDLTEGKGSLQDVGLLEDTAHELGKTALCGLGKTAANPVLSTLKYFHEEYEEHVEGYCRAGVCTGLFAAKIDKDSCIGCGQCARTCPVKAISGEVRGPHVVDALKCIGCGQCMDVCPTNSIASSRRVKNA

Entity 3 polymer

描述 description	NADH:ubiquinone oxidoreductase 24 kD subunit
分子量 formula_weight	17547.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

ATSDVAISDILCRYEKNPRFLLQVLLDVQEKFRYLPTDAMRSVAEYFEIPESRVFAVATFYKVLSLVPKGEKTIKVCQGTACHLRGGSQILNAISERLKIRAGETTKDGIFTLETVNCLGCCAMAPVMMVGDKVYGKLSVADVARILEAEKEDAIISKA

Entity 4 polymer

描述 description	Aldehyde:ferredoxin oxidoreductase
分子量 formula_weight	65158.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,F,H

MFGYMGKVLRVNLSTKNITLEPLRMDWAKDFLGARGLGSRYLVEEVDPNVDPFSPDNKLIFATGPVTGTLATSAGRFNVVTKGPLTGTIAASNSGGYFGPELKYAGYDMIIFEGKSANPVYLWIYNDHVELRDASHVWGKDSYETTDALLSETDPEAKVACIGPAGERLVLFACVMNDKHRAAGRTGVGAVMGSKNLKAVVVRGTGGIKLADKEAFLEALRKARKKIAEHPVTGGGLPAYGTNVLVNVINAAGALPTRNFKEAWFEGADKISGETMAETILLKNKACASCASACGRVTKAMGEIGEGPEYEAVWAYGAQCGVDNLEAICKANFICNKLGMDPITMGSTIGCAMELAELGLIDEKKAGVSLHWGNAEAIVKLTEDTGYRRGFGEELALGSYRLGEKYGHPELSMSAKKQEMPAYDPRALQGMGLEYATSNRGGCHVRGYLTSPEVLGIPEKLDPTDIASKPQWTKTFQDLTAAVDSLGFCLFLTFALDAGDLAAQVAPIIGREVTAEELLLAGERIWNLERLFNLKAGISPKEDTLPPRLLNEPIPAGPSKGRVNKLHEMLPKYYELRGWGKNGIPTKERLESLGLLDIAAKYSL

Entity 5 polymer

描述 description	Fe-S-cluster-containing hydrogenase subunit
分子量 formula_weight	16593.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,G,I

MEKVLVISPEKCVGCGSCELACSLEKEGECRPSLARVTVYRFEAGANVPMTCQQCDDAPCISVCKAGALARDEKNVVQVDSSKCIGCRMCVMACPFGNMSYHWEQSTAIKCDQCNGSPYCVEFCPTKALDYVPADAISLQKKKEFSARFAKI

Entity 6 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	20

Entity 7 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

Entity 8 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

Entity 9 non-polymer

描述 description	FLAVIN MONONUCLEOTIDE
分子量 formula_weight	456.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

Entity 10 non-polymer

描述 description	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE
分子量 formula_weight	665.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

Entity 11 non-polymer

描述 description	TUNGSTOPTERIN COFACTOR
分子量 formula_weight	1024.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

Entity 12 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	737000

fit	/app/data/saxs_computation/mq/9mqx/9mqx.fit
pddf	/app/data/pr_computation/mq/9mqx/9mqx.pr.out
profile	/app/data/saxs_computation/mq/9mqx/9mqx.dat
