9mvx

Crystal structure of knob-in-hole immunoglobulin G1 Fc heterodimer with P374A

Method: X-RAY DIFFRACTION D_max: 79.0 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

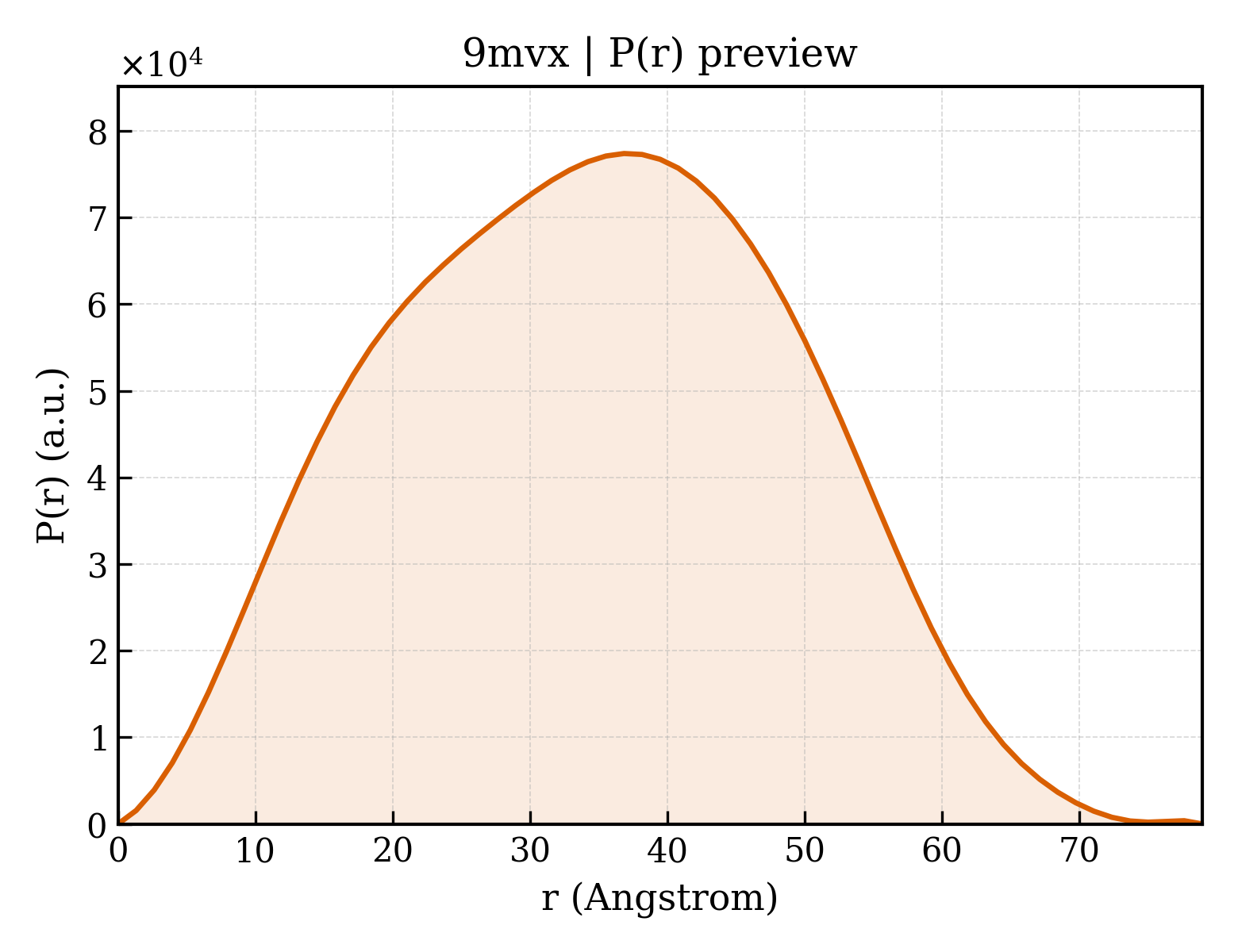

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9mvx
沉积日期 deposition_date	2025-01-16
最后修订 last_revision	2025-11-12
结构标题 title	Crystal structure of knob-in-hole immunoglobulin G1 Fc heterodimer with P374A
关键词 keywords	;HUMAN FC FRAGMENT, IMMUNE RESPONSE, IMMUNE SYSTEM, KNOB, HOLE, KNOB-IN-HOLE, KIH, ProAla, Proline-to-alanine, bispecific antibody, bsAb, bsIgG, Cis-peptide ;; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.53 Å
回转半径 Rg (电子) rg_electron	25.26 Å
零角强度 I(0) i0	39495800.00
分子量 molecular_weight	48533.0 kDa
排除体积 excluded_volume	60673 Å³
包络体积 envelope_volume	79302 Å³
水化壳体积 shell_volume	26107 Å³
包络直径 envelope_diameter	79.9 Å
壳层 Rg shell_rg	32.70 Å
包络 Rg envelope_rg	24.73 Å
形状 Rg shape_rg	25.27 Å
总 Rg total_rg	26.10 Å
总原子数 total_atoms	3416
残基数 n_residues	406
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	79.0 Å
Rg (实空间) rg_real	26.37 Å
Rg 误差 (实空间) rg_real_error	0.40 Å
I(0) (实空间) i0_real	3.9500e+07
I(0) 误差 (实空间) i0_real_error	5.1410e+05
Rg (倒空间) rg_reciprocal	26.42 Å
I(0) (倒空间) i0_reciprocal	39500000.0000
解质量估计 total_estimate	0.9176
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.9 Å
偏度 Skewness skewness	0.031
峰度 Kurtosis kurtosis	-0.685
角度范围 angular_range	— – 0.3000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4927000.0000
实空间数据点数 n_real_points	61
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.979; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.988

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Isoform 1 of Immunoglobulin heavy constant gamma 1 HC1 (Hole)
分子量 formula_weight	24985.2 kDa
突变 mutation	I253D, T366S, L368A, P374A, Y407V
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3802

TCPPCPAPELLGGPSVFLFPPKPKDTLMDSRTPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAKTKPREEQYNSTYRVVSVLTVLHQDWLNGKEYKCKVSNKALPAPIEKTISKAKGQPREPQVYTLPPSREEMTKNQVSLSCAVKGFYASDIAVEWESNGQPENNYKTTPPVLDSDGSFFLVSKLTVDKSRWQQGNVFSCSVMHEALHNHYTQKSLSLSPGK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 polymer

描述 description	Isoform 1 of Immunoglobulin heavy constant gamma 1 HC2 (Knob)
分子量 formula_weight	25188.6 kDa
突变 mutation	T366W, P374A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

TCPPCPAPELLGGPSVFLFPPKPKDTLMISRTPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAKTKPREEQYNSTYRVVSVLTVLHQDWLNGKEYKCKVSNKALPAPIEKTISKAKGQPREPQVYTLPPSREEMTKNQVSLWCLVKGFYASDIAVEWESNGQPENNYKTTPPVLDSDGSFFLYSKLTVDKSRWQQGNVFSCSVMHEALHNHYTQKSLSLSPGK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 3 branched

描述 description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1317.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 branched

描述 description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1463.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	296

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	49.763 Å
晶胞边长 b length_b	81.014 Å
晶胞边长 c length_c	136.076 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	1.840 Å
最低分辨率 resolution_low	42.400 Å
R 因子 r_factor	0.2131
R_work r_work	0.2109
R_free r_free	0.2547

fit	/app/data/saxs_computation/mv/9mvx/9mvx.fit
pddf	/app/data/pr_computation/mv/9mvx/9mvx.pr.out
profile	/app/data/saxs_computation/mv/9mvx/9mvx.dat
