9n2d

Cryo-EM structure of an extended F. johnsoniae BAM complex, composite map

Method: ELECTRON MICROSCOPY D_max: 176.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9n2d
沉积日期 deposition_date	2025-01-28
结构标题 title	Cryo-EM structure of an extended F. johnsoniae BAM complex, composite map
关键词 keywords	BAM complex, BamA, BamD, BamG, BamH, BamM, BamP, outer-membrane proteins, OMP, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	54.72 Å
回转半径 Rg (电子) rg_electron	54.77 Å
零角强度 I(0) i0	942229000.00
分子量 molecular_weight	261570.0 kDa
排除体积 excluded_volume	329330 Å³
包络体积 envelope_volume	530520 Å³
水化壳体积 shell_volume	83050 Å³
包络直径 envelope_diameter	177.9 Å
壳层 Rg shell_rg	55.71 Å
包络 Rg envelope_rg	52.68 Å
形状 Rg shape_rg	54.75 Å
总 Rg total_rg	54.86 Å
总原子数 total_atoms	18464
残基数 n_residues	2284
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

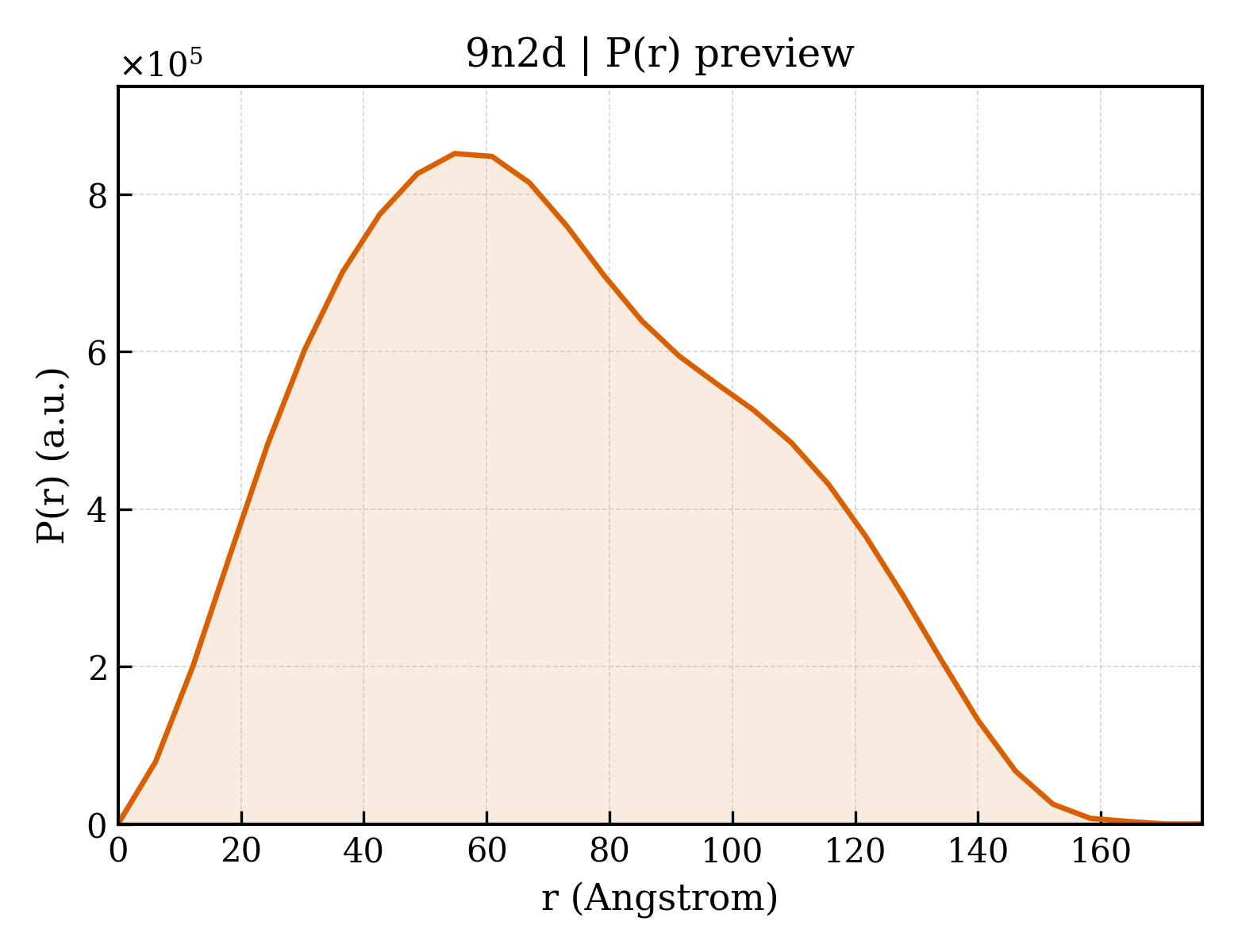

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	176.5 Å
Rg (实空间) rg_real	54.80 Å
Rg 误差 (实空间) rg_real_error	1.71 Å
I(0) (实空间) i0_real	9.4220e+08
I(0) 误差 (实空间) i0_real_error	2.0710e+07
Rg (倒空间) rg_reciprocal	54.62 Å
I(0) (倒空间) i0_reciprocal	942000000.0000
解质量估计 total_estimate	0.8666
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	54.8 Å
偏度 Skewness skewness	0.265
峰度 Kurtosis kurtosis	-0.725
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	47710000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.938; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.457

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (15)

Entity 1 polymer

描述 description	Bam D
分子量 formula_weight	30219.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F
原子数 atom_count	18488

MKKIVSLLIVAALFCSCSEYQKALKNEDVAAKFEVATKMYDAGKYNKAIRLFEQLAPTYRGKPQAEKLFYMFSQSYYKTKQYYLAGYQFESFVSGYPRSEKVQEAAFLGAYSYSKLAPVYSLDQADTVKALDKLQAFIDNYPNSEYLAQANESVKILNGKLEKKAYENAKGYNTISDYKSALVAFDNFIADFPGTPLKEDALFYKYDSAYQLAINSVPSKMEERLHVAQTAYANLMKYKSDTKYKEKADQMNARVETDLQKFTK

Entity 2 polymer

描述 description	Bam A
分子量 formula_weight	101490.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MLQKRIPQIICTLLLLGSFSQIKAQDRVPFDQGKKYTLAKVSVVGKISFNEQTVVTFSGLQKGQEITVPGEEITSAIKKLGKLGLFDEIAFYINKVENDSIYLDLNIVELPKLNEVKITGVKKSKVEGLIKDNNLTKNKIVNENLITTTKNYIENKYKKDGFYNTKVVITTTPDTTAGNQVNMLVRVDKGDKVKISSIDFTGNKQLSDSKLRAAMKDTKQKNVLRVFKASKFIPEKYKTDLEKVIASYKEKGYRDARIIYDSVIYNKKKNMLAIKIDVEEGNKYYFGNIKFLGNTVYSDQQLNRYLGIKKGETYNGVLLEKRIADNTKPDGEDITNLYQNNGYLFSKINAVEVKTVNDTIDFEIRITEGPIAYFNKIYVTGNDKTNDHVIYRELRTKPGNKYSKEELVRTIREIGQLGFFDPESIKPEFRNVDPAAGTVDIEYQLVEKGSSQVELQGGYGGGGFIGTLGLSFNNFSARKLFDKDAYKPLPMGDGQKVALRLQGSTYFQTYSLSFSEPWFGGKKPVQFSSSISYSKQFNYNYSSRDVNRNQSFNIFTVQVGLAKRLTVPDDYFVLSQSVSYQHYDLNNYYTGLFTFGNGASRNLAYTIGLSRSNKGVNPIFPTYGSEFSISAKVTPPYSLFNNINYGDLQNQKEYKTQYTGTTTTTGIDGQAINPGDYTKTETVNGQSGTVSVGSDYKSADTDVGKVDQKKYNWLEYYKVKFKADWYTKIYGKLVLRTLTEFGFLGAYDQSRGVVPFERFYLGGDGMANYSMDGRETIQLRGYPNNSLTPIIEDRNSSRYGQQIGATIYNKFSMELRYPITLKSSASIYALTFLEAGSSYPTFKDYNPFDLNRSAGAGLRVFMPAFGLLGIDFGYGFDALPGSTTNKANGWETHFIIGQQF

Entity 3 polymer

描述 description	Bam H
分子量 formula_weight	57094.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

CDKDFNAIGGDLIGDDHFGLESEKYDVLSYNQEVTSVQSNVLPTSALGIYSNPVFGETTANYVTQVALVAYAPSIGEDPVIESAVLSIPYFSHVTANNTDGSHTYELDSIYGPANGKLKLSVYESGYQMRSSFPSNGTELPQYYYTSQNSTFDQAKVGTRLNDDLTKPFQNDQFFFSSEEYKTVTKDSNDKETTTYTAPEMRLNLNSAFFQDKILKAPASKIASTDVFQEYFRGLYFKVEKADGSPSNMALMDFSKGKITITYKAKTDITTDAPETTEERTIVINLVNPTSSGGTANLLQDAKSAGYSGAISSSNVNKTEGDERLYIKGGQGSAAVIKLNDFASKLDDIRAKNWKVNEANLIFNIDSDLMTGADEPKRVYLYDLTNNVPLADYYADQTTSLTVGDTKGAKYVFGGLINLGDNKRGKTYKIRITEYIRNLIKDKTAKNVNLGLVVTESIGITTSNFLENRIVLQPNEYFSQVPRASIMNPLGTILYGGKASVPDDKRLRLEVYYTKPN

Entity 4 polymer

描述 description	Bam G
分子量 formula_weight	44459.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MIKKIIISACLLISFVSFAQQGTASPYSFYGIGDIKFKGTLEYRSMAGVAVEQDSIHLNIENPASYASLMQTTFTVGGTFGTSTLKSNTGSAKAQRTTFDYLAVGIPVGKFGVSFGLIPLSSVGYKILDDNTATEGAVSSQLSGKGGINKVYFGVGYKIKPHWTIGADVQYNFGKITTTSIEQVTGVQNGTSESNASTLSGANFDLGTMYQTKIYKKVNLFTSLSYTFSSNLNSENVREINVSGDPDPYAYPASTTKLKLPSRVIIGAGIGESRKWLVGTTLAFQGEGQLTNYYNAMDNVRYENYAKYAIGGYYIPNYTSFTSYLSRITYRAGLKYEKIGLIVNNESIKDVGMTLGAGIPIPGYFSNVNIGIEFGKKGTVSSNLVQENYVNFSVGFSFNDKWFVKSKFN

Entity 5 polymer

描述 description	Bam M
分子量 formula_weight	43899.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MNKFKYYFVLLLAGLAIVSCNKKDDDEEIVPLRDYQEQYNTDNANIEEYLNTYFITVTDAPGEQTDQDVTFTKITDPSTQPSIMSYLNSPTFPKLLKREVPMHGIVYQMYYLVLREGTGTSPMNTDGAFTSYRGEYLTRVAKTDTEAEHLSTTFFEQVLFPTKALDLYGTIIGWSEAFPQFKTGTATMKPDGSMKYENFGAGVLFIPSGLGYYGSGASAIPAYSPLIFSIKLYDLTRLDHDLDGVFDFEEDINGDGYVYDFRNTTEYPTPPANQYDDDTDKDGIADFLDSDDDGDGYSTLFEITKPTGTEFLGGLSKYYPYNPVSDNPATPNYDETEKYGIPRRPTGELTNPNLPESINNPRKFIEDDYLAAGRKRIHLDNTYPYKKN

Entity 6 polymer

描述 description	Bam P
分子量 formula_weight	28413.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MKNKLGVFVVCLFCQIMLGQNGTRKSLHGQVTNKSLAIESGYVMNINAKSRTFIGPGGLFDILAQPKDTLLFTGIAFQSKKIVLTEKDCSQILFSVSLDLVSNELKEVLVRKDLKVKSLDSNTQKYVDMQFEDDRQSTAKNTVMYSDQTIKYGTDFVRIFKDVKKLLSKNNEKEEVISDIAFVEYSKANFKPDFYTKTLGLKPDEVDLFLMFCSNDPESKRHLNEDQKFELIDFLINKNAEFKKVNAAQ

Entity 7 branched

描述 description	alpha-D-glucopyranuronic acid-(1-2)-[alpha-D-mannopyranose-(1-4)]beta-D-galactopyranose
分子量 formula_weight	518.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 8 branched

描述 description	alpha-D-glucopyranuronic acid-(1-2)-beta-D-galactopyranose
分子量 formula_weight	356.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	DIACYL GLYCEROL
分子量 formula_weight	625.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 10 non-polymer

描述 description	;(2~{R},4~{R},5~{R},6~{R})-6-[(1~{R})-1,2-bis(oxidanyl)ethyl]-2-[(2~{R},4~{R},5~{R},6~{R})-6-[(1~{R})-1,2-bis(oxidanyl)ethyl]-5-[(2~{S},3~{S},4~{R},5~{R},6~{R})-6-[(1~{S})-1,2-bis(oxidanyl)ethyl]-4-[(2~{R},3~{S},4~{R},5~{S},6~{R})-6-[(1~{S})-2-[(2~{S},3~{S},4~{S},5~{S},6~{R})-6-[(1~{S})-1,2-bis(oxidanyl)ethyl]-3,4,5-tris(oxidanyl)oxan-2-yl]oxy-1-oxidanyl-ethyl]-3,4-bis(oxidanyl)-5-phosphonooxy-oxan-2-yl]oxy-3-oxidanyl-5-phosphonooxy-oxan-2-yl]oxy-2-carboxy-2-[[(2~{R},3~{S},4~{R},5~{R},6~{R})-5-[[(3~{R})-3-dodecanoyloxytetradecanoyl]amino]-6-[[(2~{R},3~{S},4~{R},5~{R},6~{R})-3-oxidanyl-5-[[(3~{R})-3-oxidanyltetradecanoyl]amino]-4-[(3~{R})-3-oxidanyltetradecanoyl]oxy-6-phosphonooxy-oxan-2-yl]methoxy]-3-phosphonooxy-4-[(3~{R})-3-tetradecanoyloxytetradecanoyl]oxy-oxan-2-yl]methoxy]oxan-4-yl]oxy-4,5-bis(oxidanyl)oxane-2-carboxylic acid ;
分子量 formula_weight	2975.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 11 non-polymer

描述 description	PHOSPHATIDYLETHANOLAMINE
分子量 formula_weight	734.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 12 non-polymer

描述 description	alpha-D-mannopyranose
分子量 formula_weight	180.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 13 non-polymer

描述 description	PALMITIC ACID
分子量 formula_weight	256.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 14 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 15 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	16

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	55796

fit	/app/data/saxs_computation/n2/9n2d/9n2d.fit
pddf	/app/data/pr_computation/n2/9n2d/9n2d.pr.out
profile	/app/data/saxs_computation/n2/9n2d/9n2d.dat
