SAXSdb — 9n5i

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9n5i
沉积日期 deposition_date	2025-02-04
结构标题 title	Endogenous Pfs230D13-14 in complex with Pfs48/45 bound to anti-Pfs48/45 Fabs RUPA-71 and RUPA-44
关键词 keywords	Pfs48/45, Pfs230, Malaria, transmission-blocking antibodies, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.98 Å
回转半径 Rg (电子) rg_electron	37.97 Å
零角强度 I(0) i0	254719000.00
分子量 molecular_weight	130820.0 kDa
排除体积 excluded_volume	164310 Å³
包络体积 envelope_volume	214420 Å³
水化壳体积 shell_volume	49486 Å³
包络直径 envelope_diameter	152.8 Å
壳层 Rg shell_rg	41.34 Å
包络 Rg envelope_rg	37.96 Å
形状 Rg shape_rg	37.93 Å
总 Rg total_rg	38.29 Å
总原子数 total_atoms	9224
残基数 n_residues	1125
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	138.6 Å
Rg (实空间) rg_real	38.28 Å
Rg 误差 (实空间) rg_real_error	1.45 Å
I(0) (实空间) i0_real	2.5470e+08
I(0) 误差 (实空间) i0_real_error	4.5970e+06
Rg (倒空间) rg_reciprocal	38.10 Å
I(0) (倒空间) i0_reciprocal	254700000.0000
解质量估计 total_estimate	0.8314
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	39.6 Å
偏度 Skewness skewness	0.571
峰度 Kurtosis kurtosis	-0.014
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	32580000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.668; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.927; Smooth: 0.874

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Gametocyte surface protein P230
分子量 formula_weight	363701.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	9224

MKKIITLKNLFLIILVYIFSEKKDLRCNVIKGNNIKDDEDKRFHLFYYSHNLFKTPETKEKKNKKECFYKNGGIYNLSKEIRMRKDTSVKIKQRTCPFHKEGSSFEMGSKNITCFYPIVGKKERKTLDTIIIKKNVTNDHVVSSDMHSNVQEKNMILIRNIDKENKNDIQNVEEKIQRDTYENKDYESDDTLIEWFDDNTNEENFLLTFLKRCLMKIFSSPKRKKTVVQKKHKSNFFINSSLKYIYMYLTPSDSFNLVRRNRNLDEEDMSPRDNFVIDDEEEEEEEEEEEEEEEEEEEEEEEEEYDDYVYEESGDETEEQLQEEHQEEVGAESSEESFNDEDEDSVEARDGDMIRVDEYYEDQDGDTYDSTIKNEDVDEEVGEEVGEEVGEEVGEEVGEEVGEEVGEEVGEEVGEEEGEEVGEGVGEEVGEEEGEEVGEEEGEYVDEKERQGEIYPFGDEEEKDEGGESFTYEKSEVDKTDLFKFIEGGEGDDVYKVDGSKVLLDDDTISRVSKKHTARDGEYGEYGEAVEDGENVIKIIRSVLQSGALPSVGVDELDKIDLSYETTESGDTAVSEDSYDKYASNNTNKEYVCDFTDQLKPTESGPKVKKCEVKVNEPLIKVKIICPLKGSVEKLYDNIEYVPKKSPYVVLTKEETKLKEKLLSKLIYGLLISPTVNEKENNFKEGVIEFTLPPVVHKATVFYFICDNSKTEDDNKKGNRGIVEVYVEPYGNKINGCAFLDEDEEEEKYGNQIEEDEHNEKIKMKTFFTQNIYKKNNIYPCYMKLYSGDIGGILFPKNIKSTTCFEEMIPYNKEIKWNKENKSLGNLVNNSVVYNKEMNAKYFNVQYVHIPTSYKDTLNLFCSIILKEEESNLISTSYLVYVSINEELNFSLFDFYESFVPIKKTIQVAQKNVNNKEHDYTCDFTDKLDKTVPSTANGKKLFICRKHLKEFDTFTLKCNVNKTQYPNIEIFPKTLKDKKEVLKLDLDIQYQMFSKFFKFNTQNAKYLNLYPYYLIFPFNHIGKKELKNNPTYKNHKDVKYFEQSSVLSPLSSADSLGKLLNFLDTQETVCLTEKIRYLNLSINELGSDNNTFSVTFQVPPYIDIKEPFYFMFGCNNNKGEGNIGIVELLISKQEEKIKGCNFHESKLDYFNENISSDTHECTLHAYENDIIGFNCLETTHPNEVEVEVEDAEIYLQPENCFNNVYKGLNSVDITTILKNAQTYNINNKKTPTFLKIPPYNLLEDVEISCQCTIKQVVKKIKVIITKNDTVLLKREVQSESTLDDKIYKCEHENFINPRVNKTFDENVEYTCNIKIENFFNYIQIFCPAKDLGIYKNIQMYYDIVKPTRVPQFKKFNNEELHKLIPNSEMLHKTKEMLILYNEEKVDLLHFYVFLPIYIKDIYEFNIVCDNSKTMWKNQLGGKVIYHITVSKREQKVKGCSFDNEHAHMFSYNKTNVKNCIIDAKPKDLIGFVCPSGTLKLTNCFKDAIVHTNLTNINGILYLKNNLANFTYKHQFNYMEIPALMDNDISFKCICVDLKKKKYNVKSPLGPKVLRALYKKLNIKFDNYVTGTDQNKYLMTYMDLHLSHKRNYLKELFHDLGKKKPADTDANPESIIESLSINESNESGPFPTGDVDAEHLILEGYDTWESLYDEQLEEVIYNDIESLELKDIEQYVLQVNLKAPKLMMSAQIHNNRHVCDFSKNNLIVPESLKKKEELGGNPVNIHCYALLKPLDTLYVKCPTSKDNYEAAKVNISENDNEYELQVISLIEKRFHNFETLESKKPGNGDVVVHNGVVDTGPVLDNSTFEKYFKNIKIKPDKFFEKVINEYDDTEEEKDLESILPGAIVSPMKVLKKKDPFTSYAAFVVPPIVPKDLHFKVECNNTEYKDENQYISGYNGIIHIDISNSNRKINGCDFSTNNSSILTSSVKLVNGETKNCEININNNEVFGIICDNETNLDPEKCFHEIYSKDNKTVKKFREVIPNIDIFSLHNSNKKKVAYAKVPLDYINKLLFSCSCKTSHTNTIGTMKVTLNKDEKEEEDFKTAQGIKHNNVHLCNFFDNPELTFDNNKIVLCKIDAELFSEVIIQLPIFGTKNVEEGVQNEEYKKFSLKPSLVFDDNNNDIKVIGKEKNEVSISLALKGVYGNRIFTFDKNGKKGEGISFFIPPIKQDTDLKFIINETIDNSNIKQRGLIYIFVRKNVSENSFKLCDFTTGSTSLMELNSQVKEKKCTVKIKKGDIFGLKCPKGFAIFPQACFSNVLLEYYKSDYEDSEHINYYIHKDKKYNLKPKDVIELMDENFRELQNIQQYTGISNITDVLHFKNFNLGNLPLNFKNHYSTAYAKVPDTFNSIINFSCNCYNPEKHVYGTMQVESDNRNFDNIKKNENVIKNFLLPNIEKYALLLDDEERQKKIKQQQEEEQQEQILKDQDDRLSRHDDYNKNHTYILYDSNEHICDYEKNESLISTLPNDTKKIQKSICKINAKALDVVTIKCPHTKNFTPKDYFPNSSLITNDKKIVITFDKKNFVTYIDPTKKTFSLKDIYIQSFYGVSLDHLNQIKKIHEEWDDVHLFYPPHNVLHNVVLNNHIVNLSSALEGVLFMKSKVTGDETATKKNTTLPTDGVSSILIPPYVKEDITFHLFCGKSTTKKPNKKNTSLALIHIHISSNRNIIHGCDFLYLENQTNDAISNNNNNSYSIFTHNKNTENNLICDISLIPKTVIGIKCPNKKLNPQTCFDEVYYVKQEDVPSKTITADKYNTFSKDKIGNILKNAISINNPDEKDNTYTYLILPEKFEEELIDTKKVLACTCDNKYIIHMKIEKSTMDKIKIDEKKTIGKDICKYDVTTKVATCEIIDTIDSSVLKEHHTVHYSITLSRWDKLIIKYPTNEKTHFENFFVNPFNLKDKVLYNYNKPINIEHILPGAITTDIYDTRTKIKQYILRIPPYVHKDIHFSLEFNNSLSLTKQNQNIIYGNVAKIFIHINQGYKEIHGCDFTGKYSHLFTYSKKPLPNDDDICNVTIGNNTFSGFACLSHFELKPNNCFSSVYDYNEANKVKKLFDLSTKVELDHIKQNTSGYTLSYIIFNKESTKLKFSCTCSSNYSNYTIRITFDPNYIIPEPQSRAIIKYVDLQDKNFAKYLRKL

Entity 2 polymer

描述 description	Gametocyte surface protein P45/48
分子量 formula_weight	51545.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MMLYISAKKAQVAFILYIVLVLRIISGNNDFCKPSSLNSEISGFIGYKCNFSNEGVHNLKPDMRERRSIFCTIHSYFIYDKIRLIIPKKSSSPEFKILPEKCFQKVYTDYENRVETDISELGLIEYEIEENDTNPNYNERTITISPFSPKDIEFFCFCDNTEKVISSIEGRSAMVHVRVLKYPHNILFTNLTNDLFTYLPKTYNESNFVSNVLEVELNDGELFVLACELINKKCFQEGKEKALYKSNKIIYHKNLTIFKAPFYVTSKDVNTECTCKFKNNNYKIVLKPKYEKKVIHGCNFSSNVSSKHTFTDSLDISLVDDSAHISCNVHLSEPKYNHLVGLNCPGDIIPDCFFQVYQPESEELEPSNIVYLDSQINIGDIEYYEDAEGDDKIKLFGIVGSIPKTTSFTCICKKDKKSAYMTVTIDSAYYGFLAKTFIFLIVAILLYI

Entity 3 polymer

描述 description	RUPA-44 Fab kappa chain
分子量 formula_weight	23483.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

DIQMTQSPATLSASVGDRVTITCRASQSISSWLAWYQQKPGEAPKLLIYKASSLQSGVPSRFSGSGSGTKFSLTISSLQPDDFATFYCQQYHSYPYTFGQGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	RUPA-44 Fab heavy chain
分子量 formula_weight	24277.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

QLQLQESGPGLVKPSETLSLTCTVSGGSISRSPYYWGWIRQPPGKGLEWFGSIYNNGSTYYNPPLKSRLTISVDTSKNQFSLKLSSVTAADTAVYYCARHGGSTGMKVVVIAPPDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 polymer

描述 description	RUPA-71 Fab heavy chain
分子量 formula_weight	24711.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

EEQLVESGGGLVKPGRSLRLSCSASGFTLGDYAVTWFRQASGKEPEWVGVIRTKDEGGTTEYAASVKGRFSILRDDSKSIAHLQMNSLKIEDTAVYYCTRNGLRWYDSSGPRGWAFDIWGPGTLVVVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 6 polymer

描述 description	RUPA-71 Fab kappa chain
分子量 formula_weight	23598.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

EIVMTQSPATVSVSPGERATLSCRTSQSVSNKLAWYQQKPGQAPRLLIYGASTRATGIPARFSGSGSGTQFTLTISSLQSEDFAVYYCQQYNNWPPWTFGRGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 7 branched

描述 description	alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	367.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.390 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.39 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	146814

fit	/app/data/saxs_computation/n5/9n5i/9n5i.fit
pddf	/app/data/pr_computation/n5/9n5i/9n5i.pr.out
profile	/app/data/saxs_computation/n5/9n5i/9n5i.dat

Endogenous Pfs230D13-14 in complex with Pfs48/45 bound to anti-Pfs48/45 Fabs RUPA-71 and RUPA-44

SAXS 散射曲线 SAXS Profile

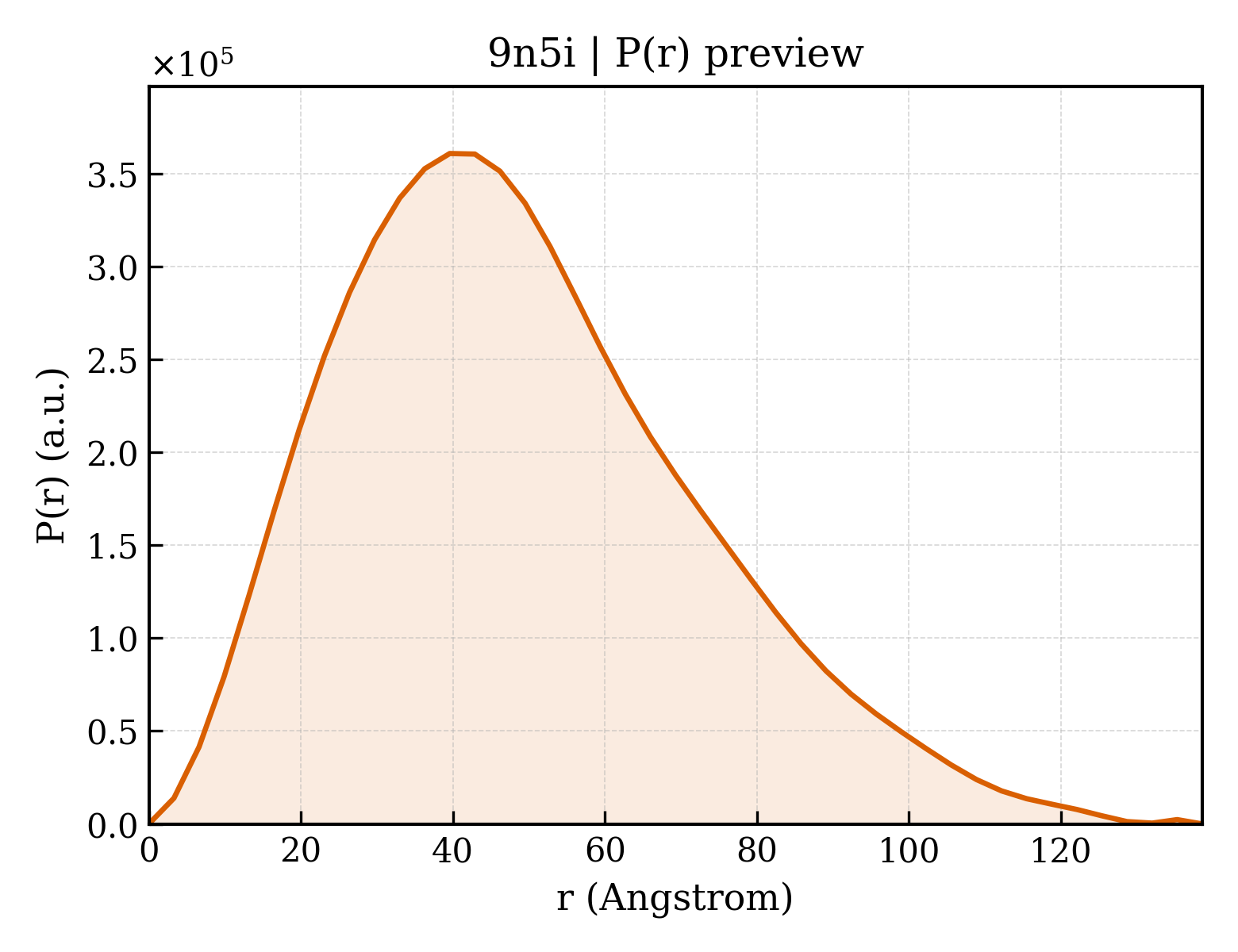

P(r) 距离分布 P(r) Distribution
