SAXSdb — 9n9p

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9n9p
沉积日期 deposition_date	2025-02-11
结构标题 title	Cryo-EM structure of the Fta RNAP complex
关键词 keywords	Fta RNAP, RNA polymerase, RNA BINDING PROTEIN; RNA BINDING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.67 Å
回转半径 Rg (电子) rg_electron	47.07 Å
零角强度 I(0) i0	1530520000.00
分子量 molecular_weight	329470.0 kDa
排除体积 excluded_volume	414680 Å³
包络体积 envelope_volume	592190 Å³
水化壳体积 shell_volume	100520 Å³
包络直径 envelope_diameter	164.7 Å
壳层 Rg shell_rg	54.37 Å
包络 Rg envelope_rg	46.91 Å
形状 Rg shape_rg	47.08 Å
总 Rg total_rg	47.33 Å
总原子数 total_atoms	23175
残基数 n_residues	2933
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	152.4 Å
Rg (实空间) rg_real	47.45 Å
Rg 误差 (实空间) rg_real_error	0.92 Å
I(0) (实空间) i0_real	1.5310e+09
I(0) 误差 (实空间) i0_real_error	2.3850e+07
Rg (倒空间) rg_reciprocal	47.66 Å
I(0) (倒空间) i0_reciprocal	1531000000.0000
解质量估计 total_estimate	0.6414
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	60.0 Å
偏度 Skewness skewness	0.253
峰度 Kurtosis kurtosis	-0.265
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	217400000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.866; Stabil: 1.000; Sysdev: 0.006; Positv: 1.000; Valcen: 0.968; Smooth: 0.751

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	DNA-directed RNA polymerase subunit alpha
分子量 formula_weight	37228.6 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	23175

MALLNFQKPDKVIMIDSTDFEGKFEFRPLEPGYGLTVGNALRRVLLSSLEGFAITSVRIDGVEHEFSVVPGVVEDVTEIILNLKQVRFKRQIDDVESETVSISVSGKEQLTAGDFQKFISGYQVLNPDLVICNMGPKVSINMEIVIEKGRGYVPAEENKKSNAPLGSIAVDSVYTPVKNVKYSIENYRVEQKTDYEKLVFEIITDGSIHPKDALTEAAKVLIHHFMLFSDERITLEADEIAQTETYDEESLHMRQLLKTKLVDMDLSVRALNCLKAAEVDTLGDLVSFNKNDLMKFRNFGKKSLTELEELVINKGLQFGMDLSKYKLDKD

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	DNA-directed RNA polymerase subunit beta
分子量 formula_weight	142961.4 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MFTNTIERVNFASAKNIPEYPDFLDIQIKSFQDFFQLETKSDERGNEGLYNTFMENFPITDTRNQFVLEFLDYFIDPPRYSIQECIERGLTYSVPLKARLKLYCTDPEHEDFETIVQDVYLGTIPYMTPSGTFVINGAERVVVSQLHRSPGVFFGQSFHANGTKLYSARVIPFKGSWIEFATDINGVMYAYIDRKKKLPVTTLFRAIGFERDKDILEIFDLSEEVKVSKAGLKKVLGRKLAARVLNTWHEDFVDEDTGEVVSIERNEIILDRDTILEKEHIDEIIDADVKTILLHKENNAQSDYAIIHNTLQKDPTNSEKEAVEHIYRQLRNAEPPDEETARGIIEKLFFSDQRYSLGEVGRYRMNKKLGLDIGMDKEVLTKEDIITIIKYLIELINSKAEIDDIDHLSNRRVRTVGEQLSQQFGVGLARMARTIRERMNVRDNEVFTPIDLINAKTLSSVINSFFGTNQLSQFMDQTNPLAEITHKRRLSALGPGGLSRERAGFEVRDVHYTHYGRLCPIETPEGPNIGLISSLSVFAKVNSMGFLETPYRKVVDGKVDVKEHIYLSAEEEEGMKIAQANIPLKDDGTIDREKVIARDEGDFPVVDPVEINYTDVAPNQIASISASLIPFLEHDDANRALMGSNMMRQAVPLLRPESPIVGTGLERQVATDSRVLINAEGDGVVEYVDAQKITIKYDRTEEERLVSFEEDSKTYELVKFRKTNQGTSINLKPIVRKGDKVKKGQVLCEGYATEKGELALGRNMKVAFMPWKGYNFEDAIVISEKVVREDIFTSVHIDEYALEVRDTKLGAEELTNDIPNVSEEATRDLDEYGMIRIGAEVKPGDILIGKITPKGESDPTPEEKLLRAIFGDKAGDVKDASLKASPSLRGVVIDKKLFSRSIKDKRKRSEDKEAISRLEMDYEVKFQQLKDVLIEKLFGLVNGKTSQGVINDLGEEVLPKGKKYTIKMLNAVDDFAHLVGGSWTTDEDTNALVADLLHNYKIKLNDIQGNLRRDKFTISVGDELPAGIMKLAKVYIAKKRKLKVGDKMAGRHGNKGIVARIVRQEDMPFLEDGTPVDIVLNPLGVPSRMNIGQIYETVLGWAGLKLGQKYGTPIFDGATLDDINELTDKAGVPRFGHTYLYDGGTGQRFDQAATVGVIYMLKLGHMVDDKMHARSIGPYSLITQQPLGGKAQFGGQRFGEMEVWALEAYGASATLREILTVKSDDVIGRAKTYESIVKGETMPEPGLPESFNVLMHELKGLGLDIRLEE

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

描述 description	;DNA-directed RNA polymerase subunit beta' ;
分子量 formula_weight	160063.4 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MARIKDNNAPKRFNKISIGLASPESILAESRGEVLKPETINYRTHKPERDGLFCERIFGPVKDYECACGKYKRIRYRGIVCDRCGVEVTEKKVRRDRVGHINLVVPVAHIWYFRSLPNKIGYLLGLPSKKLDMIIYYERYVVIQPGIAKGPEGEEIHKLDFLTEEEYLNILESLPSENQYLEENDPNKFIAKMGAECLIDLLARIDLEQLSYELRHKANTETSKQRKTEALKRLQVVEALRESQDNRENNPEWMIMKVIPVIPPELRPLVPLDGGRFATSDLNDLYRRVIIRNNRLKRLMEIKAPEVILRNEKRMLQEAVDSLFDNTRKASAVKTESNRPLKSLSDSLKGKQGRFRQNLLGKRVDYSARSVIVVGPEMKLYECGLPKDMAAELYKPFIIRKLIERGIVKTVKSAKKIIDKKEPVVWDILENVLKGHPVLLNRAPTLHRLGIQAFQPKLIEGKAIRLHPLACTAFNADFDGDQMAVHLPLGPEAILEAQLLMLASQNILNPANGSPITVPSQDMVLGLYYMTKEKRSTPEEPVIGEGLTFYSSEEVEIAFNERKVALNAIIKVRTKDFNEAGELVNKIIETTVGRVLFNTVVPEQAGYINTVLNKKSLRNIIGDILAVTDVPTTADFLDKIKTMGYEFAFKGGLSFSLGDIIIPKEKHEMIAEANEQVDGIMMNYNMGLITFNERYNQVIDVWTSTNAMLTELAMKRIREDKQGFNSVYMMLDSGARGSKEQIRQLTGMRGLMAKPKKSTAGGGEIIENPILSNFKEGLSILEYFISTHGARKGLADTALKTADAGYLTRRLVDVSQDVIINTEDCGTLRGIEVEALKKNEEVVETLGERILGRVSLHDVYNPLTEELILKAGQEISEADVKKVEAAPIEKVEVRSPLTCEAAQGICAKCYGRNLATNKMVQRGEAVGVVAAQSIGEPGTQLTLRTFHVGGIAGNISEDSKLEAKFDGIAEIEDLRVVEGVDNGGGKSDIVISRTSEIKIVDAKTGITLSTNNIPYGSQLFVKNGEKITKGTVICQWDPYNGVIVSEFTGQIAYENIEQGMTYQVEIDEQTGFQEKVISESRNKRLIPTLLIKDGKGETIRSYNLPVGSHLMVDNGEKIKEGKILVKIPRKSAKAGDITGGLPRVTELFEARNPSNPAVVTEIDGVVSFGKIKRGNREIIIESKAGEVKKYLVKLSNQILVQENDYVRAGMALSDGSITPEDILAIKGPSAVQQYLVNEVQEVYRLQGVKINDKHFEVVVRQMMRKVQIQDSGDTTFLENQLVHKDDFINENDEIFGKKVVEDAGDSERLKPGQIVTARQLRDENSILRREDKTLVTARDAVAATATPILQGITRASLQTKSFISAASFQETTKVLNEAAVNGKVDTLEGLKENVIVGHKIPAGTGMRDYDSIIVGSKEEYDEIMARKEEFKF

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 polymer

描述 description	RNA polymerase Rpb6
分子量 formula_weight	12565.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MQDLKNTKAPVSTATLNRNEFDSKTGNIYEAISIASKRAVQINSDIKKELLEKLEEFATYSDSLEEVFENKEQIEVSKFYEKLPKPHALAVQEWLEDKIYYRNTEKDA

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 5 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.950 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.95 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	171804

fit	/app/data/saxs_computation/n9/9n9p/9n9p.fit
pddf	/app/data/pr_computation/n9/9n9p/9n9p.pr.out
profile	/app/data/saxs_computation/n9/9n9p/9n9p.dat

Cryo-EM structure of the Fta RNAP complex

SAXS 散射曲线 SAXS Profile

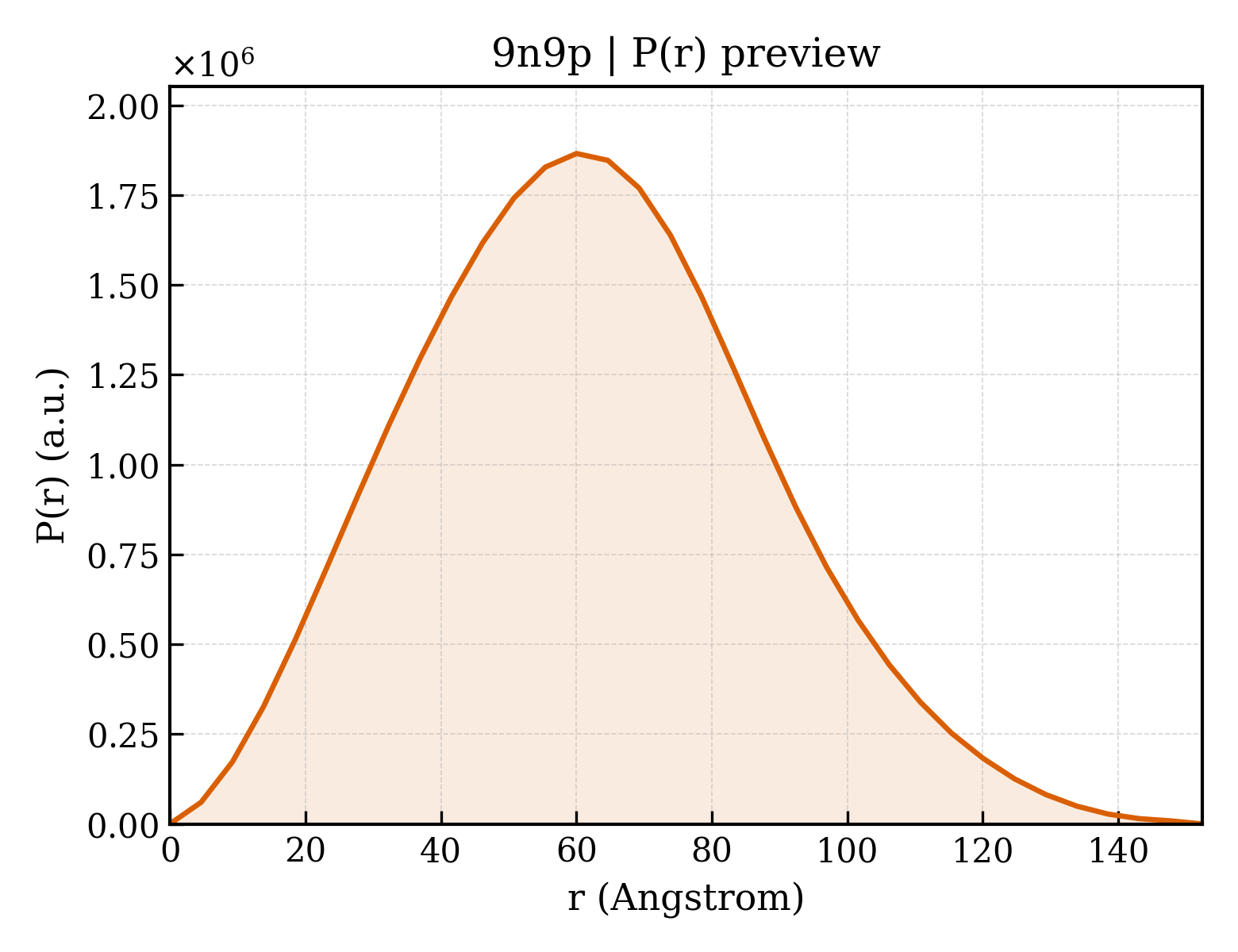

P(r) 距离分布 P(r) Distribution
