9n9q

Cryo-EM structure of the RNA-guided transcription complex

Method: ELECTRON MICROSCOPY D_max: 210.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

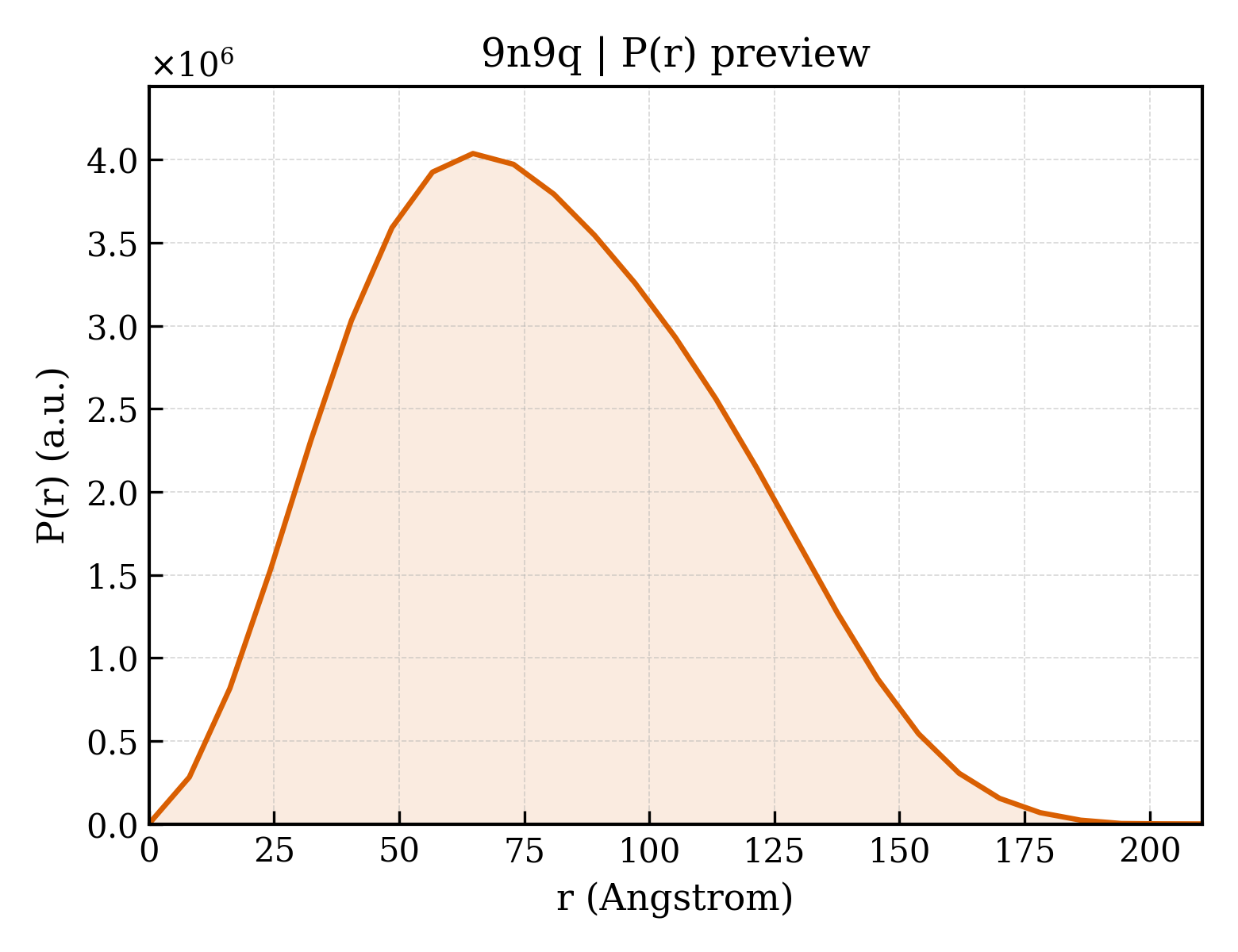

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9n9q
沉积日期 deposition_date	2025-02-11
结构标题 title	Cryo-EM structure of the RNA-guided transcription complex
关键词 keywords	dCas12f, partial R-Loop, RNA BINDING PROTEIN, RNA BINDING PROTEIN-DNA-RNA complex; RNA BINDING PROTEIN/DNA/RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	61.09 Å
回转半径 Rg (电子) rg_electron	60.27 Å
零角强度 I(0) i0	4747730000.00
分子量 molecular_weight	544310.0 kDa
排除体积 excluded_volume	666750 Å³
包络体积 envelope_volume	1040500 Å³
水化壳体积 shell_volume	141030 Å³
包络直径 envelope_diameter	209.5 Å
壳层 Rg shell_rg	63.87 Å
包络 Rg envelope_rg	59.53 Å
形状 Rg shape_rg	60.23 Å
总 Rg total_rg	60.48 Å
总原子数 total_atoms	38028
残基数 n_residues	4446
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	210.5 Å
Rg (实空间) rg_real	61.05 Å
Rg 误差 (实空间) rg_real_error	1.65 Å
I(0) (实空间) i0_real	4.7480e+09
I(0) 误差 (实空间) i0_real_error	1.0600e+08
Rg (倒空间) rg_reciprocal	61.10 Å
I(0) (倒空间) i0_reciprocal	4748000000.0000
解质量估计 total_estimate	0.8729
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	64.8 Å
偏度 Skewness skewness	0.288
峰度 Kurtosis kurtosis	-0.516
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0009
最高正则化参数 α highest_alpha	780200000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.836; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.853

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	Nuclease-deactivated Cas12f
分子量 formula_weight	42913.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	38028

MGKSTLKHTRKIQILIDLPTKDEKKEVMDMMYQWRDRCFRAANIIVTHLYVQEMIKDFFYLSEGIKYKLADEKKDEKGILQRSRMNTTYRVVSDRFKGEMPTNILSTLNHGLISSFNKNRVQYWKGERSLPNFKKDMAFPFGLQGISRLVYDEEKKAFCFRLYRVPFKTYLGKDFTDKRMLLERLVKGDVKLCASNIQLNGGKIFWLAVFEIEKEKHSLKPEVIAEASLSLEYPIVVKTGKNRLTIGTKEEFLYRRLAIQAARRRTQVGATYSRSGKGKKRKLKAVDKYHKTESNYVAHRIHVYSRKLIDFCIKHQAGTLILMNQEDKVGIAKEEEFVLRNWSYYELMTKIKYKAEKAGIELIIG

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	RpoE
分子量 formula_weight	31011.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MLYSDFELLKIGDTSALDHIHAKYFRSILWIGRQWLNDDFLIESLVQDTFLKLWVNRDKLESPEHIFYFLRFVMKRECISYYRKPKYKFHKKVNSLEDYDNYQDYMVGYDPVNDSENLDEQESTQKSFDHIKSILPLLNADKRHLIELCLKYGFQYKAISKVMGKGIHETSREIKEAIEDIKTIVHKGNELGSNDTMTNEIKFSGELSEEQAKVLKMRCDLKYSFSEIAKELELSEKEVHQEFMKAYKLMKANHQLQLQSA

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

描述 description	DNA-directed RNA polymerase subunit alpha
分子量 formula_weight	37228.6 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E

MALLNFQKPDKVIMIDSTDFEGKFEFRPLEPGYGLTVGNALRRVLLSSLEGFAITSVRIDGVEHEFSVVPGVVEDVTEIILNLKQVRFKRQIDDVESETVSISVSGKEQLTAGDFQKFISGYQVLNPDLVICNMGPKVSINMEIVIEKGRGYVPAEENKKSNAPLGSIAVDSVYTPVKNVKYSIENYRVEQKTDYEKLVFEIITDGSIHPKDALTEAAKVLIHHFMLFSDERITLEADEIAQTETYDEESLHMRQLLKTKLVDMDLSVRALNCLKAAEVDTLGDLVSFNKNDLMKFRNFGKKSLTELEELVINKGLQFGMDLSKYKLDKD

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 polymer

描述 description	DNA-directed RNA polymerase subunit beta
分子量 formula_weight	142961.4 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MFTNTIERVNFASAKNIPEYPDFLDIQIKSFQDFFQLETKSDERGNEGLYNTFMENFPITDTRNQFVLEFLDYFIDPPRYSIQECIERGLTYSVPLKARLKLYCTDPEHEDFETIVQDVYLGTIPYMTPSGTFVINGAERVVVSQLHRSPGVFFGQSFHANGTKLYSARVIPFKGSWIEFATDINGVMYAYIDRKKKLPVTTLFRAIGFERDKDILEIFDLSEEVKVSKAGLKKVLGRKLAARVLNTWHEDFVDEDTGEVVSIERNEIILDRDTILEKEHIDEIIDADVKTILLHKENNAQSDYAIIHNTLQKDPTNSEKEAVEHIYRQLRNAEPPDEETARGIIEKLFFSDQRYSLGEVGRYRMNKKLGLDIGMDKEVLTKEDIITIIKYLIELINSKAEIDDIDHLSNRRVRTVGEQLSQQFGVGLARMARTIRERMNVRDNEVFTPIDLINAKTLSSVINSFFGTNQLSQFMDQTNPLAEITHKRRLSALGPGGLSRERAGFEVRDVHYTHYGRLCPIETPEGPNIGLISSLSVFAKVNSMGFLETPYRKVVDGKVDVKEHIYLSAEEEEGMKIAQANIPLKDDGTIDREKVIARDEGDFPVVDPVEINYTDVAPNQIASISASLIPFLEHDDANRALMGSNMMRQAVPLLRPESPIVGTGLERQVATDSRVLINAEGDGVVEYVDAQKITIKYDRTEEERLVSFEEDSKTYELVKFRKTNQGTSINLKPIVRKGDKVKKGQVLCEGYATEKGELALGRNMKVAFMPWKGYNFEDAIVISEKVVREDIFTSVHIDEYALEVRDTKLGAEELTNDIPNVSEEATRDLDEYGMIRIGAEVKPGDILIGKITPKGESDPTPEEKLLRAIFGDKAGDVKDASLKASPSLRGVVIDKKLFSRSIKDKRKRSEDKEAISRLEMDYEVKFQQLKDVLIEKLFGLVNGKTSQGVINDLGEEVLPKGKKYTIKMLNAVDDFAHLVGGSWTTDEDTNALVADLLHNYKIKLNDIQGNLRRDKFTISVGDELPAGIMKLAKVYIAKKRKLKVGDKMAGRHGNKGIVARIVRQEDMPFLEDGTPVDIVLNPLGVPSRMNIGQIYETVLGWAGLKLGQKYGTPIFDGATLDDINELTDKAGVPRFGHTYLYDGGTGQRFDQAATVGVIYMLKLGHMVDDKMHARSIGPYSLITQQPLGGKAQFGGQRFGEMEVWALEAYGASATLREILTVKSDDVIGRAKTYESIVKGETMPEPGLPESFNVLMHELKGLGLDIRLEE

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 5 polymer

描述 description	;DNA-directed RNA polymerase subunit beta' ;
分子量 formula_weight	160063.4 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MARIKDNNAPKRFNKISIGLASPESILAESRGEVLKPETINYRTHKPERDGLFCERIFGPVKDYECACGKYKRIRYRGIVCDRCGVEVTEKKVRRDRVGHINLVVPVAHIWYFRSLPNKIGYLLGLPSKKLDMIIYYERYVVIQPGIAKGPEGEEIHKLDFLTEEEYLNILESLPSENQYLEENDPNKFIAKMGAECLIDLLARIDLEQLSYELRHKANTETSKQRKTEALKRLQVVEALRESQDNRENNPEWMIMKVIPVIPPELRPLVPLDGGRFATSDLNDLYRRVIIRNNRLKRLMEIKAPEVILRNEKRMLQEAVDSLFDNTRKASAVKTESNRPLKSLSDSLKGKQGRFRQNLLGKRVDYSARSVIVVGPEMKLYECGLPKDMAAELYKPFIIRKLIERGIVKTVKSAKKIIDKKEPVVWDILENVLKGHPVLLNRAPTLHRLGIQAFQPKLIEGKAIRLHPLACTAFNADFDGDQMAVHLPLGPEAILEAQLLMLASQNILNPANGSPITVPSQDMVLGLYYMTKEKRSTPEEPVIGEGLTFYSSEEVEIAFNERKVALNAIIKVRTKDFNEAGELVNKIIETTVGRVLFNTVVPEQAGYINTVLNKKSLRNIIGDILAVTDVPTTADFLDKIKTMGYEFAFKGGLSFSLGDIIIPKEKHEMIAEANEQVDGIMMNYNMGLITFNERYNQVIDVWTSTNAMLTELAMKRIREDKQGFNSVYMMLDSGARGSKEQIRQLTGMRGLMAKPKKSTAGGGEIIENPILSNFKEGLSILEYFISTHGARKGLADTALKTADAGYLTRRLVDVSQDVIINTEDCGTLRGIEVEALKKNEEVVETLGERILGRVSLHDVYNPLTEELILKAGQEISEADVKKVEAAPIEKVEVRSPLTCEAAQGICAKCYGRNLATNKMVQRGEAVGVVAAQSIGEPGTQLTLRTFHVGGIAGNISEDSKLEAKFDGIAEIEDLRVVEGVDNGGGKSDIVISRTSEIKIVDAKTGITLSTNNIPYGSQLFVKNGEKITKGTVICQWDPYNGVIVSEFTGQIAYENIEQGMTYQVEIDEQTGFQEKVISESRNKRLIPTLLIKDGKGETIRSYNLPVGSHLMVDNGEKIKEGKILVKIPRKSAKAGDITGGLPRVTELFEARNPSNPAVVTEIDGVVSFGKIKRGNREIIIESKAGEVKKYLVKLSNQILVQENDYVRAGMALSDGSITPEDILAIKGPSAVQQYLVNEVQEVYRLQGVKINDKHFEVVVRQMMRKVQIQDSGDTTFLENQLVHKDDFINENDEIFGKKVVEDAGDSERLKPGQIVTARQLRDENSILRREDKTLVTARDAVAATATPILQGITRASLQTKSFISAASFQETTKVLNEAAVNGKVDTLEGLKENVIVGHKIPAGTGMRDYDSIIVGSKEEYDEIMARKEEFKF

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 6 polymer

描述 description	RNA polymerase Rpb6
分子量 formula_weight	12565.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MQDLKNTKAPVSTATLNRNEFDSKTGNIYEAISIASKRAVQINSDIKKELLEKLEEFATYSDSLEEVFENKEQIEVSKFYEKLPKPHALAVQEWLEDKIYYRNTEKDA

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 7 polymer

描述 description	DNA non-template strand
分子量 formula_weight	30316.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	a

CTAGCGTTGTGGGATACCCGTTACACTAATTTTTCGGTTCACGATATCCTTTAGTCCCACAACTAACGACTACACTTTTTGGGTGACCGACCCAACACG

Entity 8 polymer

描述 description	DNA template strand
分子量 formula_weight	30761.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	b

CGTGTTGGGTCGGTCACCCAAAAAGTGTAGTCGTTAGTTGTGGGACTAAAGGATATCGTGAACCGAAAAATTAGTGTAACGGGTATCCCACAACGCTAG

Entity 9 polymer

描述 description	gRNA (85-MER)
分子量 formula_weight	29922.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	c

AUUUUGAGGGUGCUUGUACACCCAUAGGGUGAGGUUAAGAAUUACACUCACUAAGUGUGAACAACACAUACAACUUGUGGGAUAUACGCUAAC

来源 Source

来源生物 organism	Flagellimonas taeanensis
NCBI 分类编号 ncbi_taxonomy_id	1005926
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 10 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 11 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.880 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.88 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	54193

fit	/app/data/saxs_computation/n9/9n9q/9n9q.fit
pddf	/app/data/pr_computation/n9/9n9q/9n9q.pr.out
profile	/app/data/saxs_computation/n9/9n9q/9n9q.dat
