9ncv

Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors

Method: X-RAY DIFFRACTION D_max: 107.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

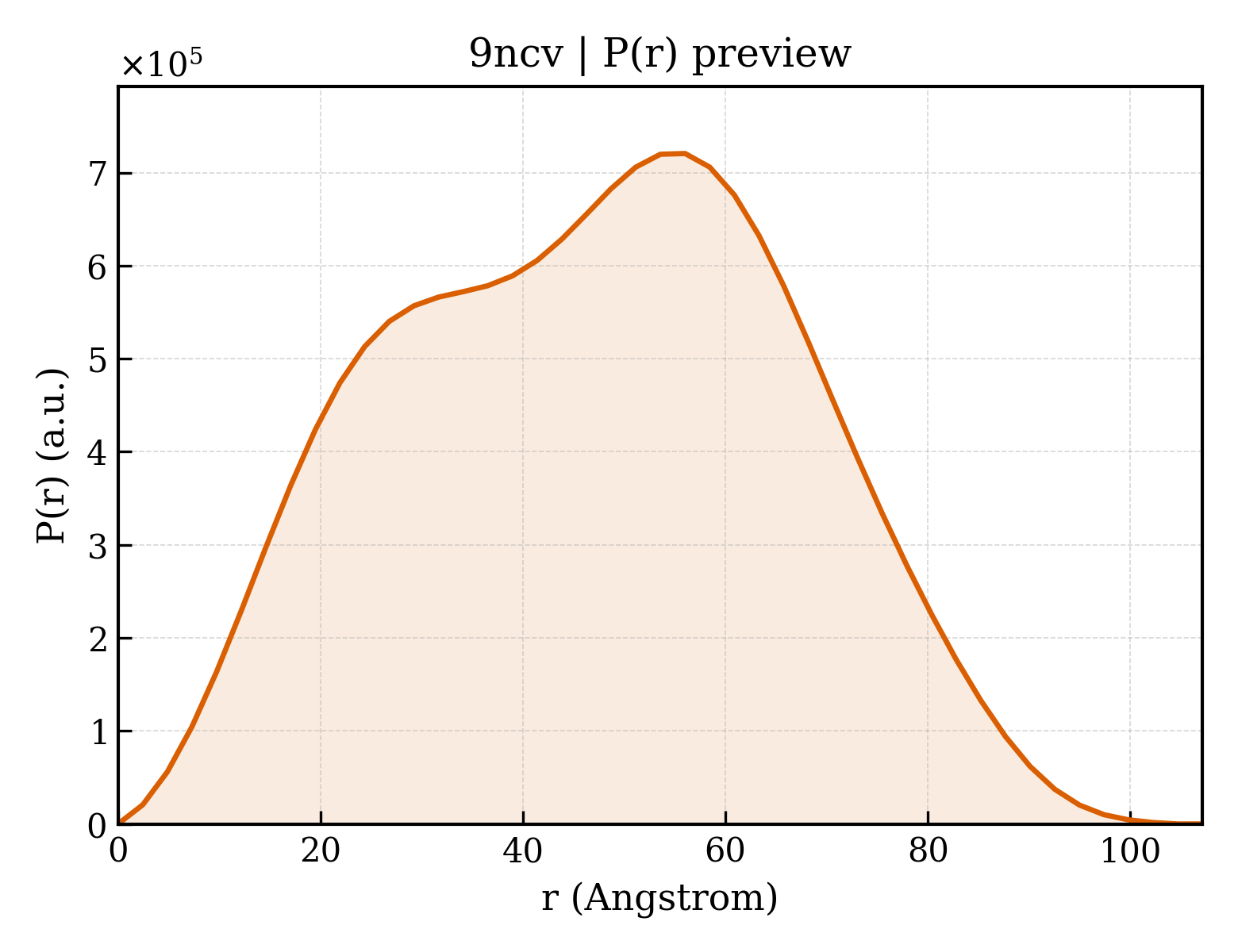

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ncv
沉积日期 deposition_date	2025-02-17
结构标题 title	Crystal Structure of WDR5 in complex with Triazole-Based Inhibitors
关键词 keywords	WDR5, Inhibitor, STRUCTURAL PROTEIN, STRUCTURAL PROTEIN-INHIBITOR complex; STRUCTURAL PROTEIN/INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.29 Å
回转半径 Rg (电子) rg_electron	35.70 Å
零角强度 I(0) i0	492755000.00
分子量 molecular_weight	121480.0 kDa
排除体积 excluded_volume	118020 Å³
包络体积 envelope_volume	199800 Å³
水化壳体积 shell_volume	45864 Å³
包络直径 envelope_diameter	109.5 Å
壳层 Rg shell_rg	42.88 Å
包络 Rg envelope_rg	34.76 Å
形状 Rg shape_rg	35.68 Å
总 Rg total_rg	36.07 Å
总原子数 total_atoms	9206
残基数 n_residues	1184
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	107.1 Å
Rg (实空间) rg_real	36.09 Å
Rg 误差 (实空间) rg_real_error	0.60 Å
I(0) (实空间) i0_real	4.9280e+08
I(0) 误差 (实空间) i0_real_error	7.5950e+06
Rg (倒空间) rg_reciprocal	36.21 Å
I(0) (倒空间) i0_reciprocal	492800000.0000
解质量估计 total_estimate	0.8957
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	56.0 Å
偏度 Skewness skewness	-0.001
峰度 Kurtosis kurtosis	-0.755
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	122100000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.953; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.780

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	WD repeat-containing protein 5
分子量 formula_weight	47074.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	10456

MGSSHHHHHHGSSMSDSEVNQEAKPEVKPEVKPETHINLKVSDGSSEIFFKIKKTTPLRRLMEAFAKRQGKEMDSLRFLYDGIRIQADQTPEDLDMEDNDIIEAHREQIGGSATQSKPTPVKPNYALKFTLAGHTKAVSSVKFSPNGEWLASSSADKLIKIWGAYDGKFEKTISGHKLGISDVAWSSDSNLLVSASDDKTLKIWDVSSGKCLKTLKGHSNYVFCCNFNPQSNLIVSGSFDESVRIWDVKTGKCLKTLPAHSDPVSAVHFNRDGSLIVSSSYDGLCRIWDTASGQCLKTLIDDDNPPVSFVKFSPNGKYILAATLDNTLKLWDYSKGKCLKTYTGHKNEKYCIFANFSVTGGKWIVSGSEDNLVYIWNLQTKEIVQKLQGHTDVVISTACHPTENIIASAALENDKTIKLWKSDC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;(6P)-6-[1-ethyl-3-(trifluoromethyl)-1H-pyrazol-4-yl]-3-[(4-fluoro-3-methylphenyl)methyl]-8-[(2-methyl-1H-imidazol-1-yl)methyl]-4,5-dihydro-3H-naphtho[1,2-d][1,2,3]triazole ;
分子量 formula_weight	549.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1229

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	46.768 Å
晶胞边长 b length_b	68.834 Å
晶胞边长 c length_c	94.382 Å
晶胞夹角 α angle_alpha	89.40 °
晶胞夹角 β angle_beta	76.65 °
晶胞夹角 γ angle_gamma	89.97 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	1.580 Å
最低分辨率 resolution_low	45.500 Å
R 因子 r_factor	0.2544
R_work r_work	0.2527
R_free r_free	0.2871
