9ndy

Composite baseplate asymmetric unit of JohannRWettstein (Bas63)

Method: ELECTRON MICROSCOPY D_max: 219.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

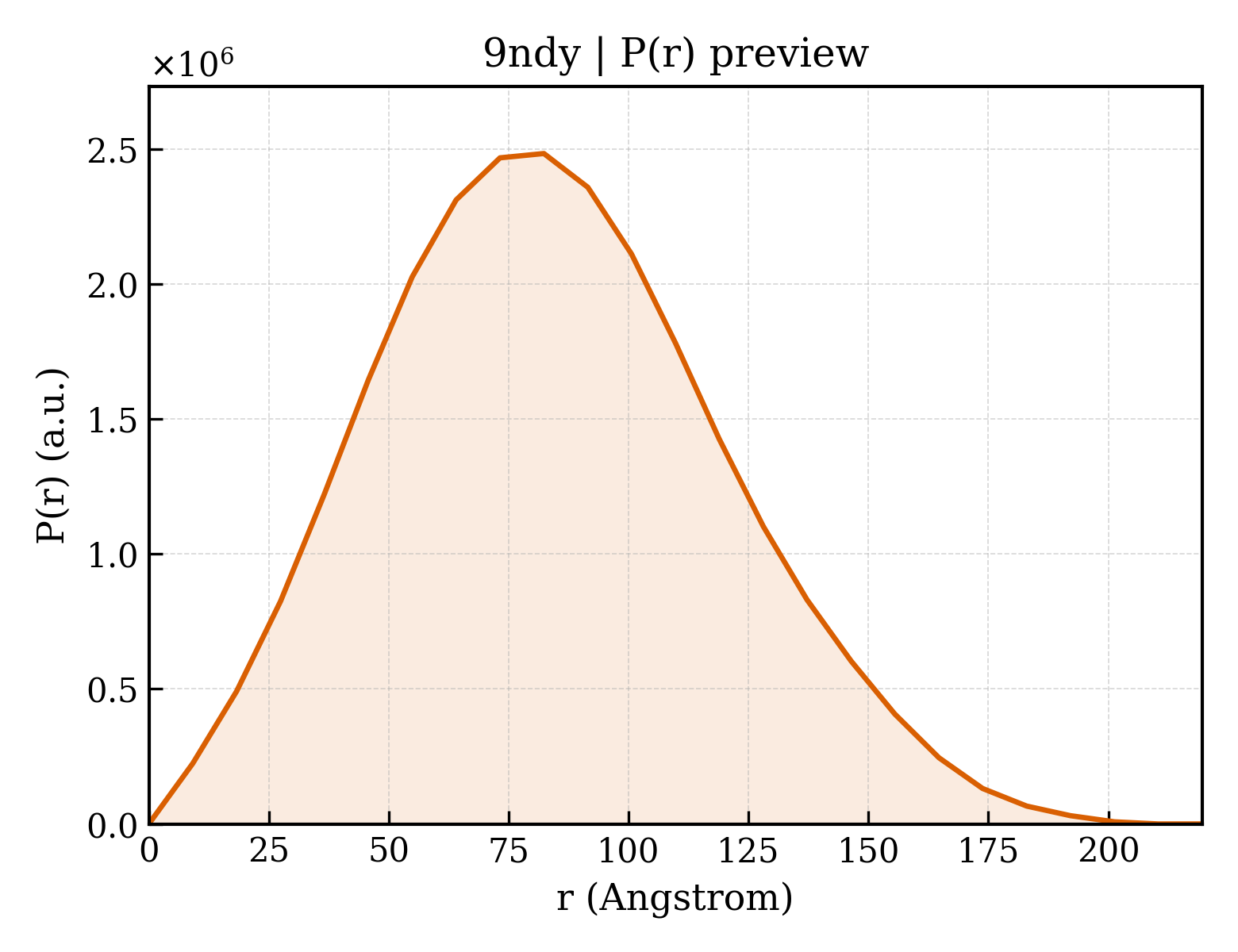

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ndy
沉积日期 deposition_date	2025-02-18
结构标题 title	Composite baseplate asymmetric unit of JohannRWettstein (Bas63)
关键词 keywords	;baseplate, wedge, hub, puncture apparatus, sheath initiator, tube initiator, tape measure protein, LTF-platform, spacer, phage, bacteriophage, VIRAL PROTEIN ;; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	64.50 Å
回转半径 Rg (电子) rg_electron	62.62 Å
零角强度 I(0) i0	2851700000.00
分子量 molecular_weight	427680.0 kDa
排除体积 excluded_volume	526230 Å³
包络体积 envelope_volume	1001000 Å³
水化壳体积 shell_volume	133160 Å³
包络直径 envelope_diameter	222.1 Å
壳层 Rg shell_rg	64.71 Å
包络 Rg envelope_rg	61.53 Å
形状 Rg shape_rg	62.76 Å
总 Rg total_rg	62.21 Å
总原子数 total_atoms	30166
残基数 n_residues	4160
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	219.6 Å
Rg (实空间) rg_real	64.31 Å
Rg 误差 (实空间) rg_real_error	1.91 Å
I(0) (实空间) i0_real	2.8520e+09
I(0) 误差 (实空间) i0_real_error	6.0690e+07
Rg (倒空间) rg_reciprocal	64.63 Å
I(0) (倒空间) i0_reciprocal	2853000000.0000
解质量估计 total_estimate	0.8592
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	82.3 Å
偏度 Skewness skewness	0.270
峰度 Kurtosis kurtosis	-0.298
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0003
最高正则化参数 α highest_alpha	245000000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.810; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.765

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Tube initiator protein (gp018)
分子量 formula_weight	28593.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	30166

MLWDSNMQIKYSGKDGIYFHLRDNVDAFLTLSATENMEFDSPMQVTTQNMQSGQTVTDNVQRAPRTITISGVVVVGYEGSLLLTRQGQLVENFIDTLESWRDQKQIISVICKDGIKIDDSIITSFKASKDVGISNGLRVQLTFQEINFKAIVGQTDVSAATGKTATTNDGGATSKKNTGNTTTSLGNGKLNCQLLFDLDANGVRELTSAEDNALAKCSMSAKTRKGVTTFSDEAERNAGAALNSTAGNGKALQKHSVNPNKKGTY

Entity 2 polymer

描述 description	Sheath initiator (gp022)
分子量 formula_weight	15632.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MKTDFALNLGGDYVATLGSDSVYVAHGDLKITGNQIRIIPEDDKATQVAQRLHIRCLLRSGEVFFNTSAGFPYLQLAKFKQKTSIFDNYMKAYLVETRDVSNIYNYSSSMDNAQRKVTVNFDATTTTDILTDITQEVNI

Entity 3 polymer

描述 description	Hub protein (gp020)
分子量 formula_weight	37204.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSVKDSTAGASFRCYQLAVGSETTAFNDKPTSHAKDSMQMDYFDNLQFTCNVSYTSQKNKVTSDDTTFEIYNLNKEMRAKFKTVGATVMLRAGYTTGFKRDANGDLIIEYDNLPLIYLGTIEYAYTYKRGVDMITKVICSNDKMERTTIKTSISYKAGTTRKNVIRDLVNRLGFSLIDEDLSSIDGYTYKNGFSVWGSVAEALTKVCEESSLRWYTFNKQIRVVPFNAKARQLSWEIYPYNVIDSLQGYYRRTRKVLKKENKTVIKVKTGVRCKIHLDGRIKMGDNVTIRESEDFEGQYRVKGLSHNLDFTGGAWTTELDLEKVE

Entity 4 polymer

描述 description	Tape measure protein (gp017)
分子量 formula_weight	80340.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MAQYTVDSFIVELGFSEKVVKGLQRVEKMSMQAAQRIERNINKAFDVKPNKSSQEALNRIVKNAQSASGRINKALNSSLNLDSQGVKSLKKLETQAKKTAKGINKSLRDAMKVDGKITIKTGRGRGGQSIPPVGGGAPRGPRVDVAQRQMERMFNNNFYSGLTRRLETIGGQGNQMAASFRGSLQGIYNKYKGTGKVGEYEMEVKKLIDVTKRWVIAENARLKSVKEAAWLQDRANSSLRQLVGGFVSAYALLELSQKTIEAGVKRQSAQLASTAIFGADTQQARMFAASFAHQIGQNYTDTMKQYSNFAAGAQPTLGFQGTQEFYKNAAMFARIRGATDEDLKGIMVAFQQMASKGKVQAEELRGQLGDRLAGAVQLFADAIGKTPQELDKMMQDGKLLAQDVLPKVSERMAELVKQAGGMNAVSKQTATSMGQAKAMWDNTLVALFNNSSEGISQLSNSVAMFLQGSLGSTQALGVVIGNLLKGASNLLDFVTDFMYRTSALYYYARAWYKDLDNSQQKLIKSAGEFLGTVVTIGGVVAVVSKAVKLLSGLVGGGIFGKILQRLGVSAAGTAAAGEAAAAAGGVTATRMALGTVGSALMLRGSTDPNAAKNYSEVTLPKPFENAVANITNPKRPMFFDENGQLQFAQYTQDVEGNRKLIDNGLSNWEIIMDKLSTSIDNFANKFNQTPMMMTPSGLPMQTKQTLNVTFNLDGKQIATKMVDITDKNQEDILLSSSYPEEE

Entity 5 polymer

描述 description	Puncture apparatus (gp021)
分子量 formula_weight	23186.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MKSPVTRMSGYVSECLDEFRKELYTGLPAIIQSFDSKTQTATVKPLYSINGLPMPEITGVPVQFPSGGGASLTFPVKTNDRCWLAFSMLPLDDFVVNDKNTQMETNMRRTHDISDCVAFVGICTRTQNFKPDPTAVRLHFGDSVLRVTDDGNFYFEGDVHISKNLYVKEEVHGSDFISDTTGVSFNEHTHHYYWTDPAGEADTTEAQ

Entity 6 polymer

描述 description	Wedge protein 2 (gp023)
分子量 formula_weight	53140.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I,K,L

MAGLTTTGLQTLRYQEIFDNIKSRLLRDISPNLDVSEDSQLGLFLASIARSLADTHEVLSEIYDGGTIDKAEGFNLDDITALNAVYRYVAQATRGQVEFTGTTGATIPSTTRLRSTAGNIFYPVSGITLTPSYCVEAVLEVNSLRTDANYVIIIDNVIFSYQPKSSDTITVLLTELADAINGGIVAKAEVINDGSALRVYKDEGDIIARTNPMVVTATTFLTFTKITTIHDVVAEEVGAIPALAGTLIEIETTVDGLDSVYNRYDLTTGRNEETDTELRQRYLESLAVTGVGTLDAIVAAVKRVQGVSDASGVENDTEETSSEGLPPKSFKIVVVGGQNDNVAQAIWDTKPAGIRAYGAIFGTAYDLGNLAHNVYFSRPTPKYAFVKVSYSLYDEESLTIPEEDIRDSIVQGINAYGRTLKVGNDVIPNRIYGYIYDVIKGVEINEIKVALSNNQSVPPSDGQYTTARITVDGDQYTVWESSQYTIAKE

Entity 7 polymer

描述 description	Wedge protein 1 (gp024)
分子量 formula_weight	31622.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,M

MFQKIDNVYYKTLDERTVTQFKDKFIYTSLLKAVTDELQTLEDVSWQMHTERNIRKAVGQQLDNIGSLIKVPRPLGADDETYRAMLYIQIFLRRSDTTPTFLQNAIMTLYNATFSQIFEHITPMTAGIVVRVNTRNNVIDTAYTLAKIAATTIGSAVILRDVTLNGTAWTPVEVADSALAIVDDKDNWFVTDANKGLVTNNTGGSLEKNLLGSLADAGVRDAYFKVDRTANSGSVDYLKVNKNYNATDNYIVGKETVAGGDYGVMAEVAQIIKGRKDKSQQEGSS

Entity 8 polymer

描述 description	Spacer protein (gp019)
分子量 formula_weight	13209.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,O

MSQYIPVPDTEWSTQTVTLDGTVFVIELKYKERLDRWFLTLSDVDGNVLLSEKKCLADQSITGRYVIPSLAGELFVERMYGTDLQPTRNNFGREKAFELNYYTQEDMRLMENL

Entity 9 polymer

描述 description	LTF platform protein (gp025)
分子量 formula_weight	11093.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S,T,U,P,Q,R

MAFLNWSTDEVDADGNQLKVLPPPEIQATGLLRGEPMGRQWFNYILNYLLKKANGTVGEVRSFATEQPDLVANGWNLIKTETGTASTSTKNLYTYEFVGA

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.83 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	14390

fit	/app/data/saxs_computation/nd/9ndy/9ndy.fit
pddf	/app/data/pr_computation/nd/9ndy/9ndy.pr.out
profile	/app/data/saxs_computation/nd/9ndy/9ndy.dat
