9ngs
ELIC with propylamine facing ECD inwards in liposomes with 2:1:1 POPC:POPE:POPG

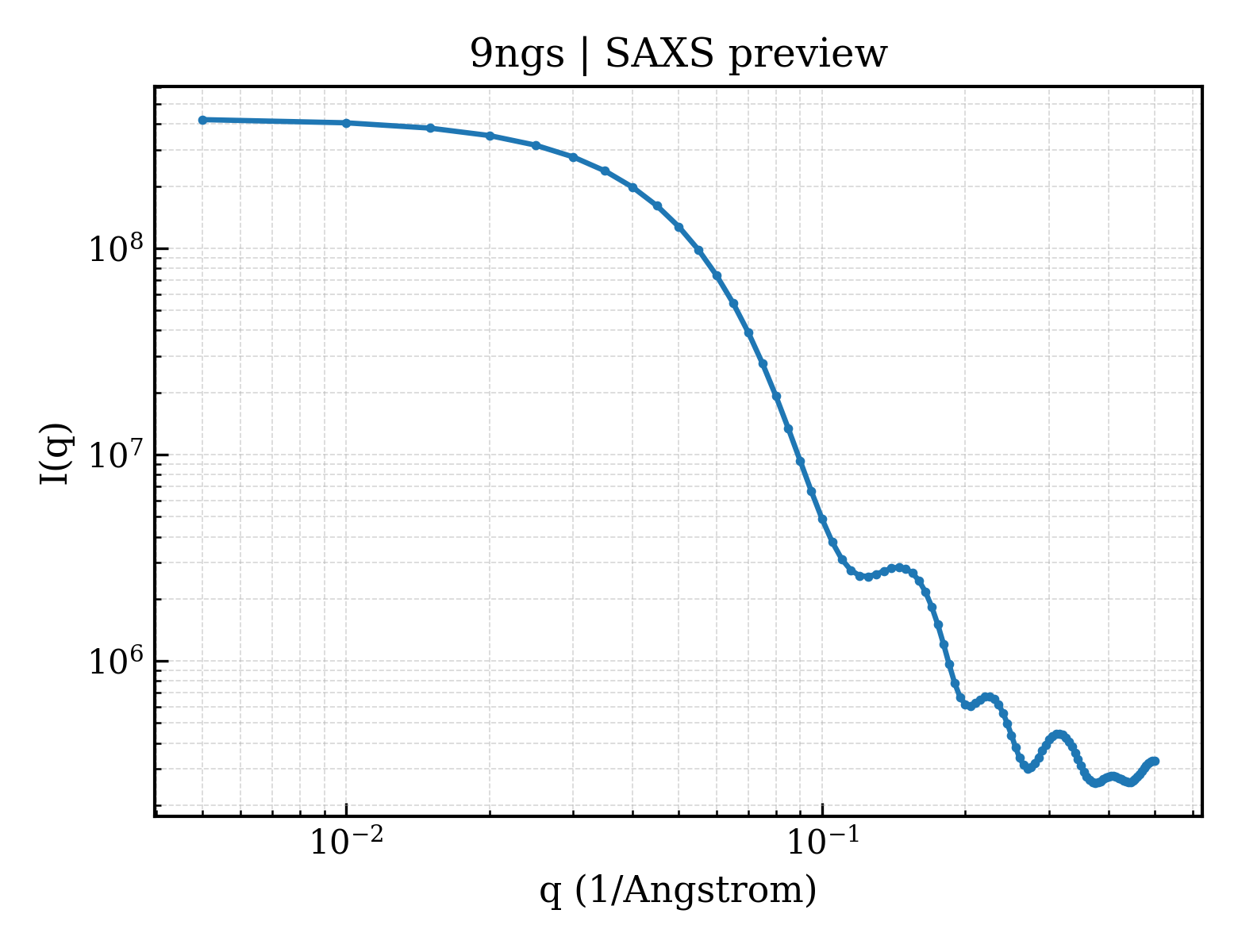

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 9ngs |
| 沉积日期 deposition_date | 2025-02-22 |
| 结构标题 title | ELIC with propylamine facing ECD inwards in liposomes with 2:1:1 POPC:POPE:POPG |
| 关键词 keywords | ELIC, ion channel, pLGIC, Structural Protein, Membrane Protein, TRANSPORT PROTEIN; MEMBRANE PROTEIN |
| 实验方法 method | ELECTRON MICROSCOPY |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 37.70 Å |
| 回转半径 Rg (电子) rg_electron | 36.74 Å |
| 零角强度 I(0) i0 | 424485000.00 |
| 分子量 molecular_weight | 177050.0 kDa |
| 排除体积 excluded_volume | 225330 ų |
| 包络体积 envelope_volume | 297290 ų |
| 水化壳体积 shell_volume | 65584 ų |
| 包络直径 envelope_diameter | 123.9 Å |
| 壳层 Rg shell_rg | 44.46 Å |
| 包络 Rg envelope_rg | 36.39 Å |
| 形状 Rg shape_rg | 36.71 Å |
| 总 Rg total_rg | 37.38 Å |
| 总原子数 total_atoms | 12549 |
| 残基数 n_residues | 1535 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 121.6 Å |
| Rg (实空间) rg_real | 37.57 Å |
| Rg 误差 (实空间) rg_real_error | 1.08 Å |
| I(0) (实空间) i0_real | 4.2450e+08 |
| I(0) 误差 (实空间) i0_real_error | 6.9440e+06 |
| Rg (倒空间) rg_reciprocal | 37.65 Å |
| I(0) (倒空间) i0_reciprocal | 424500000.0000 |
| 解质量估计 total_estimate | 0.8835 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 46.3 Å |
| 偏度 Skewness skewness | 0.280 |
| 峰度 Kurtosis kurtosis | -0.359 |
| 角度范围 angular_range | — – 0.2100 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 130800000.0000 |
| 实空间数据点数 n_real_points | 43 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.859; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.917 |
