9ngz

Cryo-EM structure of Serendipita indica sulfate transporter SiSulT in Apo state

Method: ELECTRON MICROSCOPY D_max: 116.8 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

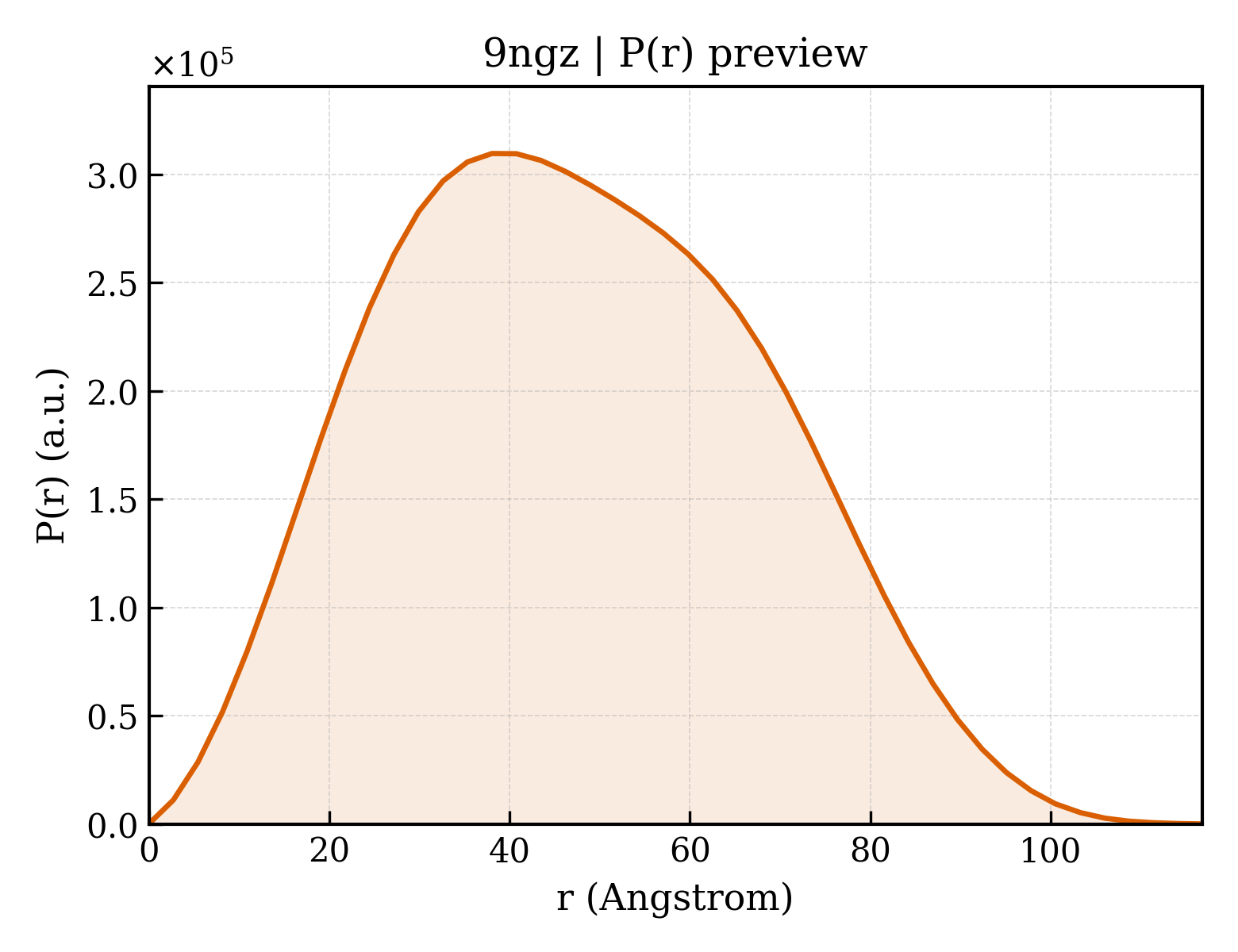

P(r) distribution for 9ngz

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ngz
沉积日期 deposition_date	2025-02-23
结构标题 title	Cryo-EM structure of Serendipita indica sulfate transporter SiSulT in Apo state
关键词 keywords	Transporter, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.55 Å
回转半径 Rg (电子) rg_electron	35.92 Å
零角强度 I(0) i0	225015000.00
分子量 molecular_weight	132520.0 kDa
排除体积 excluded_volume	170580 Å³
包络体积 envelope_volume	217930 Å³
水化壳体积 shell_volume	49835 Å³
包络直径 envelope_diameter	120.6 Å
壳层 Rg shell_rg	42.80 Å
包络 Rg envelope_rg	35.81 Å
形状 Rg shape_rg	35.95 Å
总 Rg total_rg	36.33 Å
总原子数 total_atoms	19024
残基数 n_residues	1218
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	116.8 Å
Rg (实空间) rg_real	36.46 Å
Rg 误差 (实空间) rg_real_error	0.75 Å
I(0) (实空间) i0_real	2.2500e+08
I(0) 误差 (实空间) i0_real_error	3.2710e+06
Rg (倒空间) rg_reciprocal	36.52 Å
I(0) (倒空间) i0_reciprocal	225000000.0000
解质量估计 total_estimate	0.7087
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	38.0 Å
偏度 Skewness skewness	0.192
峰度 Kurtosis kurtosis	-0.629
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	38520000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.938; Stabil: 1.000; Sysdev: 0.159; Positv: 1.000; Valcen: 0.995; Smooth: 0.924

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▶

7. 引用文献 (1)

▶

8. 文件与曲线 (10)
