9nim

Structure of a K1305A mutant of the acyltransferase domain of NcdE, a multi-domain NRPS protein from nocardichelin biosynthesis

Method: X-RAY DIFFRACTION D_max: 52.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nim
沉积日期 deposition_date	2025-02-26
最后修订 last_revision	2025-07-09
结构标题 title	Structure of a K1305A mutant of the acyltransferase domain of NcdE, a multi-domain NRPS protein from nocardichelin biosynthesis
关键词 keywords	acyltransferase, GNAT, siderophore biosynthesis, NRPS independent siderophores, NcdE-ATx, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	17.01 Å
回转半径 Rg (电子) rg_electron	15.70 Å
零角强度 I(0) i0	8752190.00
分子量 molecular_weight	21029.0 kDa
排除体积 excluded_volume	26012 Å³
包络体积 envelope_volume	29720 Å³
水化壳体积 shell_volume	15711 Å³
包络直径 envelope_diameter	51.0 Å
壳层 Rg shell_rg	21.83 Å
包络 Rg envelope_rg	15.87 Å
形状 Rg shape_rg	15.71 Å
总 Rg total_rg	16.72 Å
总原子数 total_atoms	2908
残基数 n_residues	186
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

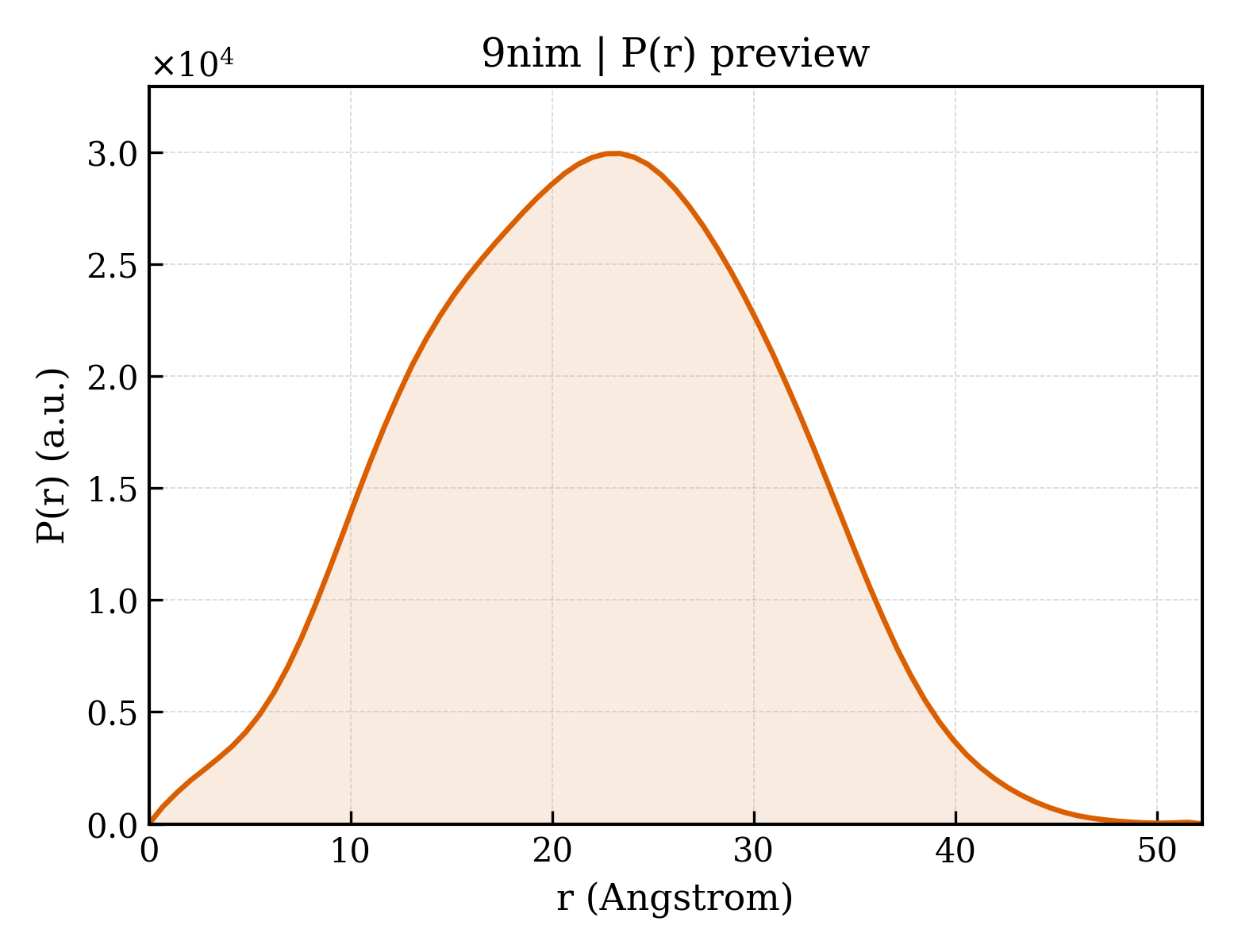

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	52.2 Å
Rg (实空间) rg_real	16.86 Å
Rg 误差 (实空间) rg_real_error	0.25 Å
I(0) (实空间) i0_real	8.7520e+06
I(0) 误差 (实空间) i0_real_error	9.3340e+04
Rg (倒空间) rg_reciprocal	16.88 Å
I(0) (倒空间) i0_reciprocal	8752000.0000
解质量估计 total_estimate	0.8937
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	23.4 Å
偏度 Skewness skewness	0.031
峰度 Kurtosis kurtosis	-0.477
角度范围 angular_range	— – 0.4700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	2883000.0000
实空间数据点数 n_real_points	77
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.881; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.992

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	NcdE
分子量 formula_weight	22440.1 kDa
EC 编号 ec_number	2.3.1.-
突变 mutation	K1305A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3133

GHMAEVGNGATTYHFQSRRIDVDRDLESVHRWLGHPKSHYWDMLNSSLADVEKLIRDAGADPDPRFGMRIGYFEGERQFLFELYNPLTSDLARPGTGYVYETGDIGMHLLVSSSERRLPGFTGAVMLHIMRTAFFEAGARRVVVEPDVRNADVQRLNAAVGFRVAGDFPVPGATARLSYCTREDFARATDNGRTLAGEVES

来源 Source

来源生物 organism	Nocardia carnea
NCBI 分类编号 ncbi_taxonomy_id	1206726
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
分子量 formula_weight	238.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	169

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	33.689 Å
晶胞边长 b length_b	69.820 Å
晶胞边长 c length_c	38.140 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	96.51 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	monoclinic

分辨率 resolution	1.440 Å
最低分辨率 resolution_low	34.910 Å
R 因子 r_factor	0.1652
R_work r_work	0.1638
R_free r_free	0.1916
