9niq

Structure of Candida albicans trehalose-6-phosphate synthase in complex with 4456

Method: X-RAY DIFFRACTION D_max: 79.1 Å Quality: GOOD

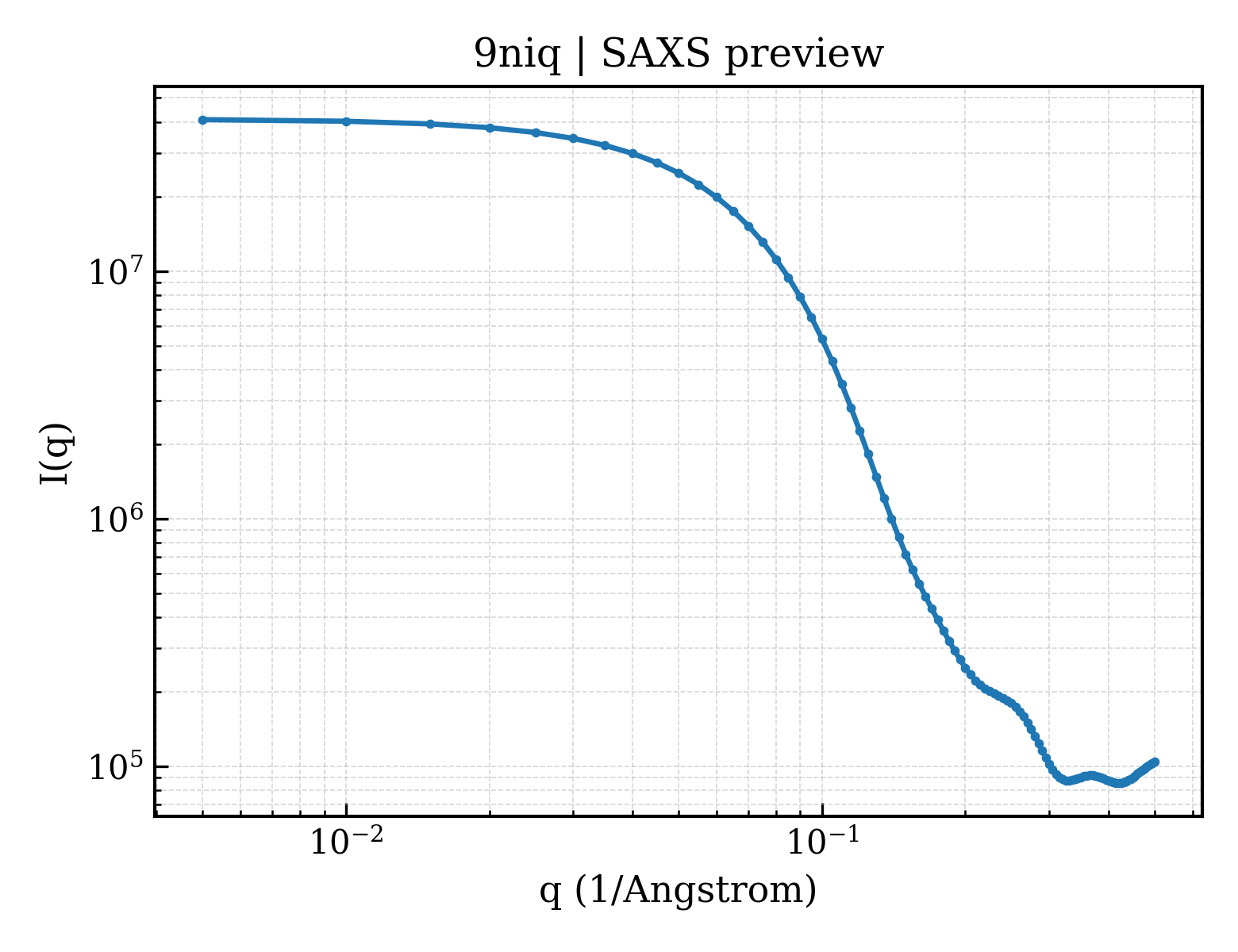

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9niq
沉积日期 deposition_date	2025-02-26
结构标题 title	Structure of Candida albicans trehalose-6-phosphate synthase in complex with 4456
关键词 keywords	inhibitor, complex, transferase, trehalose, fungal, thermotolerance; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.47 Å
回转半径 Rg (电子) rg_electron	23.28 Å
零角强度 I(0) i0	41069600.00
分子量 molecular_weight	51517.0 kDa
排除体积 excluded_volume	65280 Å³
包络体积 envelope_volume	77883 Å³
水化壳体积 shell_volume	27679 Å³
包络直径 envelope_diameter	81.6 Å
壳层 Rg shell_rg	30.56 Å
包络 Rg envelope_rg	23.39 Å
形状 Rg shape_rg	23.28 Å
总 Rg total_rg	24.15 Å
总原子数 total_atoms	7232
残基数 n_residues	456
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	79.1 Å
Rg (实空间) rg_real	24.38 Å
Rg 误差 (实空间) rg_real_error	0.39 Å
I(0) (实空间) i0_real	4.1070e+07
I(0) 误差 (实空间) i0_real_error	5.1350e+05
Rg (倒空间) rg_reciprocal	24.40 Å
I(0) (倒空间) i0_reciprocal	41070000.0000
解质量估计 total_estimate	0.8967
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.1 Å
偏度 Skewness skewness	0.250
峰度 Kurtosis kurtosis	-0.413
角度范围 angular_range	— – 0.3250 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	11100000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.998

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Alpha,alpha-trehalose-phosphate synthase [UDP-forming]
分子量 formula_weight	56554.4 kDa
EC 编号 ec_number	2.4.1.15
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	7232

MGSSHHHHHHSSGLVPRGSMVQGKVLVVSNRIPVTIKRLDNGSYDYSMSSGGLVTALQGLKKTTEFQWYGWPGLEIPEDEQTKVNDELKSKFNCTAIFLSDTIADLHYNGFSNSILWPLFHYHPGEMNFDENAWAAYIEANKKFALEIVKQVNDDDMIWVHDYHLMLLPEMLRQEIGNKKKNIKIGFFLHTPFPSSEIYRILPVRKEILEGVLSCDLIGFHTYDYARHFISSVSRIVPNVSTLPNGIKYQGRSISIGAFPIGIDVDNFIDGLKKDSVVERIKQLKSKFKDVKVIVGVDRLDYIKGVPQKLHAFEVFLNENPEWIGKVVLVQVAVPSRGDVEEYQSLRSTVSELVGRINGEFGTVEFVPIHYLHKSIPFDELISLYNISDVCLVSSTRDGMNLVSYEYIACQQDRKGVLILSEFAGAAQSLNGALIVNPWNTEDLSEAIKESLTLPEEKREFNFKKLFTYISKYTSGFWGESFVKELYKCNPQKSLRD

来源 Source

来源生物 organism	Candida albicans SC5314
NCBI 分类编号 ncbi_taxonomy_id	237561
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	N-[(4M)-4-(1-methyl-1H-pyrazol-4-yl)-1,3-thiazol-2-yl]-2-(pyridin-2-yl)acetamide
分子量 formula_weight	299.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	117.553 Å
晶胞边长 b length_b	117.553 Å
晶胞边长 c length_c	134.011 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 64 2 2
空间群编号 int_tables_number	181
晶系 crystal_system	—

分辨率 resolution	3.350 Å
最低分辨率 resolution_low	58.780 Å
R 因子 r_factor	0.2541
R_work r_work	0.2503
R_free r_free	0.2893

fit	/app/data/saxs_computation/ni/9niq/9niq.fit
pddf	/app/data/pr_computation/ni/9niq/9niq.pr.out
profile	/app/data/saxs_computation/ni/9niq/9niq.dat
