9nmp

Structure of mouse RyR1 with simvastatin (Ca2+/CFF/ATP dataset; open pore)

Method: ELECTRON MICROSCOPY D_max: 272.5 Å Quality: EXCELLENT

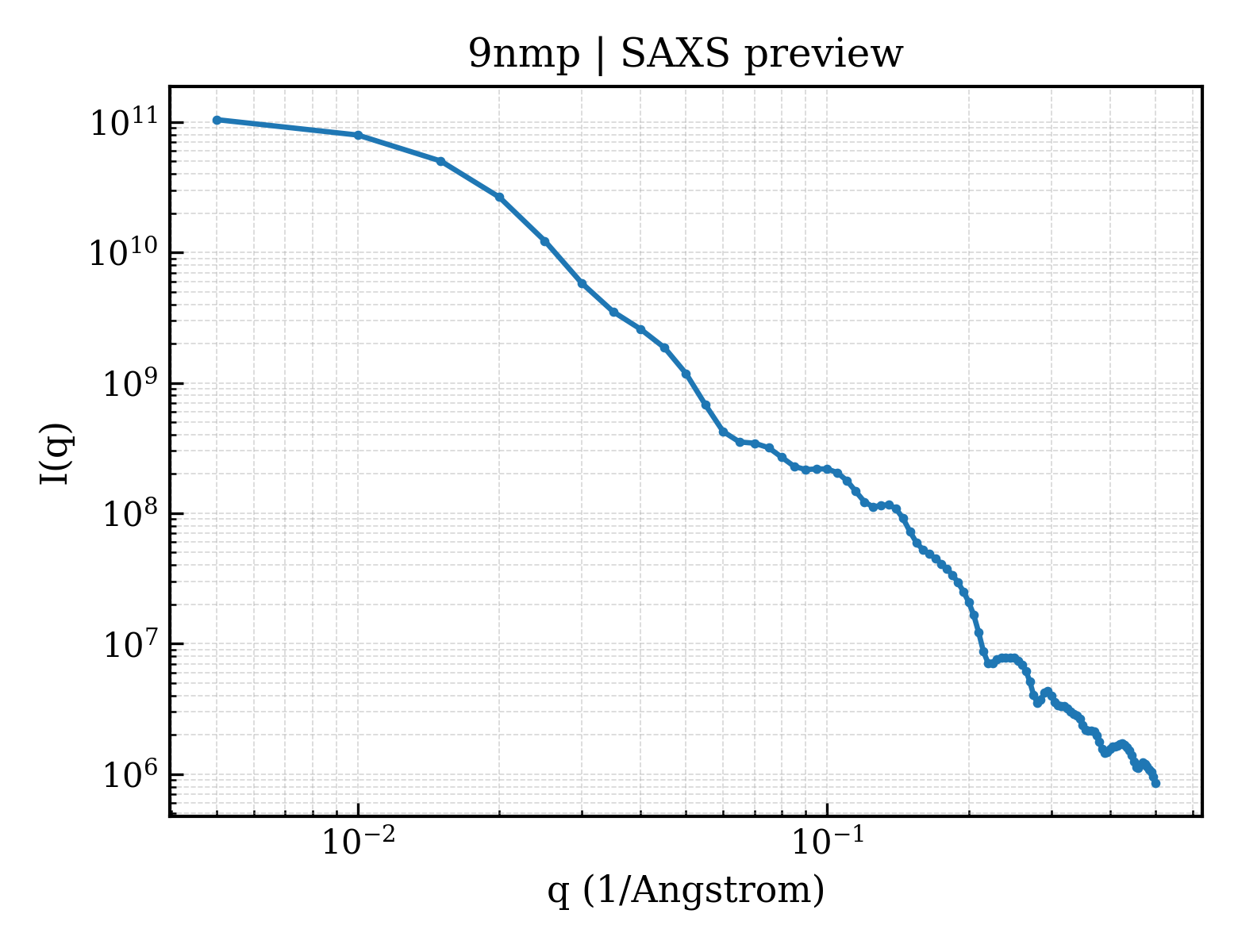

SAXS 散射曲线 SAXS Profile

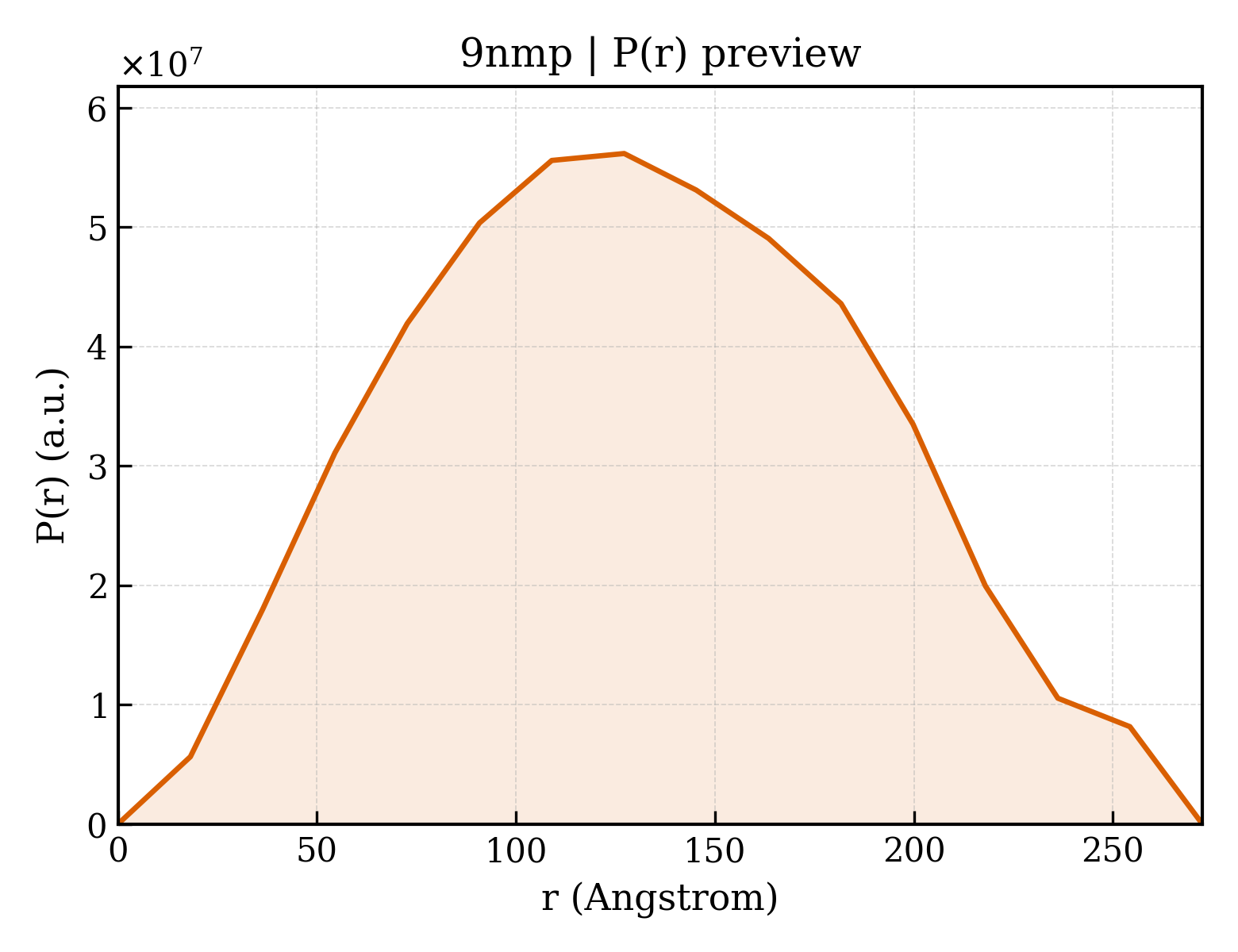

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nmp
沉积日期 deposition_date	2025-03-04
结构标题 title	Structure of mouse RyR1 with simvastatin (Ca2+/CFF/ATP dataset; open pore)
关键词 keywords	Calcium, Ion Channel, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	104.00 Å
零角强度 I(0) i0	113845000000.00
分子量 molecular_weight	1898900.0 kDa
排除体积 excluded_volume	1833900 Å³
包络体积 envelope_volume	4619900 Å³
水化壳体积 shell_volume	365130 Å³
包络直径 envelope_diameter	362.2 Å
壳层 Rg shell_rg	103.40 Å
包络 Rg envelope_rg	99.84 Å
形状 Rg shape_rg	104.00 Å
总 Rg total_rg	103.90 Å
总原子数 total_atoms	143492
残基数 n_residues	17920
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	272.5 Å
Rg (实空间) rg_real	100.30 Å
Rg 误差 (实空间) rg_real_error	0.70 Å
I(0) (实空间) i0_real	1.0880e+11
I(0) 误差 (实空间) i0_real_error	2.1760e+09
Rg (倒空间) rg_reciprocal	104.60 Å
I(0) (倒空间) i0_reciprocal	113900000000.0000
解质量估计 total_estimate	0.9093
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	127.2 Å
偏度 Skewness skewness	0.117
峰度 Kurtosis kurtosis	-0.671
角度范围 angular_range	— – 0.0750 Å⁻¹
当前正则化参数 α current_alpha	0.8635
最高正则化参数 α highest_alpha	5905000000.0000
实空间数据点数 n_real_points	16
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 1.000; Stabil: 0.958; Sysdev: 1.000; Positv: 1.000; Valcen: 0.950; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	Peptidyl-prolyl cis-trans isomerase FKBP1A
分子量 formula_weight	11939.6 kDa
EC 编号 ec_number	5.2.1.8
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H
原子数 atom_count	143492

MGVQVETISPGDGRTFPKRGQTCVVHYTGMLEDGKKFDSSRDRNKPFKFTLGKQEVIRGWEEGVAQMSVGQRAKLIISSDYAYGATGHPGIIPPHATLVFDVELLKLE

Entity 2 polymer

描述 description	Ryanodine receptor 1
分子量 formula_weight	565692.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,A,B,C

MGDGGGEGEDEVQFLRTDDEVVLQCSATVLKEQLKLCLAAEGFGNRLCFLEPTSNAQNVPPDLAICCFILEQSLSVRALQEMLANTVEAGVESSQGGGHRTLLYGHAILLRHAHSRMYLSCLTTSRSMTDKLAFDVGLQEDATGEACWWTMHPASKQRSEGEKVRVGDDLILVSVSSERYLHLSTASGELQVDASFMQTLWNMNPICSGCEEGFVTGGHVLRLFHGHMDECLTISPSDSDDQRRLVYYEGGPVCTHARSLWRLEPLRISWSGSHLRWGQPLRIRHVTTGRYLGLTEDQGLVVVDASKAHTKATSFCFRISKEKLDVAPKRDVEGMGPPEIKYGESLCFVQHVASGLWLTYAAPDPKALRLGVLKKKAMLHQEGHMDDALSLTRCQQEESQAARMIYSTAGLYNQFIKGLDSFSGKPRGSGPPAGSALPIEGVILSLQDLIGYFEPPSEELQHEEKQTKLRSLRNRQSLFQEEGMLSLVLNCIDRLNVYTTAAHFAEFAGEEAAESWKEIVNLLYELLASLIRGNRTNCALFSTNLDWLVSKLDRLEASSGILEVLYCVLIESPEVLNIIQENHIKSIISLLDKHGRNHKVLDVLCSLCVCNGVAVRSNQDLITENLLPGRELLLQTNLINYVTSIRPNIFVGRAEGSTQYGKWYFEVMVDEVAPFLTAQATHLRVGWALSEGYSPYPGGGEGWGGNGVGDDLYSYGFDGLHLWTGHVARPVTSPGQHLLAPEDVVSCCLDLSVPSISFRINGCPVQGVFESFNLDGLFFPVVSFSAGIKVRFLLGGRHGEFKFLPPPGYAPCHEAVLPRERLHLQPIKEYRREGPRGPHLVGPSRCLSHLDFVPCPVDTIQIVLPPHLERIREKLAENIHELWALTRIEQGWTYGPVRDDNKRLHPCLVNFHSLPEPERNYNLQMSGETLKTLLALGCHVGMADEKAEDNLKKTKLPKTYMMSNGYKPAPLDLSHVRLTPAQTTLVDRLAENGHNVWARDRVAQGWSYSAVQDIPARRNPRLVPYRLLDEATKRSNRDSLCQAVRTLLGYGYNIEPPDQEPSQVDSQSRGDRARIFRAEKSYAVQSGRWYFEFEAVTTGEMRVGWARPELRPDVELGADDLAYVFNGHRGQRWHLGSEPFGRPWQSGDVVGCMIDLTENTIIFTLNGEVLMSDSGSETAFRDIEIGDGFLPVCSLGPGQVGHLNLGQDVSSLRFFAICGLQEGFEPFAINMQRPVTTWFSKSLPQFEPVPLEHPHYEVARMDGTVDTPPCLRLTHRTWGSQNSLVEMLFLRLSLPVQFHQHFRCTAGATPLASPGLQPPAEDEARAAEPDTDYENLRRSAGGWGEAEGGKDGTAKEGTPGGTAQAGVEAQPARAENEKDATTEKNKKRGFLFKAKKVAMMTQPPSTPALPRLPRDVVPADNRDDPEIILNTTTYYYSVRVFAGQEPSCVWVGWVTPDYHQHDMSFDLSKVRAVTVTMGDEQGNVHSSLKCSNCYMVWGGDFVSPGQQGRISHTDLVIGCLVDLATGLMTFTANGKESNTFFQVEPNTKLFPAVFVLPTHQNVVQFELGKQKNIMPLSAAMFLSERKNPAPQCPPRLEVQMLMPVSWSRMPNHFLQVDTRRAGERLGWAVQCQEPLMMMALHIPEENRCMDILELSERLDLQRFHSHTLSLYRSVCALGNNRVAHALCSHVDQAQLLHALEDARLPGPLRAGYYDLLISIHLESACRSRRSMLSEYIVPLTPETRAITLFPPGRSAEDGPRRHGLPGVGVTTSLRPPHHFSPPCFVVALPAAGATEAPARLSPAIPLEALRDKALRMLGEAVRDGGQHARDPVGGSVEFQFVPVLKLVSTLLVMGVFSDEDVKQILKMIEPEVFREEEEVEEEGEEEEEDEEEKEEDEEEEAHEKEDEEKEEAEDAAEEEKEELEEGLLQMKLPESVKLQMCHLLEYFCDQELQHRVESLAAFAECYVDKMQGNQRGRYGLLMKAFTMSAAETARRTREFRSPPQEQINMLLHFKNGADEEECPLPEEIRQELVNFHQDLLAHCGIQLEGEEEEPEEESTLGSRLMSLLEKVKLVKKTEEKPEEEPAPEEHKPQSLQELVSHTVVRWAQEDFVQSPELVRAMFSLLHRQYDGLGELLRALPRAYTISVSSVEDTMSLLECLGQIRSLLIVQMGPQEENLMIQSIGNIMNNKVFYQHPNLMRALGMHETVMEVMVNVLGGGESKEIRFPKMVTSCCRFLCYFCRISRQNQRSMFDHLSYLLENSGIGLGMQGSTPLDVAAASVIDNNELALALQEQDLEKVVSYLAGCGLQSCPMLLAKGYPDIGWNPCGGERYLDFLRFAVFVNGESVEENANVVVRLLIRKPECFGPALRGEGGSGLLAAIEEAIRISEDPARDGPGVRRDRRREHFGEEPPEENRVHLGHAIMSFYAALIDLLGRCAPETHLIQAGKGEALRIRAILRSLVPLDDLVGIISLPLQIPTLGKDGALVQPKMSASFVPDHKASMVLFLDRVYGIENQDFLLHVLDVGFLPDMRAAASLDTATFSTTEMALALNRYLCLAVLPLITKCAPLFAGTEHRAIMVDSMLHTVYRLSRGRSLTKAQRDVIEDCLMALCRYIRPSMLQHLLRRLVFDVPILNEFAKMPLKLLTNHYERCWKYYCLPTGWANFGVTSEEELHLTRKLFWGIFDSLAHKKYDQELYRIAMPCLCAIAGALPPDYVDASYSSKTEKKATVDAEGNFDPRPVETLNVIIPEKLDSFINKFAEYTHEKWAFDKIQNNWSYGENIDEELKTHPMLRPYKTFSEKDKEIYRWPIKESLKAMIAWEWTVEKAREGEEEKTEKKKTRKISQTAQTYDPREGYNPQPPDLSVVTLSRELQAMAEQLAENYHNTWGRKKKQELEAKGGGSHPLLVPYDTLTAKEKARDREKAQELLKFLQMNGYAVTRGLKDMELDTSSIEKRFAFGFLQQLLRWMDISQEFIAHLEAVVSSGRVEKSPHEQEIKFFAKILLPLINQYFTNHCLYFLSTPAKVLGSGGHASNKEKEMITSLFCKLAALVRHRVSLFGTDAPAVVNCLHILARSLDARTVMKSGPEIVKAGLRSFFESASEDIEKMVENLRLGKVSQARTQVKGVGQNLTYTTVALLPVLTTLFQHIAQHQFGDDVILDDVQVSCYRTLCSIYSLGTTRNPYVEKLRPALGECLARLAAAMPVAFLEPELNEYNACSVYTTKSPRERAILGLPNSVEEMCPDIPVLERLMAEIGGLAESGARYTEMPHVIEITLPMLCSYLPRWWERGPEAPPPALPAGAPPPCTAVTSDHLNSLLGNILRIIVNNLGIDEASWMKRLAVFAQPIVSRARPELLRSHFIPTIGRLRKRAGKVVAEEEQLRLEAKAEAEEGELLVRDEFSVLCRDLYALYPLLIRYVDNNRAHWLTEPNPNAEELFRMVGEIFIYWSKSHNFKREEQNFVVQNEINNMSFLTADNKSKMAKAGDVQSGGSDQERTKKKRRGDRYSVQTSLIVATLKKMLPIGLNMCAPTDQDLIVLAKARYALKDTDEEVREFLQNNLNLQGKVEGSPSLRWQMALYRGVPGREEDADDPEKIVRRVQEVSAVLYHLDQTEHPYKSKKAVWHKLLSKQRRRAVVACFRMTPLYNLPTHRACNMFLESYKASWILTEDHSFEDRMIDDLSKAGEQEEEEEEVEEKKPDPLHQLVLHFSRTALTEKSKLDEDYLYMAYADIMAKSCHLEEGGENGEEGGEEEEVEVSFEEKEMEKQRLLYQQSRLHNRGAAEMVLQMISACKGETGAMVSSTLKLGISILNGGNAEVQQKMLDYLKDKKEVGFFQSIQALMQTCSVLDLNAFERQNKAEGLGMVNEDGTVINRQNGEKVMADDEFTQDLFRFLQLLCEGHNNDFQNYLRTQTGNTTTINIIICTVDYLLRLQESISDFYWYYSGKDVIEEQGKRNFSKAMSVAKQVFNSLTEYIQGPCTGNQQSLAHSRLWDAVVGFLHVFAHMMMKLAQDSSQIELLKELLDLQKDMVVMLLSLLEGNVVNGMIARQMVDMLVESSSNVEMILKFFDMFLKLKDIVGSEAFQDYVTDPRGLISKKDFQKAMDSQKQFTGPEIQFLLSCSEADENEMINCEEFANRFQEPARDIGFNVAVLLTNLSEHVPHDPRLRNFLELAESILEYFRPYLGRIEIMGASRRIERIYFEISETNRAQWEMPQVKESKRQFIFDVVNEGGESEKMEMFVSFCEDTIFEMQIAAQISEPEGEPEEDEDEGAEEAEEGAAGSDGSGSAAAAGVWVWLAATAGRTLRGLSYRSLRRRVRRLRRLTAREAATAVAALLWALVTRAGGAGAGAAAGALRLLWGSLFGGGLVDSAKKVTVTELLAGMPDPTGDEVHGQQPSGAGSDAEGEGEGEGEGDAADGAGDEEAAADQAGTGGADGAVAVADGSPFRPEGAGGLGDMGDTTPVEPPTPEGSPILKRKLGVDGEEEEPPPEPEPEPEPEPEKADTENGEKEVPEPPPEPPKKTPPPPPPKKEEAGGAGLEEFWGELEVQRVKFLNYLSRNFYTLRFLALFLAFAINFILLFYKVSDSPPGEDDIEGSGAGDMSGAGSGDGSGWGSRAGEEVEGDEDENMVYYFLEESTGYMEPALRCLSLLHTLVAFLCIIGYNCLKVPLVIFKREKELARKLEFDGLYITEQPEDDDVKGQWDRLVLNTPSFPSNYWDKFVKRKVLDKHGDIFGRERIAELLGMDLASLEITAHNERKPDPPPGLLTWIMSIDVKYQIWKFGVIFTDNSFLYLGWYMVMSLLGHYNNFFFAAHLLDIAMGVKTLRTILSSVTHNGKQLVMTVGLLAVVVYLYTVVAFNFFRKFYNKSEDEDEPDMKCDDMMTCYLFHMYVGVRAGGGIGDEIEDPAGDEYELYRVVFDITFFFFVIVILLAIIQGLIIDAFGELRDQQEQVKEDMETKCFICGIGSDYFDTTPHGFETHTLEEHNLANYMFFLMYLINKDETEHTGQESYVWKMYQERCWDFFPAGDCFRKQYEDQLS

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	CAFFEINE
分子量 formula_weight	194.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 6 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 7 non-polymer

描述 description	1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
分子量 formula_weight	787.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 8 non-polymer

描述 description	Simvastatin
分子量 formula_weight	418.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.09 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	25791

fit	/app/data/saxs_computation/nm/9nmp/9nmp.fit
pddf	/app/data/pr_computation/nm/9nmp/9nmp.pr.out
profile	/app/data/saxs_computation/nm/9nmp/9nmp.dat
