SAXSdb — 9nmr

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nmr
沉积日期 deposition_date	2025-03-04
结构标题 title	Structure of mouse RyR1 (including auxiliary transmembrane helix TMx; EGTA-only dataset)
关键词 keywords	Calcium, Ion Channel, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	104.20 Å
零角强度 I(0) i0	56359000000.00
分子量 molecular_weight	2044200.0 kDa
排除体积 excluded_volume	2562500 Å³
包络体积 envelope_volume	4684800 Å³
水化壳体积 shell_volume	366950 Å³
包络直径 envelope_diameter	363.6 Å
壳层 Rg shell_rg	104.50 Å
包络 Rg envelope_rg	100.60 Å
形状 Rg shape_rg	104.30 Å
总 Rg total_rg	104.10 Å
总原子数 total_atoms	143660
残基数 n_residues	18012
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	270.8 Å
Rg (实空间) rg_real	100.50 Å
Rg 误差 (实空间) rg_real_error	0.65 Å
I(0) (实空间) i0_real	5.3910e+10
I(0) 误差 (实空间) i0_real_error	9.5050e+08
Rg (倒空间) rg_reciprocal	104.90 Å
I(0) (倒空间) i0_reciprocal	56420000000.0000
解质量估计 total_estimate	0.9094
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	126.4 Å
偏度 Skewness skewness	0.106
峰度 Kurtosis kurtosis	-0.682
角度范围 angular_range	— – 0.0750 Å⁻¹
当前正则化参数 α current_alpha	0.7186
最高正则化参数 α highest_alpha	5453000000.0000
实空间数据点数 n_real_points	16
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.999; Stabil: 0.957; Sysdev: 1.000; Positv: 1.000; Valcen: 0.954; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Ryanodine receptor 1
分子量 formula_weight	565692.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	143684

MGDGGGEGEDEVQFLRTDDEVVLQCSATVLKEQLKLCLAAEGFGNRLCFLEPTSNAQNVPPDLAICCFILEQSLSVRALQEMLANTVEAGVESSQGGGHRTLLYGHAILLRHAHSRMYLSCLTTSRSMTDKLAFDVGLQEDATGEACWWTMHPASKQRSEGEKVRVGDDLILVSVSSERYLHLSTASGELQVDASFMQTLWNMNPICSGCEEGFVTGGHVLRLFHGHMDECLTISPSDSDDQRRLVYYEGGPVCTHARSLWRLEPLRISWSGSHLRWGQPLRIRHVTTGRYLGLTEDQGLVVVDASKAHTKATSFCFRISKEKLDVAPKRDVEGMGPPEIKYGESLCFVQHVASGLWLTYAAPDPKALRLGVLKKKAMLHQEGHMDDALSLTRCQQEESQAARMIYSTAGLYNQFIKGLDSFSGKPRGSGPPAGSALPIEGVILSLQDLIGYFEPPSEELQHEEKQTKLRSLRNRQSLFQEEGMLSLVLNCIDRLNVYTTAAHFAEFAGEEAAESWKEIVNLLYELLASLIRGNRTNCALFSTNLDWLVSKLDRLEASSGILEVLYCVLIESPEVLNIIQENHIKSIISLLDKHGRNHKVLDVLCSLCVCNGVAVRSNQDLITENLLPGRELLLQTNLINYVTSIRPNIFVGRAEGSTQYGKWYFEVMVDEVAPFLTAQATHLRVGWALSEGYSPYPGGGEGWGGNGVGDDLYSYGFDGLHLWTGHVARPVTSPGQHLLAPEDVVSCCLDLSVPSISFRINGCPVQGVFESFNLDGLFFPVVSFSAGIKVRFLLGGRHGEFKFLPPPGYAPCHEAVLPRERLHLQPIKEYRREGPRGPHLVGPSRCLSHLDFVPCPVDTIQIVLPPHLERIREKLAENIHELWALTRIEQGWTYGPVRDDNKRLHPCLVNFHSLPEPERNYNLQMSGETLKTLLALGCHVGMADEKAEDNLKKTKLPKTYMMSNGYKPAPLDLSHVRLTPAQTTLVDRLAENGHNVWARDRVAQGWSYSAVQDIPARRNPRLVPYRLLDEATKRSNRDSLCQAVRTLLGYGYNIEPPDQEPSQVDSQSRGDRARIFRAEKSYAVQSGRWYFEFEAVTTGEMRVGWARPELRPDVELGADDLAYVFNGHRGQRWHLGSEPFGRPWQSGDVVGCMIDLTENTIIFTLNGEVLMSDSGSETAFRDIEIGDGFLPVCSLGPGQVGHLNLGQDVSSLRFFAICGLQEGFEPFAINMQRPVTTWFSKSLPQFEPVPLEHPHYEVARMDGTVDTPPCLRLTHRTWGSQNSLVEMLFLRLSLPVQFHQHFRCTAGATPLASPGLQPPAEDEARAAEPDTDYENLRRSAGGWGEAEGGKDGTAKEGTPGGTAQAGVEAQPARAENEKDATTEKNKKRGFLFKAKKVAMMTQPPSTPALPRLPRDVVPADNRDDPEIILNTTTYYYSVRVFAGQEPSCVWVGWVTPDYHQHDMSFDLSKVRAVTVTMGDEQGNVHSSLKCSNCYMVWGGDFVSPGQQGRISHTDLVIGCLVDLATGLMTFTANGKESNTFFQVEPNTKLFPAVFVLPTHQNVVQFELGKQKNIMPLSAAMFLSERKNPAPQCPPRLEVQMLMPVSWSRMPNHFLQVDTRRAGERLGWAVQCQEPLMMMALHIPEENRCMDILELSERLDLQRFHSHTLSLYRSVCALGNNRVAHALCSHVDQAQLLHALEDARLPGPLRAGYYDLLISIHLESACRSRRSMLSEYIVPLTPETRAITLFPPGRSAEDGPRRHGLPGVGVTTSLRPPHHFSPPCFVVALPAAGATEAPARLSPAIPLEALRDKALRMLGEAVRDGGQHARDPVGGSVEFQFVPVLKLVSTLLVMGVFSDEDVKQILKMIEPEVFREEEEVEEEGEEEEEDEEEKEEDEEEEAHEKEDEEKEEAEDAAEEEKEELEEGLLQMKLPESVKLQMCHLLEYFCDQELQHRVESLAAFAECYVDKMQGNQRGRYGLLMKAFTMSAAETARRTREFRSPPQEQINMLLHFKNGADEEECPLPEEIRQELVNFHQDLLAHCGIQLEGEEEEPEEESTLGSRLMSLLEKVKLVKKTEEKPEEEPAPEEHKPQSLQELVSHTVVRWAQEDFVQSPELVRAMFSLLHRQYDGLGELLRALPRAYTISVSSVEDTMSLLECLGQIRSLLIVQMGPQEENLMIQSIGNIMNNKVFYQHPNLMRALGMHETVMEVMVNVLGGGESKEIRFPKMVTSCCRFLCYFCRISRQNQRSMFDHLSYLLENSGIGLGMQGSTPLDVAAASVIDNNELALALQEQDLEKVVSYLAGCGLQSCPMLLAKGYPDIGWNPCGGERYLDFLRFAVFVNGESVEENANVVVRLLIRKPECFGPALRGEGGSGLLAAIEEAIRISEDPARDGPGVRRDRRREHFGEEPPEENRVHLGHAIMSFYAALIDLLGRCAPETHLIQAGKGEALRIRAILRSLVPLDDLVGIISLPLQIPTLGKDGALVQPKMSASFVPDHKASMVLFLDRVYGIENQDFLLHVLDVGFLPDMRAAASLDTATFSTTEMALALNRYLCLAVLPLITKCAPLFAGTEHRAIMVDSMLHTVYRLSRGRSLTKAQRDVIEDCLMALCRYIRPSMLQHLLRRLVFDVPILNEFAKMPLKLLTNHYERCWKYYCLPTGWANFGVTSEEELHLTRKLFWGIFDSLAHKKYDQELYRIAMPCLCAIAGALPPDYVDASYSSKTEKKATVDAEGNFDPRPVETLNVIIPEKLDSFINKFAEYTHEKWAFDKIQNNWSYGENIDEELKTHPMLRPYKTFSEKDKEIYRWPIKESLKAMIAWEWTVEKAREGEEEKTEKKKTRKISQTAQTYDPREGYNPQPPDLSVVTLSRELQAMAEQLAENYHNTWGRKKKQELEAKGGGSHPLLVPYDTLTAKEKARDREKAQELLKFLQMNGYAVTRGLKDMELDTSSIEKRFAFGFLQQLLRWMDISQEFIAHLEAVVSSGRVEKSPHEQEIKFFAKILLPLINQYFTNHCLYFLSTPAKVLGSGGHASNKEKEMITSLFCKLAALVRHRVSLFGTDAPAVVNCLHILARSLDARTVMKSGPEIVKAGLRSFFESASEDIEKMVENLRLGKVSQARTQVKGVGQNLTYTTVALLPVLTTLFQHIAQHQFGDDVILDDVQVSCYRTLCSIYSLGTTRNPYVEKLRPALGECLARLAAAMPVAFLEPELNEYNACSVYTTKSPRERAILGLPNSVEEMCPDIPVLERLMAEIGGLAESGARYTEMPHVIEITLPMLCSYLPRWWERGPEAPPPALPAGAPPPCTAVTSDHLNSLLGNILRIIVNNLGIDEASWMKRLAVFAQPIVSRARPELLRSHFIPTIGRLRKRAGKVVAEEEQLRLEAKAEAEEGELLVRDEFSVLCRDLYALYPLLIRYVDNNRAHWLTEPNPNAEELFRMVGEIFIYWSKSHNFKREEQNFVVQNEINNMSFLTADNKSKMAKAGDVQSGGSDQERTKKKRRGDRYSVQTSLIVATLKKMLPIGLNMCAPTDQDLIVLAKARYALKDTDEEVREFLQNNLNLQGKVEGSPSLRWQMALYRGVPGREEDADDPEKIVRRVQEVSAVLYHLDQTEHPYKSKKAVWHKLLSKQRRRAVVACFRMTPLYNLPTHRACNMFLESYKASWILTEDHSFEDRMIDDLSKAGEQEEEEEEVEEKKPDPLHQLVLHFSRTALTEKSKLDEDYLYMAYADIMAKSCHLEEGGENGEEGGEEEEVEVSFEEKEMEKQRLLYQQSRLHNRGAAEMVLQMISACKGETGAMVSSTLKLGISILNGGNAEVQQKMLDYLKDKKEVGFFQSIQALMQTCSVLDLNAFERQNKAEGLGMVNEDGTVINRQNGEKVMADDEFTQDLFRFLQLLCEGHNNDFQNYLRTQTGNTTTINIIICTVDYLLRLQESISDFYWYYSGKDVIEEQGKRNFSKAMSVAKQVFNSLTEYIQGPCTGNQQSLAHSRLWDAVVGFLHVFAHMMMKLAQDSSQIELLKELLDLQKDMVVMLLSLLEGNVVNGMIARQMVDMLVESSSNVEMILKFFDMFLKLKDIVGSEAFQDYVTDPRGLISKKDFQKAMDSQKQFTGPEIQFLLSCSEADENEMINCEEFANRFQEPARDIGFNVAVLLTNLSEHVPHDPRLRNFLELAESILEYFRPYLGRIEIMGASRRIERIYFEISETNRAQWEMPQVKESKRQFIFDVVNEGGESEKMEMFVSFCEDTIFEMQIAAQISEPEGEPEEDEDEGAEEAEEGAAGSDGSGSAAAAGVWVWLAATAGRTLRGLSYRSLRRRVRRLRRLTAREAATAVAALLWALVTRAGGAGAGAAAGALRLLWGSLFGGGLVDSAKKVTVTELLAGMPDPTGDEVHGQQPSGAGSDAEGEGEGEGEGDAADGAGDEEAAADQAGTGGADGAVAVADGSPFRPEGAGGLGDMGDTTPVEPPTPEGSPILKRKLGVDGEEEEPPPEPEPEPEPEPEKADTENGEKEVPEPPPEPPKKTPPPPPPKKEEAGGAGLEEFWGELEVQRVKFLNYLSRNFYTLRFLALFLAFAINFILLFYKVSDSPPGEDDIEGSGAGDMSGAGSGDGSGWGSRAGEEVEGDEDENMVYYFLEESTGYMEPALRCLSLLHTLVAFLCIIGYNCLKVPLVIFKREKELARKLEFDGLYITEQPEDDDVKGQWDRLVLNTPSFPSNYWDKFVKRKVLDKHGDIFGRERIAELLGMDLASLEITAHNERKPDPPPGLLTWIMSIDVKYQIWKFGVIFTDNSFLYLGWYMVMSLLGHYNNFFFAAHLLDIAMGVKTLRTILSSVTHNGKQLVMTVGLLAVVVYLYTVVAFNFFRKFYNKSEDEDEPDMKCDDMMTCYLFHMYVGVRAGGGIGDEIEDPAGDEYELYRVVFDITFFFFVIVILLAIIQGLIIDAFGELRDQQEQVKEDMETKCFICGIGSDYFDTTPHGFETHTLEEHNLANYMFFLMYLINKDETEHTGQESYVWKMYQERCWDFFPAGDCFRKQYEDQLS

Entity 2 polymer

描述 description	Peptidyl-prolyl cis-trans isomerase FKBP1A
分子量 formula_weight	11939.6 kDa
EC 编号 ec_number	5.2.1.8
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H

MGVQVETISPGDGRTFPKRGQTCVVHYTGMLEDGKKFDSSRDRNKPFKFTLGKQEVIRGWEEGVAQMSVGQRAKLIISSDYAYGATGHPGIIPPHATLVFDVELLKLE

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
分子量 formula_weight	787.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.91 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	129073

fit	/app/data/saxs_computation/nm/9nmr/9nmr.fit
pddf	/app/data/pr_computation/nm/9nmr/9nmr.pr.out
profile	/app/data/saxs_computation/nm/9nmr/9nmr.dat

Structure of mouse RyR1 (including auxiliary transmembrane helix TMx; EGTA-only dataset)

SAXS 散射曲线 SAXS Profile

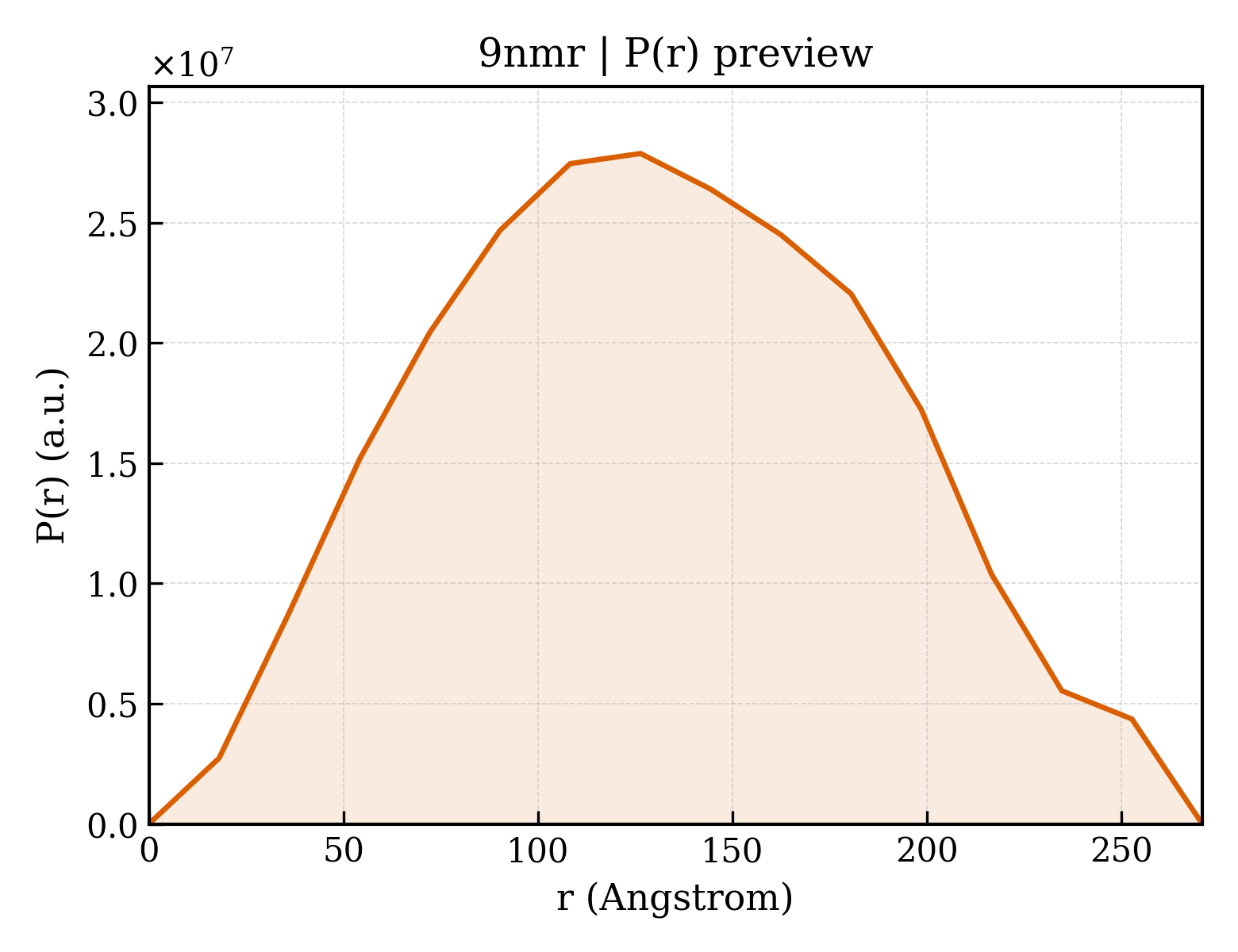

P(r) 距离分布 P(r) Distribution
