SAXSdb — 9nn6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Colicin I receptor

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 32–663	Mutation：W307M, L312M, F558M, V560M	Colicin-V × 1 （P22522）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4；Phosphate Buffered Saline cryo-EM vitrification conditions：Cryogen ETHANE；Blot force +5 Wait time 0 Blot total 1 Blot time 5 seconds	Resolution 2.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9NN6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2HDF Crystal structure of the Colicin I receptor Cir from E.coli Deposited 2006-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–663（638 aa） Fragment：Colicin I receptor	Mutation：W338M, L343M, F589M, V591M Non-standard monomer：Yes (specific site not provided by mmCIF)	SR STRONTIUM ION × 1 OES N-OCTYL-2-HYDROXYETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；7-8 G/L PROTEIN IN 0.02M TRIS PH7.5, 0.001M EDTA, 0.3M NACL, 1% N-OCTYL-2-HYDROXYETHYL SULFOXIDE MIXED AT 1:1 RATIO WITH 0.1M TRIS PH7.5, 0.02-0.05M SRCL2, 5% ISOPROPANOL, 32-40 % PEG 2000 MME, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.65 Å R-free 0.291
2HDI Crystal structure of the Colicin I receptor Cir from E.coli in complex with receptor binding domain of Colicin Ia. Deposited 2006-06-20	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 26–663（638 aa） Fragment：Colicin I receptor	Mutation：W338M, L343M, F589M, V591M	LDA LAURYL DIMETHYLAMINE-N-OXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；294 K；9 G/L PROTEIN IN 0.02M TRIS PH7.5, 0.2M NACL, 0.05% LDAO, 0.45% C8E4, 3% HEPTANETRIOL MIXED AT 1:1 RATIO WITH 0.1M MES PH6.2, 10% GLYCEROL, 22% PEG 2000 MME, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å R-free 0.249

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CIRA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–632； UniProt 32–663

Colicin-V

Enterobacteriaceae

UniProt P22522

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 72–103	Not recorded	Colicin I receptor × 1 （P17315）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4；Phosphate Buffered Saline cryo-EM vitrification conditions：Cryogen ETHANE；Blot force +5 Wait time 0 Blot total 1 Blot time 5 seconds	Resolution 2.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	CEAV_ECOLX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–32； UniProt 72–103

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9nn6
Deposition date deposition_date	2025-03-05
Structure title title	E. coli Cir in Complex with the RBD of Microcin V
Keywords keywords	TonB-dependent receptor, beta barrel, antimicrobial protein, MccV, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

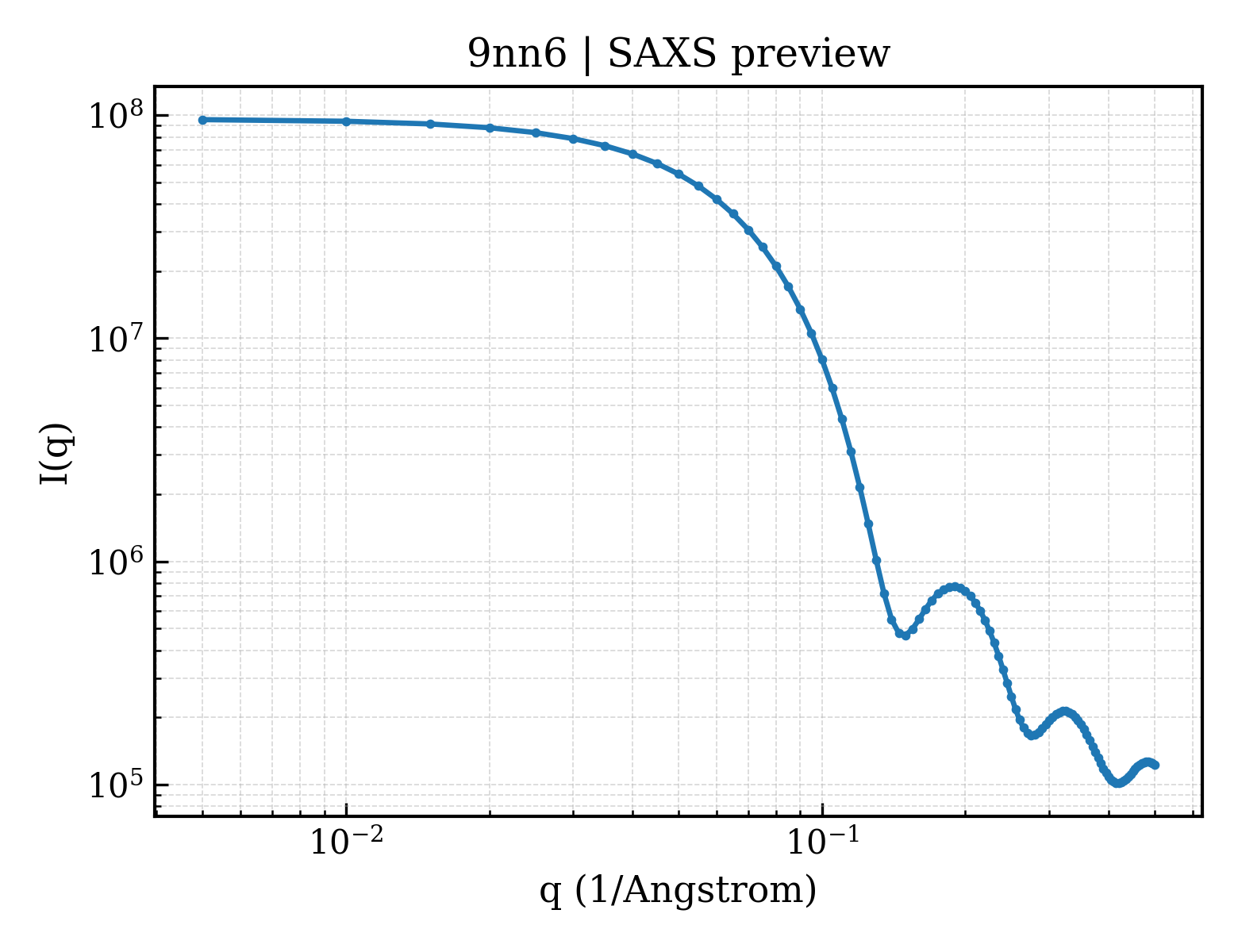

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.94 Å
Radius of gyration Rg (electron density) rg_electron	25.20 Å
Forward intensity I(0) i0	96094700.00
Molecular weight molecular_weight	74043.0 kDa
Excluded volume excluded_volume	91348 Å³
Envelope volume envelope_volume	114060 Å³
Hydration-shell volume shell_volume	36372 Å³
Envelope diameter envelope_diameter	87.2 Å
Shell Rg shell_rg	33.96 Å
Envelope Rg envelope_rg	25.36 Å
Shape Rg shape_rg	25.22 Å
Total Rg total_rg	26.02 Å
Total atoms total_atoms	5224
Residues n_residues	664
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

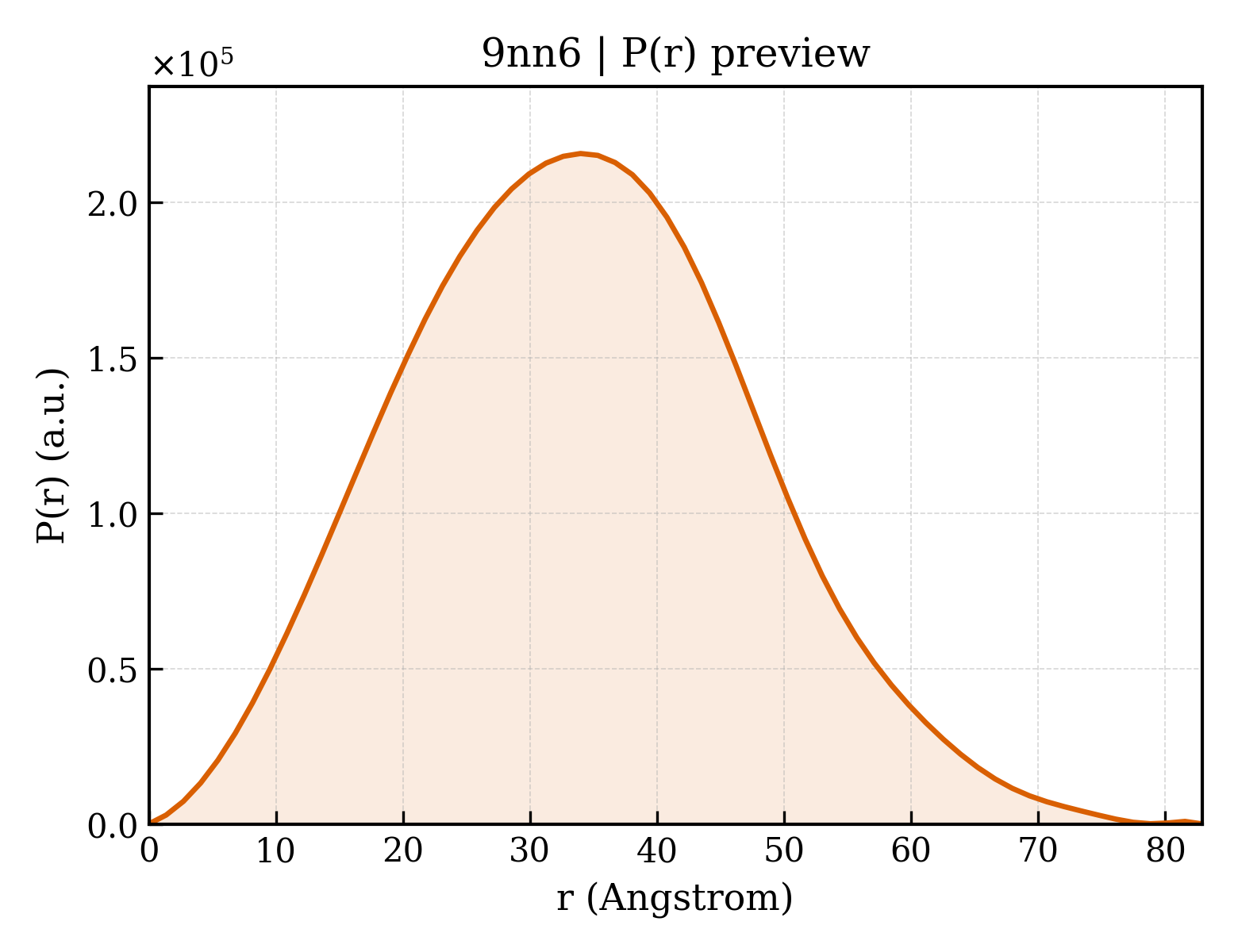

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	82.9 Å
Rg (real space) rg_real	25.79 Å
Rg uncertainty (real space) rg_real_error	0.48 Å
I(0) (real space) i0_real	9.6090e+07
I(0) uncertainty (real space) i0_real_error	1.4100e+06
Rg (reciprocal space) rg_reciprocal	25.83 Å
I(0) (reciprocal space) i0_reciprocal	96100000.0000
Solution quality estimate total_estimate	0.8805
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.0 Å
Skewness Skewness skewness	0.192
Kurtosis Kurtosis kurtosis	-0.301
Angular range angular_range	— – 0.3050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	22580000.0000
Real-space data points n_real_points	62
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.837; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.944

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Colicin I receptor
Molecular weight formula_weight	70576.6 kDa
Mutation mutation	W307M, L312M, F558M, V560M
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5224

TMVVTASSVEQNLKDAPASISVITQEDLQRKPVQNLKDVLKEVPGVQLTNEGDNRKGVSIRGLDSSYTLILVDGKRVNSRNAVFRHNDFDLNWIPVDSIERIEVVRGPMSSLYGSDALGGVVNIITKKIGQKWSGTVTVDTTIQEHRDRGDTYNGQFFTSGPLIDGVLGMKAYGSLAKREKDDPQNSTTTDTGETPRIEGFSSRDGNVEFAWTPNQNHDFTAGYGFDRQDRDSDSLDKNRLERQNYSVSHNGRWDYGTSELKYYGEKVENKNPGNSSPITSESNTVDGKYTLPLTAINQFLTVGGEMRHDKMSDAVNLTGGTSSKTSASQYALFVEDEWRIFEPLALTTGVRMDDHETYGEHWSPRAYLVYNATDTVTVKGGWATAFKAPSLLQLSPDWTSNSCRGACKIVGSPDLKPETSESWELGLYYMGEEGWLEGVESSVTVFRNDVKDRISISRTSDVNAAPGYQNFVGFETGANGRRIPVFSYYNVNKARIQGVETELKIPFNDEWKLSINYTYNDGRDVSNGENKPLSDLPFHTANGTLDWKPLALEDWSMYMSGHYTGQKRADSATAKTPGGYTIWNTGAAWQVTKDVKLRAGVLNLGDKDLSRDDYSYNEDGRRYFMAVDYRF

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Colicin-V
Molecular weight formula_weight	3565.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KQKPEGIPSEAWNYAAGRLCNWSPNNLSDVCL

来源 Source

来源生物 organism	Enterobacteriaceae
NCBI Class编号 ncbi_taxonomy_id	543
宿主生物 host_organism	Escherichia coli BL21(DE3)

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.90 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	102419

fit	/app/data/saxs_computation/nn/9nn6/9nn6.fit
pddf	/app/data/pr_computation/nn/9nn6/9nn6.pr.out
profile	/app/data/saxs_computation/nn/9nn6/9nn6.dat
