X-ray structure of SARS-CoV-2 main protease V186F covalently bound to inhibitor GRL-050-23 at 1.55 A

Method: X-RAY DIFFRACTION D_max: 77.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

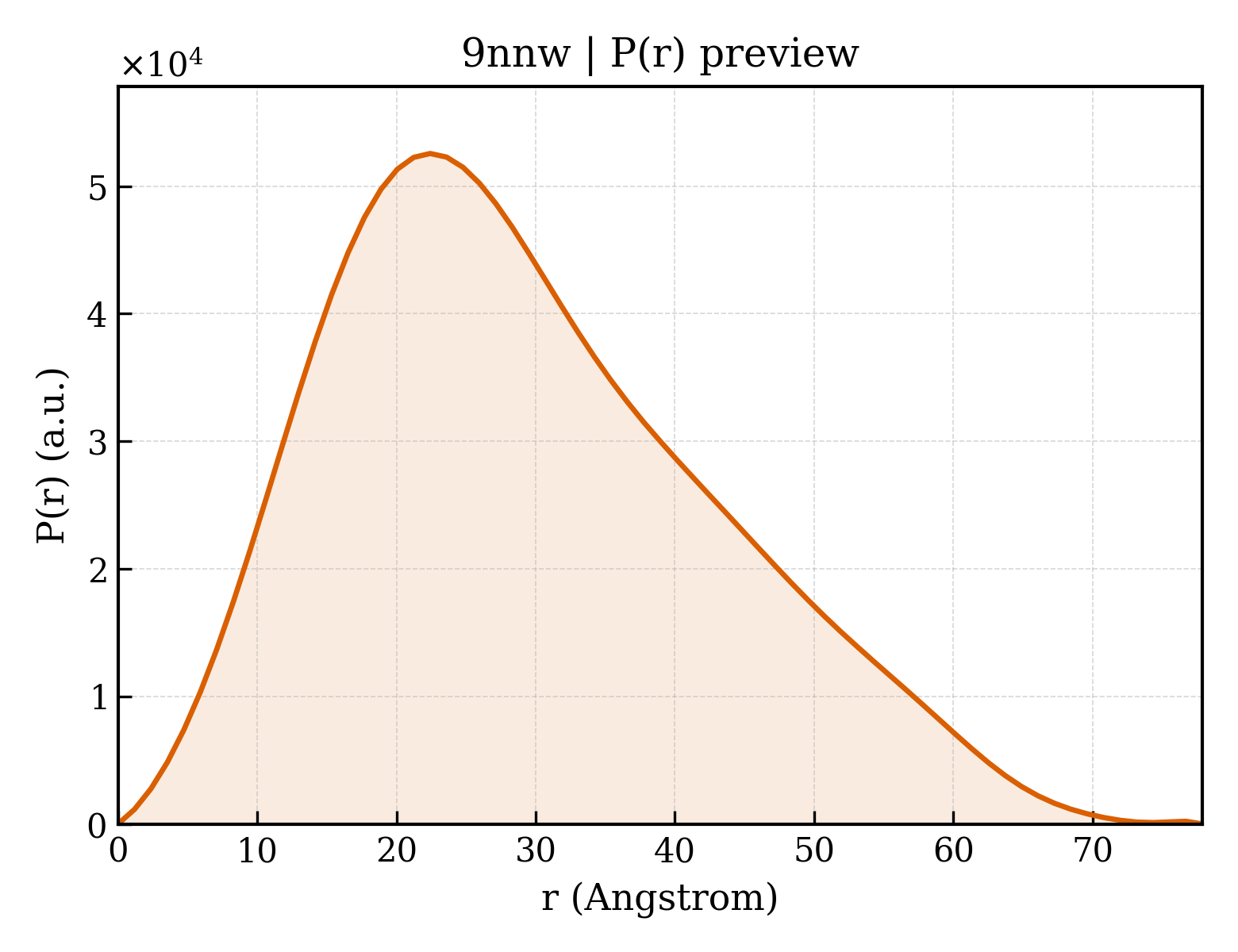

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nnw
沉积日期 deposition_date	2025-03-06
最后修订 last_revision	2025-11-26
结构标题 title	X-ray structure of SARS-CoV-2 main protease V186F covalently bound to inhibitor GRL-050-23 at 1.55 A
关键词 keywords	;Main protease, 3-chymotrypsin-like protease, Mpro, 3CLpro, Mutant, Structural Genomics, Center for Structural Biology of Infectious Diseases, CSBID, VIRAL PROTEIN, HYDROLASE ;; VIRAL PROTEIN, HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	22.72 Å
回转半径 Rg (电子) rg_electron	21.96 Å
零角强度 I(0) i0	21704000.00
分子量 molecular_weight	34388.0 kDa
排除体积 excluded_volume	42370 Å³
包络体积 envelope_volume	50139 Å³
水化壳体积 shell_volume	19951 Å³
包络直径 envelope_diameter	79.7 Å
壳层 Rg shell_rg	27.82 Å
包络 Rg envelope_rg	22.24 Å
形状 Rg shape_rg	21.99 Å
总 Rg total_rg	22.62 Å
总原子数 total_atoms	4628
残基数 n_residues	306
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	77.9 Å
Rg (实空间) rg_real	22.84 Å
Rg 误差 (实空间) rg_real_error	0.58 Å
I(0) (实空间) i0_real	2.1700e+07
I(0) 误差 (实空间) i0_real_error	3.2410e+05
Rg (倒空间) rg_reciprocal	22.81 Å
I(0) (倒空间) i0_reciprocal	21700000.0000
解质量估计 total_estimate	0.8517
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	22.4 Å
偏度 Skewness skewness	0.494
峰度 Kurtosis kurtosis	-0.336
角度范围 angular_range	— – 0.3500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	8657000.0000
实空间数据点数 n_real_points	67
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.733; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.882; Smooth: 0.988

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	3C-like proteinase nsp5
分子量 formula_weight	33873.6 kDa
EC 编号 ec_number	3.4.22.69
突变 mutation	V186F
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5189

SGFRKMAFPSGKVEGCMVQVTCGTTTLNGLWLDDVVYCPRHVICTSEDMLNPNYEDLLIRKSNHNFLVQAGNVQLRVIGHSMQNCVLKLKVDTANPKTPKYKFVRIQPGQTFSVLACYNGSPSGVYQCAMRPNFTIKGSFLNGSCGSVGFNIDYDCVSFCYMHHMELPTGVHAGTDLEGNFYGPFFDRQTAQAAGTDTTITVNVLAWLYAAVINGDRWFLNRFTTTLNDFNLVAMKYNYEPLTQDHVDILGPLSAQTGIAVLDMCASLKELLQNGMNGRTILGSALLEDEFTPFDVVRQCSGVTFQ

来源 Source

来源生物 organism	Severe acute respiratory syndrome coronavirus 2
NCBI 分类编号 ncbi_taxonomy_id	2697049
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;(3S)-N-{(1S,2S)-1-(1,3-benzothiazol-2-yl)-1-hydroxy-3-[(3S)-2-oxopiperidin-3-yl]propan-2-yl}-7-fluoro-2-[3-methyl-N-(trifluoroacetyl)-L-valyl]-1,2,3,4-tetrahydroisoquinoline-3-carboxamide ;
分子量 formula_weight	691.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	381

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	96.584 Å
晶胞边长 b length_b	82.769 Å
晶胞边长 c length_c	54.413 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	117.53 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	monoclinic

分辨率 resolution	1.550 Å
最低分辨率 resolution_low	21.810 Å
R 因子 r_factor	0.1489
R_work r_work	0.1473
R_free r_free	0.1911
