1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9no1
沉积日期 deposition_date	2025-03-07
结构标题 title	Cryo-ET map of the VZV capsid vertex (5-fold axis).
关键词 keywords	Varicella-zoster virus, capsid, cryo-ET, cryo-FIB, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	95.69 Å
回转半径 Rg (电子) rg_electron	95.73 Å
零角强度 I(0) i0	28818300000.00
分子量 molecular_weight	1451400.0 kDa
排除体积 excluded_volume	1816600 Å³
包络体积 envelope_volume	3490100 Å³
水化壳体积 shell_volume	297880 Å³
包络直径 envelope_diameter	358.4 Å
壳层 Rg shell_rg	94.38 Å
包络 Rg envelope_rg	95.34 Å
形状 Rg shape_rg	95.75 Å
总 Rg total_rg	95.65 Å
总原子数 total_atoms	102113
残基数 n_residues	13253
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	253.5 Å
Rg (实空间) rg_real	91.85 Å
Rg 误差 (实空间) rg_real_error	0.73 Å
I(0) (实空间) i0_real	2.7520e+10
I(0) 误差 (实空间) i0_real_error	5.6600e+08
Rg (倒空间) rg_reciprocal	94.73 Å
I(0) (倒空间) i0_reciprocal	28720000000.0000
解质量估计 total_estimate	0.9143
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	110.9 Å
偏度 Skewness skewness	0.219
峰度 Kurtosis kurtosis	-0.625
角度范围 angular_range	— – 0.0800 Å⁻¹
当前正则化参数 α current_alpha	0.9629
最高正则化参数 α highest_alpha	2314000000.0000
实空间数据点数 n_real_points	17
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 1.000; Stabil: 0.966; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	ORF40
分子量 formula_weight	155145.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	7

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,D,F,H,J,L
原子数 atom_count	102113

MTTVSCPANVITTTESDRIAGLFNIPAGIIPTGNVLSTIEVCAHRCIFDFFKQIRSDDNSLYSAQFDILLGTYCNTLNFVRFLELGLSVACICTKFPELAYVRDGVIQFEVQQPMIARDGPHPVDQPVHNYMVKRIHKRSLSAAFAIASEALSLLSNTYVDGTEIDSSLRIRAIQQMARNLRTVLDSFERGTADQLLGVLLEKAPPLSLLSPINKFQPEGHLNRVARAALLSDLKRRVCADMFFMTRHAREPRLISAYLSDMVSCTQPSVMVSRITHTNTRGRQVDGVLVTTATLKRQLLQGILQIDDTAADVPVTYGEMVLQGTNLVTALVMGKAVRGMDDVARHLLDITDPNTLNIPSIPPQSNSDSTTAGLPVNARVPADLVIVGDKLVFLEALERRVYQATRVAYPLIGNIDITFIMPMGVFQANSMDRYTRHAGDFSTVSEQDPRQFPPQGIFFYNKDGILTQLTLRDAMGTICHSSLLDVEATLVALRQQHLDRQCYFGVYVAEGTEDTLDVQMGRFMETWADMMPHHPHWVNEHLTILQFIAPSNPRLRFELNPAFDFFVAPGDVDLPGPQRPPEAMPTVNATLRIINGNIPVPLCPISFRDCRGTQLGLGRHTMTPATIKAVKDTFEDRAYPTIFYMLEAVIHGNERNFCALLRLLTQCIRGYWEQSHRVAFVNNFHMLMYITTYLGNGELPEVCINIYRDLLQHVRALRQTITDFTIQGEGHNGETSEALNNILTDDTFIAPILWDCDALIYRDEAARDRLPAIRVSGRNGYQALHFVDMAGHNFQRRDNVLIHGRPVRGDTGQGIPITPHHDREWGILSKIYYYIVIPAFSRGSCCTMGVRYDRLYPALQAVIVPEIPADEEAPTTPEDPRHPLHAHQLVPNSLNVYFHNAHLTVDGDALLTLQELMGDMAERTTAILVSSAPDAGAATATTRNMRIYDGALYHGLIMMAYQAYDETIATGTFFYPVPVNPLFACPEHLASLRGMTNARRVLAKMVPPIPPFLGANHHATIRQPVAYHVTHSKSDFNTLTYSLLGGYFKFTPISLTHQLRTGFHPGIAFTVVRQDRFATEQLLYAERASESYFVGQIQVHHHDAIGGVNFTLTQPRAHVDLGVGYTAVCATAALRCPLTDMGNTAQNLFFSRGGVPMLHDNVTESLRRITASGGRLNPTEPLPIFGGLRPATSAGIARGQASVCEFVAMPVSTDLQYFRTACNPRGRASGMLYMGDRDADIEAIMFDHTQSDVAYTDRATLNPWASQKHSYGDRLYNGTYNLTGASPIYSPCFKFFTPAEVNTNCNTLDRLLMEAKAVASQSSTDTEYQFKRPPGSTEMTQDPCGLFQEAYPPLCSSDAAMLRTAHAGETGADEVHLAQYLIRDASPLRGCLPLPR

Entity 2 polymer

描述 description	Small capsomere-interacting protein
分子量 formula_weight	24440.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,E,G,I,K,M

MTQPASSRVVFDPSNPTTFSVEAIAAYTPVALIRLLNASGPLQPGHRVDIADARSIYTVGAAASAARARANHNANTIRRTAMFAETDPMTWLRPTVGLKRTFNPRIIRPQPPNPSMSLGISGPTILPQKTQSADQSALQQPAALAFSGSSPQHPPPQTTSASVGQQQHVVSGSSGQQPQQGAQSSTVQPTTGSPPAAQGVPQSTPPPTQNTPQGGKGQTLSHTGQSGNASRSRRV

Entity 3 polymer

描述 description	ORF20
分子量 formula_weight	54028.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,Q

MGSQPTNSHFTLNEQTLCGTNISLLGNNRFIQIGNGLHMTYAPGFFGNWSRDLTIGPRFGGLNKQPIHVPPKRTETASIQVTPRSIVINRMNNIQINPTSIGNPQVTIRLPLNNFKSTTQLIQQVSLTDFFRPDIEHAGSIVLILRHPSDMIGEANTLTQAGRDPDVLLEGLRNLFNACTAPWTVGEGGGLRAYVTSLSFIAACRAEEYTDKQAADANRTAIVSAYGCSRMETRLIRFSECLRAMVQCHVFPHRFISFFGSLLEYTIQDNLCNITAVAKGPQEAARTDKTSTRRVTANIPACVFWDVDKDLHLSADGLKHVFLVFVYTQRRQREGVRLHLALSQLNEQCFGRGIGFLLGRIRAENAAWGTEGVANTHQPYNTRALPLVQLSNDPTSPRCSIGEITGVNWNLARQRLYQWTGDFRGLPTQLSCMYAAYTLIGTIPSESVRYTRRMERFGGYNVPTIWLEGVVWGGTNTWNECYY

Entity 4 polymer

描述 description	ORF41
分子量 formula_weight	34421.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,P,R,S

MAMPFEIEVLLPGELSPAETSALQKCEGKIITFSTLRHRASLVDIALSSYYINGAPPDTLSLLEAYRMRFAAVITRVIPGKLLAHAIGVGTPTPGLFIQNTSPVDLCNGDYICLLPPVFGSADSIRLDSVGLEIVFPLTIPQTLMREIIAKVVARAVERTAAGAQILPHEVLRGADVICYNGRRYELETNLQHRDGSDAAIRTLVLNLMFSINEGCLLLLALIPTLLVQGAHDGYVNLLIQTANCVRETGQLINIPPMPRIQDGHRRFPIYETISSWISTSSRLGDTLGTRAILRVCVFDGPSTVHPGDRTAVIQV

Entity 5 polymer

描述 description	ORF43
分子量 formula_weight	73978.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MEAHLANETKHALWHNDHTKGLLHVVIPNAGLIAAGIDPALLILKKPGQRFKVEVQTRYHATGQCEPWCQVFAAYIPDNALTNLLIPKTEPFVSHVFSATHNSGGLILSLPVYLSPGLFFDAFNVVAIRINTGNRKHRDICIMYAELIPNGTRYFADGQRVLLLCKQLIAYIRCTPRLASSIKIYAEHMVAAMGESHTSNGDNIGPVSSIIDLDRQLTSGGIDDSPAETRIQENNRDVLELIKRAVNIVNSRHPVRPSSSRVASGLLQSAKGHGAQTSNTDPINNGSFDGVLEPPGQGRFTGKKNNSSASIPPLQDVLLFTPASTEPQSLMEWFDICYAQLVSGDTPADFWKRRPLSIVPRHYAESPSPLIVVSYNGSSAWGGRITGSPILYHSAQAIIDAACINARVDNPQSLHVTARQELVARLPFLANVLNNQTPLPAFKPGAEMFLNQVFKQACVTSLTQGLITELQTNPTLQQLMEYDIADSSQTVIDEIVARTPDLIQTIVSVLTEMSMDAFYNSSLMYAVLAYLSSVYTRPQGGGYIPYLHASFPCWLGNRSIYLFDYYNSGGEILKLSKVPVPVALEKVGIGNSTQLRGKFIRSADIVDIGICSKYLPGQCYAYICLGFNQQLQSILVLPGGFAACFCITDTLQAALPASLIGPILDRFCFSIPNPHK

Entity 6 polymer

描述 description	ORF34
分子量 formula_weight	65253.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U,V

MTARYGFGSISFPNKCGIFLSTTKNFIAPNFPIHYWTAPAFELRGRMNPDLEKNTLTLKNAAAVAALDNLRGETITLPTEIDRRLKPLEEQLTRMAKVLDSLETAAAEAEEADAQSEECTRTEIIRNESIHPEVQIAKNDAPLQYDTNFQVDFITLVYLGRARGNNSPGIVFGPWYRTLQERLVLDRPVAARGVDCKDGRISRTFMNTTVTCLQSAGRMYVGDRAYSAFECAVLCLYLMYRTSNSVHEPQVSSFGNLIEHLPEYTETFVNYMTTHENKNSYQFCYDRLPRDQFHARGGRYDQGALTSHSVMDALIRLQVLPPAPGQFNPGVNDIIDRNHTAYVDKIQQAAAAYLERAQNVFLMEDQTLLRLTIDTITALLLLRRLLWNGNVYGDKLKNNFQLGLIVSEATGTPTNNVILRGATGFDGKFKSGNNNFQFLCERYIAPLYTLNRTTELTEMFPGLVALCLDAHTQLSRGSLGRTVIDISSGQYQDRLISLIALELEHRRQNVTSLPIAAVVSIHDSVMLQYERGLGMLMHQPRVRAALEESRRLAQFNVNSDYDLLYFVCLGVIPQFASTP

Entity 7 polymer

描述 description	Large tegument protein deneddylase
分子量 formula_weight	306666.9 kDa
EC 编号 ec_number	3.4.19.12,3.4.22.-
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W,X

MDIIPPIAVTVAGVGSRNQFDGALGPASGLSCLRTSLSFLHMTYAHGINATLSSDMIDGCLQEGAAWTTDLSNMGRGVPDMCALVDLPNRISYIKLGDTTSTCCVLSRIYGDSHFFTVPDEGFMCTQIPARAFFDDVWMGREESYTIITVDSTGMAIYRQGNISFIFDPHGHGTIGQAVVVRVNTTDVYSYIASEYTHRPDNVESQWAAALVFFVTANDGPVSEEALSSAVTLIYGSCDTYFTDEQYCEKLVTAQHPLLLSPPNSTTIVLNKSSIVPLHQNVGESVSLEATLHSTLTNTVALDPRCSYSEVDPWHAVLETTSTGSGVLDCRRRRRPSWTPPSSEENLACIDDGLVNNTHSTDNLHKPAKKVLKFKPTVDVPDKTQVAHVLPRLREVANTPDVVLNVSNVDTPESSPTFSRNMNVGSSLKDRKPFLFEQSGDVNMVVEKLLQHGHEISNGYVQNAVGTLDTVITGHTNVPIWVTRPLVMPDEKDPLELFINLTILRLTGFVVENGTRTHHGATSVVSDFIGPLGEILTGFPSAAELIRVTSLILTNMPGAEYAIKTVLRKKCTIGMLIIAKFGLVAMRVQDTTGALHAELDVLEADLGGSSPIDLYSRLSTGLISILNSPIISHPGLFAELIPTRTGSLSERIRLLCELVSARETRYMREHTALVSSVKALENALRSTRNKIDAIQIPEVPQEPPEETDIPPEELIRRVYEIRSEVTMLLTSAVTEYFTRGVLYSTRALIAEQSPRRFRVATASTAPIQRLLDSLPEFDAKLTAIISSLSIHPPPETIQNLPVVSLLKELIKEGEDLNTDTALVSWLSVVGEAQTAGYLSRREFDELSRTIKTINTRATQRASAEAELSCFNTLSAAVDQAVKDYETYNNGEVKYPEITRDDLLATIVRATDDLVRQIKILSDPMIQSGLQPSIKRRLETRLKEVQTYANEARTTQDTIKSRKQAAYNKLGGLLRPVTGFVGLRAAVDLLPELASELDVQGALVNLRTKVLEAPVEIRSQLTGDFWALFNQYRDILEHPGNARTSVLGGLGACFTAIIEIVPIPTEYRPSLLAFFGDVADVLASDIATVSTNPESESAINAVVATLSKATLVSSTVPALSFVLSLYKKYQALQQEITNTHKLTELQKQLGDDFSTLAVSSGHLKFISSSNVDDYEINDAILSIQTNVHALMDTVKLVEVELQKLPPHCIAGTSTLSRVVKDLHKLVTMAHEKKEQAKVLITDCERAHKQQTTRVLYERWTRDIIACLEAMETRHVFNGTELARLRDMAAAGGFDIHAVYPQARQVVAACETTAVTALDTVFRHNPHTPENTNIPPPLALLRGLTWFDDFSITAPVFTVMFPGVSIEGLLLLMRIRAVVLLSADTSINGIPNYRDMILRTSGDLLQIPALAGYVDFYTRSYDQFITESVTLSELRADIRQAAGAKLTEANKALEEVTHVRAHETAKLALKEGVFITLPSEGLLIRAIEYFTTFDHKRFIGTAYERVLQTMVDRDLKEANAELAQFRMVCQATKNRAIQILQNIVDTANATEQQEDVDFTNLKTLLKLTPPPKTIALAIDRSTSVQDIVTQFALLLGRLEEETGTLDIQAVDWMYQARNIIDSHPLSVRIDGTGPLHTYKDRVDKLYALRTKLDLLRRRIETGEVTWDDAWTTFKRETGDMLASGDTYATSVDSIKALQASASVVDMLCSEPEFFLLPVETKNRLQKKQQERKTALDVVLQKQRQFEETASRLRALIERIPTESDHDVLRMLLHDFDQFTHLPIWIKTQYMTFRNLLMVRLGLYASYAEIFPPASPNGVFAPIPAMSGVCLEDQSRCIRARVAAFMGEASVVQTFREARSSIDALFGKNLTFYLDTDGVPLRYRVCYKSVGVKLGTMLCSQGGLSLRPALPDEGIVEETTLSALRVANEVNELRIEYESAIKSGFSAFSTFVRHRHAEWGKTNARRAIAEIYAGLITTTLTRQYGVHWDKLIYSFEKHHLTSVMGNGLTKPIQRRGDVRVLELTLSDIVTILVATTPVHLLNFARLDLIKQHEYMARTLRPVIEAAFRGRLLVRSLDGDPKGNARAFFNAAPSKHKLPLALGSNQDPTGGRIFAFRMADWKLVKMPQKITDPFAPWQLSPPPGVKANVDAVTRIMATDRLATITVLGRMCLPPISLVSMWNTLQPEEFAYRTQDDVDIIVDARLDLSSTLNARFDTAPSNTTLEWNTDRKVITDAYIQTGATTVFTVTGAAPTHVSNVTAFDIATTAILFGAPLVIAMELTSVFSQNSGLTLGLKLFDSRHMATDSGISSAVSPDIVSWGLRLLHMDPHPIENACLIVQLEKLSALIANKPLTNNPPCLLLLDEHMNPSYVLWERKDSIPAPDYVVFWGPESLIDLPYIDSDEDSFPSCPDDPFYSQIIAGYAPQGPPNLDTTDFYPTEPLFKSPVQVVRSSKCKKMPVQPVQPAQPVQPAQPAQPVQPAQPIEPGTQIVVQNFKKPQSVKTTLSQKDIPLYVETESETAVLIPKQLTTSIKTTVCKSITPPNNQLSDWKNNPQQNQTLNQAFNKPILEITSIPTDDSISYRTWIEKSNQTQKRHQNDPRMYNSKTVFHPVNNQLPSWVDTAADAPQTDLLTNYKTRQPSPNFPRDVHTWGVSSNPFNSPNRDLYESDFSEPSDGYSSESENSIVLSLDEHRSCRVPRHVRVVNADVVTGRRYVRGTALGALALLSQACRRMIDNVRYTRKLLMDHTEDIFQGLGYVKLLLDGTYI

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	8.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	3804

fit	/app/data/saxs_computation/no/9no1/9no1.fit
pddf	/app/data/pr_computation/no/9no1/9no1.pr.out
profile	/app/data/saxs_computation/no/9no1/9no1.dat

Cryo-ET map of the VZV capsid vertex (5-fold axis).

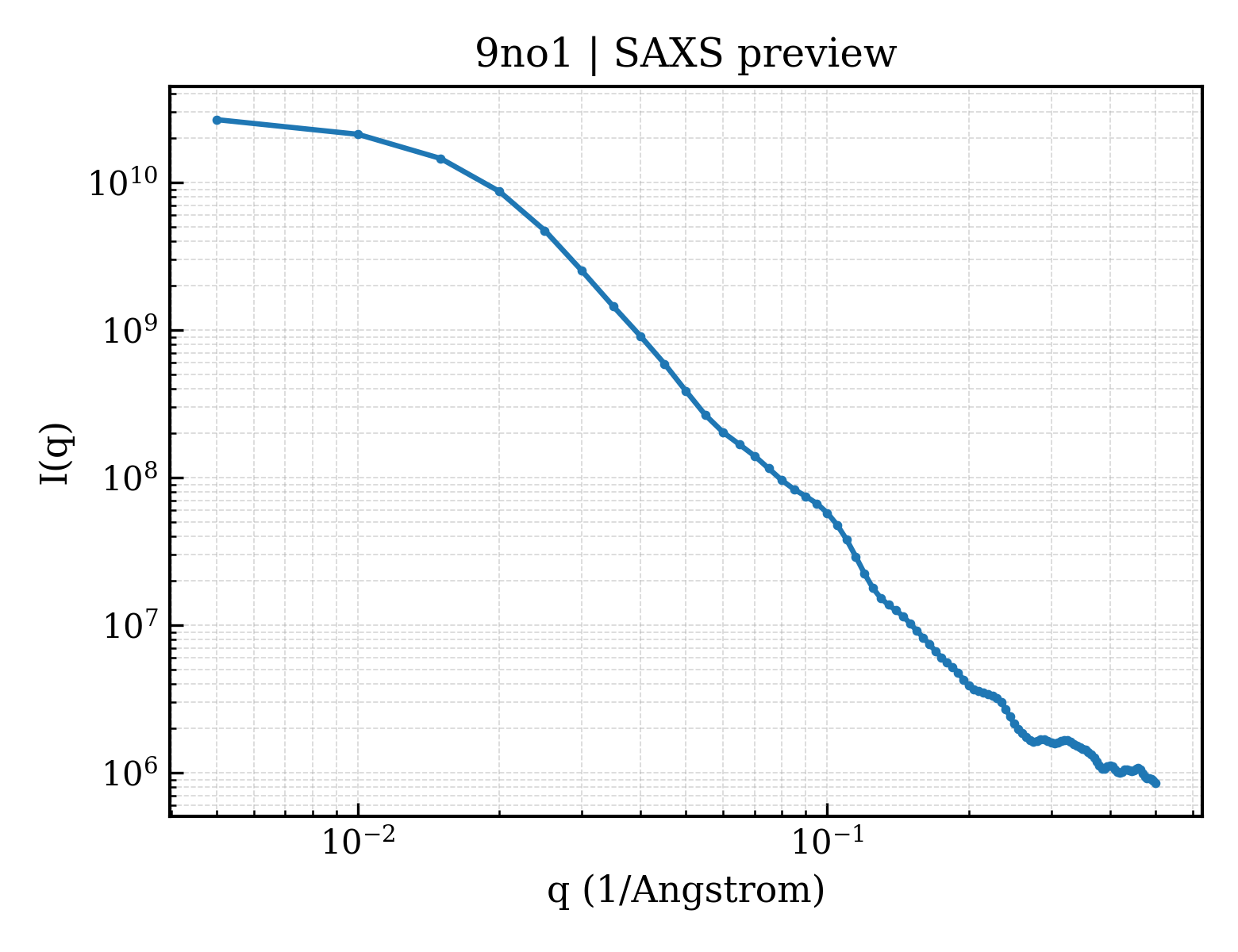

SAXS 散射曲线 SAXS Profile

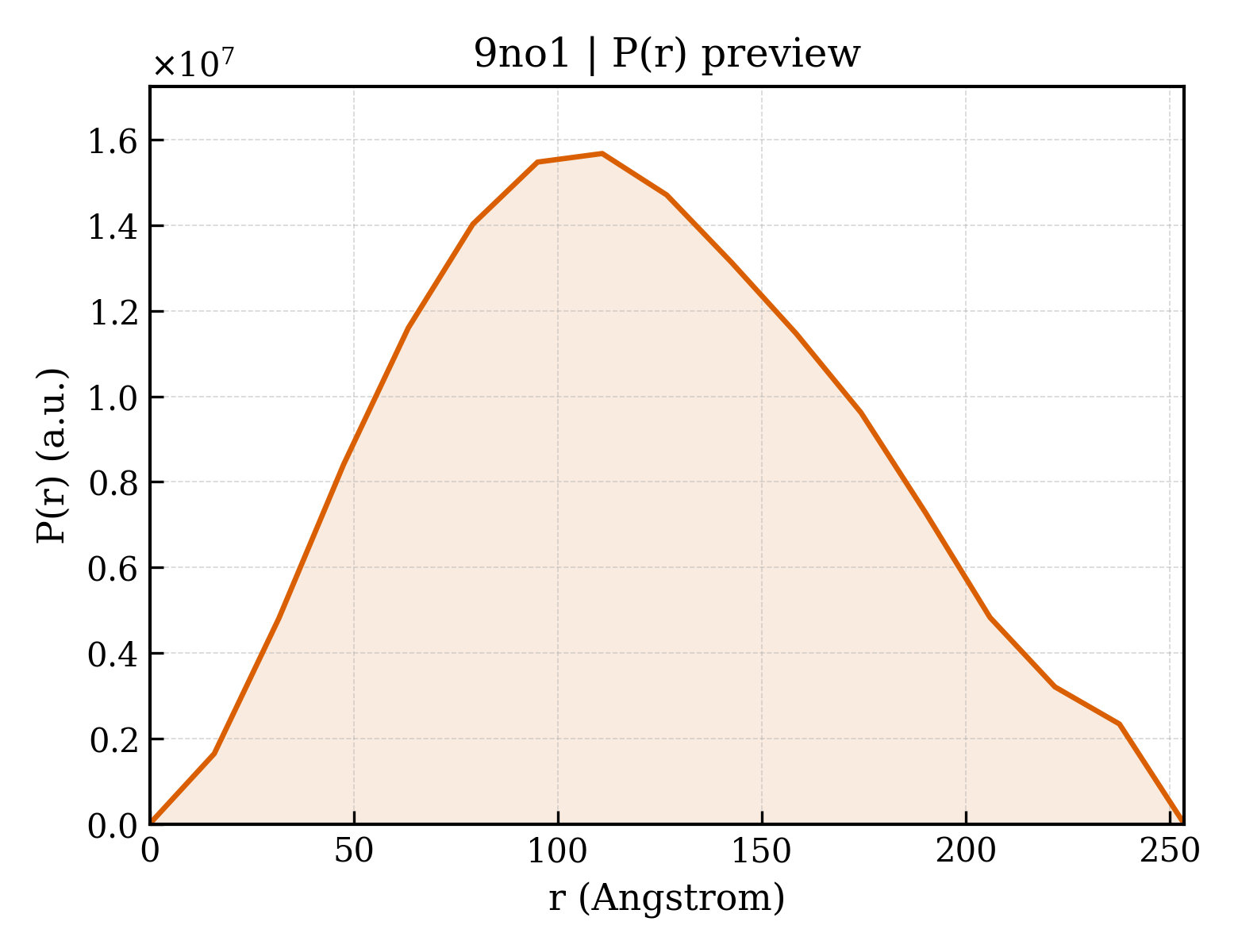

P(r) 距离分布 P(r) Distribution
