9npc

;Crystal structure of the inactive conformation of a glycoside hydrolase (CapGH2b) from the GH2 family in the space group I212121 at 2.65 A ;

Method: X-RAY DIFFRACTION D_max: 126.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

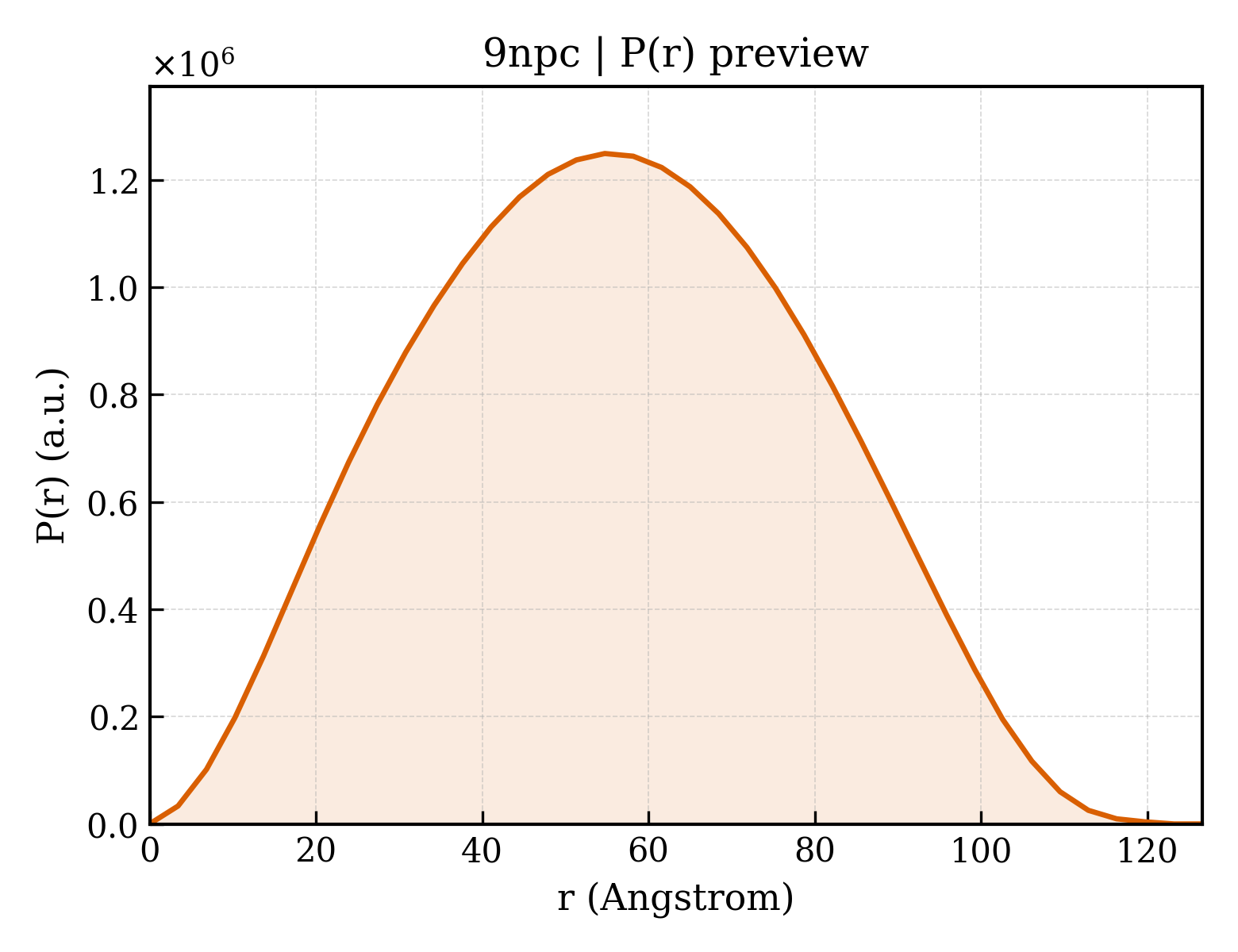

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9npc
沉积日期 deposition_date	2025-03-11
结构标题 title	;Crystal structure of the inactive conformation of a glycoside hydrolase (CapGH2b) from the GH2 family in the space group I212121 at 2.65 A ;
关键词 keywords	Redox-regulation, glycosyl hydrolase, mannosidase, redox-switch, metagenome, disulfide bond, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.96 Å
回转半径 Rg (电子) rg_electron	42.57 Å
零角强度 I(0) i0	1008620000.00
分子量 molecular_weight	257590.0 kDa
排除体积 excluded_volume	318600 Å³
包络体积 envelope_volume	407870 Å³
水化壳体积 shell_volume	76491 Å³
包络直径 envelope_diameter	128.7 Å
壳层 Rg shell_rg	50.62 Å
包络 Rg envelope_rg	41.93 Å
形状 Rg shape_rg	42.54 Å
总 Rg total_rg	43.01 Å
总原子数 total_atoms	17928
残基数 n_residues	2144
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	126.6 Å
Rg (实空间) rg_real	42.73 Å
Rg 误差 (实空间) rg_real_error	0.75 Å
I(0) (实空间) i0_real	1.0090e+09
I(0) 误差 (实空间) i0_real_error	1.6810e+07
Rg (倒空间) rg_reciprocal	42.96 Å
I(0) (倒空间) i0_reciprocal	1009000000.0000
解质量估计 total_estimate	0.8895
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	54.7 Å
偏度 Skewness skewness	0.053
峰度 Kurtosis kurtosis	-0.684
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	91800000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.986; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.614

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Glycoside hydrolase family 2
分子量 formula_weight	91895.2 kDa
EC 编号 ec_number	3.2.1.25
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	18386

MGSSHHHHHHSSGLVPRGSHMFVSEQSLNGRWTLKFFPQPAVPVMTIEGAEAANGIVVDAVVPGNVEIDMEAAGLVEDPMVGNNIYKLRPYEGYQWYYSRTFAAPVVTEGQRLVLHFGGIDTFAEVYVNGIKVGSADNMLIEHDYDITSVVKEGENRLDVIIRSSVMEAQNHFLGTLSIGNFSNEESAPVRRAPSTYGWDIMPRLVSAGLWRDVTLRVENPVTIVDANWVTLSVNPKAREASESLYLQTRLPFEMHDKVKAVITISRDGRQILRKEALMRKFANLFTLNLSGVDAWWPRGYGEPALYTAEVSLVDVTSGKIYDTKTSKIGFRTVKLELDEVNLPGQPGQFQFIINGEPVFAKGTNWVPLDALHSRDASHVEEAVQLMVEMNCNIVRCWGGNVYEDTHFFELCDKYGIMVWQDFAMGCGNYSQRDNFAAALEKEAISVVVKLRNHPSLILWSGNNEDDQSLVFGRLAPFKANPNNDRVSRQVLSRVIYEFDPTRPYLPSSPYYGPKVCEVGVRDEVLPENHLWGPRGYYKDPFYTENPSQFVSEIGYHGCPNRETLERMFSPDSVNPWQNGVVGMWNDEWQTKANRIYDDKFQGGRNDLMTNQVRIIFGEVPADLDDFIFASQSVQAEAMKFFVELWRGRRPYRTGIIWWNIRDGWPLLSDAISDYWGGKKQAFYYMQNVHHDVCCLINPAANGYMLKVDNNTLKDFEGVVEVKDVASGKQVFKGKFVSKANQMSEIATLPMQKGQGMLVISYRIEGNEYFNHYLYGEPPYKLDQYRKWVKKCGIYELE

来源 Source

来源生物 organism	metagenome
NCBI 分类编号 ncbi_taxonomy_id	256318
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	11

Entity 3 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 4 non-polymer

描述 description	TETRAETHYLENE GLYCOL
分子量 formula_weight	194.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	434

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	191.853 Å
晶胞边长 b length_b	192.001 Å
晶胞边长 c length_c	191.921 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	I 21 21 21
空间群编号 int_tables_number	24
晶系 crystal_system	—

分辨率 resolution	2.650 Å
最低分辨率 resolution_low	45.250 Å
R 因子 r_factor	0.2041
R_work r_work	0.2026
R_free r_free	0.2329
